Double Exposure Pagoda Beauty - HueForge 2 Color

Apparently MW are trying to be “clever” yet again.  This design failed to upload initially because it contained “sensitive information” - this information turned out to be the brand names of the filaments required which in the case of HueForges especially is vital information.  This isn't the first time they've done this, there's a brand of filament that contains the name of a well known brick manufacturer from Denmark in the middle of it that was banned for a very long time.  It now looks like anything that isn't Bambu is also banned.  This is obviously an automated system, and I have got around this by splitting the brand names - it looks daft, but at least the information is still there.

It can be difficult to get a HueForge right with a limited colour palette, but I'm challenging myself to design HueForges that look great, using subjects I enjoy, utilising as few colours as possible along with keeping printing and slicing time to a minimum.  It's not always possible, and It's not easy to achieve when it is possible, but it is rewarding when you finally get it right.  I also find that using fewer colours results in a far crisper and cleaner design.

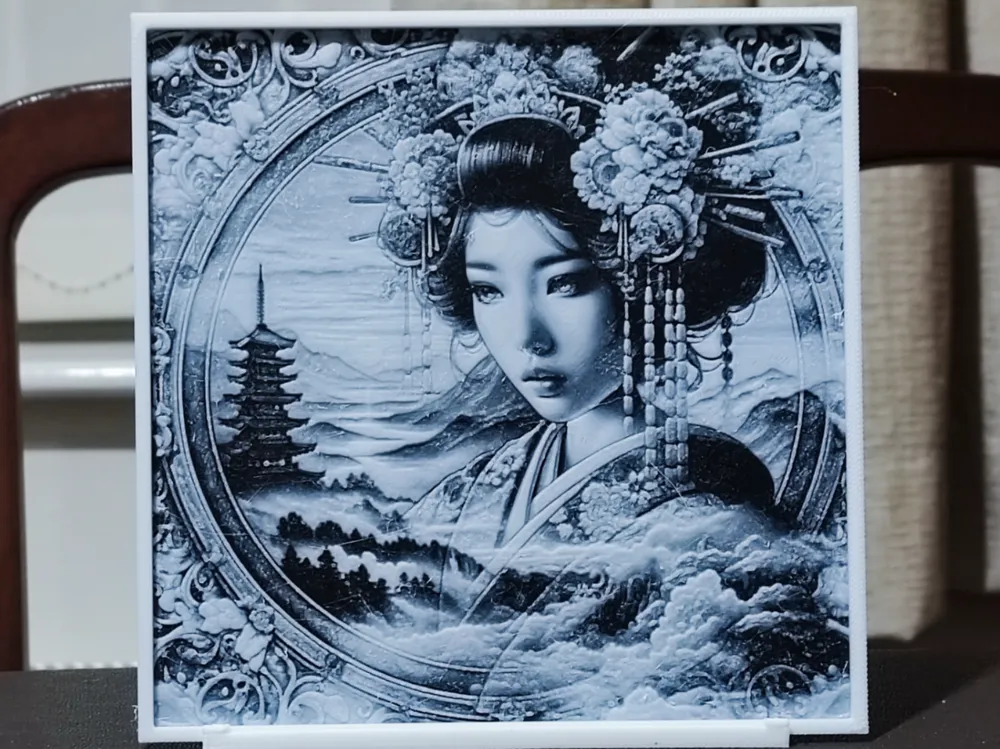

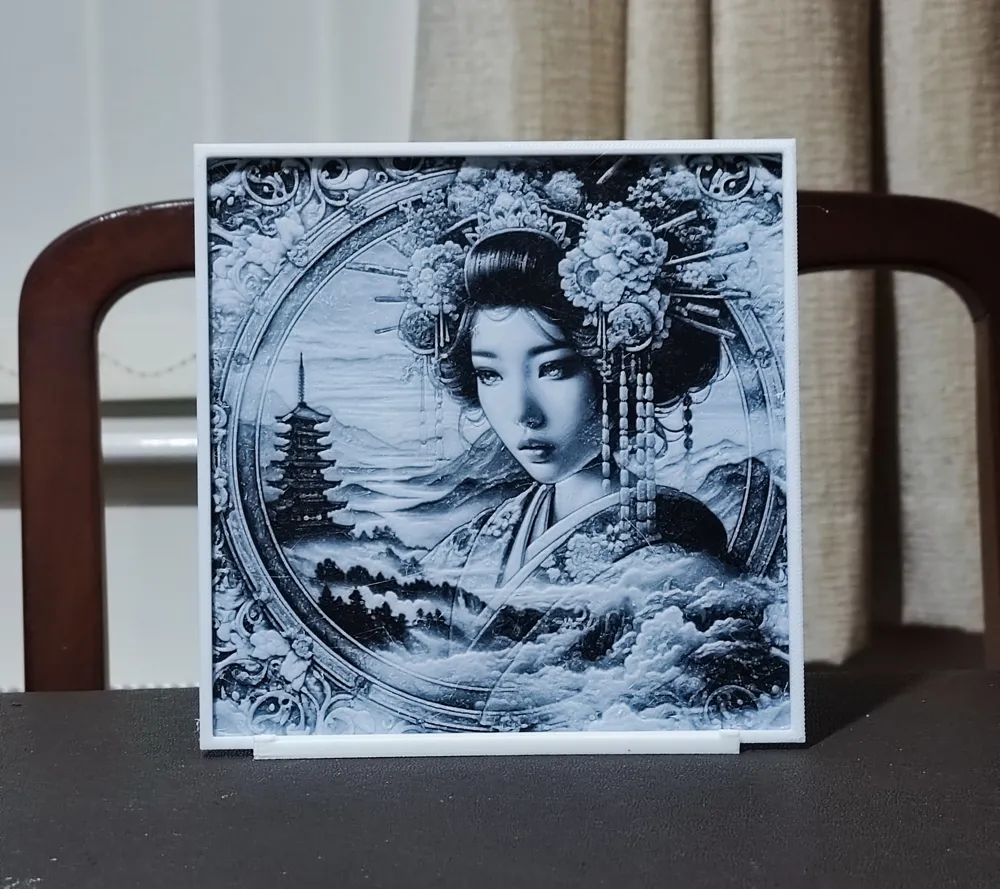

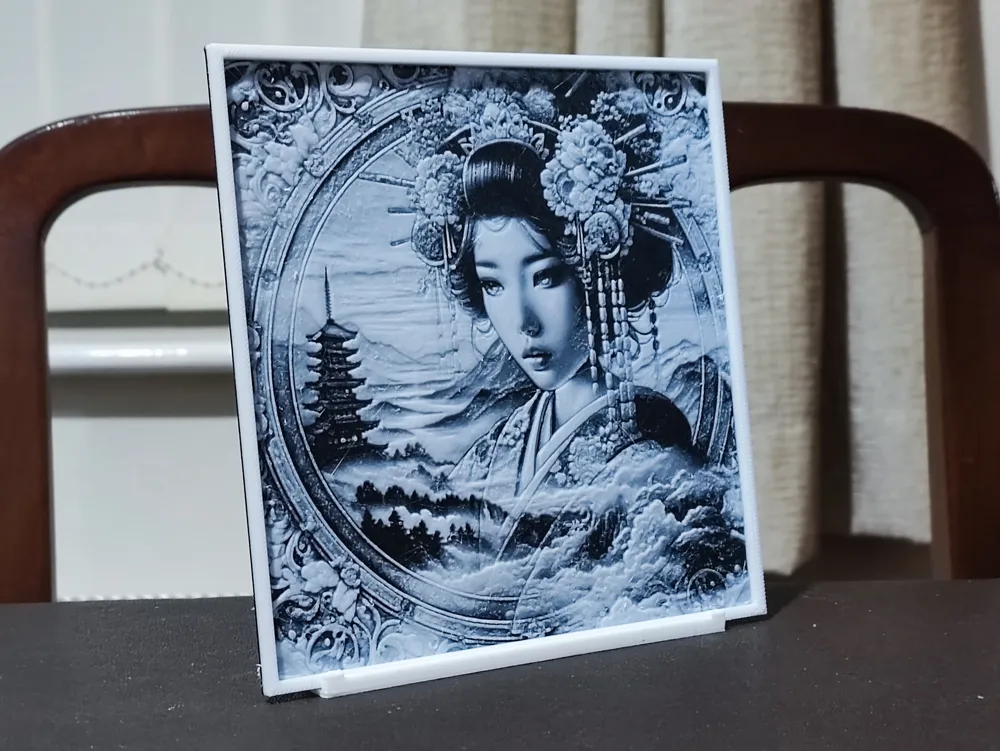

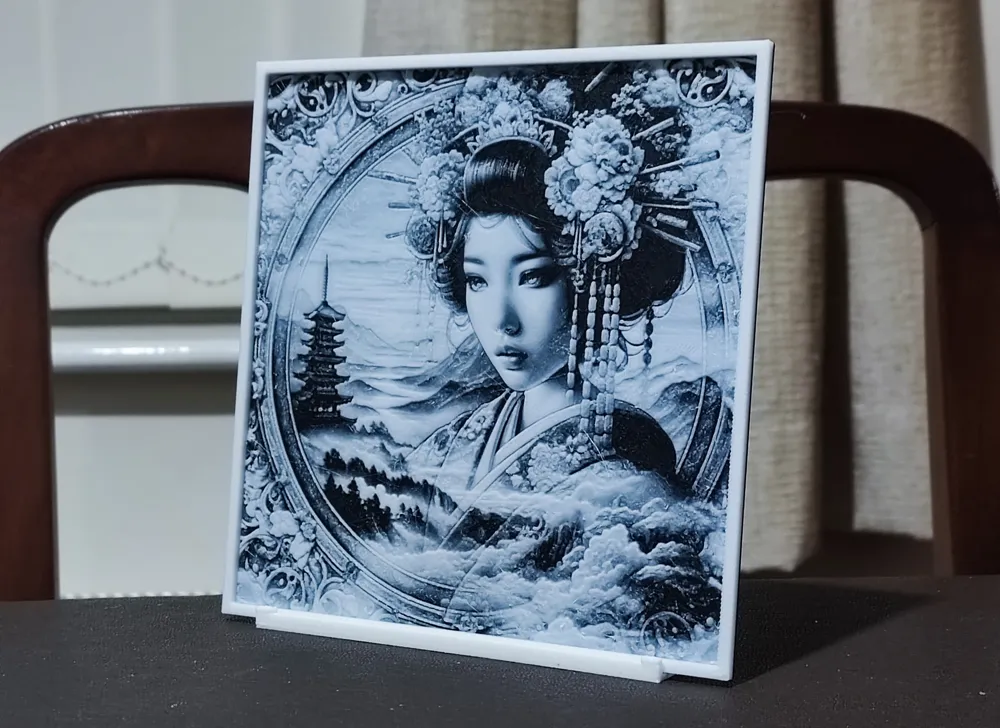

One thing that really annoys me when I'm looking for HueForges to print are people who use a source image to promote their HueForge - it never looks anything like the end result.  I always provide only photographs of the actual printed design so you know what to expect.

Very few people seem to leave reviews or comments on designs, and it's incredibly important to designers so they know if they're getting things right.  So, please leave a comment or review.  I like to learn, so constructive criticism, suggestions for future designs and your genuine feedback are always welcome.

All the settings and colour changes are in the print profile, but should you not have an AMS, after slicing, replace the colour changes with pauses and make manual colour swaps as detailed below.  I'd strongly suggest not changing any other settings in the slicer, as my printing profiles are highly customised to produce the best quality HueForge.

If you decide to resize any of my designs, you can only resize on the X & Y axes.  DO NOT RESIZE THE Z AXIS!  If you choose to ignore this instruction, it will change the layer heights that the colours change at and destroy the end result.

I have implemented a layer height modifier.  This will only work if you use my print profile!  This one change knocks a considerable amount off the printing time by changing the layer height of the border only.  It has no detrimental result to the finish of the design whatsoever.

One final thing - please don't turn ironing on for the top surface.  This shouldn't need to be said, but HueForges rely on texture and interplay with light.  Ironing will reduce the quality of the image.  It's turned off in my print profile for this exact reason.

If you're looking for a stand to display your HueForges, I can highly recommend this one:-
https://makerworld.com/en/models/1474353-hueforge-stand-hex-or-plain#profileId-1538584

Once again I feel compelled to post this warning:  This design requires the use of Sun lu Meta White.  This white has a higher than usual TD (i.e. it's more transparent).  Should you decide to use a white that has a lower TD, be aware that you will lose detail and the print will appear too bright and oversaturated.

Print at 100% infill with a layer height of 0.04mm with a base layer of 0.24mm

The Model is 150x150mm in size
You may print at higher layer heights below the Min Depth of 0.48mm
The Max Depth is 2.2mm and the Actual Depth is 1.5mm

Filaments Used:
    PLA Deep lee Black Transmission Distance: 0.8
    PLA Sun lu Meta White Transmission Distance: 7.6
This print uses 2 unique filaments

Swap Instructions:
    Start with Black
    At layer #11 (0.64mm) swap to White for the rest.
