Dimensional Calibration Plate
Print Profile(0)
Description
Dimensional Calibration Plate for 3D Printers
This calibration plate was specially developed to precisely check and optimally adjust the dimensional accuracy of 3D printers and filaments.
Functionality

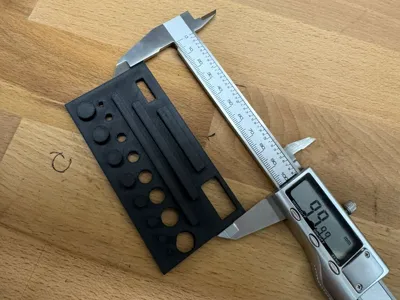

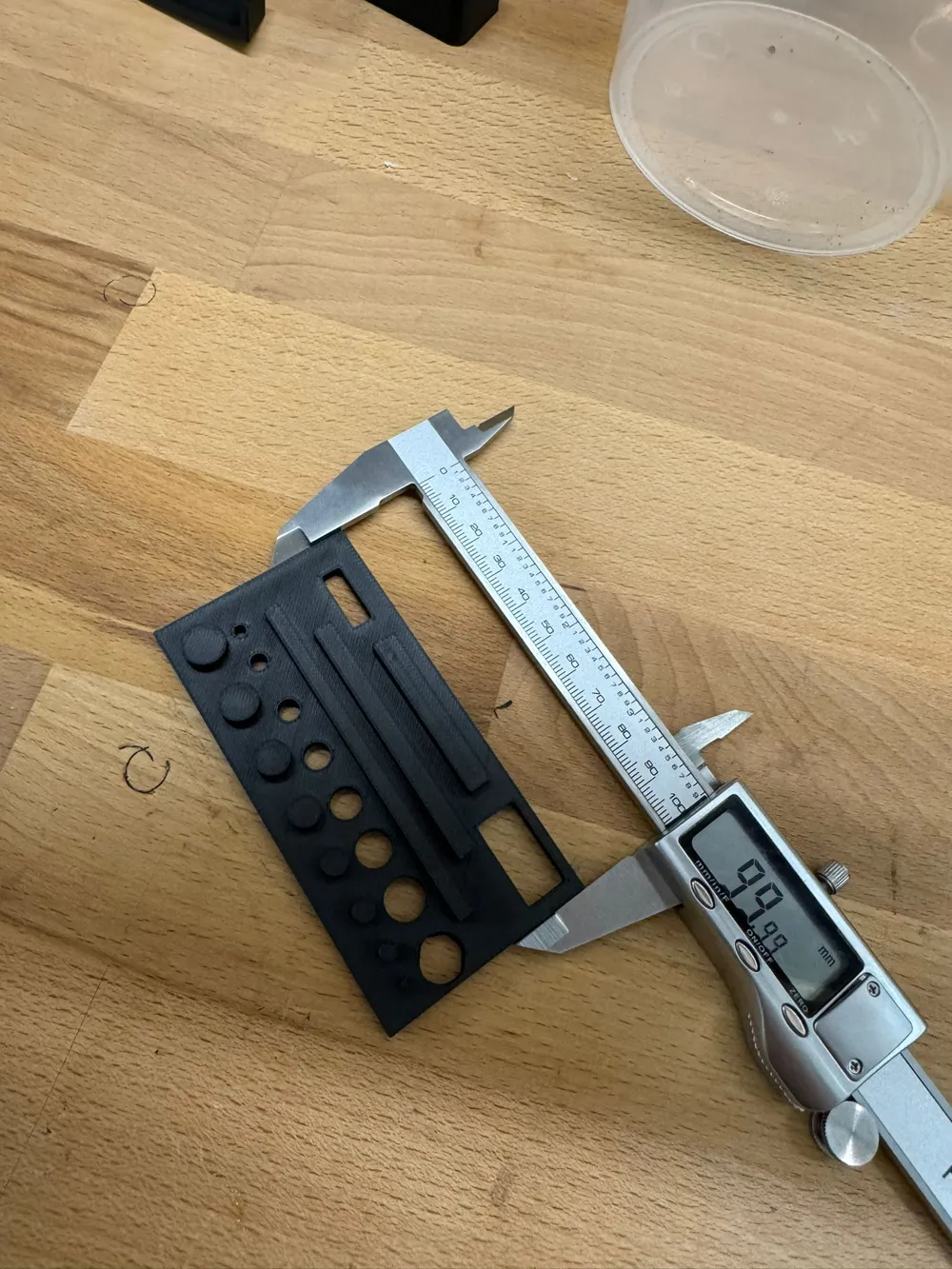

- Shrinkage Determination: The outer edge is exactly 100 × 50 mm. If the printed part deviates, e.g., to 98 mm, this corresponds to a shrinkage factor of 98 % – ideal for correction with materials such as ABS.
- Plate Structure:
- Base plate: 4 mm thick
- Raised features: also 4 mm high
- Total thickness: 8 mm
- Diverse Test Geometries:
- Bores with diameters: Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm
- Cylinders in the same sizes for testing fits
- Rectangular Cutouts: 20 × 10 mm and 15 × 5 mm
- Raised Features: 6 × 40 mm, 5 × 60 mm and 4 × 80 mm – ideal for checking layer structure and dimensional accuracy in Z-direction
- All geometries are whole numbers (without decimal places) to make measurement as simple and precise as possible.
Advantages
✔ Quick detection of dimensional deviations
✔ Clear reference values for inner and outer diameters
✔ Checking dimensional accuracy in X-, Y-, and Z-directions
✔ Universally usable for all common filaments (PLA, PETG, ABS, ASA, PC etc.)
✔ Clear, simple geometries for reliable measurements

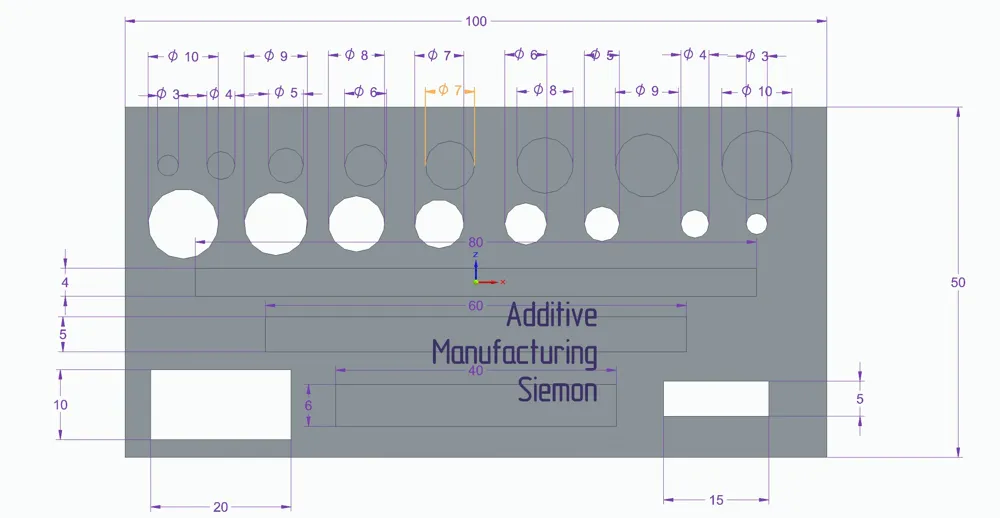

| Category | Dimensions / Diameters | Note |
|---|---|---|
| Base Area | 100 × 50 mm, 4 mm thick | Outer dimension for shrinkage determination |
| Total Thickness | 8 mm | 4 mm base plate + 4 mm raised features |
| Bores (Inner dimensions) | Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm | Checking inner dimensions |
| Cylinders (Outer dimensions) | Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm | Checking outer dimensions / fits |
| Rectangular Cutouts | 20 × 10 mm / 15 × 5 mm | Checking cutouts |
| Raised Features | 6 × 40 mm / 5 × 60 mm / 4 × 80 mm | Each 4 mm high, dimensional check in Z-direction |
