Type 055 Destroyer S-Class

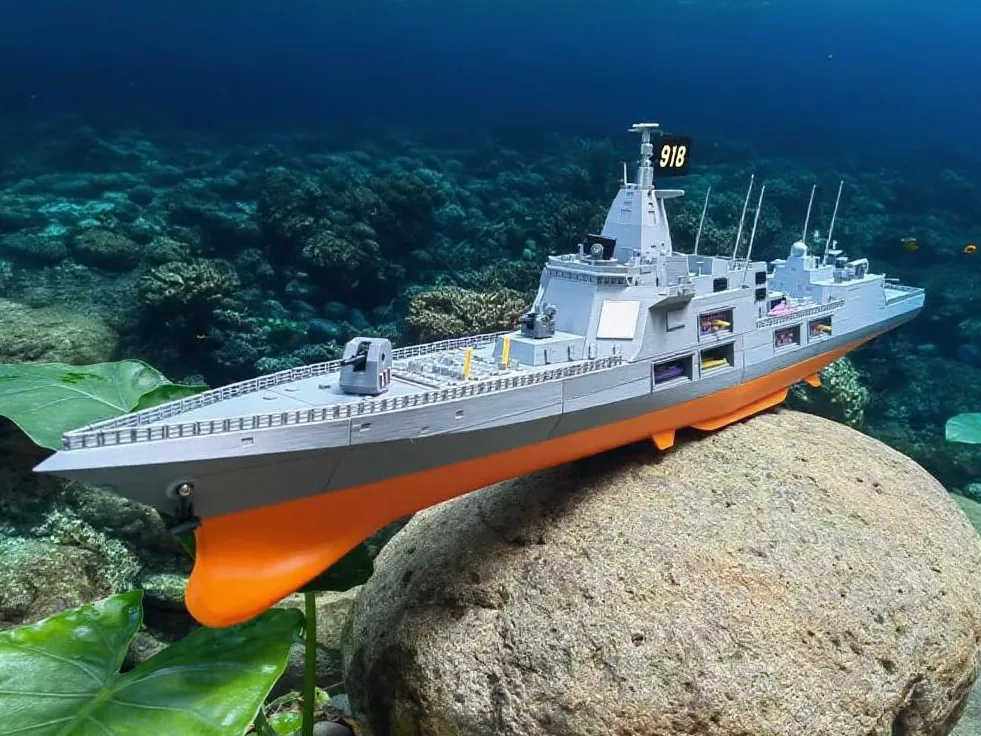

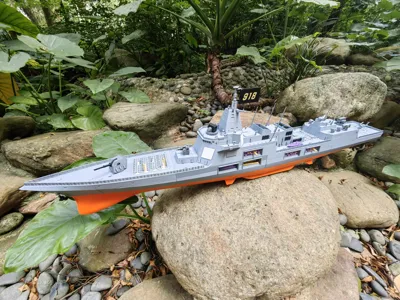

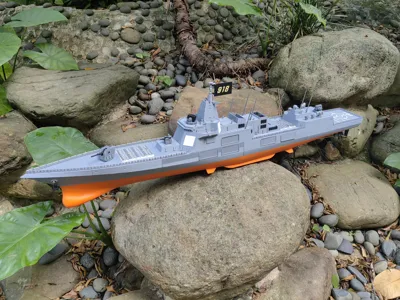

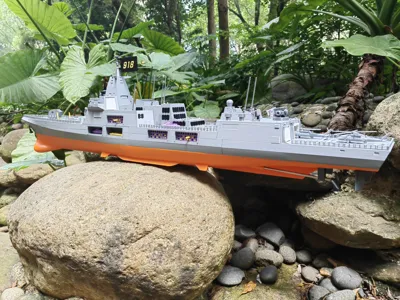

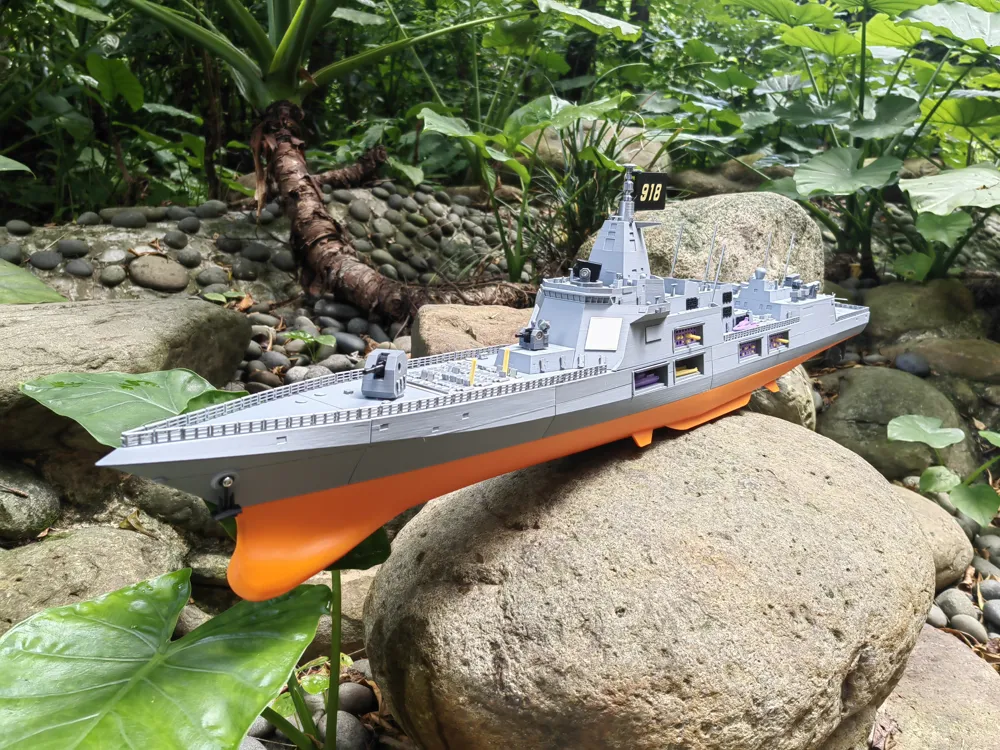

The model is 1 meter long, with a main body material consumption of 1528 grams, and takes 1 day and 11 hours. It will be released with about 10 print profiles, so please download them multiple times by name.

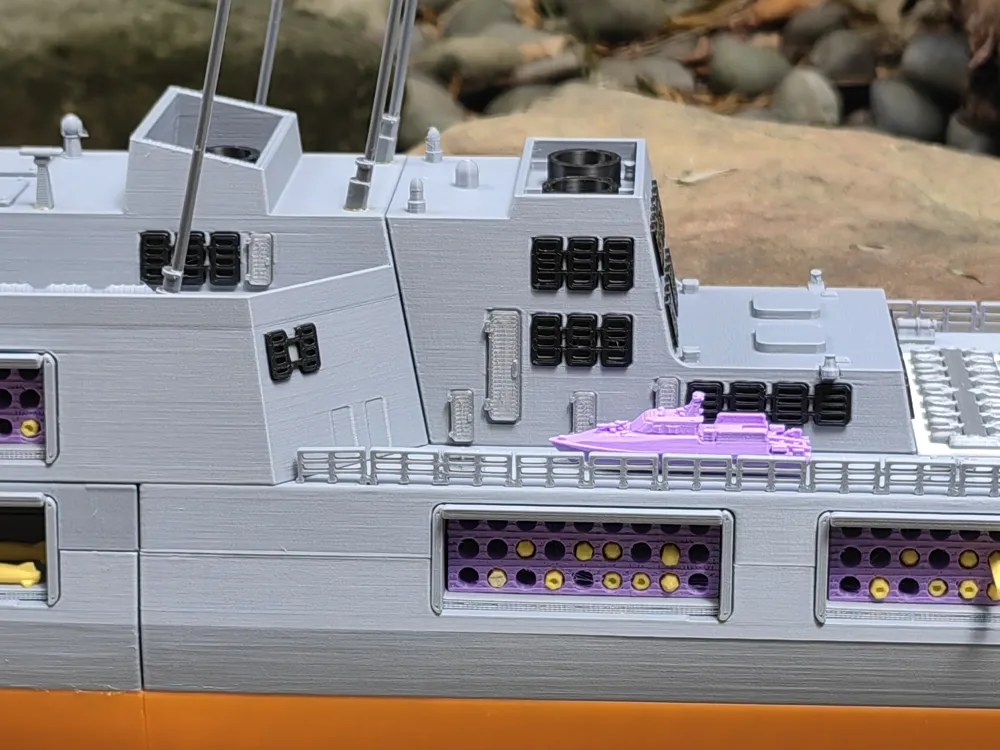

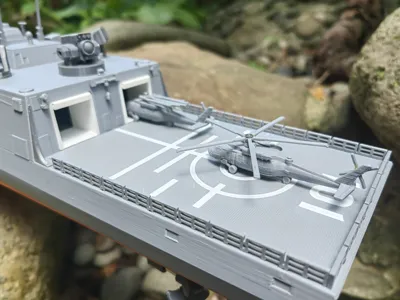

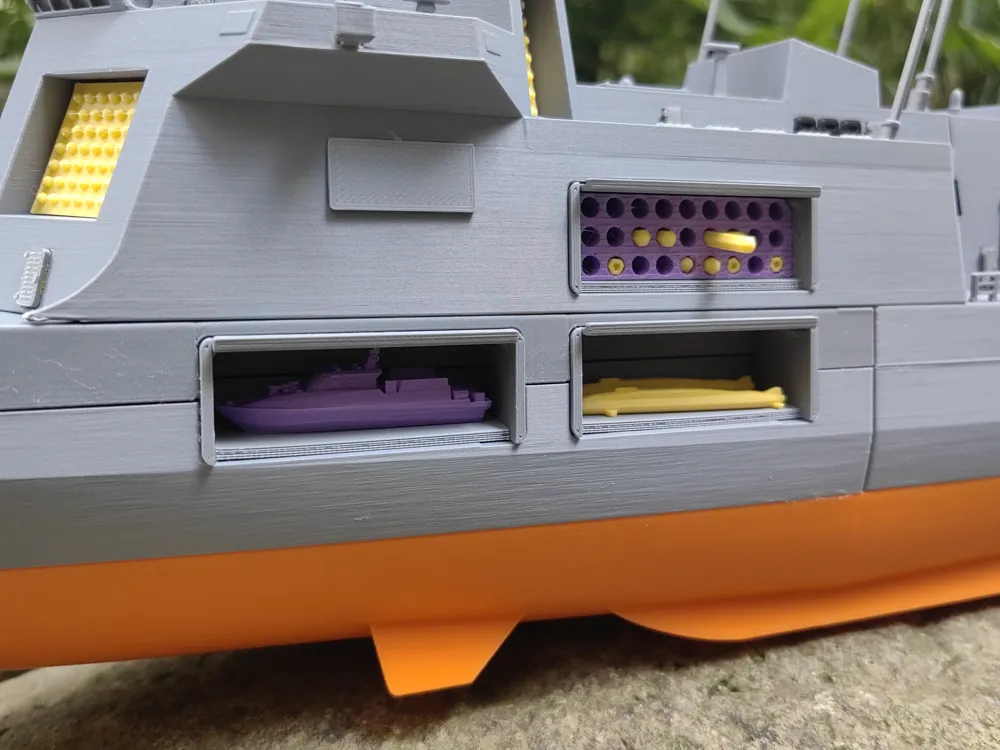

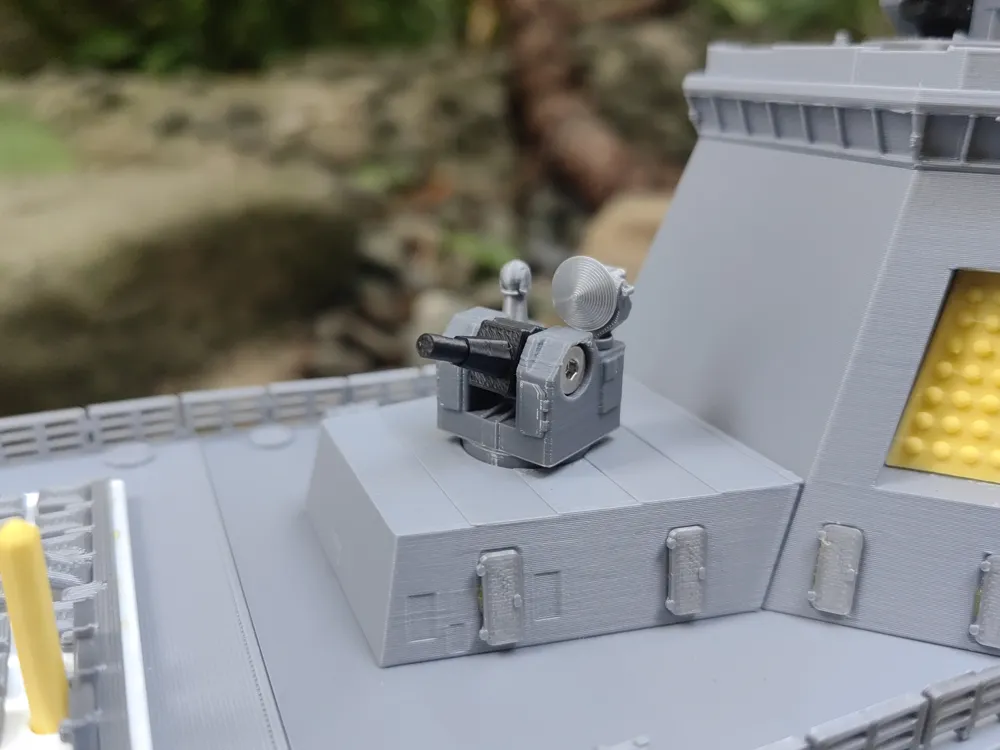

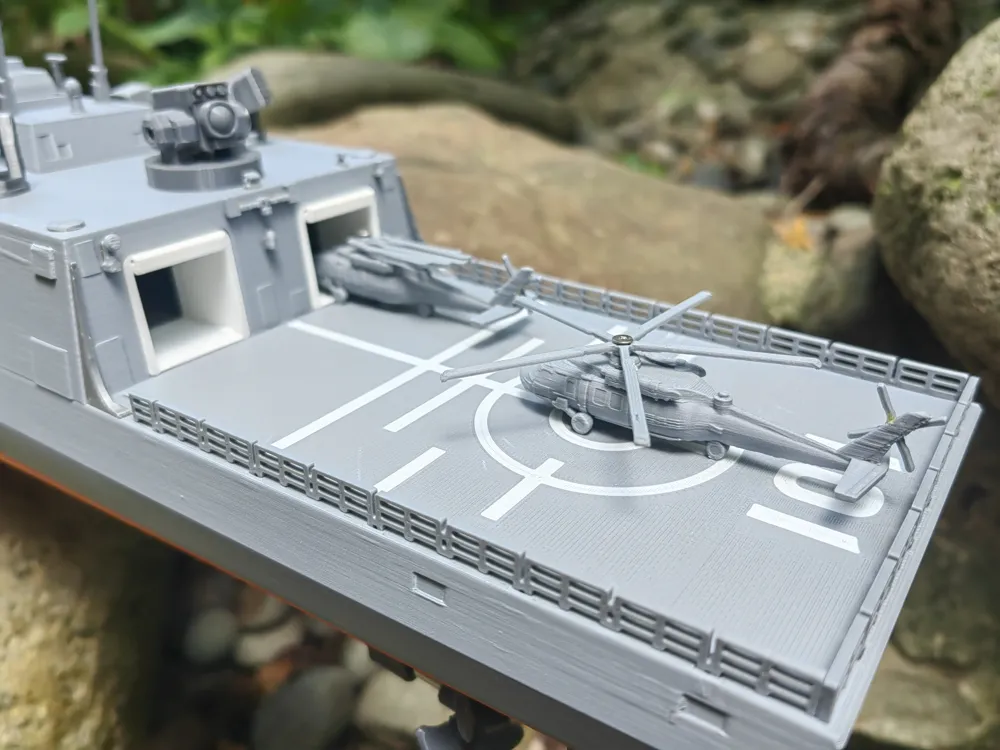

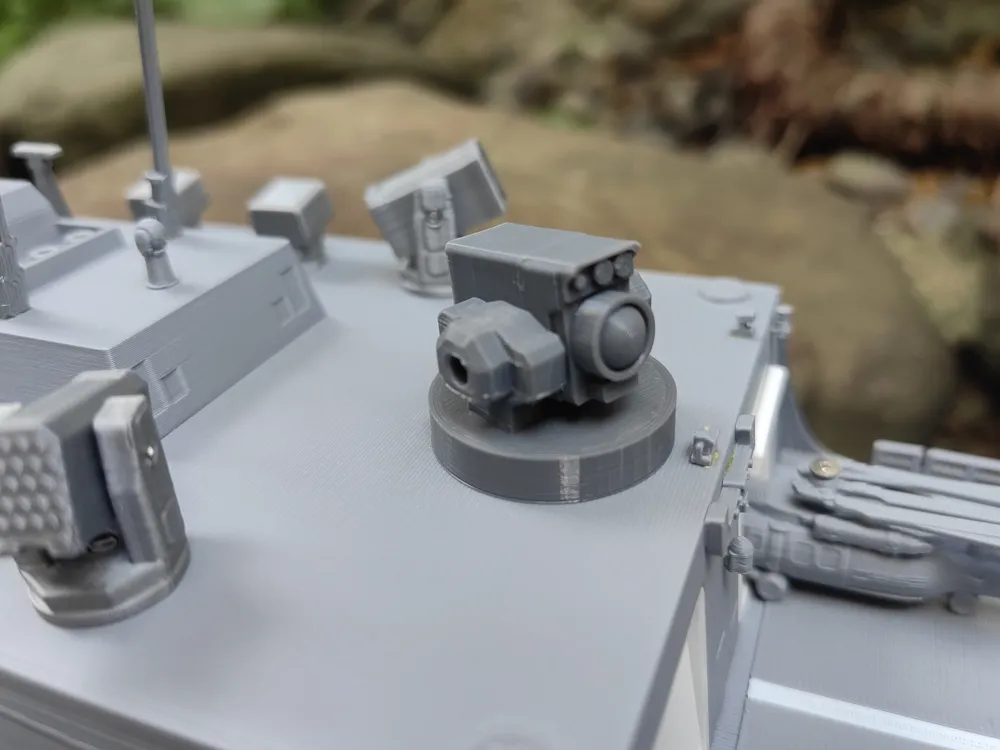

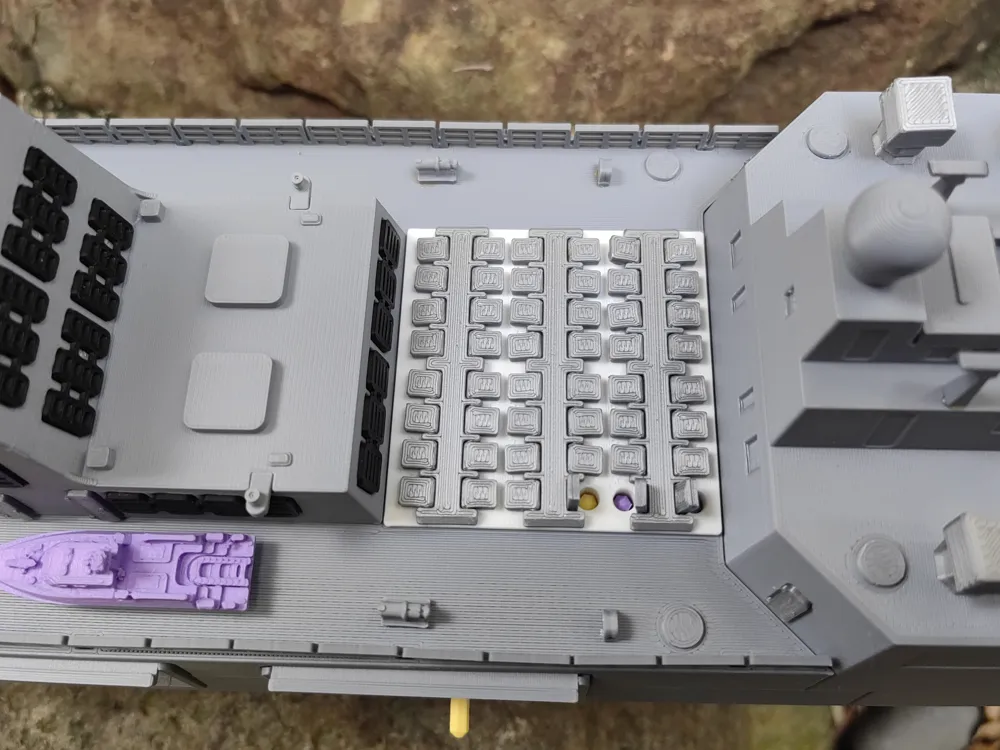

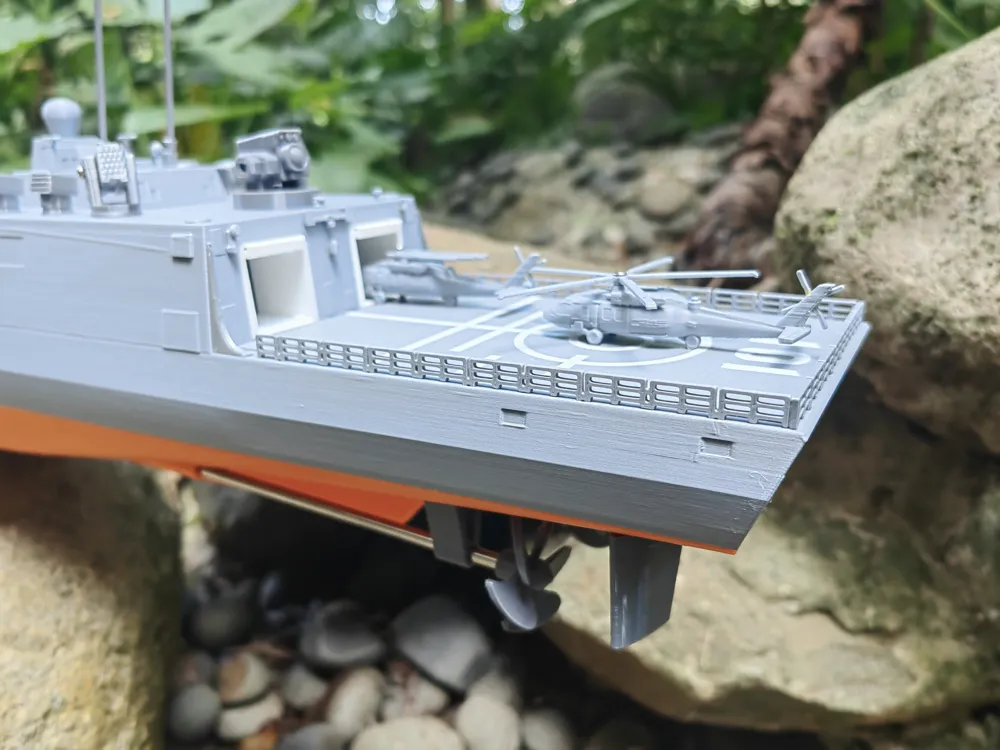

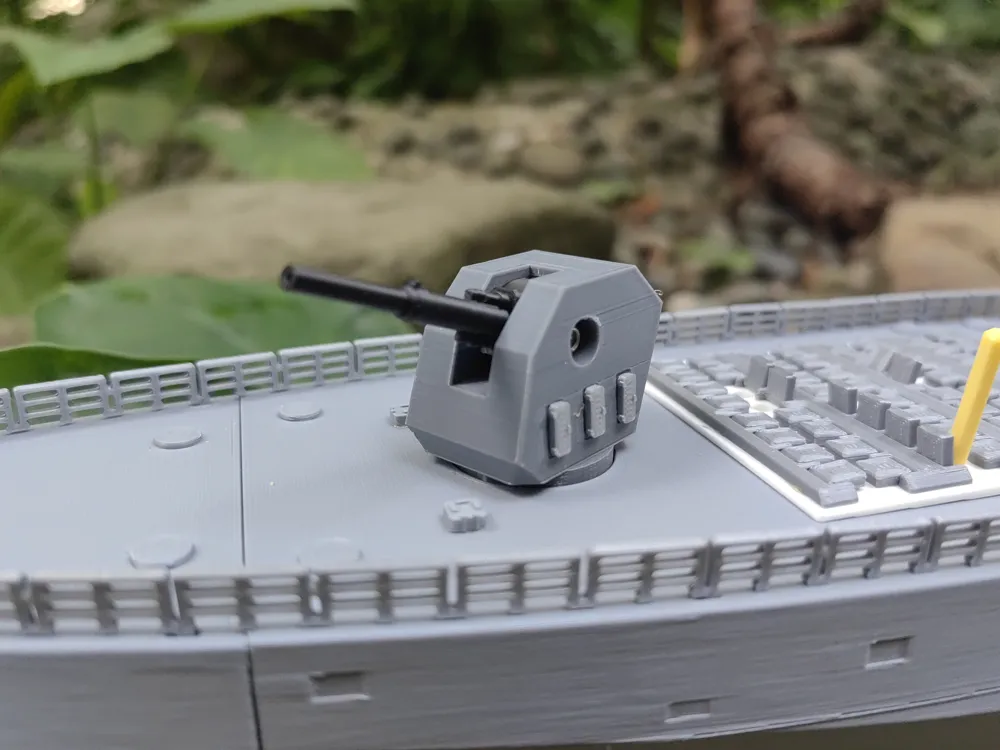

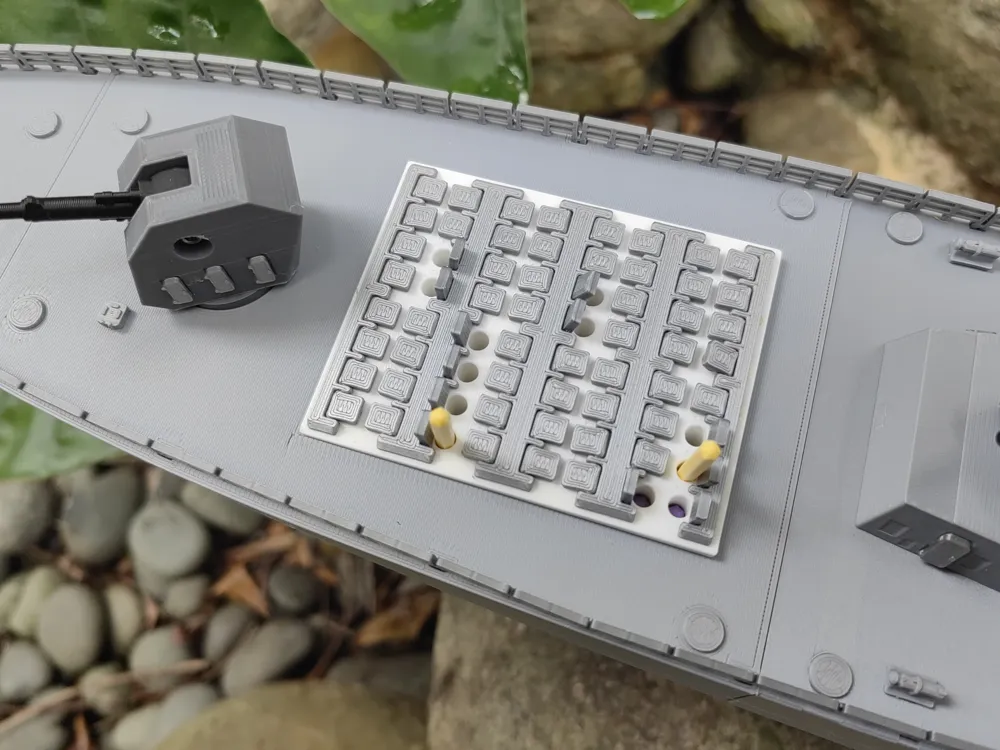

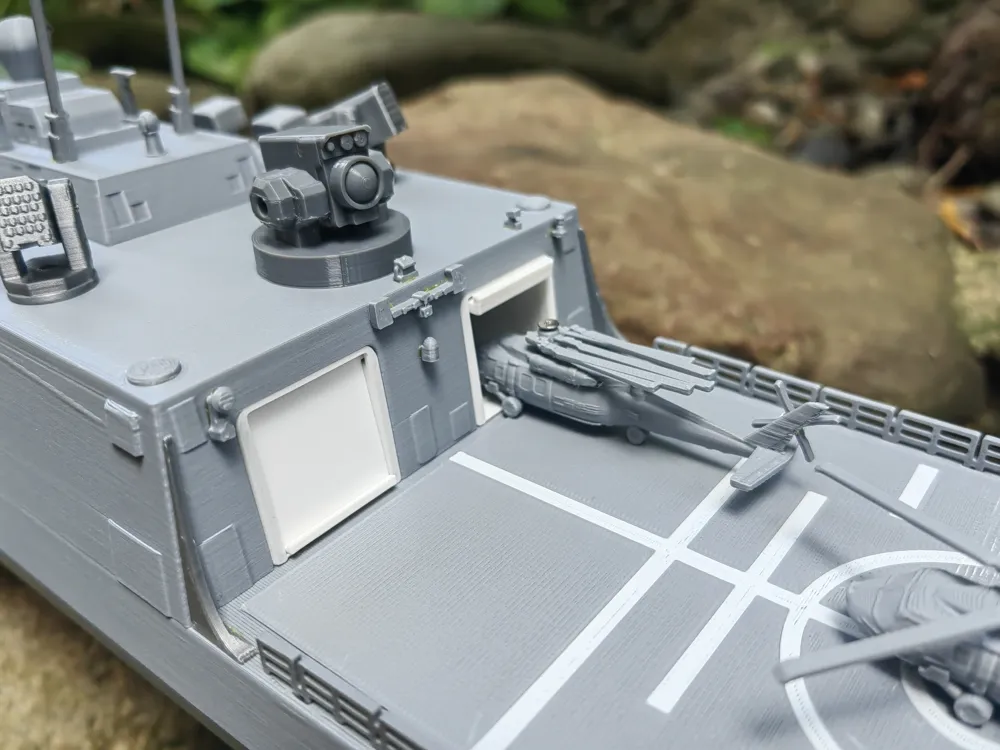

Each weapon system on the ship can rotate independently, 112 vertical launch cells can be opened individually to load 112 missiles. It is equipped with two new laser weapons at the front and rear, and 8 multi-function expansion modules are added to the sides, which can accommodate missile launch systems, unmanned submarines, speedboats, drone swarm systems, etc. as needed. The side hatches and hangar doors use a push-pull rotating design, can be opened, and can store two Z-20 naval helicopters.

Assembly requires (accessories are not expensive, you can buy all of them for ten to twenty yuan, remember to buy those with free shipping, and you can buy more screws)

B-7000 glue (better than others, if glued incorrectly, it can be detached and re-glued)

I. Main body   requires (M3x10) 43, 200mm long 4mm diameter round tube x2

II. Weapon system   (M3x8) 10, (M3x16) 3, (M2x16) 2

Assembly is simple, follow the installation tutorial. Due to material shrinkage and printing accuracy, sand and apply glue if necessary, then press firmly.

Test 3D Printer, P1SC, low-temperature stabilized build plate, Bambu Lab PLA Basic, 0.2mm layer height, 2 walls
