HTD 3M Belt Lock – Fully 3D Printable
Print Profile(1)
Description

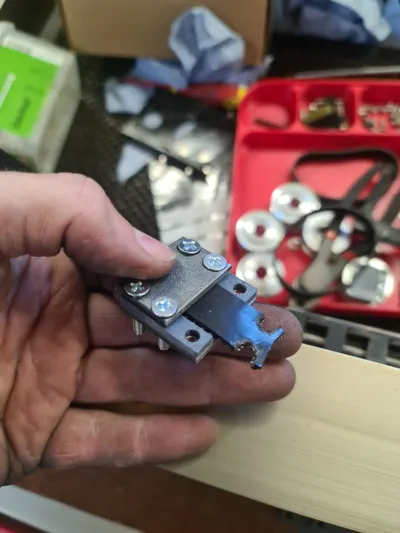

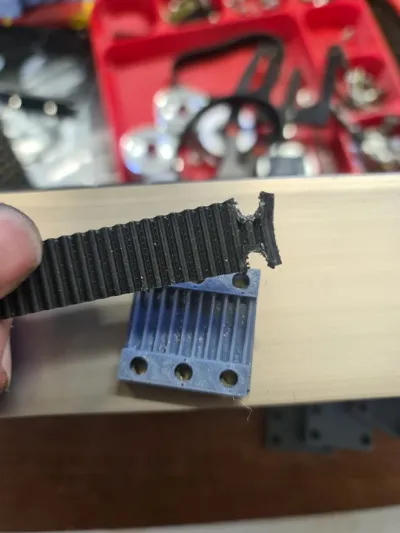

A practical and easy-to-print belt lock for HTD 3M belts. I tested it in PETG, but stronger materials (like nylon or fiber-reinforced filaments) are recommended if you want long-term durability.
This design includes multiple options:
- Standard lock for quick and simple use.
- Top and bottom plates for a 100% 3D-printed build.

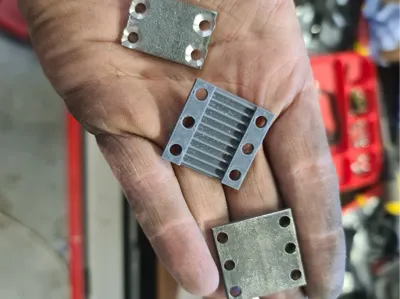

- For extra strength, I also made some plates in steel and aluminum.
- Small 3M groove inserts are included, which can be placed on each side of the belt to center 6 mm, 9 mm, or 12 mm wide belts.
Assembly notes:

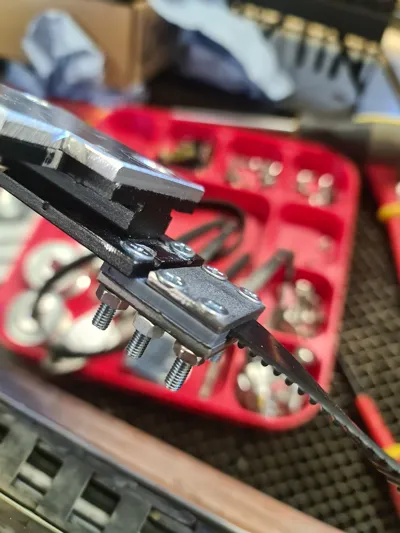

- Best results with through-bolts and lock nuts for maximum strength. (Then print 2 of the non-threaded plate)
- An alternative threaded under-plate is included if you prefer a fully printed solution.
This is intended as a practical solution for hobby projects and prototyping machines where you want the convenience of printing a replacement part whenever needed.
Tip: Experiment with different filaments and print settings to find the best balance between strength, flexibility, and service life.
Boost Me (for free)
Thanks for printing my designs. If you enjoy the model, a boost or follow helps support more practical workshop and crawler designs.
More tools and modules are added regularly.
