Creality K2 Plus Top Mounted Spool Holder for TPU

Creality K2 Plus Top Mounted Spool Holder for TPU

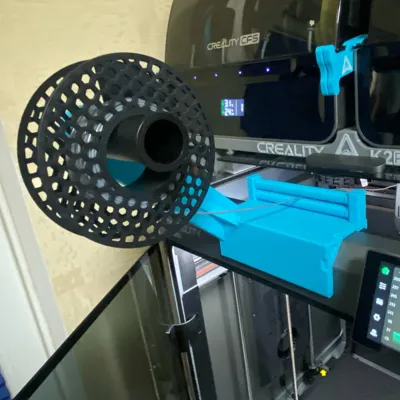

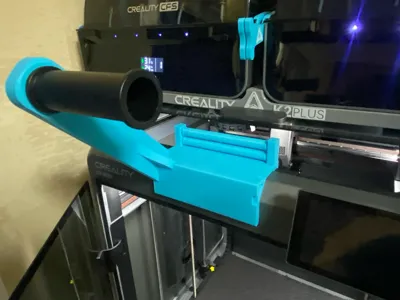

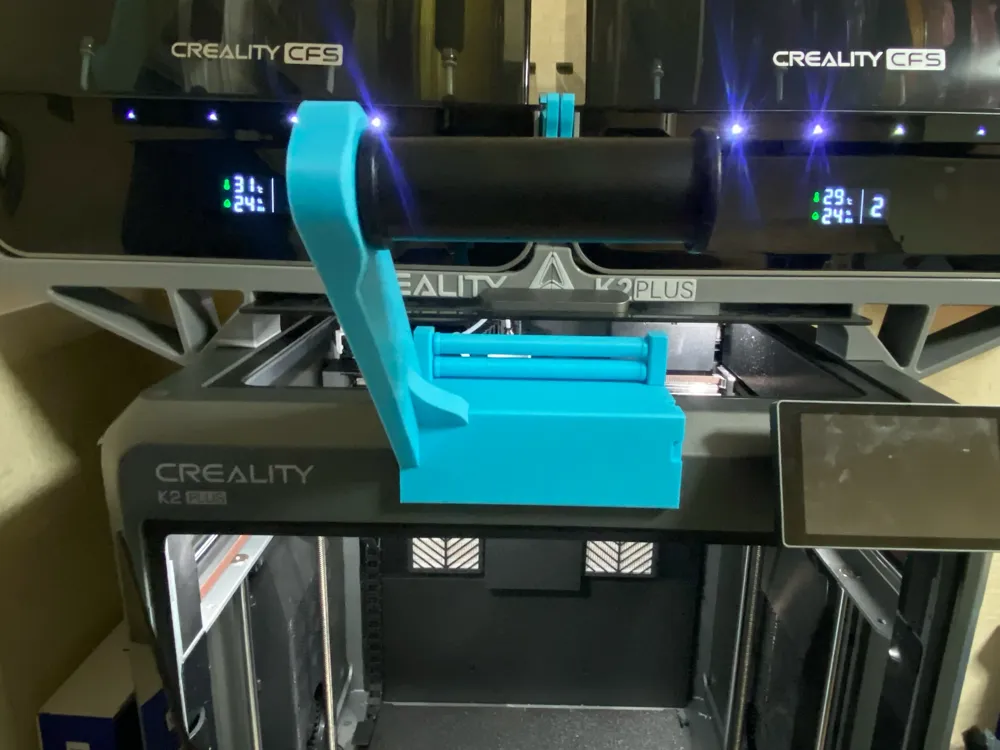

This is mainly for those who have printed a dual CFS holder or have similar styled CFS holders that don't have room to place a TOP mounted spool holder. This spool holder attaches to the edge of the printers case with the top glass removed.

Features:

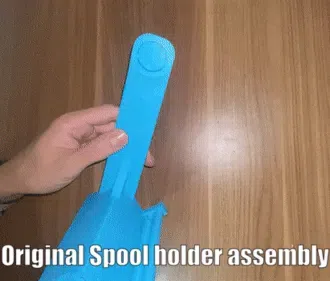

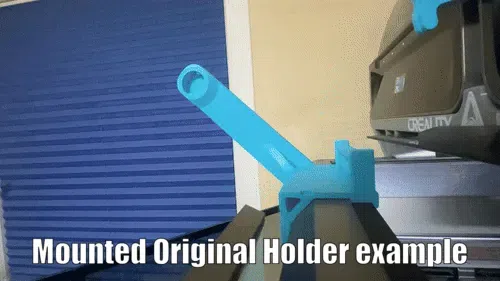

1. Allows to use the existing side spool holder for this mount.

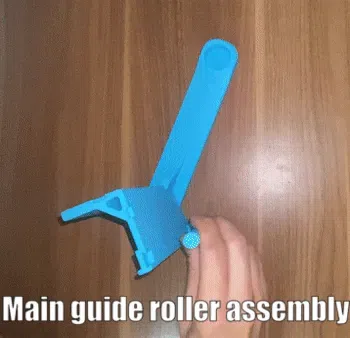

Guide rollers with a 2mm gap for 1.75mm diameter filament for minimal friction to reduce filament unraveling from the spool. Can also be removed or used with and without the rollers.

2. Due to a more modular design this mount can be used with the following add-ons as well:


     - Auto Rewind Spool holder:

https://makerworld.com/en/models/1805284-k2-plus-top-mounted-spool-addon-remix-1-for-tpu#profileId-1925428

     - Rotating Spool holder:

https://makerworld.com/en/models/1805275-k2-plus-top-mounted-spool-addon-remix-2-for-tpu#profileId-1925419

Assembly:

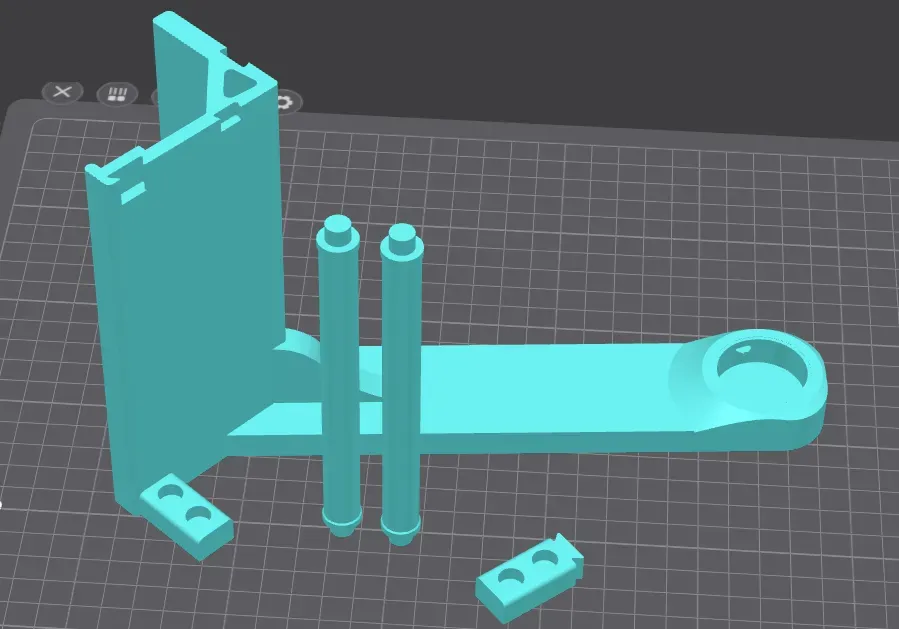

If printed with all parts included. Remove the supports and assemble with the given slots. Guidance assembly GIF is added.

This might work as a side or rear mounted holder since I believe all sides of the printer are the same in dimension. Let me know if you give it a try.
