Frigidaire Gallery Freezer Handles
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 10% infill
Designer
5.6 h
1 plate
Open in Bambu Studio
Boost
1
1
0
0
1
1
Released
Bill of Materials
List other parts
- #10 x 1in. screws x 4:
Description
Refused to pay $140 for a replacement handle, so I made my own set. Not one single piece, but I honestly much prefer this.

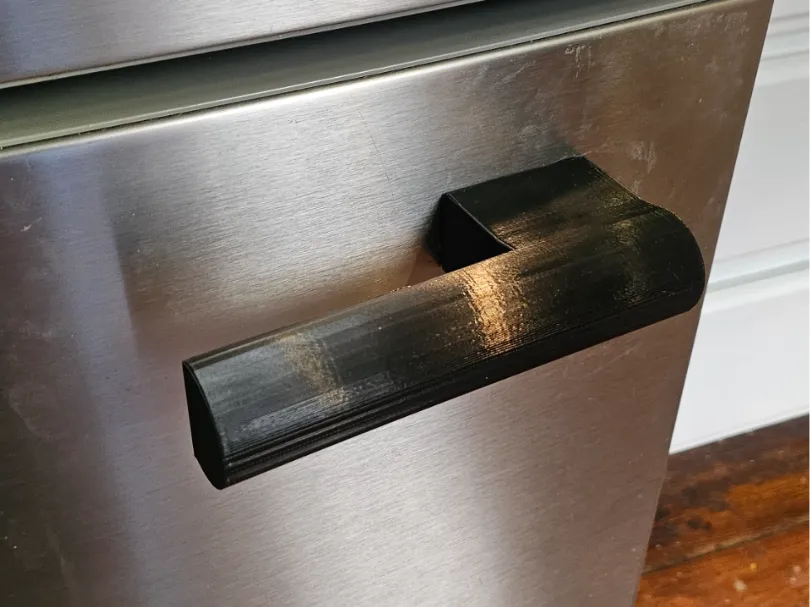

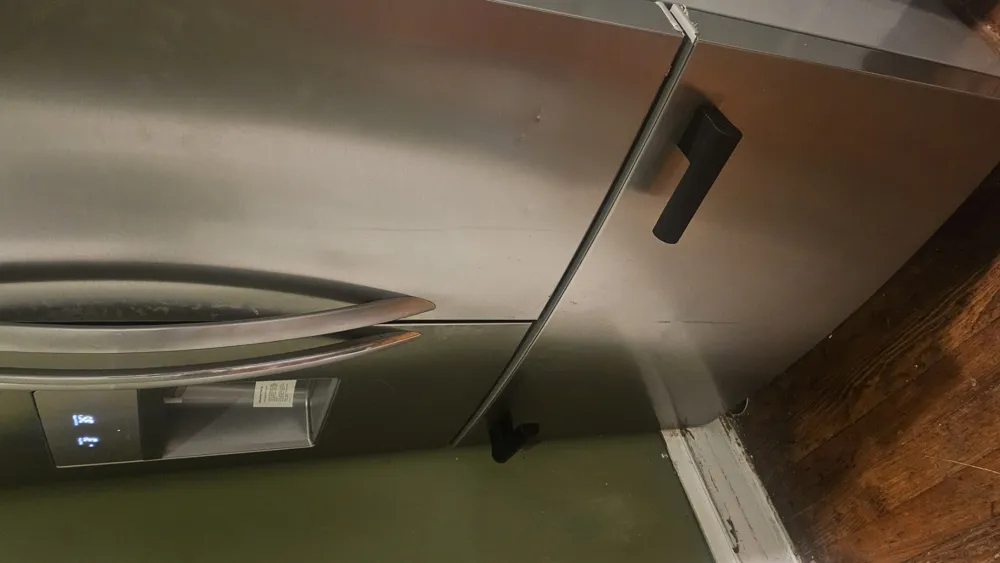

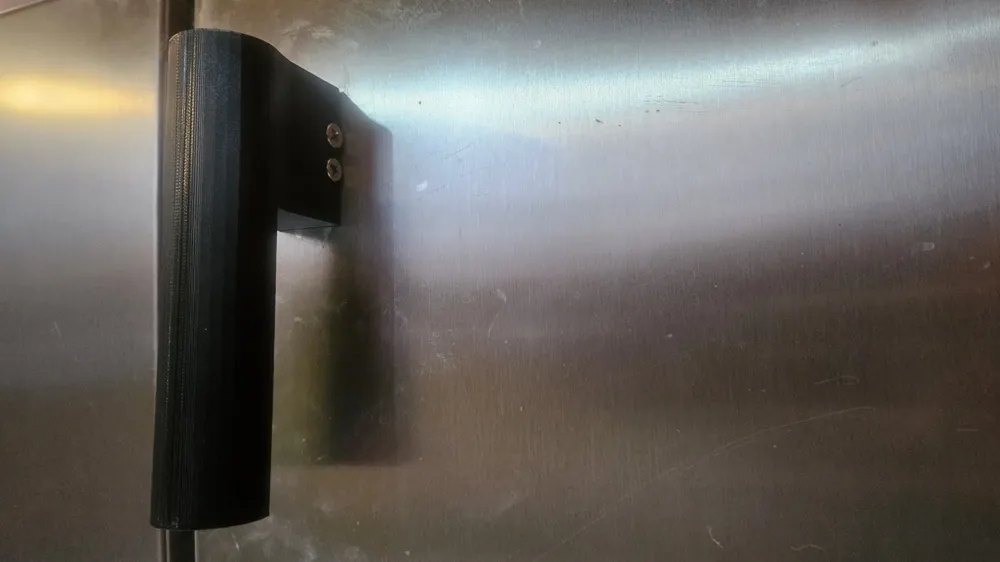

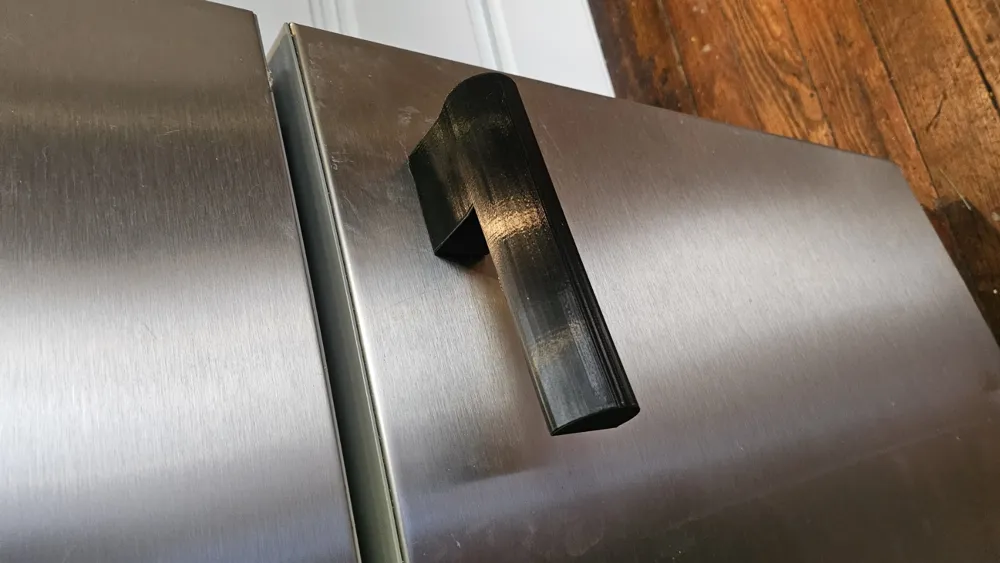

Designed to fit a Frigidaire Gallery, specifically model number ‘FGHB2868TF2’. Likely to fit the fridge doors and other Galleries as well, they mostly all appear to use the same style of handle.

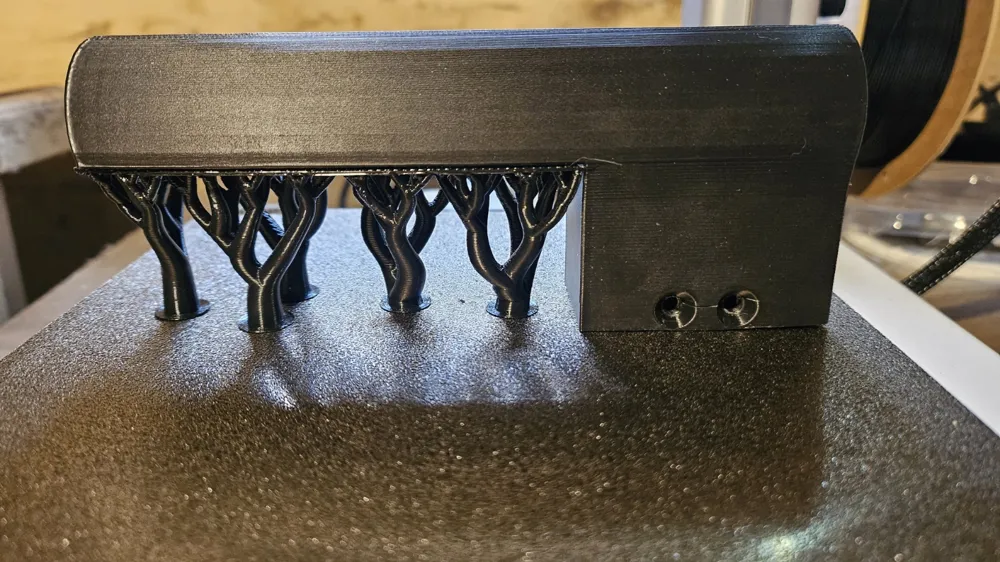

Strongly recommend to print using PETG, PLA may not last. Strongly recommend leaving the orientation of the handles as-is for strength purposes.

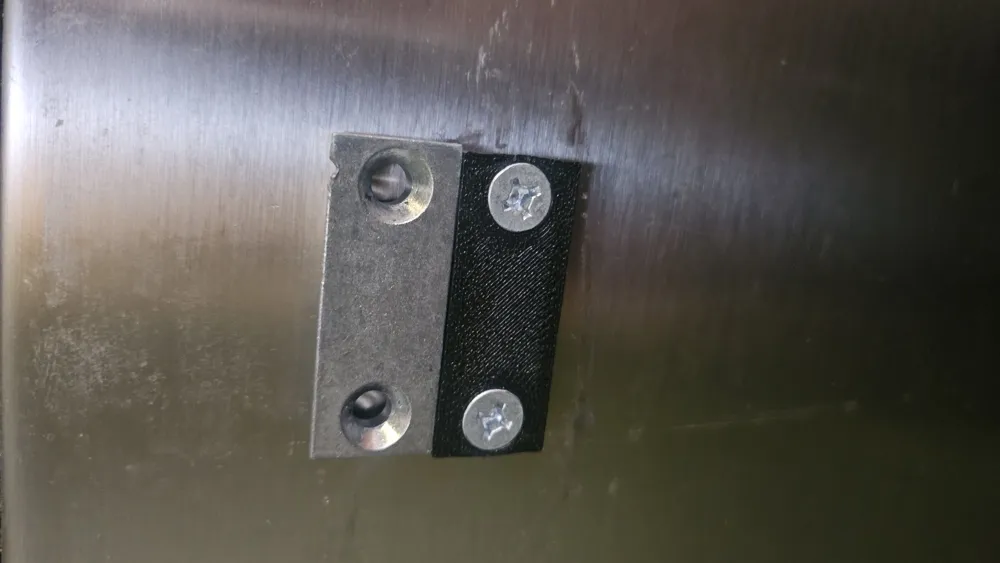

You will need four ‘#10 x 1in.’ screws; similarly metric screws should work just fine.

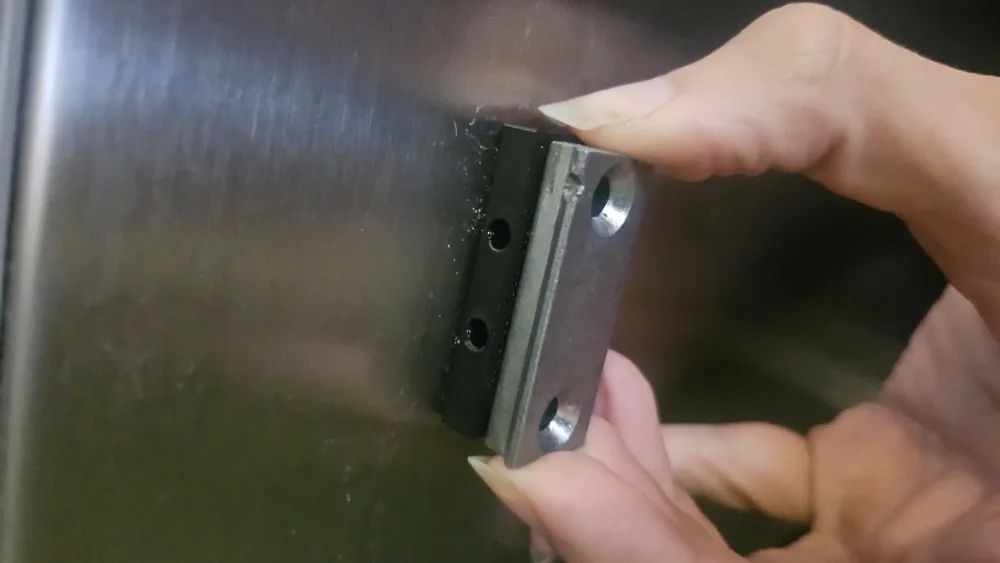

Make sure the beveled/angled part of the block is facing towards the ceiling or the handle will not fit properly!
