Floor mop support pin

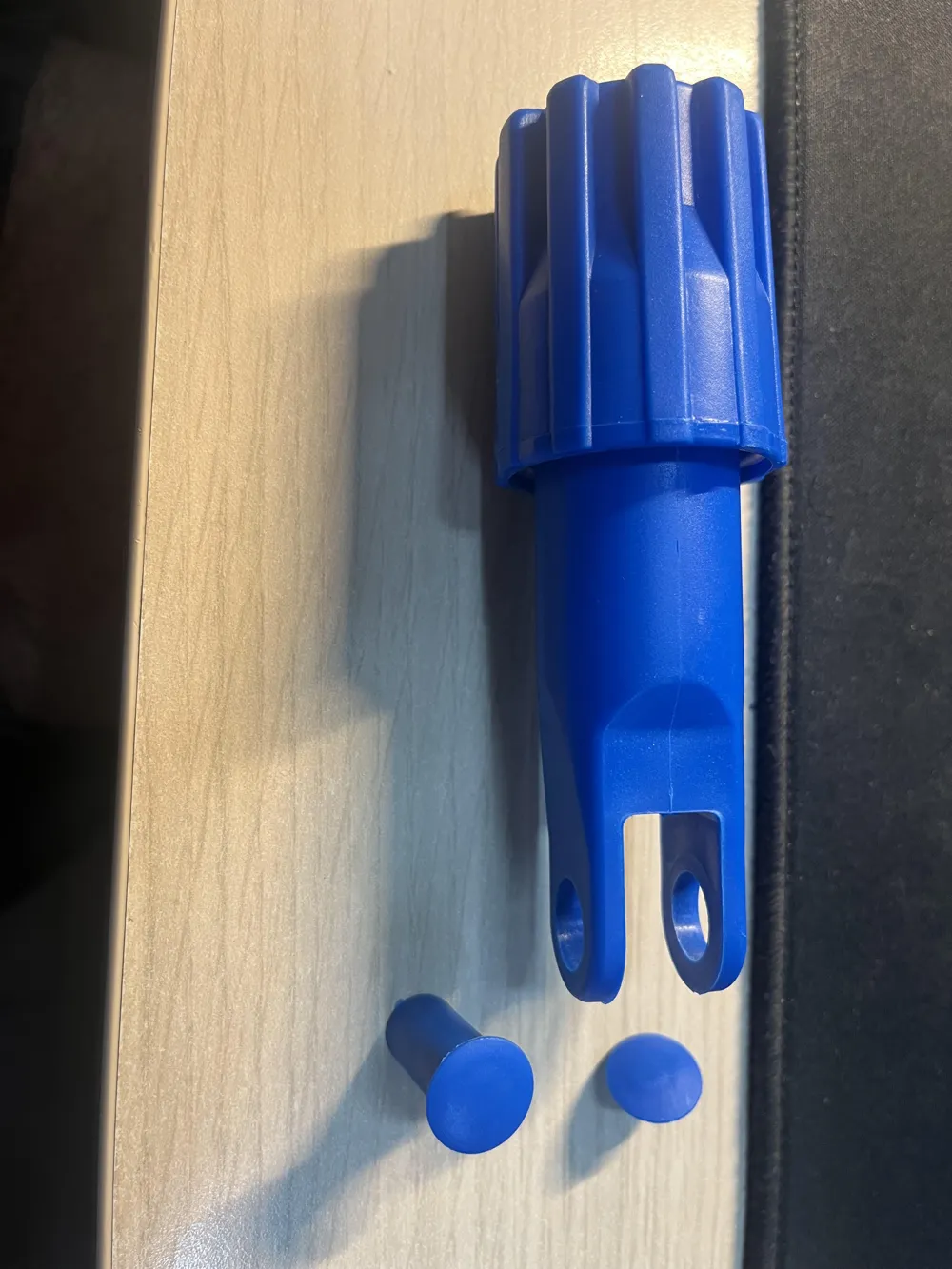

I have had different problems with the original pins that I sell to my clients. They tend to break, as the original industrial factory design does not provide the male part with sufficient necessary material to create sufficient pressure. Therefore, I have redesigned it based on some 'clip' models that use pressure.

I am currently printing the first test. I will update if necessary.

I am printing it with Bambu ASSA material, as it is a part that will occasionally have vertical tension. It might be overkill for such a simple part that doesn't have constant tension, but in these situations, I prefer to ensure that the customer remains satisfied for life.

The diameters for the female connector are 15.20 mm and 11.20 mm for the vertical cylinder.

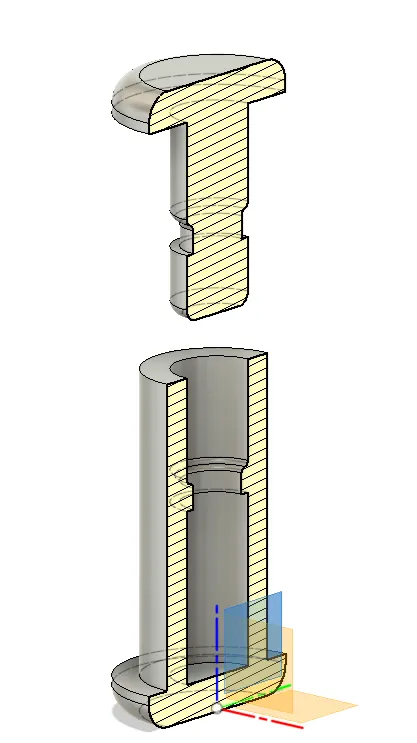

Edit 2025-09-20: an erroneous version of the male connector was uploaded, as the clip had a positive extrusion and should have been negative. I have printed the parts with an X-Y axis compensation of -0.01 - 0.03 and they fit perfectly.

Any support is appreciated
