Support for Gravitrax 180°

Summary

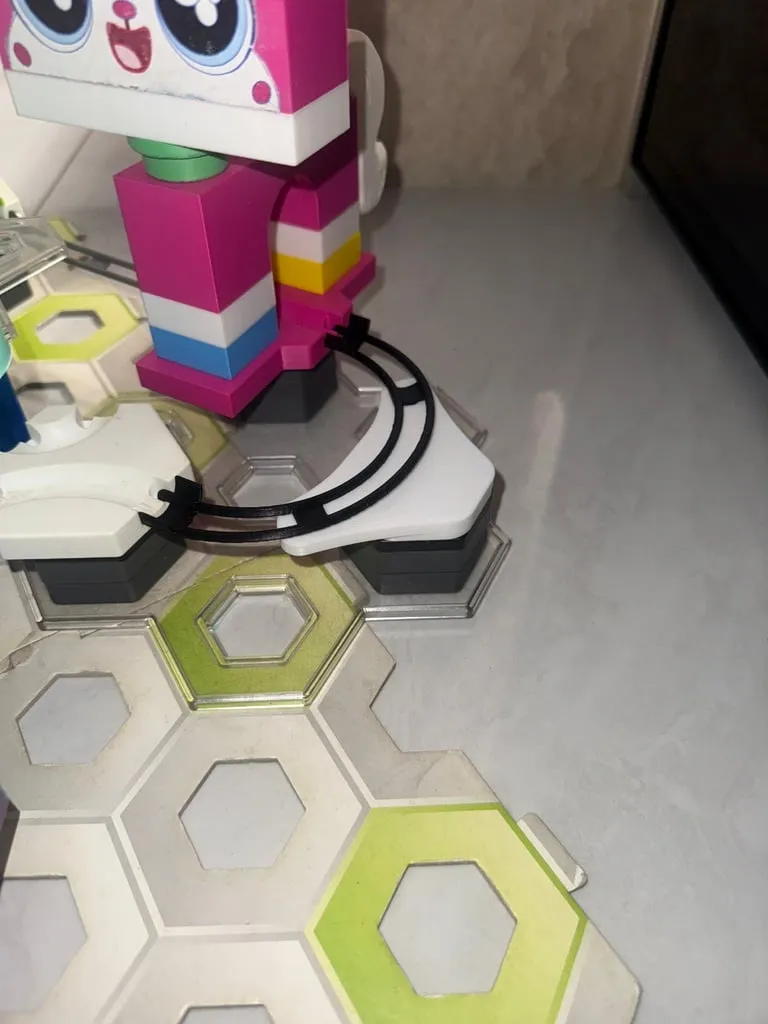

Use when heights reach 5mm or more. The 180° & S-curve for Gravitrax designed Transmit1 that was published on January 4th 2019 is very cool especially being one of the best 3D-printable expansion pack for your Gravitrax marble runs with 444 likes and 1239 collects. However, the 180° variant does not fit snugly into the rail holes, rendering it usable only on the ground. I usually used height tiles only, but I wanted more stability. So I designed this piece such that it fits into the 180° variant snugly with a clearance of 0.1mm. If yours does not fit inside it due to "poor tolerances", I can upload another file with a clearance of 0.2mm.
Enjoy!

Print Settings

Printer Brand:

Bambu Lab

Printer:

Bambu X1C

Rafts:

No

Supports:

No

Resolution:

0.24mm

Infill:

10% Aligned Rectilinear with 3 wall loops surrounding it

Notes:

For quicker printing, print with 0.28mm layers or switch to a larger nozzle. You can also use your own personal settings (Standard on BBL Studio: 0.2mm layers, 2 wall loops, 15% grid infill). Use 0.1mm layers for SLA printers.

How I Designed This

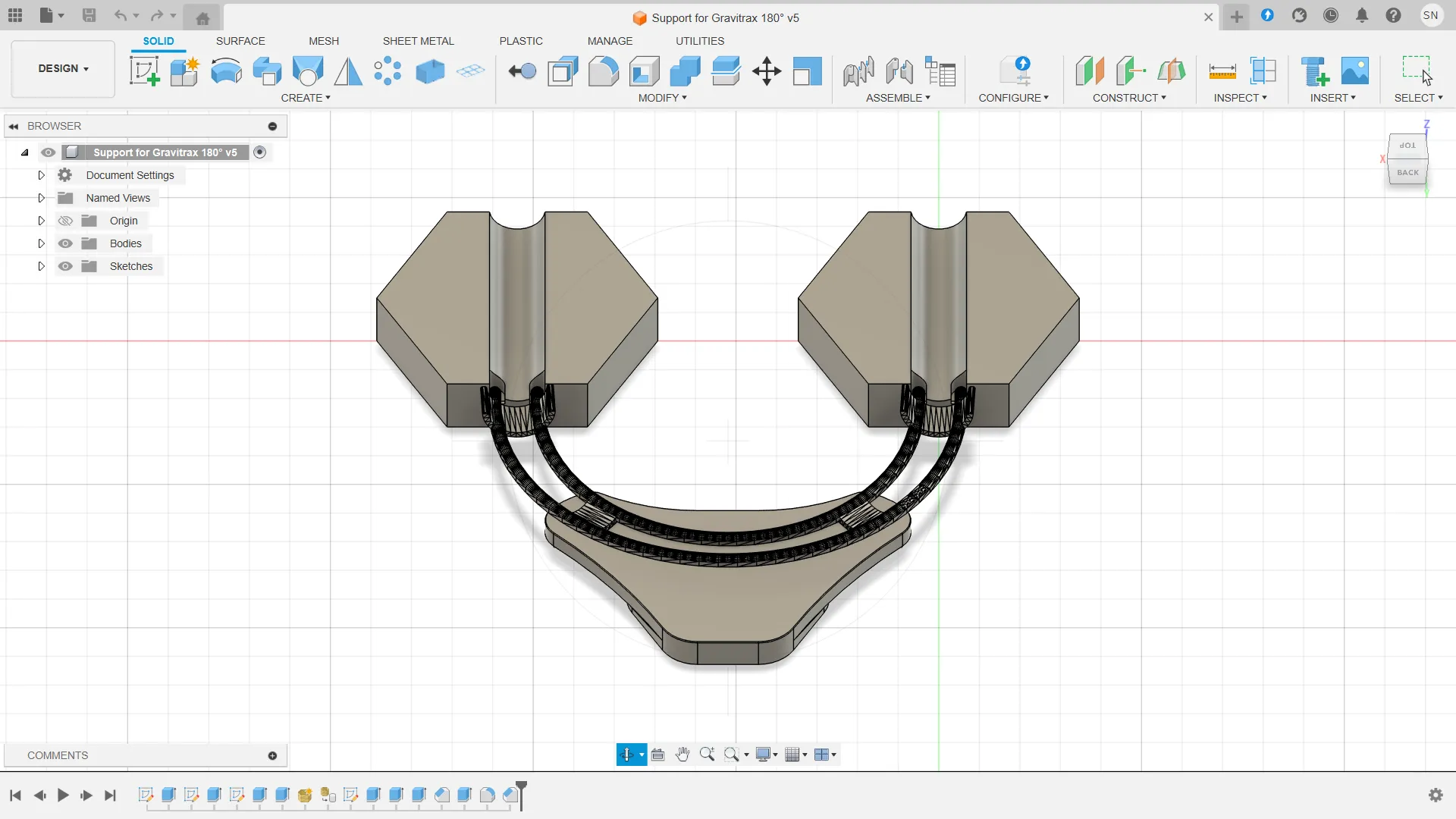

Fusion 360
