D1 Mini ESP8266 | USB-C | Snap-Fit
Print Profile(7)
Description

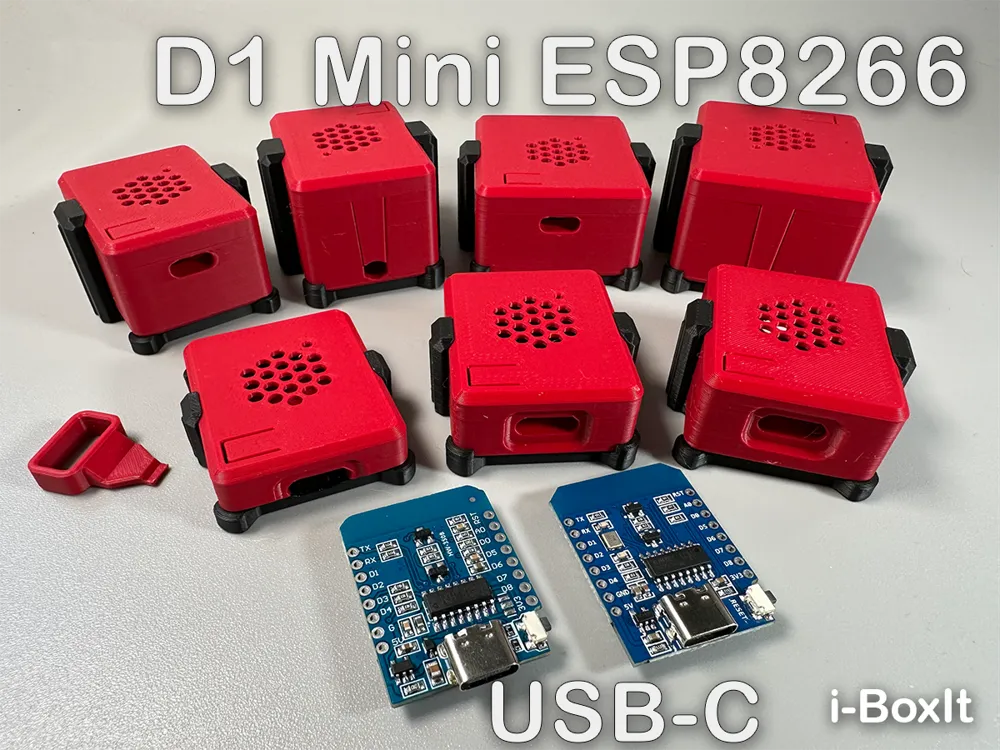

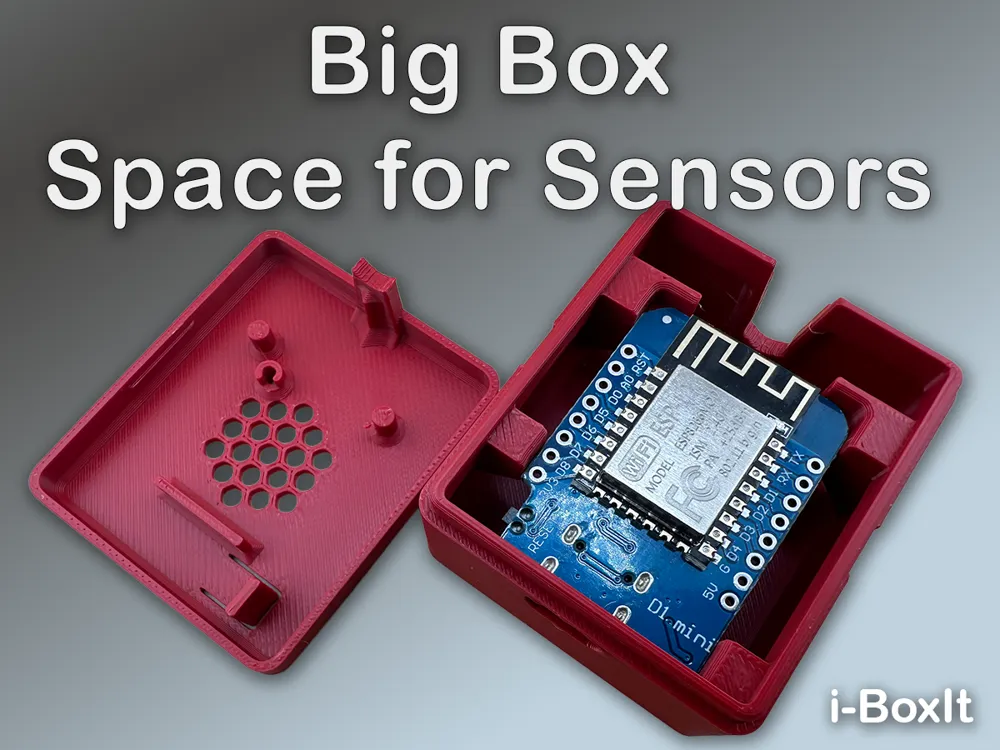

D1 Mini ESP8266 USB-C case (AzDelivery/WeMos):
- Size of ESP8266 D1 mini board expected: 34.3 x 25.8mm and USB-C
- Snapfit

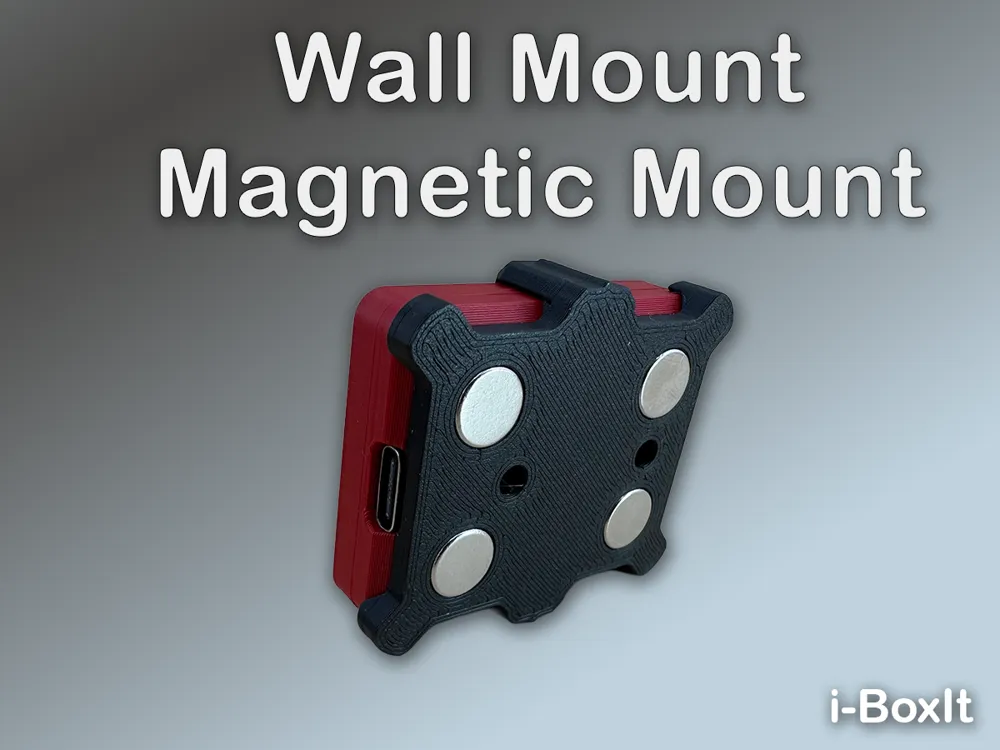

- Wall Mount / Magnetic Mount
- Reset button

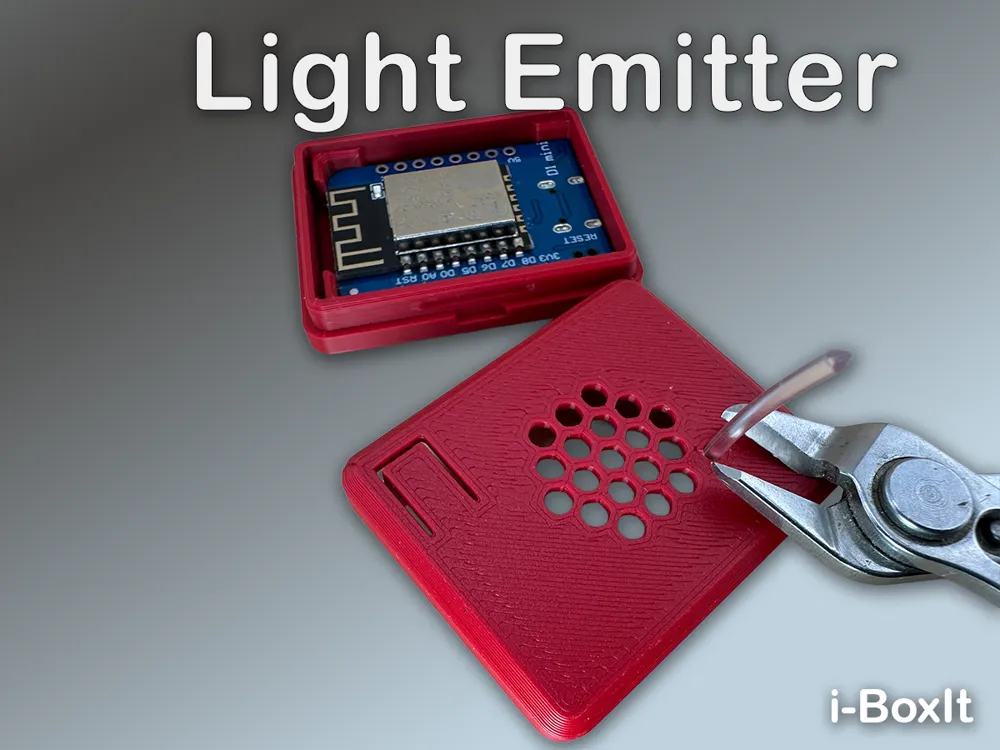

- User led hole tubes (use transparent PLA as a light emitter)

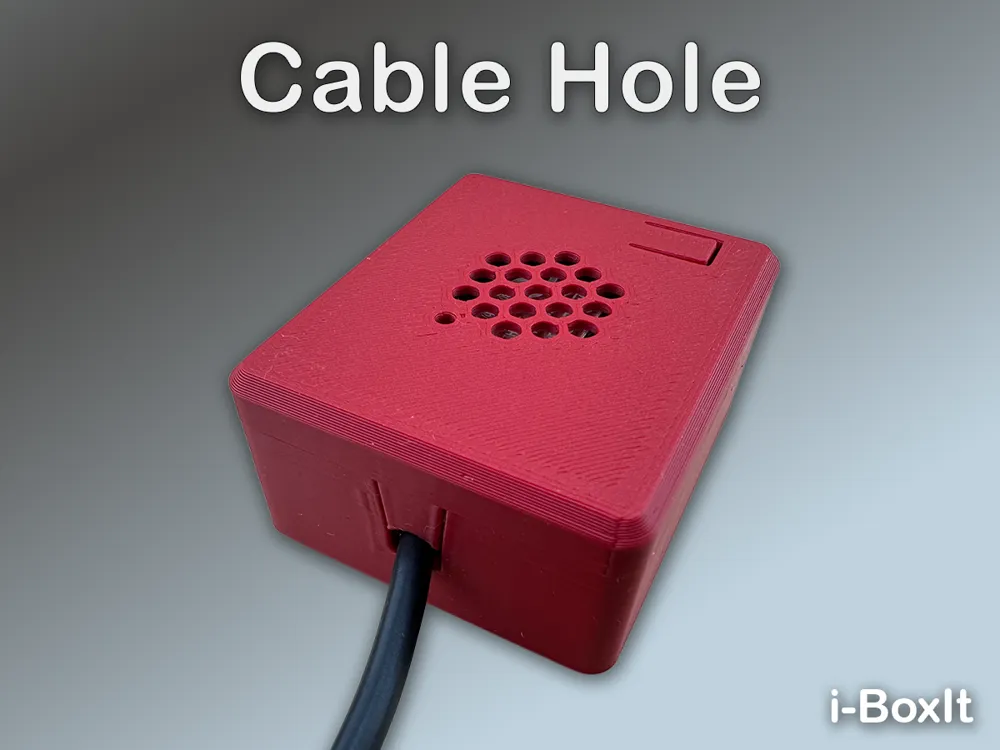

- Connection cable holes and cable mount

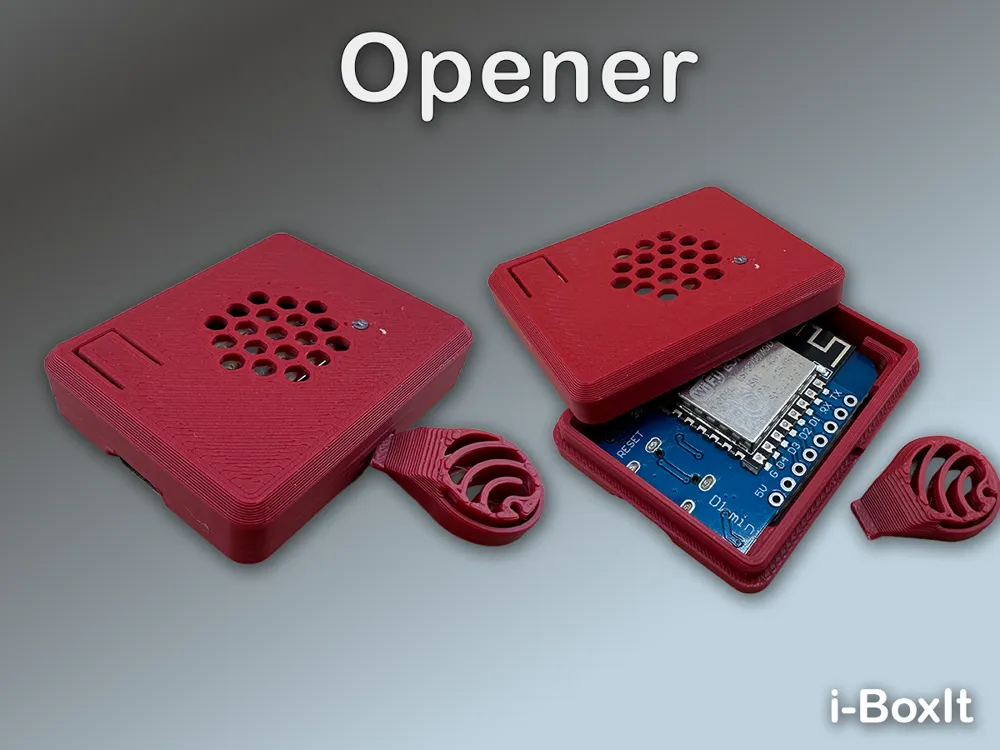

For cable mount use screw 2.5x6mm - Opener

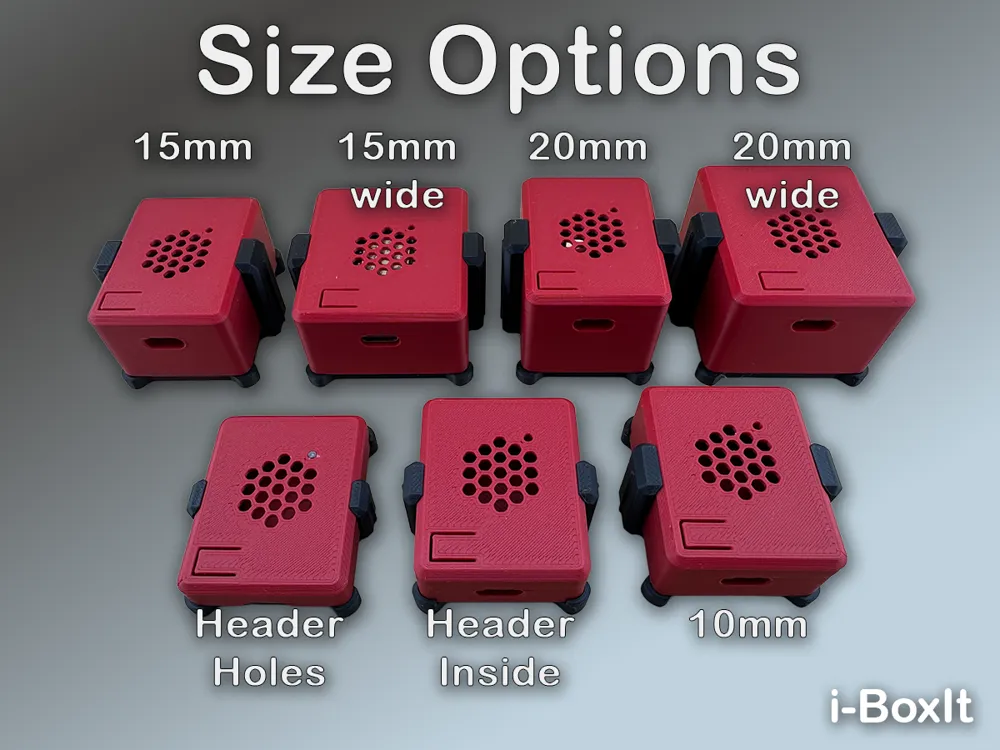

- Different Configurations
- Small Version Header
- Small Version Header Inside
- 10 mm, 15 mm, 15 mm wide, 20 mm, 20 mm wide
3D Print settings:
- 0.4mm nozzle
- 0.16mm layer height optimal
- No support needed
Changes:
- 2026-04-16 - V2
Support for different board
The position of the USB-C connector varies
