MAG Ring for Quadlock Case

Remixed by

Print Profile(3)

All
A1
P1S
X1
H2D
P1P
H2D Pro
X1E
H2S
A1 mini
X1 Carbon
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
14 min
1 plate
5.0(2)

With magnet slot, 0.2mm layer, 2 walls, 15% infill
With magnet slot, 0.2mm layer, 2 walls, 15% infill
Designer
13 min
1 plate
5.0(2)

with magnet slot & inner tabs
with magnet slot & inner tabs
Designer
13 min
1 plate
5.0(1)

Open in Bambu Studio
Boost
54
152
15
2
203
144
Released

Bill of Materials

Bambu Filaments
Select all
Candy Red (13205) / Filament with spool / 1 kg

Description

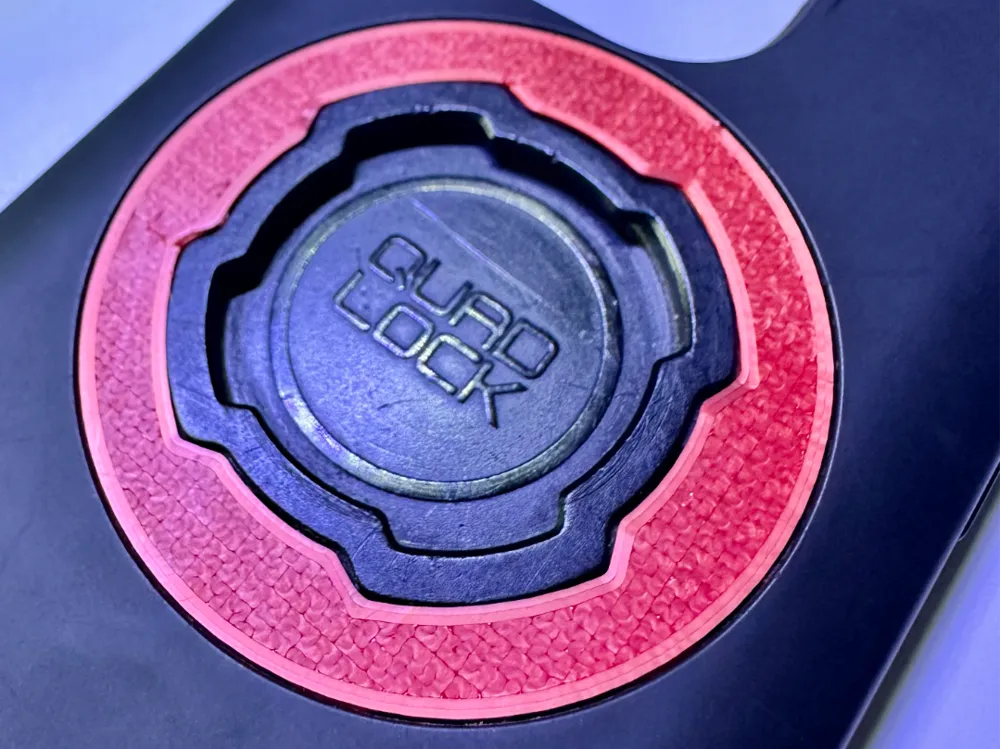

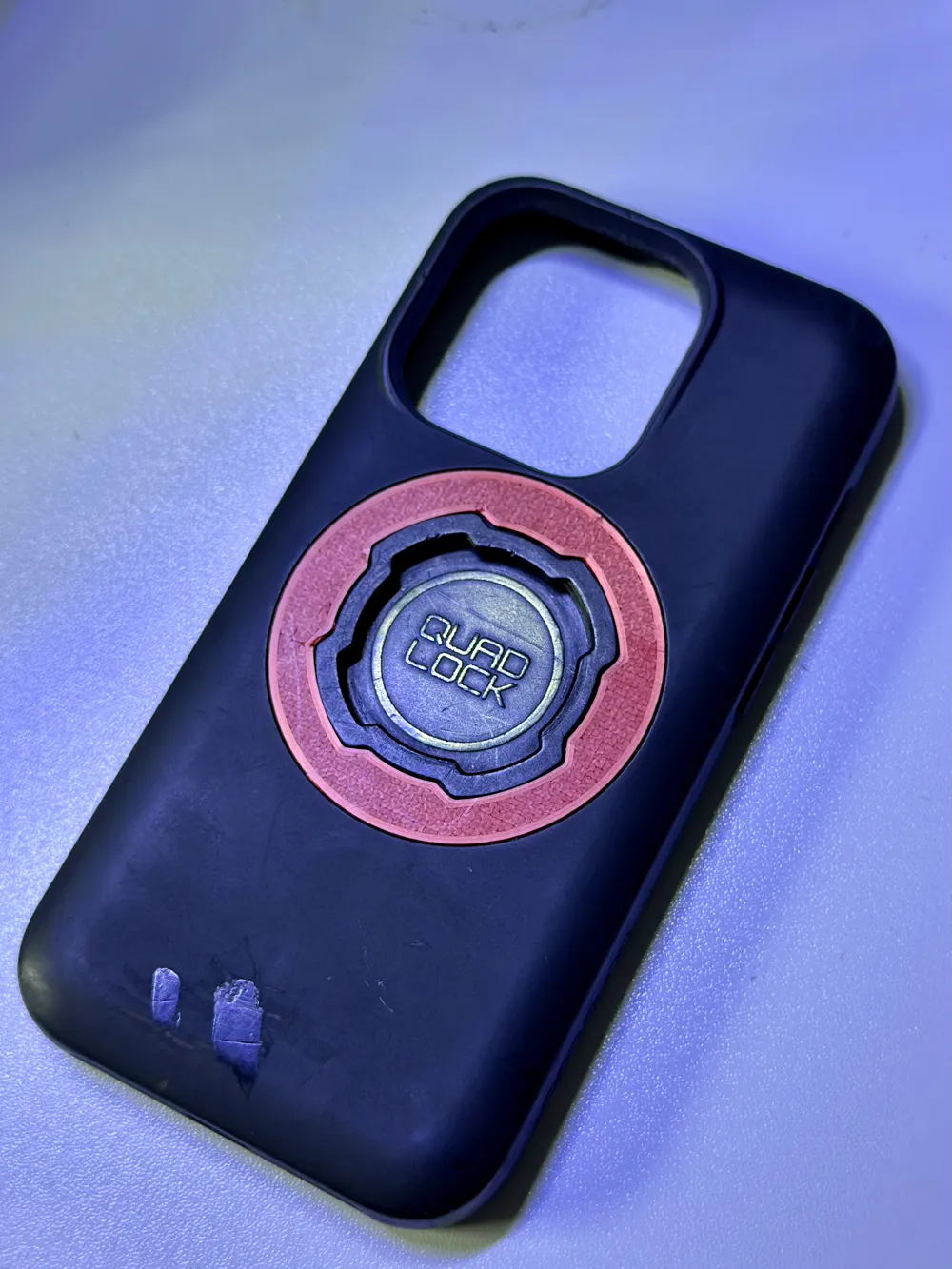

I'm using my QuadLock on a motorcycle and don't need the actual ring, this still works with the QuadLock wireless charger. But since it does not have the metal / magnetic ring inside it won't stick to a magnetic desk charger, but would still charge on desk wireless charger that can hold the phone in place. I recommend a smooth PEI plate and I've used Hilbert Curve bottom surface pattern against the bed some smooth almost holographic patterns with PLA Silk filaments.

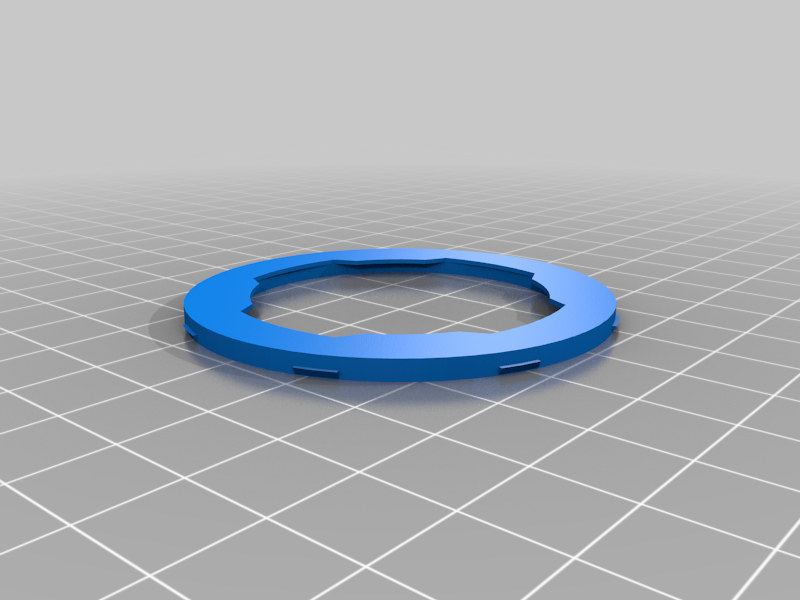

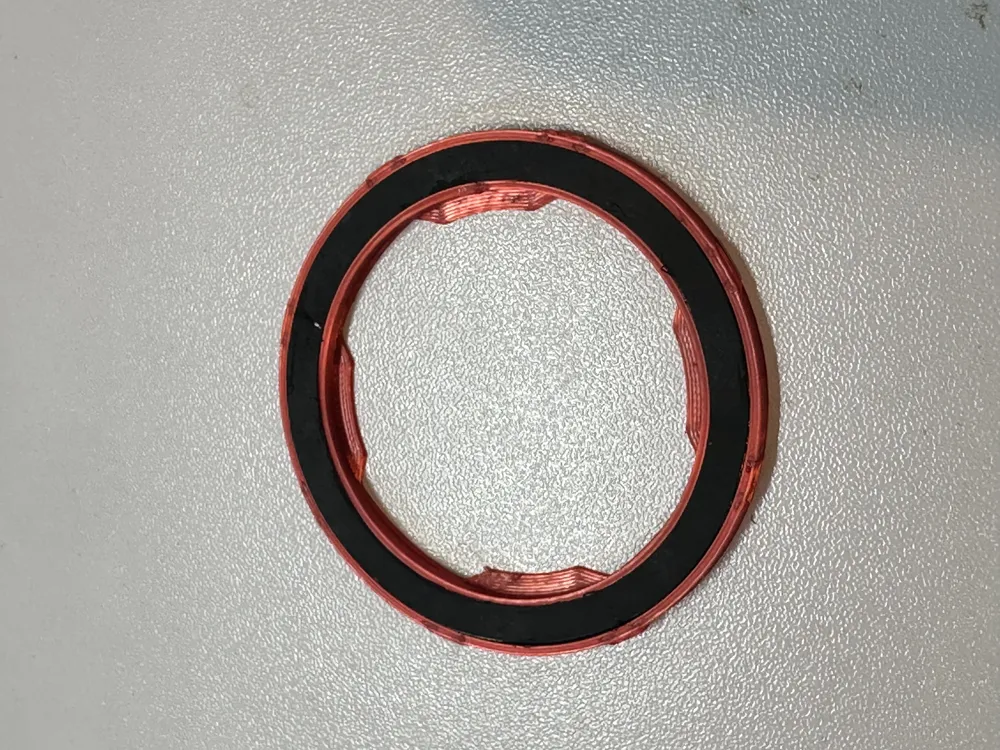

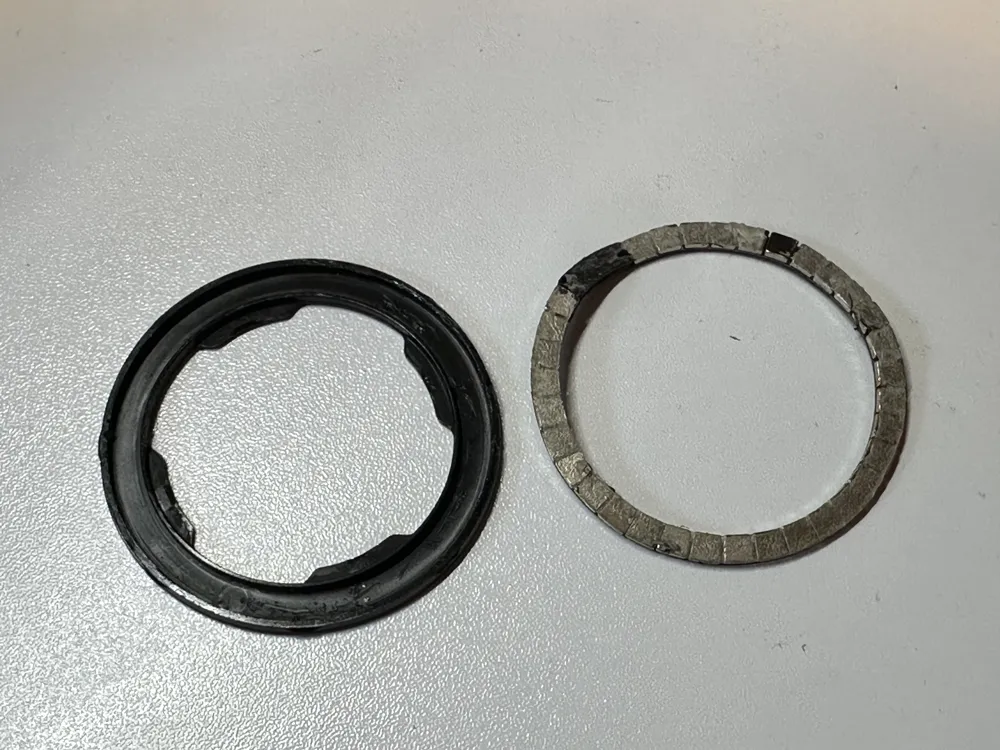

A second print profile is added for a ring with magnet slot. You can pry the ring of magnets from the original MAG Ring from your QuadLock case and transfer it to this model. I've used a flat and pointy needle file to lift the ring of magnets off, they are held by a sticky tape. It might help to heat the ring up with a hair dryer to soften the adhesive. Disclaimer: I can't be held responsible for any damage during this process.

Comment & Rating (15)

(0/1000)

Does this fall out easily? It’s missing the small tabs that normally keep it secured. In my picture, you can see one tab still intact, but the other three are broken every time I magnet my phone to something, the MagSafe ring ends up coming off. Since your model doesn’t include those tabs, does it stay in place reliably, or does it come off when I magnet it to something?
The designer has replied
0
Reply
Hi, you are correct. The tabs are missing from the original design file I used to remix this one. I will try adding them and update this page. Thanks for pointing this out.
1
Reply
I've just uploaded another print profile with the inner tabs
1
Reply
Replying to @theridingroo :
Sweet! Thank you. I will print it tonight and let you know how it comes out!
designer
1
Reply
my original ring started leaving itself behind because the tabs somehow got broken. I was going to model this, but your work saved me the effort. Thank you. I'm printing it tonight!
The designer has replied
designer
1
Reply
I’m glad it is of help. Have fun printing 😊
0
Reply
Perfect, now you can express yourself without having to buy those expensive rings.
The designer has replied
designer
1
Reply
Exactly, and you can change when you want. Thanks for the boost!
0
Reply
I'm interesting to print one of them but I didn't have original quad lock magnets.. can maybe someone add some links (from aliexpress or similar) of magnets that fit this ring? Thanks!
