0.2mm layer, 6 walls, 65% infill

Designer

1.5 h

1 plate

4.5(4)

0.2mm layer, 6 walls, 25% infill

Designer

1.2 h

1 plate

4.5(2)

Open in Bambu Studio

Boost

173

221

114

Released

Description

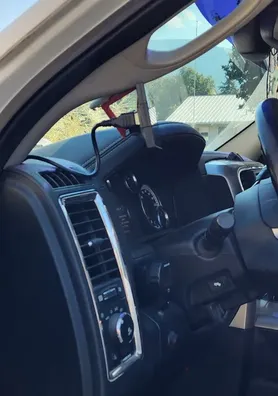

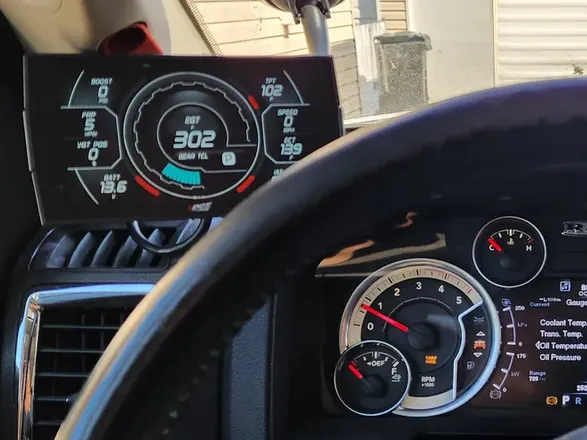

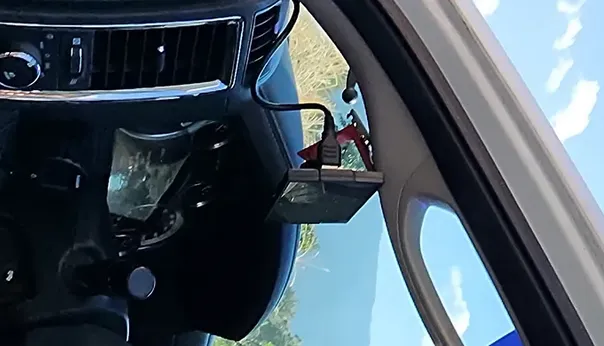

so I looked and looked, couldnt find one of these for a ram 3500 2013, so here we are, printed in pet-cf and seems pretty good had it in my truck for a week at +35c and no issues. Please let me know if there is something I can change for you. uses all the hardware you already have.

Edit 2010-12 truck are slightly different. Second plate has a 20mm longer tube.

Boost Me (for free)

Please boost me if you found this useful.
cheers.

Comment & Rating (41)

@user_2722821815

Print Profile

0.2mm layer, 6 walls, 25% infill

not sure what happened here…

@user_2722821815

printed the shorter model and it did the same. CTS2 still mounts ok. printed with PLA tough

@user_568591268

Is this for Bamboo printers only? I have a Flashforge AD5X which uses Cura slicer

The designer has replied

@clinton_1300

I made one on my voron 2.4, should be okay on most printers.cheers.

@ricketywreck

did it work for you? when i try to open it in Cura it says there are no models in the file

@user_568591268

Replying to @clinton_1300 :

Correction I meant orca slicer.. 1 message telling me the 3mf has following customized filament or printer presets: Bamboo Lab X1 carbon .04 nozzle(v2 mount.3mf) please confirm that the G-codes within these presets are safe to prevent any damage to the machine! Then when I put it on the plate I get Error on the extruder plus invalid values found in the 3mf... I think I should throw in the towel as this is way over my head

@user_3173432468

could you work one up for a turd gen?

The designer has replied

@clinton_1300

ill see what I can do. I think I have one at work I can measure up.

@user_3173432468

Replying to @clinton_1300 :

That would be awesome.

@user_1727710274

Replying to @user_3173432468 :

Any update on the 3rd gen? Thanks

@user_1967131560

Do you have any idea about it working on a 3rd gen?

The designer has replied

@clinton_1300

I haven't tried so I can't say for sure. I feel like it would be close, but if I recall the bolt is different may need a washer

@user_4044310180

i used it in my 3rd gen... i had to sand down where it slides into the pillar because it was a little to big.

@user_4044310180

there's millions of 3rd gens with tuners but absolutely no mount stl's. I designed one lol now i just need to learn to make it in CAD or fusion and im clueless

@dronzyk

how does it mount to the back of the tuner.

The designer has replied

@clinton_1300

For mine I just remove it from the ball mount for the suction cup and mount it to the ball on this unit. Have to reuse the nut as well from the display hardware.

(Edited)

@dronzyk

Replying to @clinton_1300 :

oh i see, i run a smarty touch tuner on my Cummins and it doesn't have that on the back

@clinton_1300

Replying to @dronzyk :

Looks like this guy has a fix for the people running smarty --- https://makerworld.com/en/models/1904167-ram-mm3-tuner-a-pillar-mount#profileId-2041215

@WeldNkd384

Would it be possible to get one for a 06 Ford that uses the grab handle mounts? I seen multiple versions all over that are cast metal but i would like to print my own.

The designer has replied

@clinton_1300

I do have a friend at work with that truck, when I get a chance I will measure it up.

@WeldNkd384

Replying to @clinton_1300 :

You are the GOAT.. thank you!

@tippmannroxs14

anyway, you could release the stl or cad file i would like to make the tube section longer.

The designer has replied

@clinton_1300

I'll message you

@nicom1130

Replying to @clinton_1300 :

Hey anyway i can get the stl or cad aswell. I need to make a few changes to get it working in a 2018 2500

@SturgillsToybox

Print Profile

0.2mm layer, 6 walls, 65% infill

over all send to work good, but the ball never sends to print correctly

The profile uploader has replied

@clinton_1300

sorry to hear , I did it in pegt-cf I find it bridges better. might have to adjust Supports.

@CoastalCowboy

Do you know if one can be done for a mini max tuning computer? I have a 2008 Ram 2500 with a 6.7 cummins.

The designer has replied

@clinton_1300

I bet it could, I will work on it when time permits, been swamped lately though sorry

@Raminator1274

can you make it for a 3rd gen?

@gillett.daniel

also need one for the 3rd gen
