Hyundai Elantra Phone Mount

This custom-designed phone mount is precision-engineered for Hyundai Elantra models from 2021 to 2025. Modeled in Onshape and tested in real-world conditions, it offers a sleek, stable, and adjustable platform for your phone—without clips, screws, or bulky brackets.

The mount features a standard 17 mm ball joint, compatible with most third-party phone holders. That means you can attach your favorite magnetic, clamp-style, or wireless charging cradle—whatever suits your setup best.

Installation is clean and secure thanks to a 1 mm recessed channel designed for 2.5 mm thick 3M double-sided tape, ensuring a flush fit and strong bond without damaging your interior.

🔧 Features
Designed for Hyundai Elantra (model years 2021–2025)

Standard 17 mm ball joint—compatible with most phone holder systems

Mounts using 3M double-sided tape—no clips or hardware required

1 mm deep cutout for flush tape application

Minimalist design that blends with the car’s interior

Adjustable viewing angle via ball joint

🖨️ Print Settings
Material: PETG or ABS recommended for heat resistance

Layer Height: 0.2 mm

Supports: Yes (especially under the curved arm)

Infill: 25–30%

Print Time: ~1 hour

🧩 Assembly & Installation
Clean the mounting surface before applying

Insert 2.5 mm thick 3M tape into the recessed channel

Important: Pull both sides of the mount apart slightly during installation to prevent the tape from sticking prematurely. This ensures proper alignment before final placement.

Press firmly into place and squeeze both sides together for best hold

Attach your preferred phone holder to the 17 mm ball

Tested in a 2021 Hyundai Elantra; confirmed fit through 2025

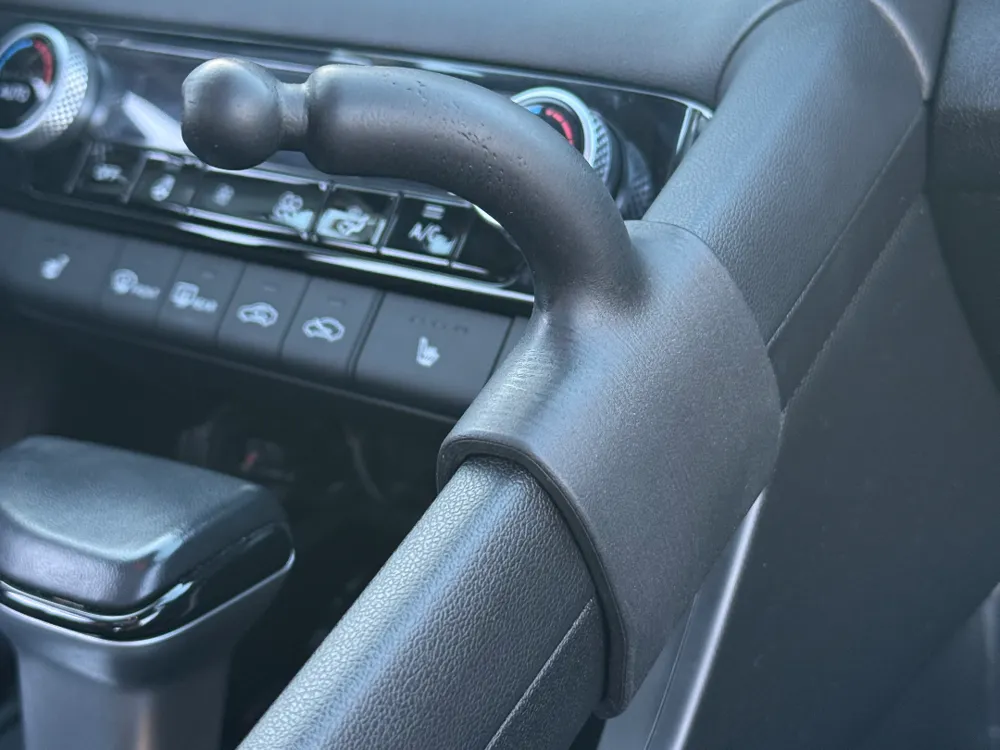

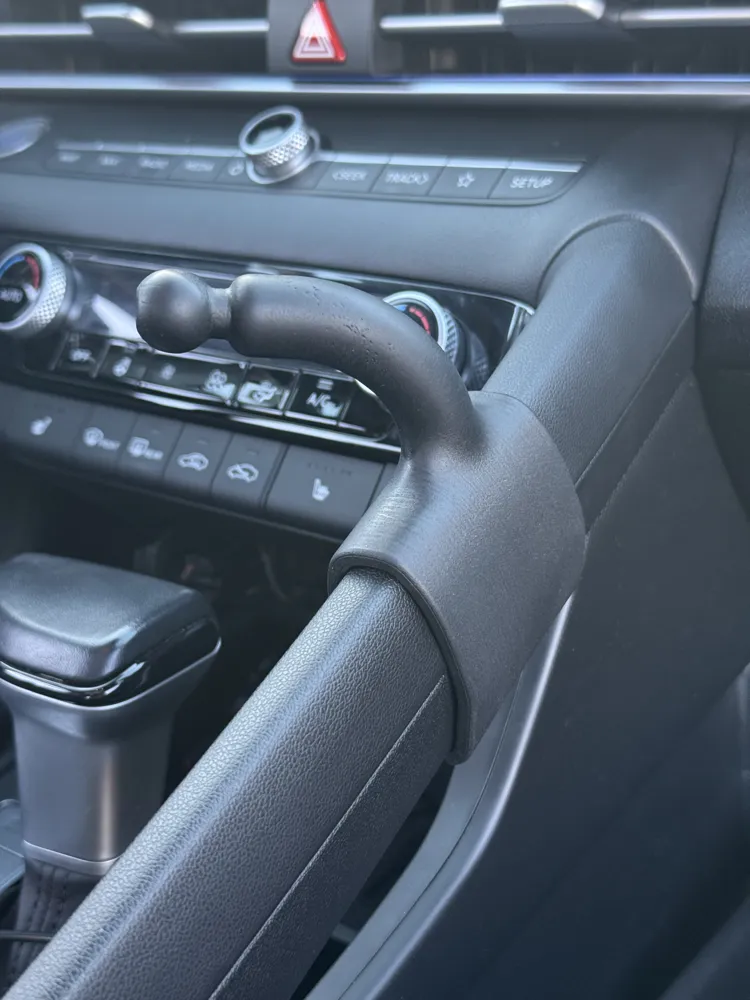

📸 Real-World Fit

Photos show the mount installed in a Hyundai Elantra interior. The adhesive-based design keeps your phone secure without interfering with gear shift, climate controls, or infotainment screen.

💬 Notes

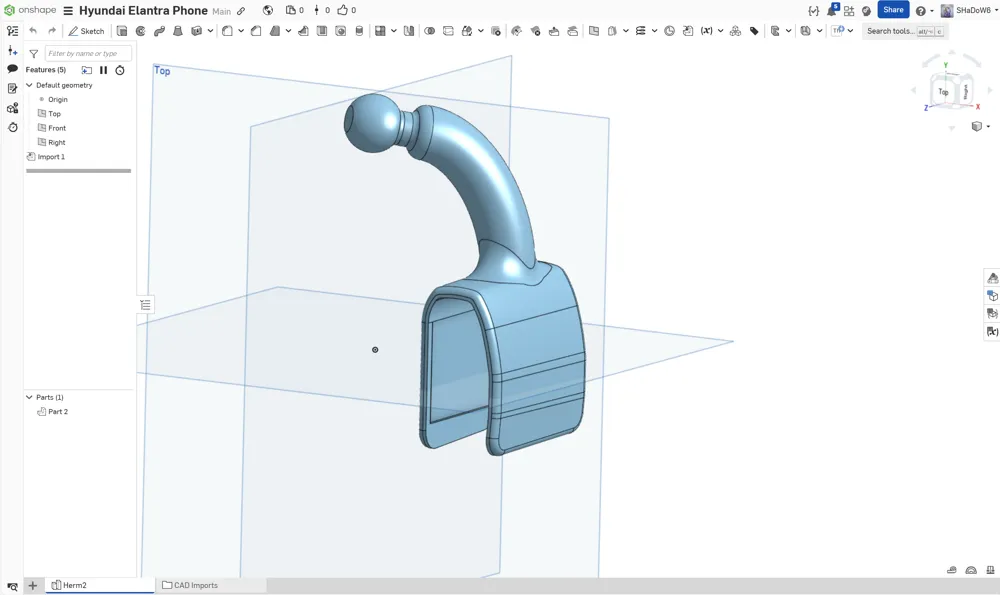

Designed in Onshape and refined through multiple iterations. If you remix it for other vehicles or add features, I’d love to see your version!

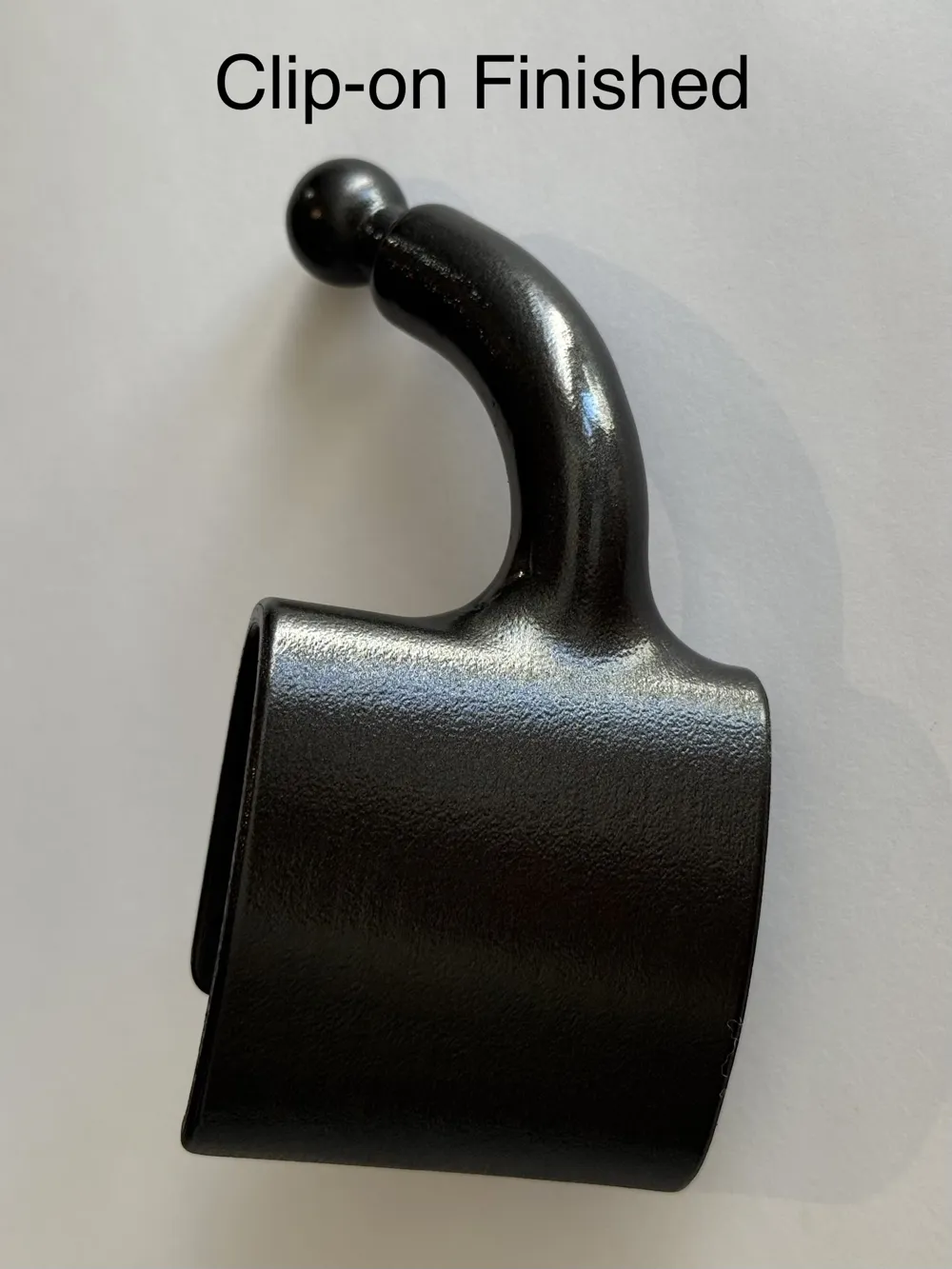

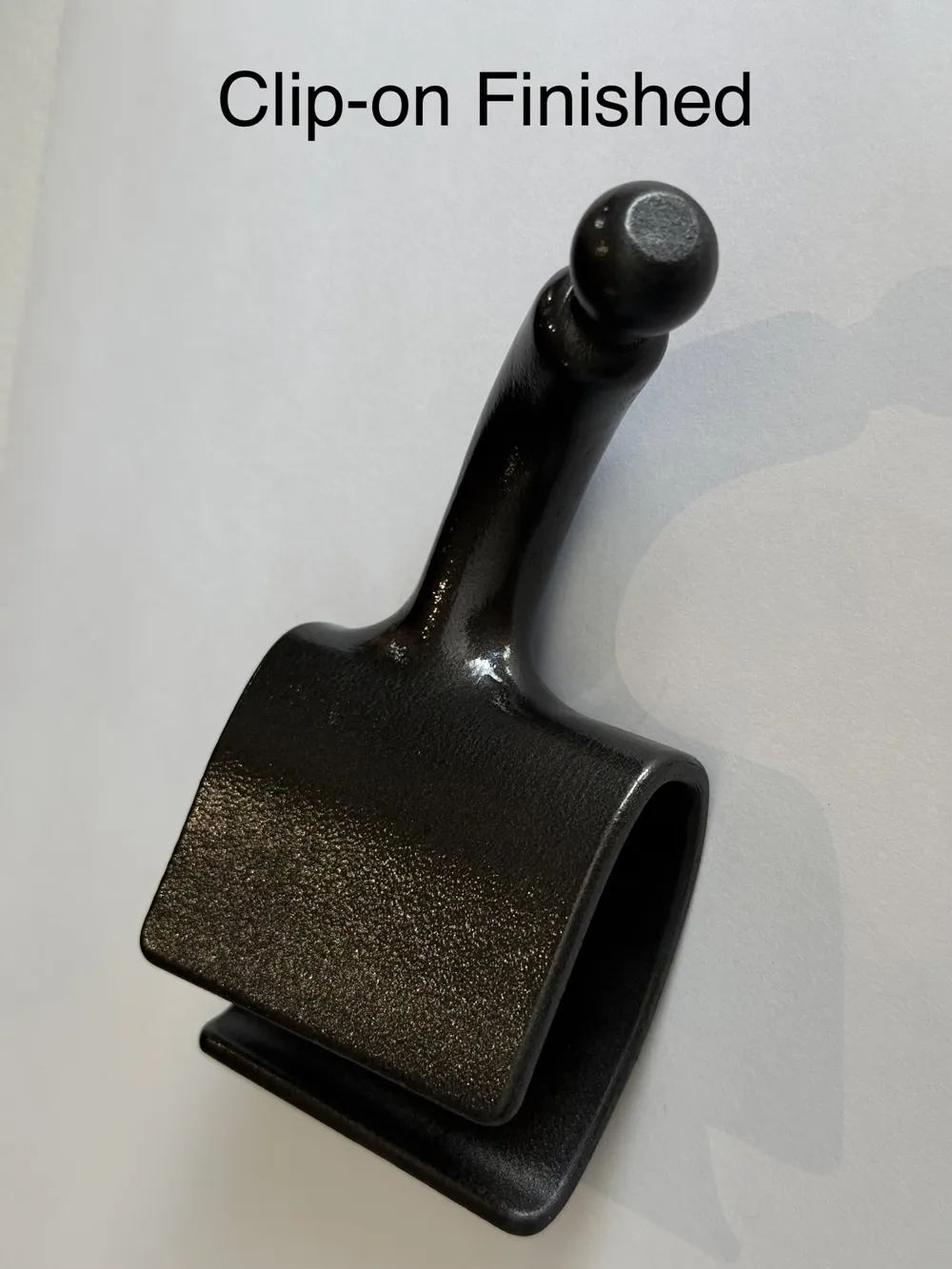

Updated Sep 28/2025: Created a new holder with a more customized wrap-around fit for improved grip.
