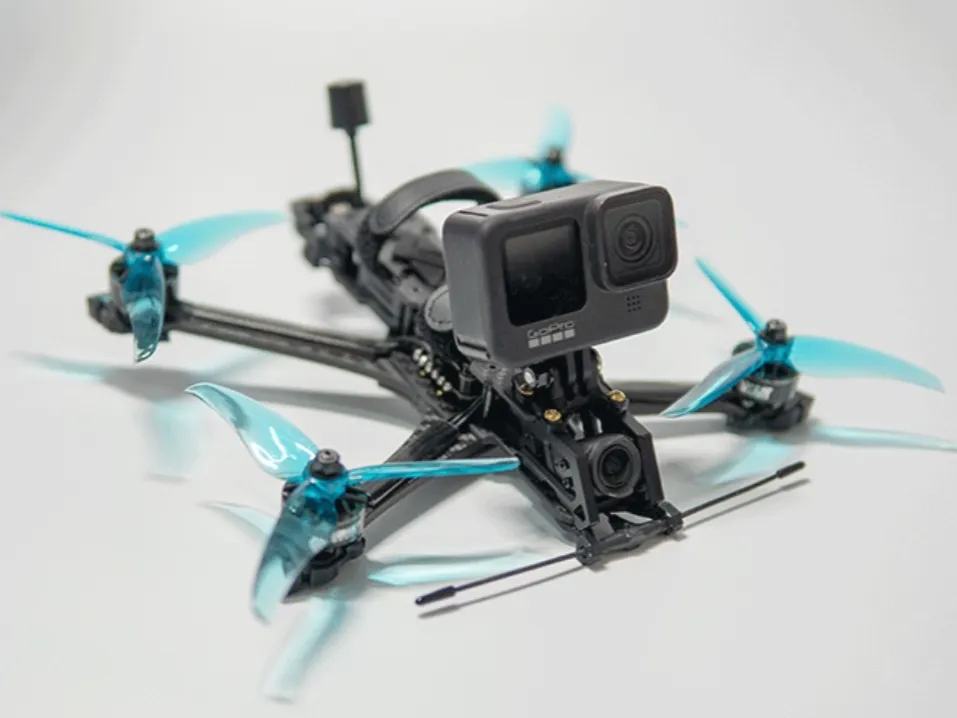

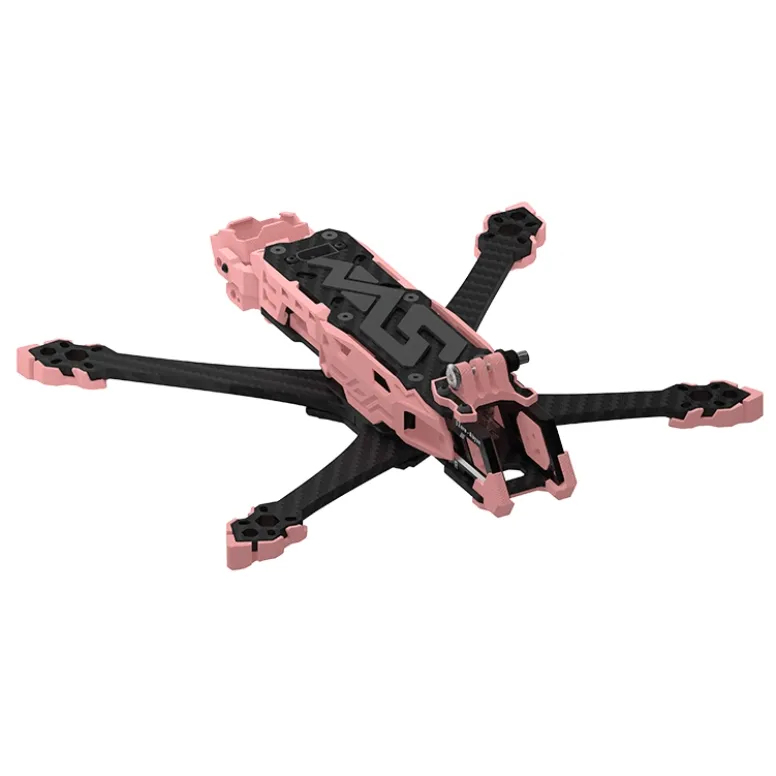

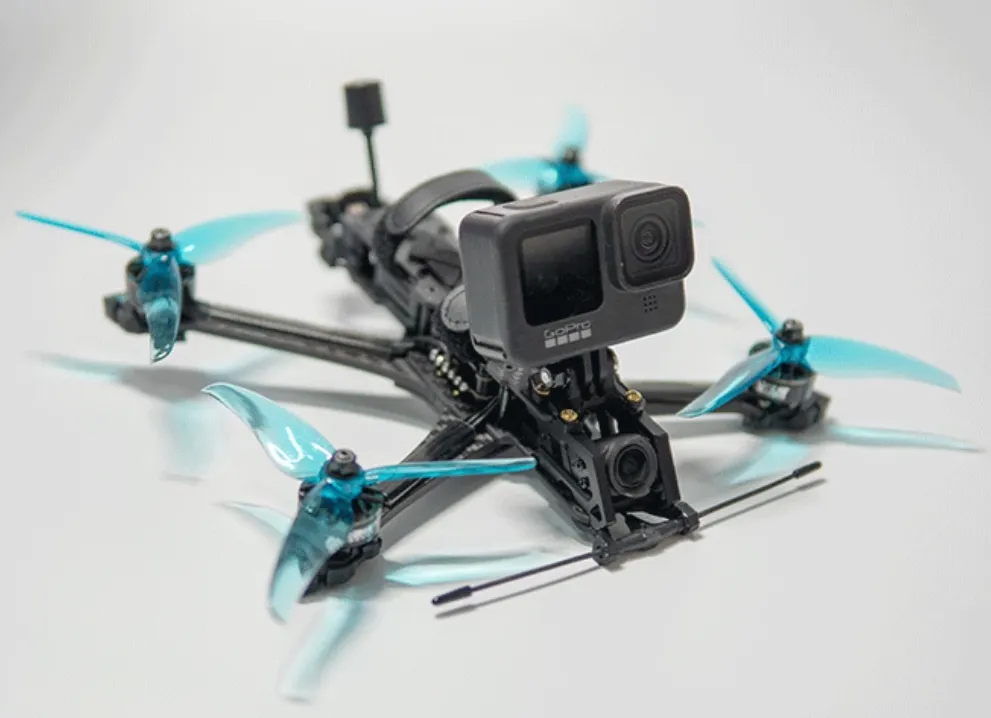

Zero Abyss 5-inch FPV quadcopter fully open source including carbon fiber plates aluminum parts and printed parts

The frame includes carbon fiber plates, aluminum parts, and a full set of 3D Printed parts, suitable for exporting your own cutting files Additionally, the shop has a small amount of remaining stock (after the frame is open-sourced, there are no plans to restock, you can place an order if needed) The purchase link is as follows

https://shop229169275.taobao.com/?spm=a21n57.shop_search.0.0.552b6b0cI2sBYM

First of all, I am very grateful for the help given by all fellow pilots before This is considered the completion of my first designed product

Sticking to the original idea, which was to open source the frame once it had sold enough, starting in 2024, we gradually moved from open-sourcing some 3D Printed parts, then a full set of 3D Printed parts, optimized side panels, and now, in 2025, the open-sourcing of the entire frame kit

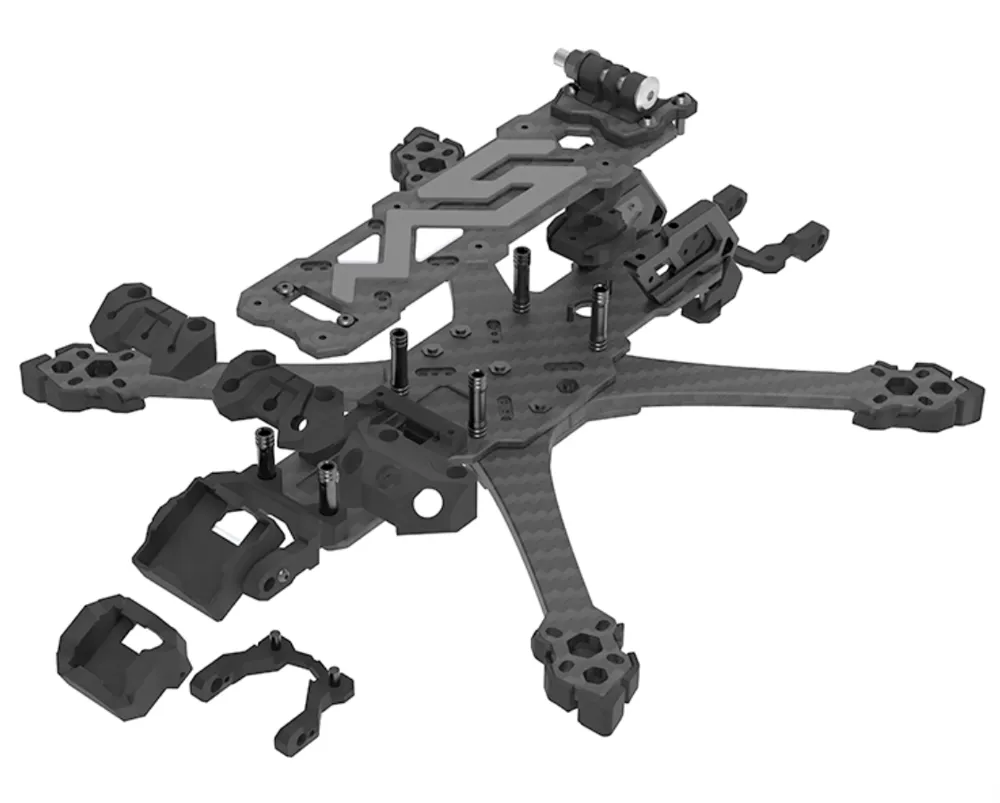

This set of documents includes a complete set of carbon fiber plates (including true X structure, DC structure, 5-inch arms, 5.5-inch arms, 6-inch arms), aluminum parts, a full set of 3D Printed parts, side panels, fasteners (i.e., screws, nuts, etc.), and a complete BOM list of fasteners required for assembly, which is also provided to all fellow pilots, along with corresponding technical documents and assembly instructions

The BOM list also includes the original cost price, retail price, and retail price calculation method for the entire frame (the above may be information that the industry generally does not disclose), as well as detailed information on various finished packaging materials and screwdrivers used In short, all documents related to the entire product's development and implementation are consistently provided to everyone

Note: The frame is relatively old, and newer image transmission systems like O4 are not compatible Also, for the frame body, it is recommended to find an online carbon fiber plate manufacturer for cutting if conditions permit I have also prepared a separate cutting file, which we can use to inquire about prices from online manufacturers If it's a 3D Printed part, the strength is not very good Firstly, it's not resistant to crashes, as a 5-inch frame is too large Secondly, arm resonance is quite severe, which can easily burn out motors

Finally, I hope that these product development files and documents can also help everyone and industry peers, while also promoting the better development of this industry

Leng Lingya
