Raspberry Pi Pico RP2040 PICO W (USB-C variant) - Free 3D Print Model

Search models, users, collections, and posts

Tommy

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

H2S

A1 mini

P1S

X1 Carbon

P2S

P1P

X1E

H2D Pro

H2C

H2D

X2D

A2L

0.16mm layer, 2 walls, 15% infill

Designer

17 min

1 plate

5.0(1)

Open in Bambu Studio

Boost

Released

Description

This case was designed specifically for a third-party PICO W board with non-standard dimensions of 51.50 mm × 21.0 mm, which differ slightly from the official Raspberry Pi boards.

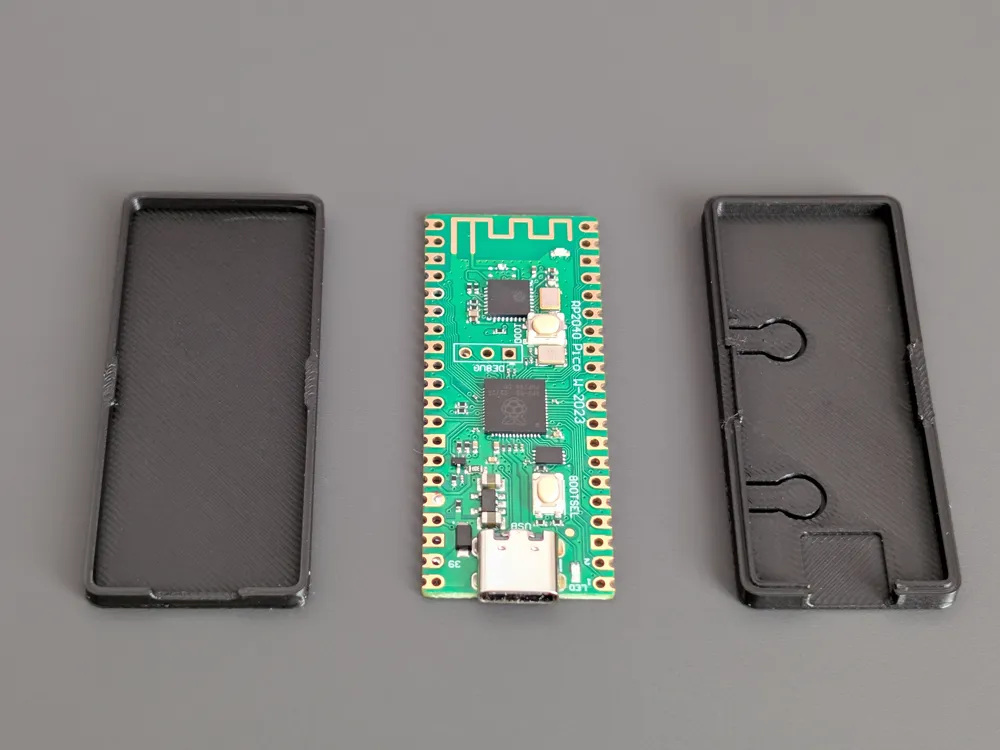

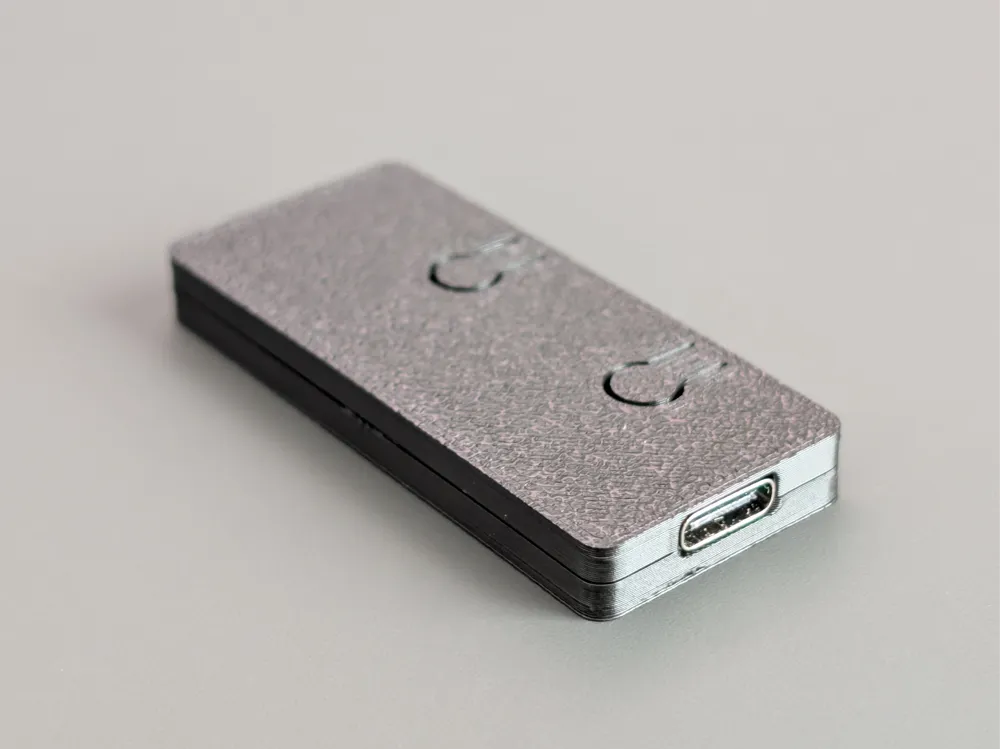

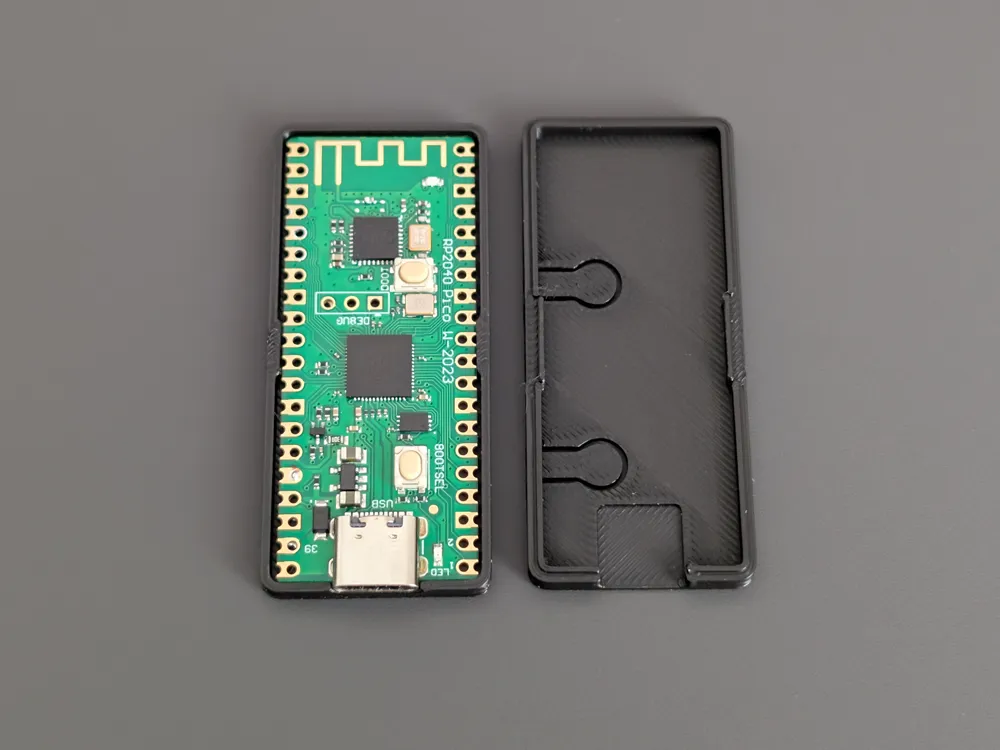

The case measures 54 mm × 24 mm × 6 mm and provides a very low-profile form factor. It consists of a two-part design where the top and bottom halves clip securely together. To keep the case as thin as possible, the only external openings are for the two on-board buttons; the GPIO pins remain fully enclosed with no cutouts.

The result is a compact and protective enclosure, offering a minimal and discreet housing for the board. This design is ideal for projects where space is limited and a slim footprint is required, while still allowing full access to essential functions.

Comment & Rating (3)

@jeffrudzinski.p

Print Profile

0.16mm layer, 2 walls, 15% infill

Good print. It was perfect for my use.

@OxGtn

Hello! The print looks really good! :) Would it be possible to have a version with the Raspberry Pi Pico pins accessible on the case?

The designer has replied

@thomashack

Hello! I added Case bottom with GPIO cutouts.stl for you and added some GPIO cutouts to the bottom of the case. Please be aware that I did neither print nor test the part but just sketched the cutouts based on an image but feel free to test. (STL can by downloaded by clicking Download STL/CAD and then selecting the part)
