Flysky PL18Ultra+nomad RF module expansion module
Print Profile(1)
Description

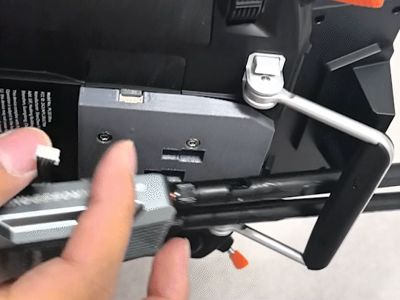

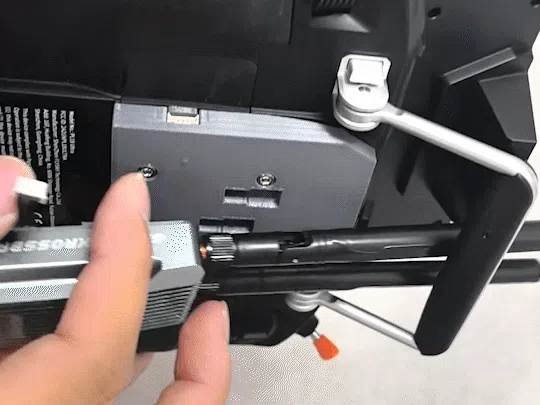

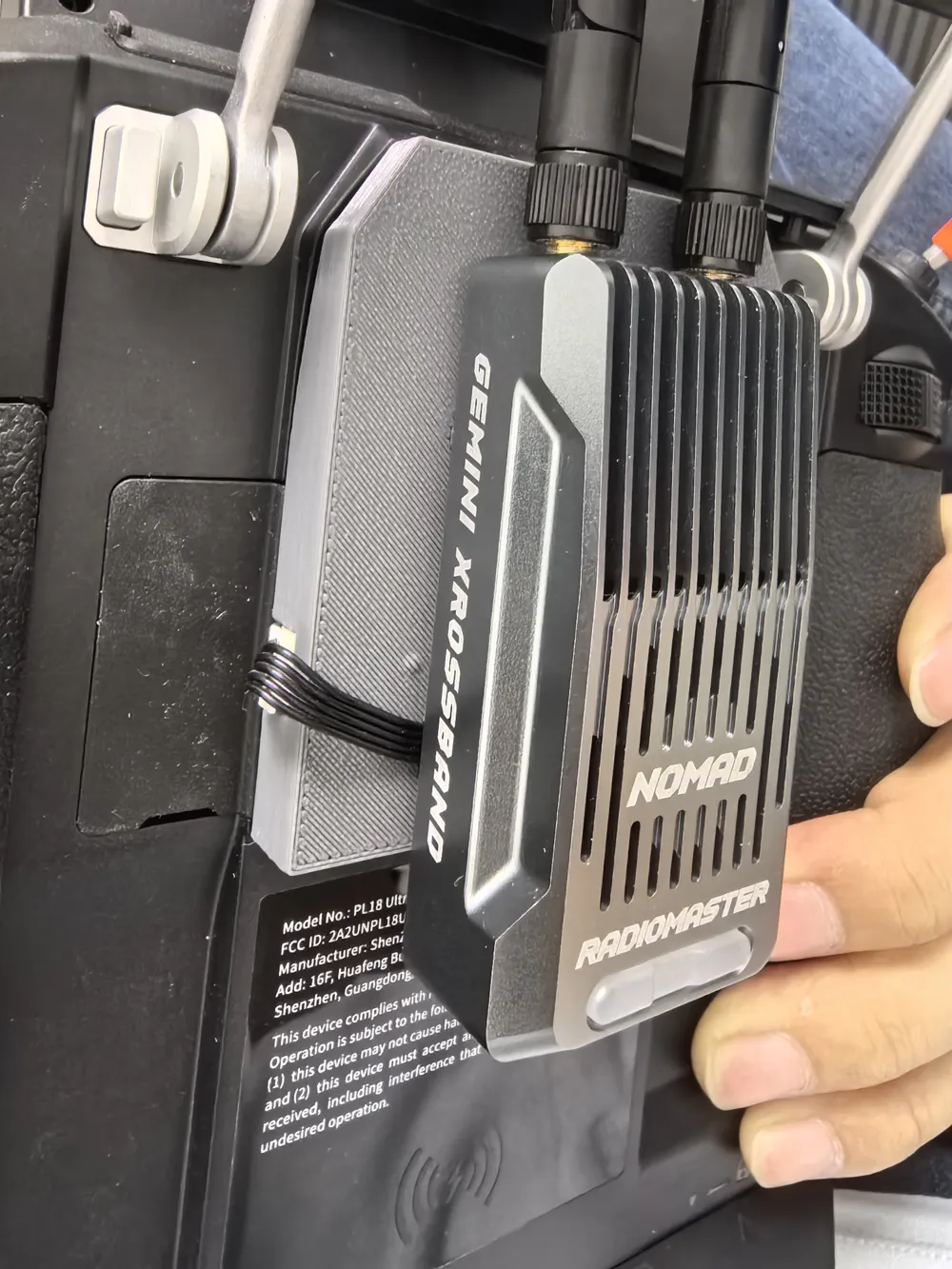

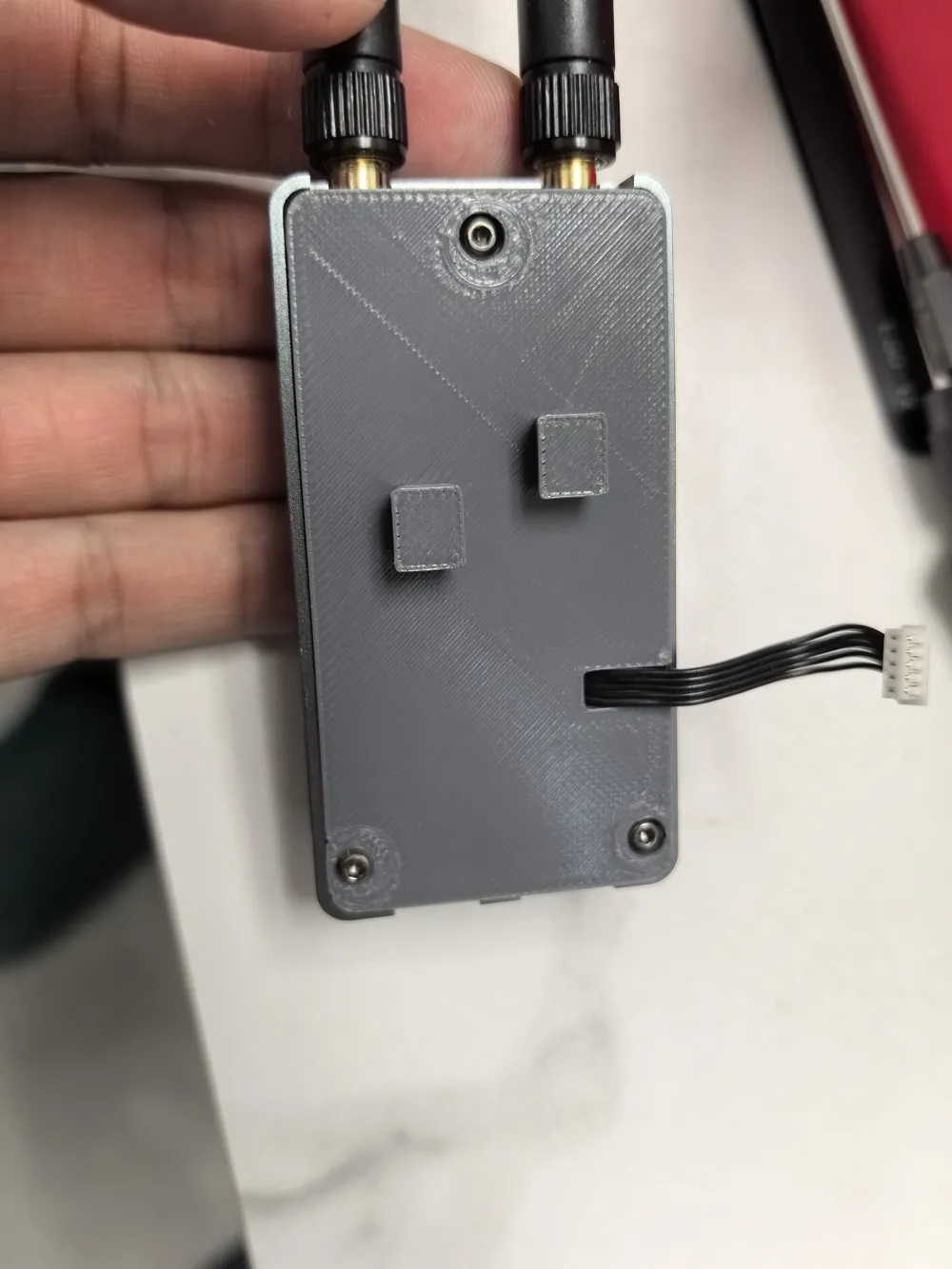

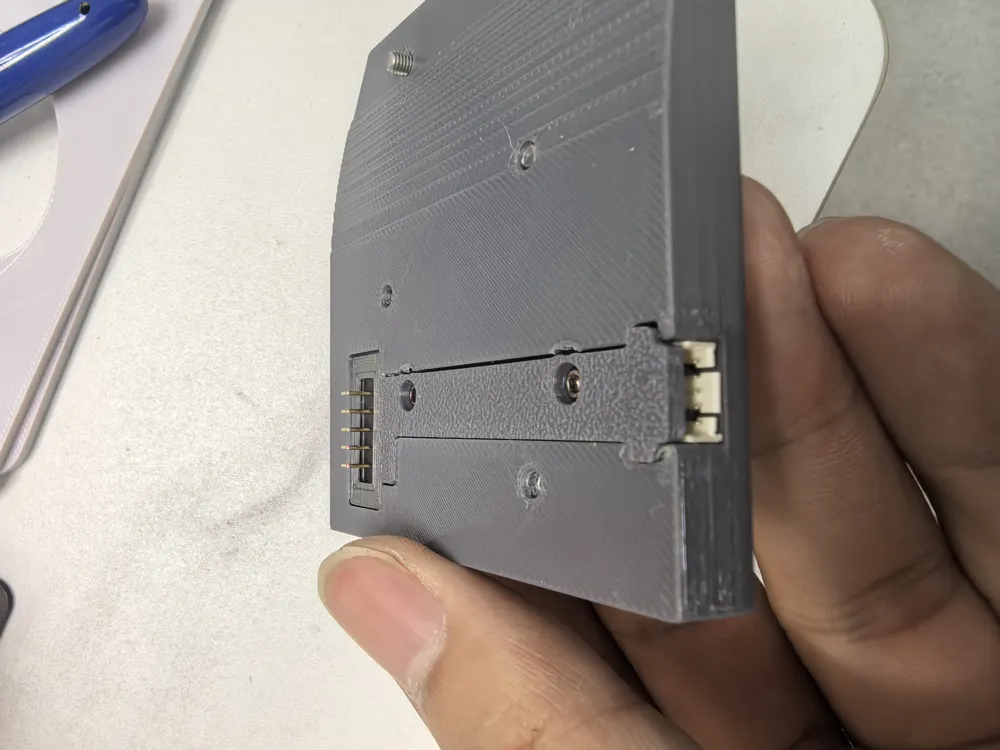

I designed a standalone ELRS RF module expansion module for the Flysky PL18Ultra, so that it can still fit into the foam case provided by Flysky even with the RF module installed, and the user experience is greatly enhanced. This module will not damage the device and is very convenient to use, but you still need to purchase a few accessories (total value not exceeding 10 meters). The list is as follows:
1. 3 M2*7 round head screws
2. 4 M3*8 cap head screws
3. 2 M2*4 round head nuts
4. 2 KFS2-M2 nuts
5. 1 pair of 1.25 pitch, 5P horizontal patch terminals + plugs
6. 1 2.5 pitch blade connector 5P 90° angled side entry male connector

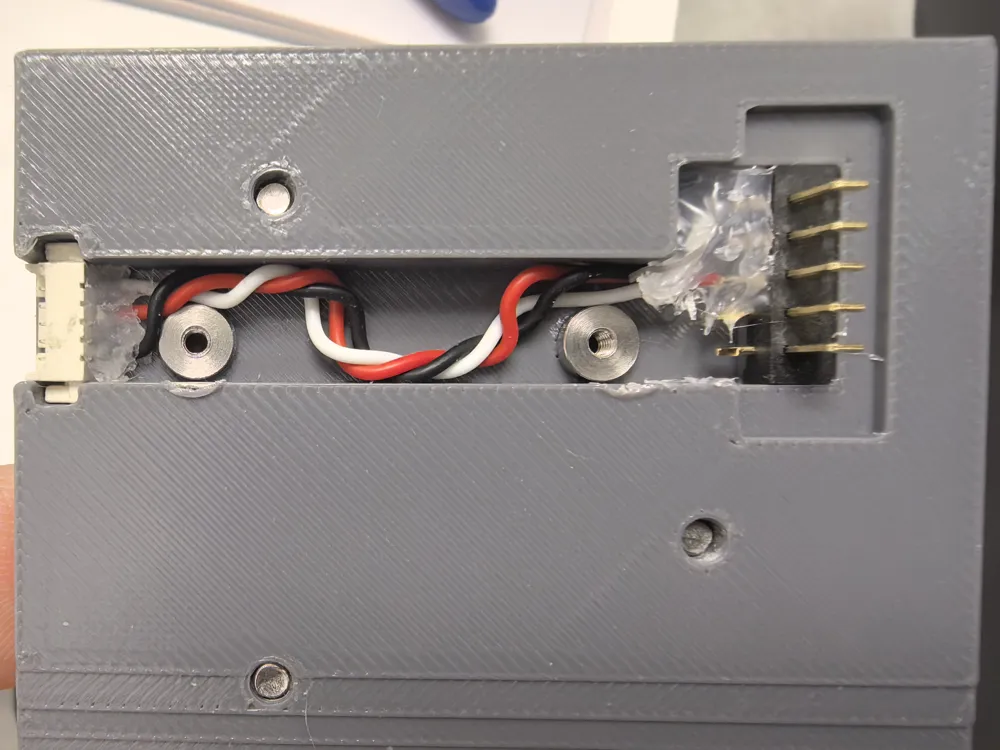

The assembly guide includes a wiring diagram. You can print with any Bambu Lab printer and material, but I still recommend printing with PETG or PLA filament. I printed with PETG and used PLA for the raft layer of the supports to get a smooth support surface. If you have installation issues, please describe them in the comment section. Additionally, I also designed an expansion module for Great Black Sheep, please click on my homepage to view it.
