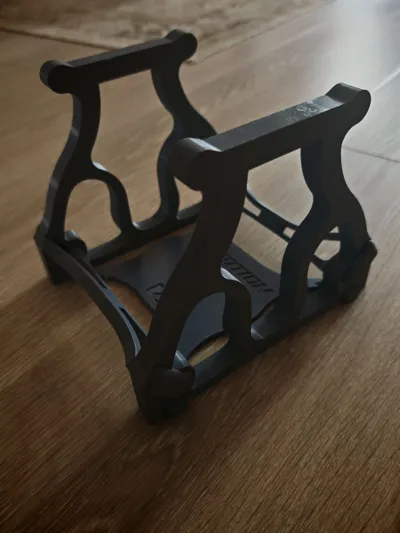

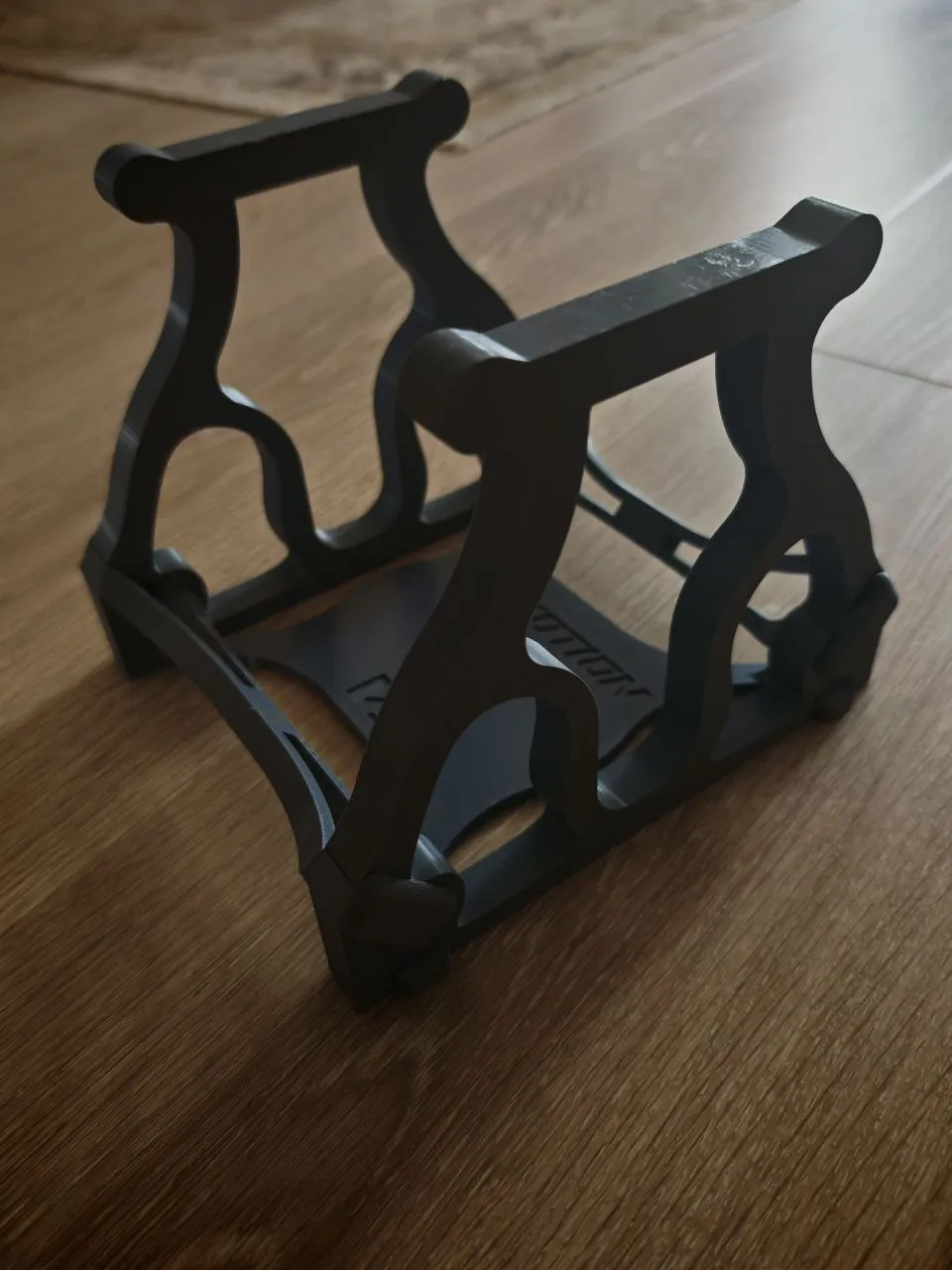

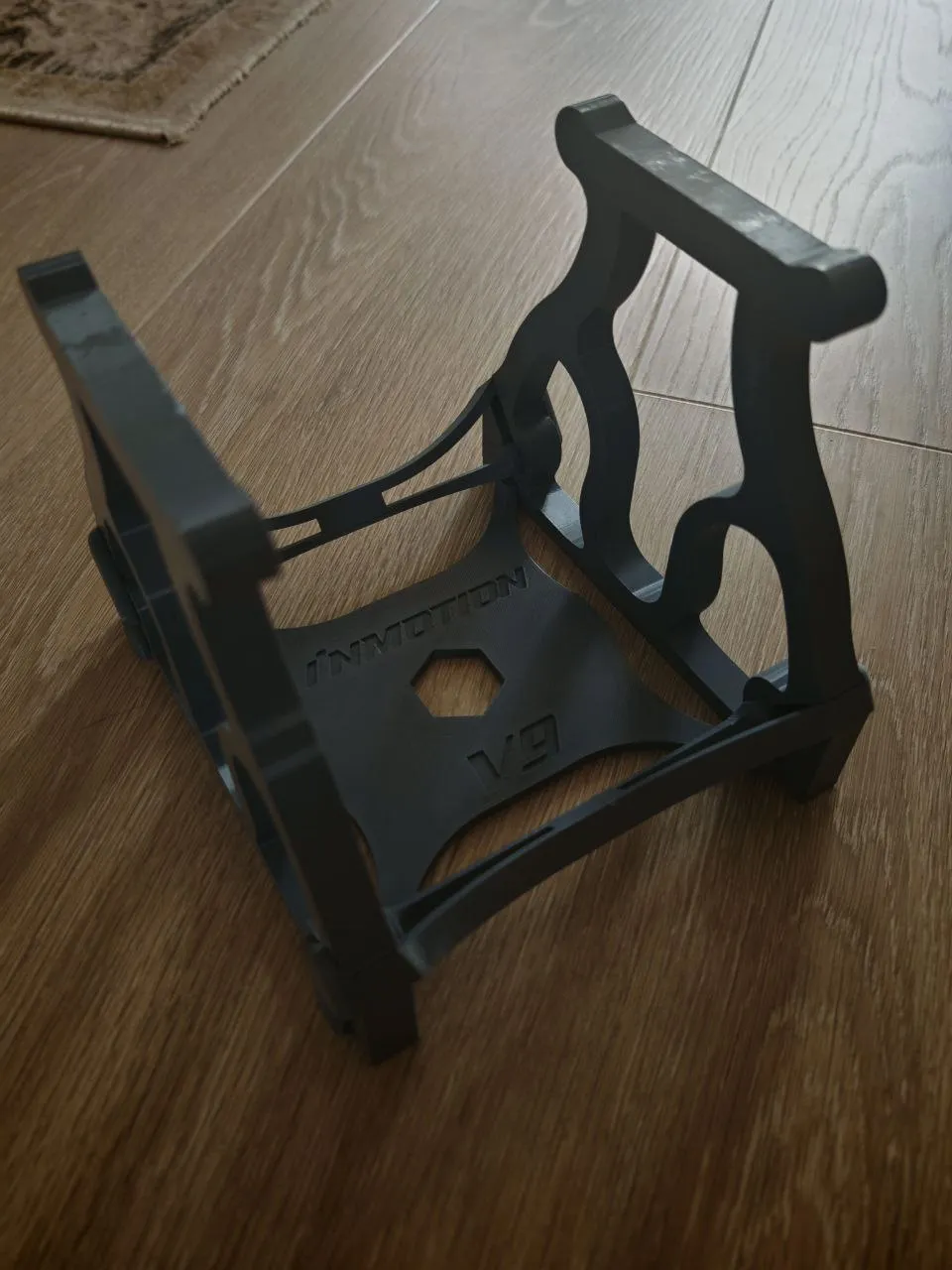

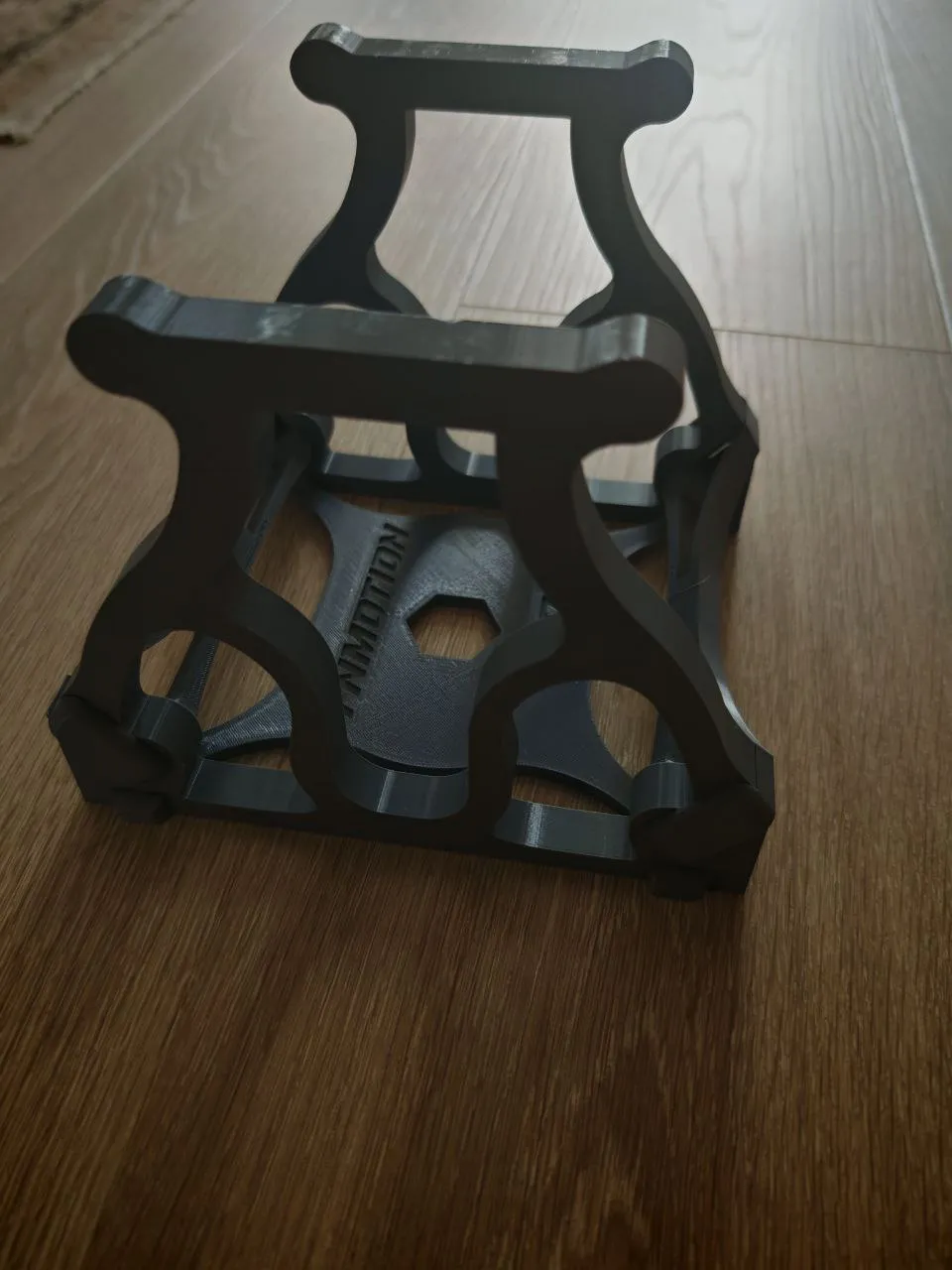

Inmotion V9 Stand – Modified 145mm Version

This model is a remix of the original stand by Mookie76.
The original was designed for the Ninebot Z10 (175 mm). I modified it to fit the Inmotion V9 by reducing the base width and reinforcement from 175 mm to 145 mm.

I also printed and tested the stand using PETG for extra durability and flexibility.

Changes from the original

• Adjusted bottom plate and reinforcement width: 145 mm (optimized for Inmotion V9).
• Stronger wall settings to increase load resistance.
• Tuned slicer settings for PETG on Bambu Lab P1S with 0.4 mm nozzle.

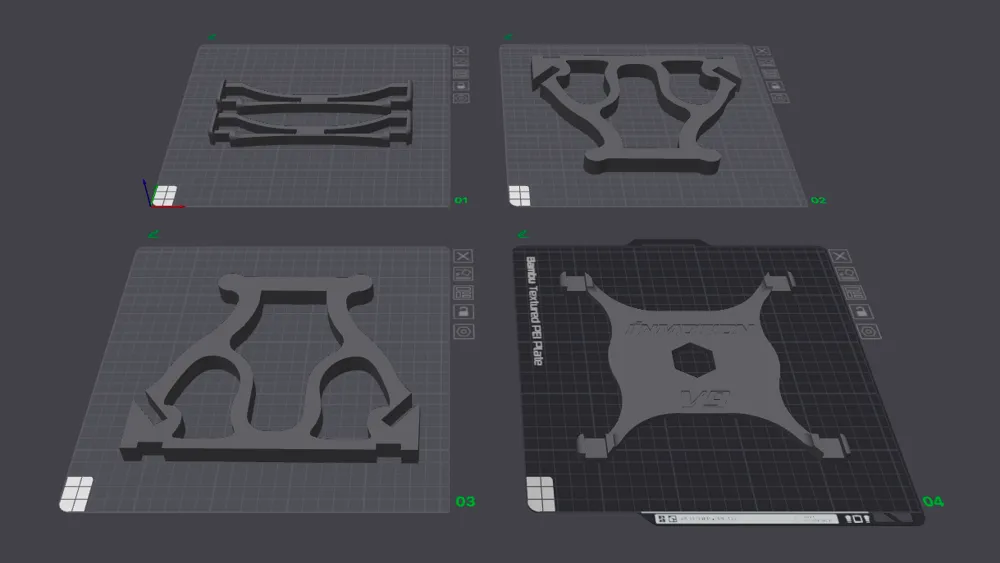

Print Settings (tested with eSUN PETG+HS)

Printer: Bambu Lab P1S
Nozzle: 0.4 mm

• Layer height: 0.20 mm (initial layer: 0.20 mm)
• Perimeters: 6 walls (≈ 2.5 mm thick)
• Top/Bottom layers: Top 5, Bottom 3
• Infill: 25% Grid (rectilinear solid infill)
• Line width: Outer wall 0.42 mm, Inner wall 0.45 mm, Top 0.42 mm
• Seam position: Aligned, Smart scarf seam enabled
• Elephant foot compensation: 0.15 mm

Speeds

• Outer wall: 60 mm/s
• Inner wall: 300 mm/s
• Top surface: 200 mm/s
• Sparse infill: 270 mm/s
• Internal solid infill: 250 mm/s
• Travel: 500 mm/s

Bed adhesion

• Brim, 5 mm width, 0.1 mm gap

Other notes

• 3–4 outer layers are recommended for strength (I used 6).
• PETG is recommended; PLA may work but is less durable under load.
• No supports required.

Recommended materials

• PETG (preferred)
• PLA+ (acceptable but more brittle)
• ABS/ASA (for outdoor use)

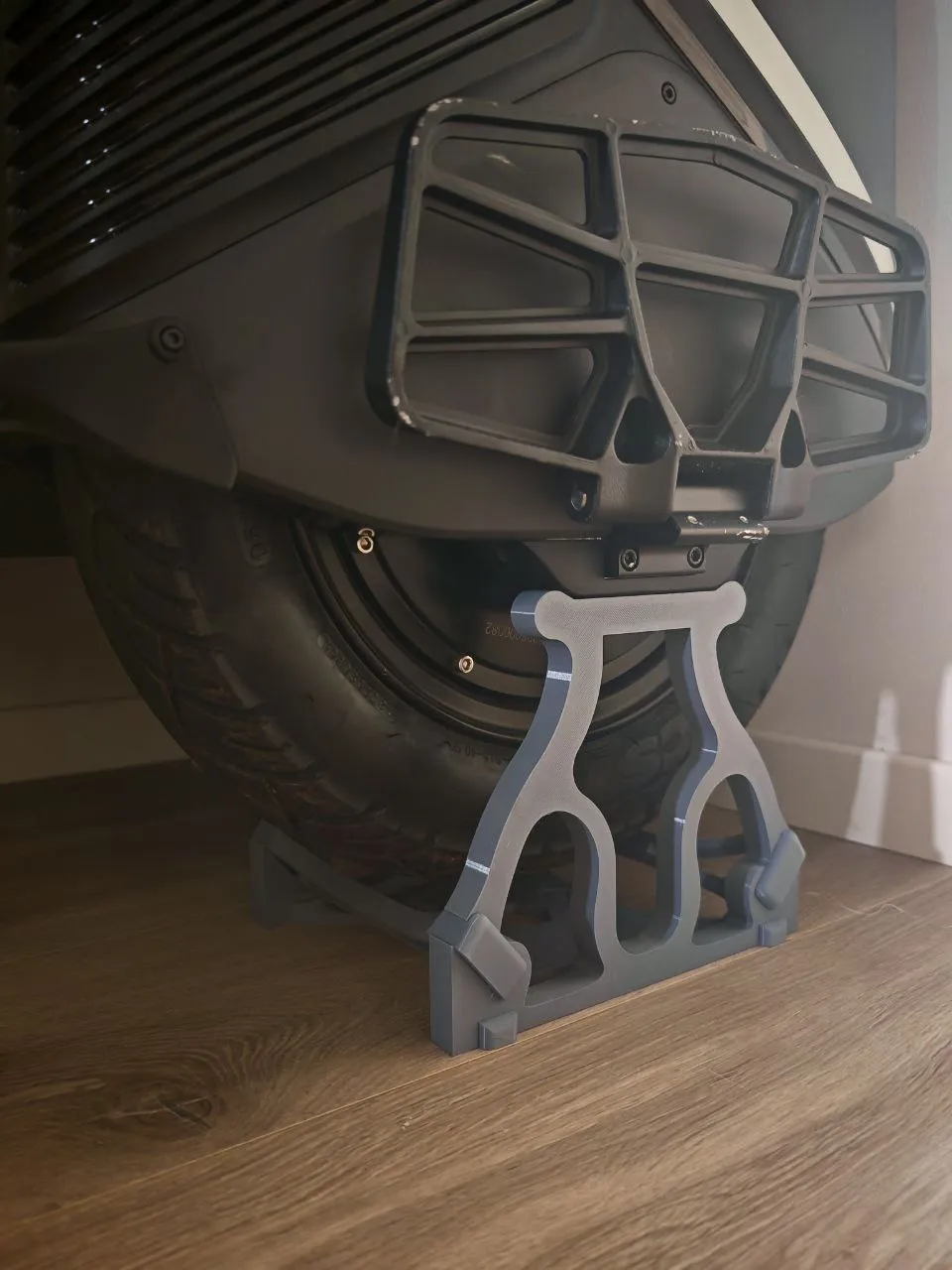

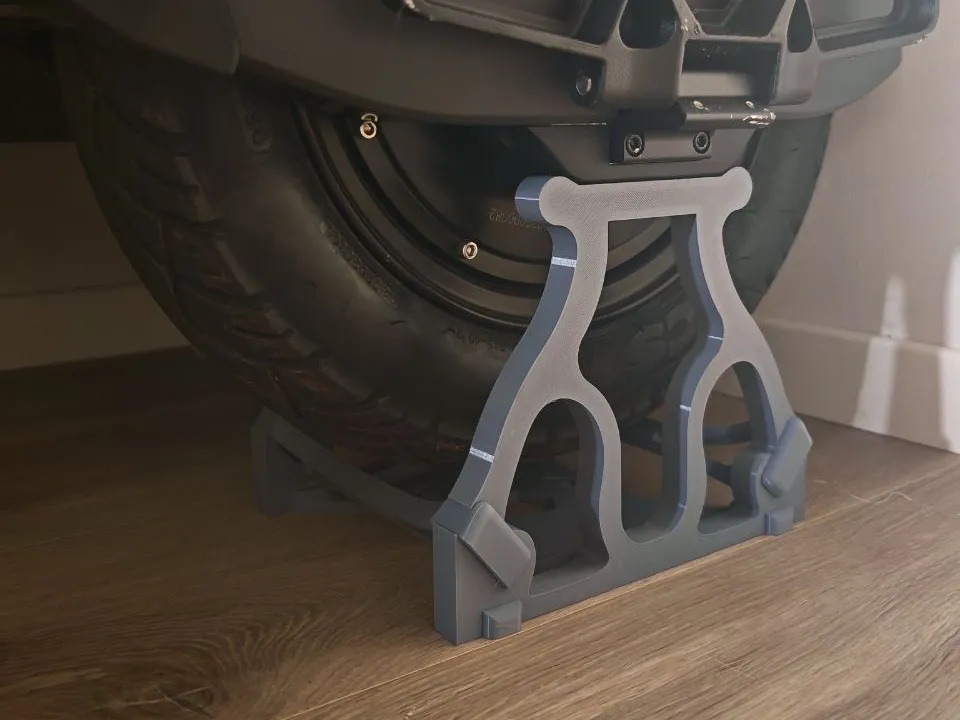

👉 This remix has been tested successfully with Inmotion V9.
