Bosch Workboard 1 600 A01 BX9 for jigsaw

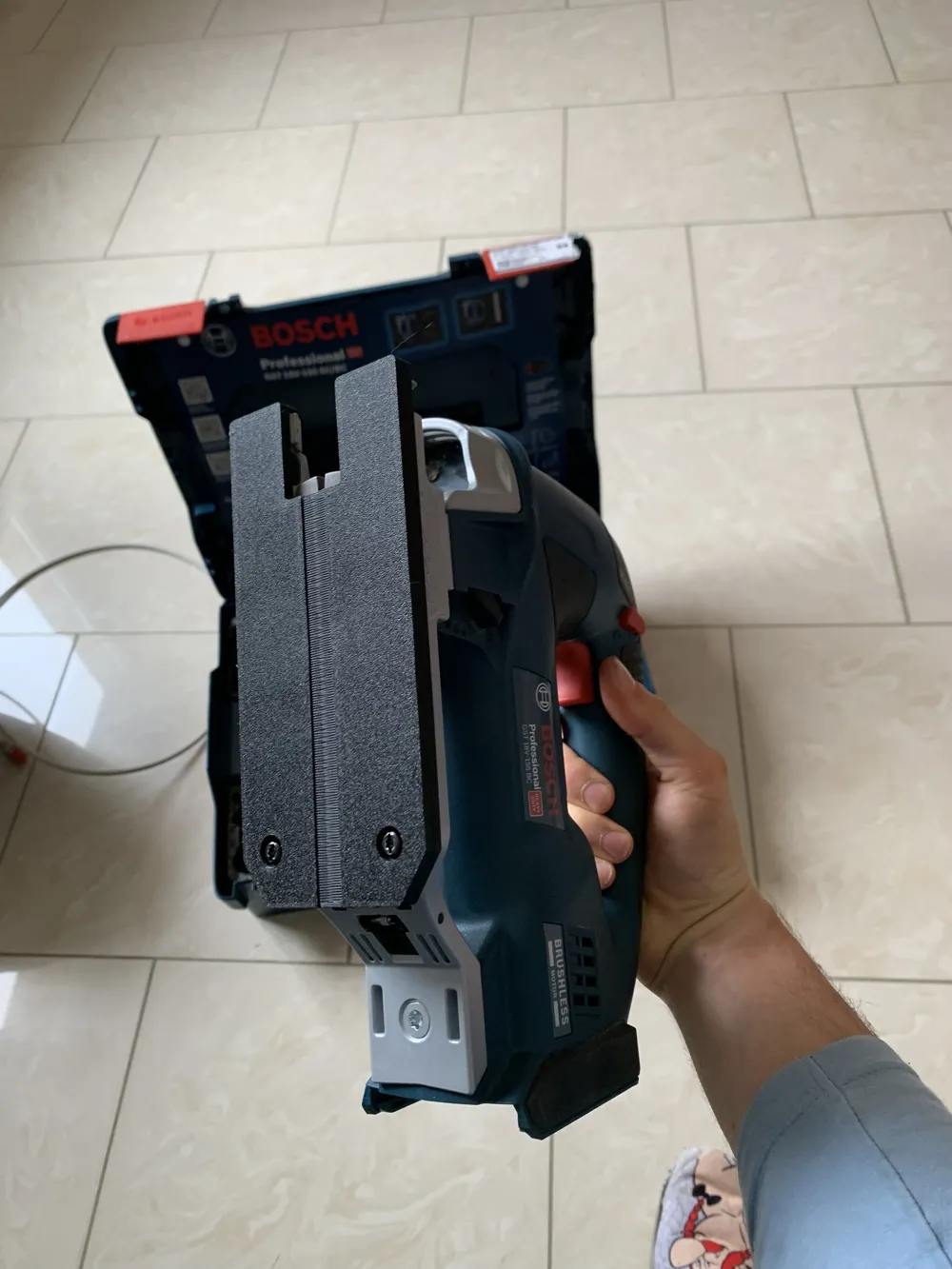

I use a Bosch GST18V-155 BC jigsaw, and Bosch did not offer spare of the work board for the French market. Of course, I broke mine, so I had to design a compatible workboard to 3D print at home.

Should be compatible with GST 18V-155 SC and GST 18V-60 BC too.

Warning : original part is made of PA6-CF20. I printed this first iteration in PLA with a rather low infill, and I don't have hindsight on his durability at moment. Printing in PETG might be recommended for the better heat resistance.

Known print issues :

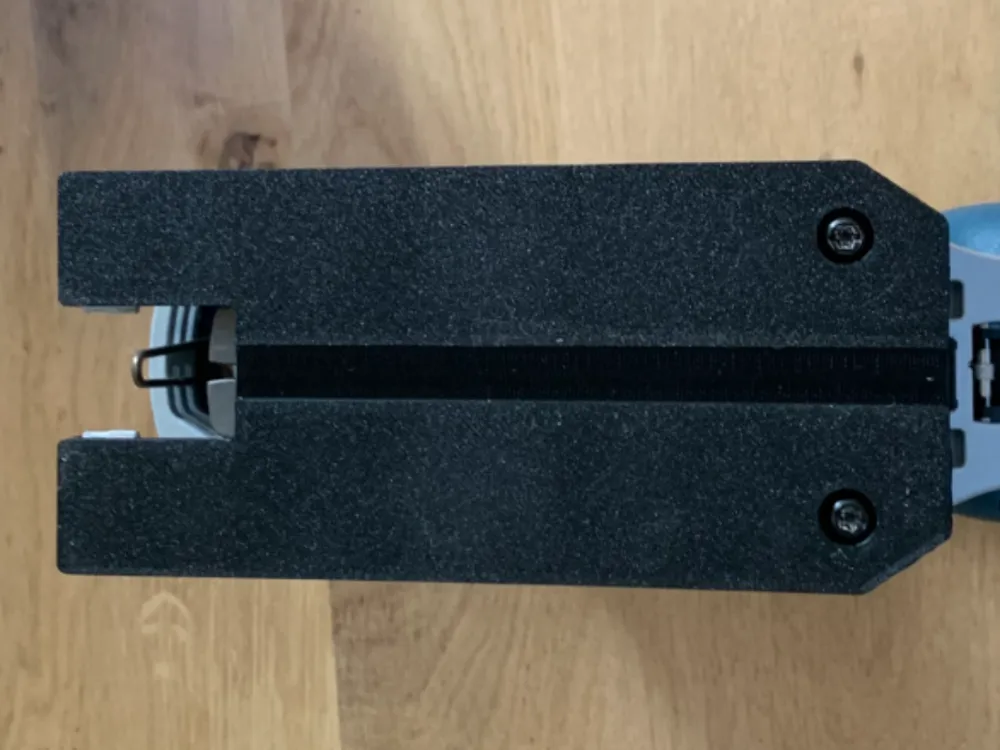

• The circles to welcome the 2 screws tend to be messy (too small for a .4 nozzle perhaps ?) after the print, but it does not prevent the insertion of the screws.

Original Bosch screws require a T20 screwdriver in order to mount the part.

Feel free to post suggestions and enhancements to make the part better. I will update the design accordingly.
