Formula 1 Starting Grid (Wall-mount) — #LEGO71049

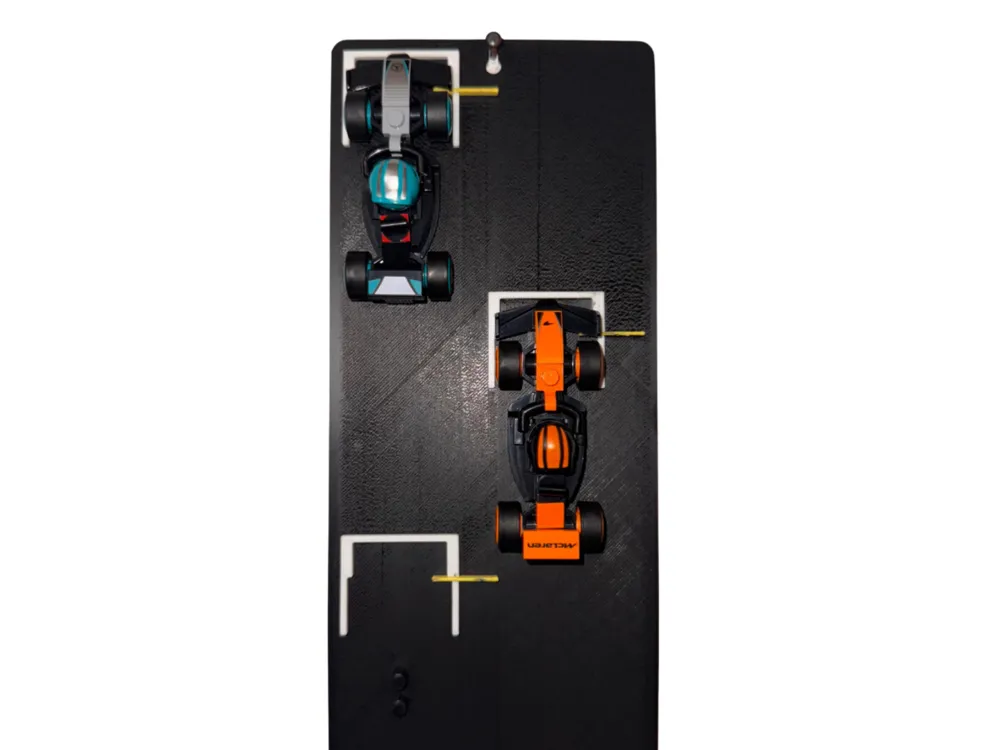

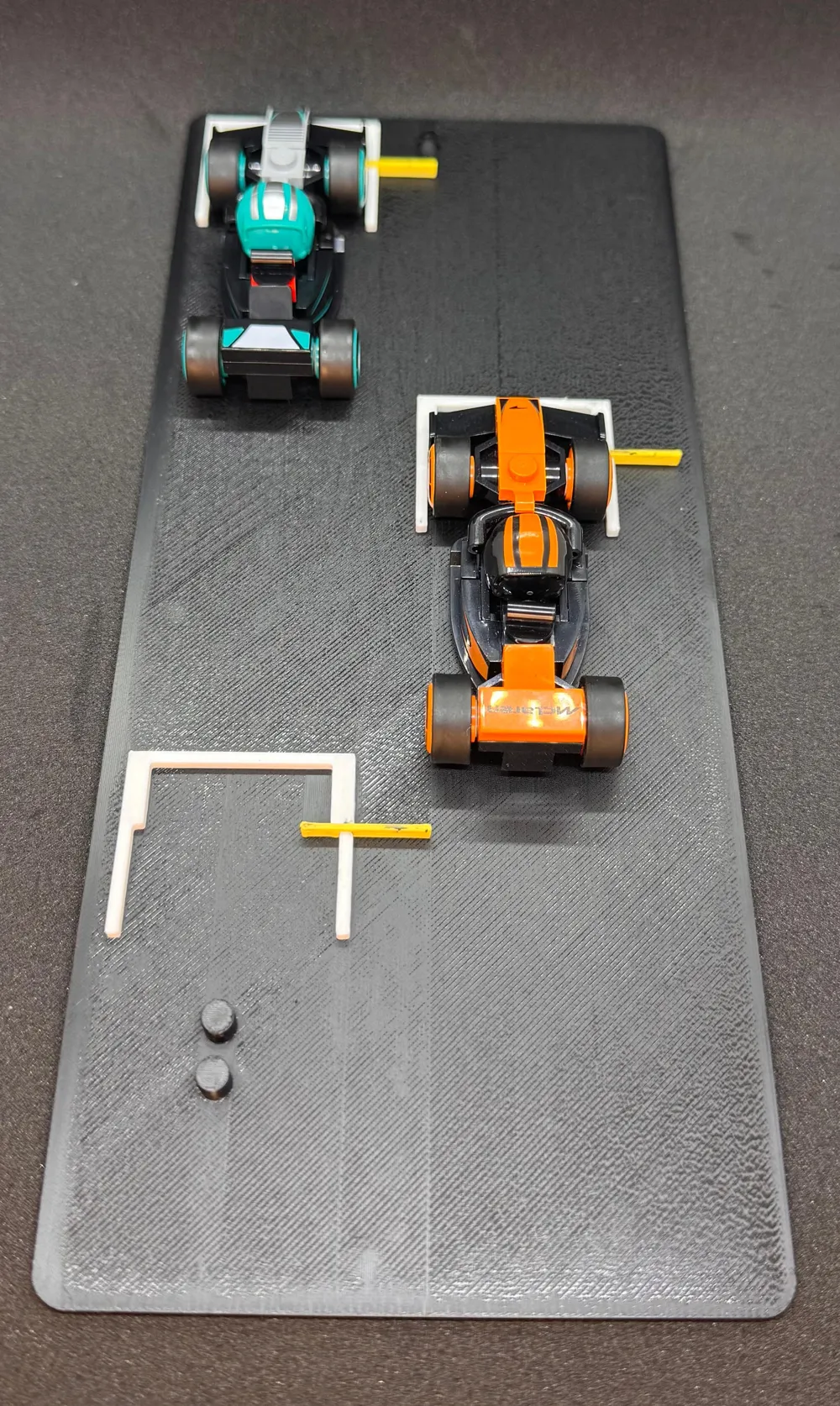

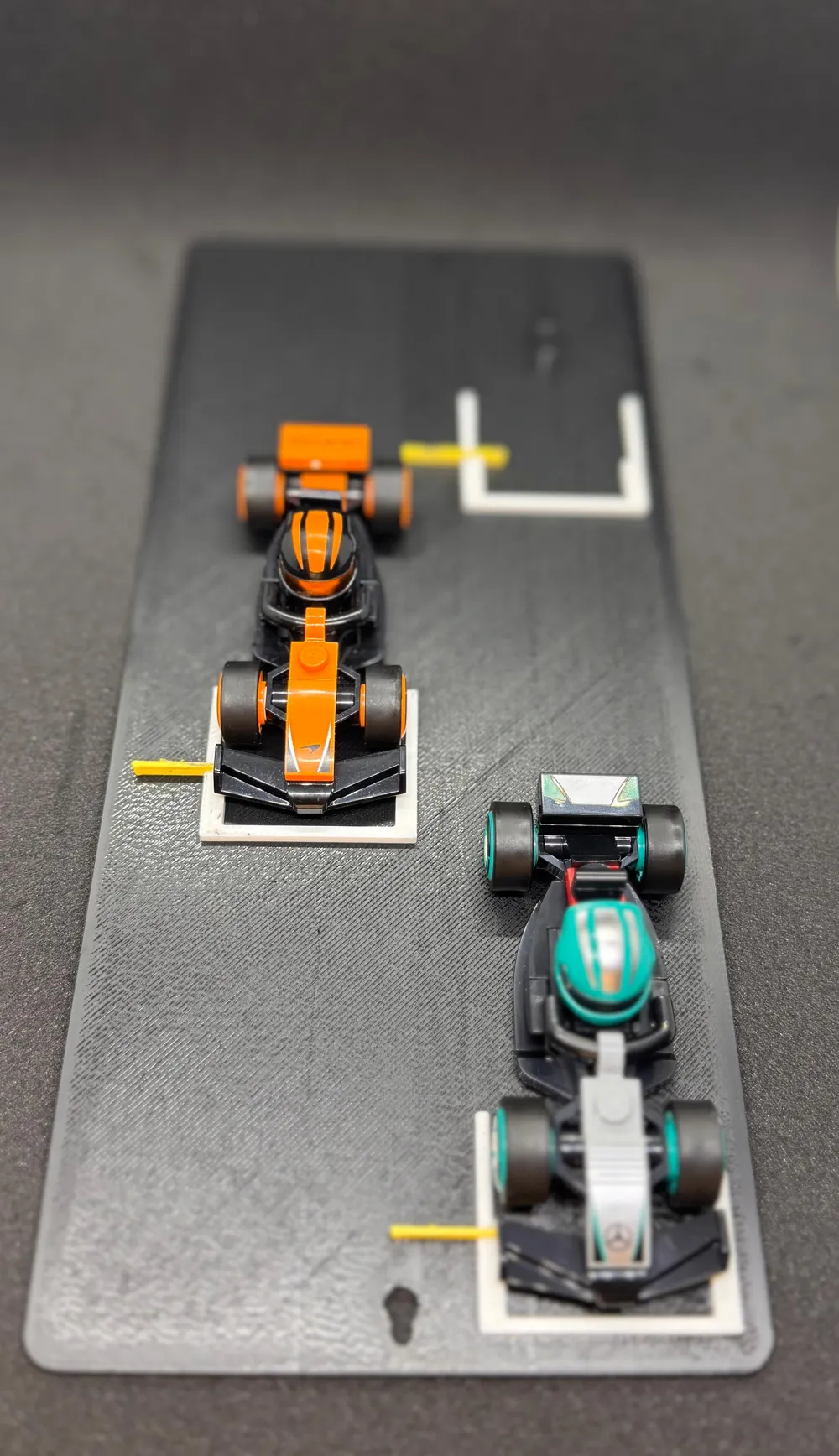

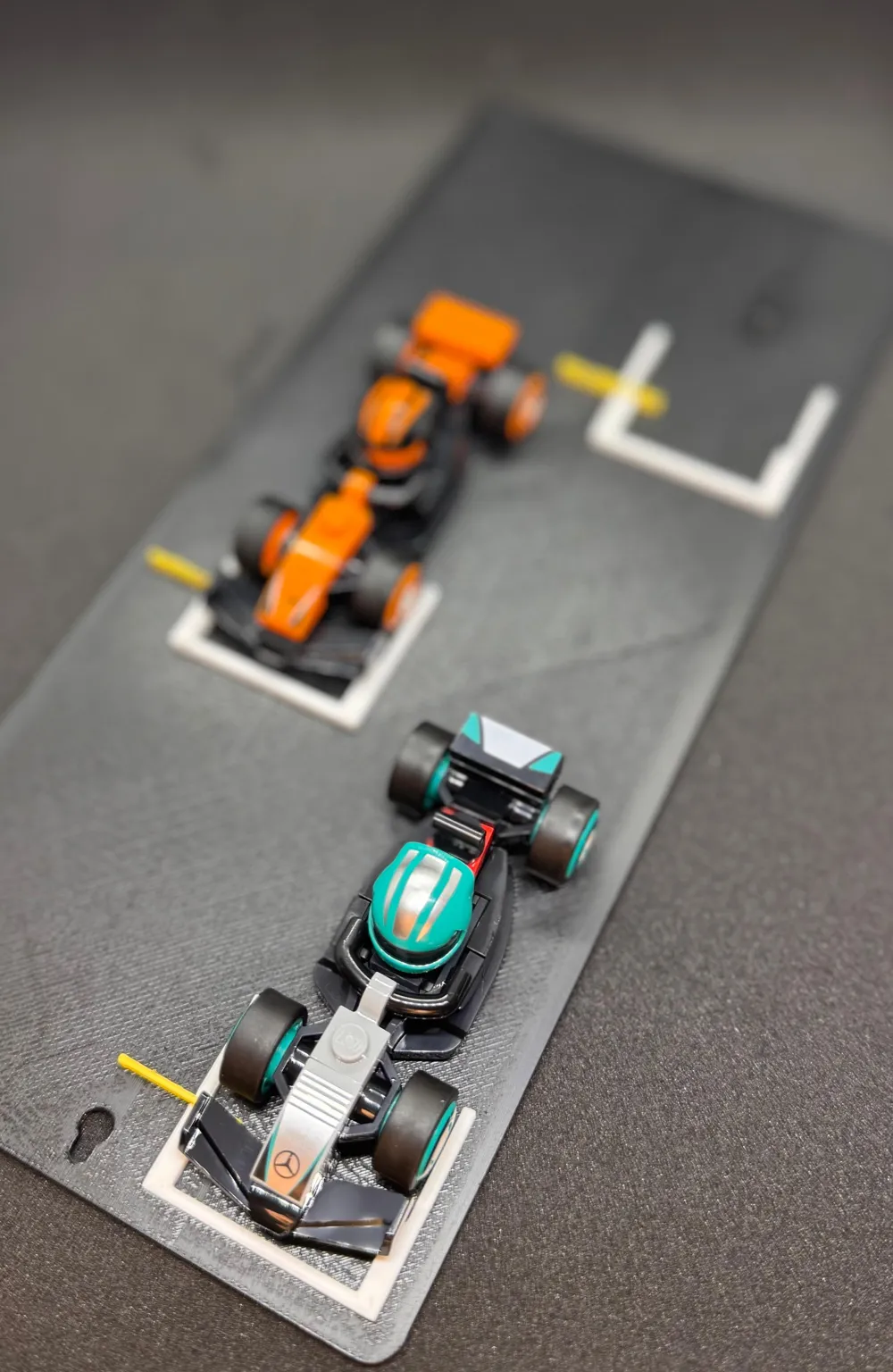

This 3D-printable display replicates the Formula 1 starting grid layout under the 2025 FIA regulations, designed for LEG.O set #71049 vehicles. The grid features exact regulation-inspired markings and proportions, including a white “box-C” border for each grid position and a yellow reference line for front wheel alignment, as per the FIA rules.

Key Features

• Fits 3 LEG.O cars by default; modular design allows for additional grid sections to hold more cars

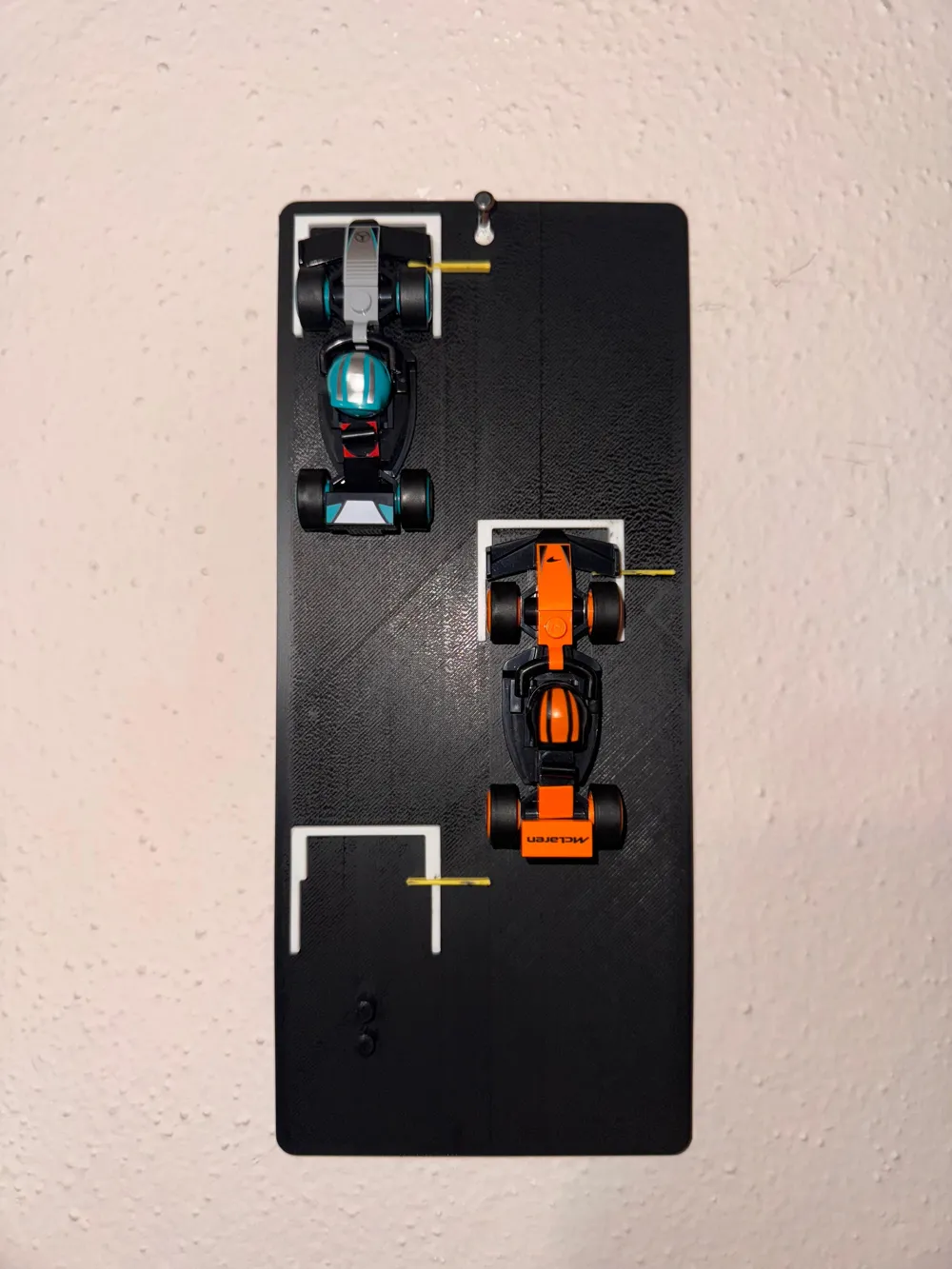

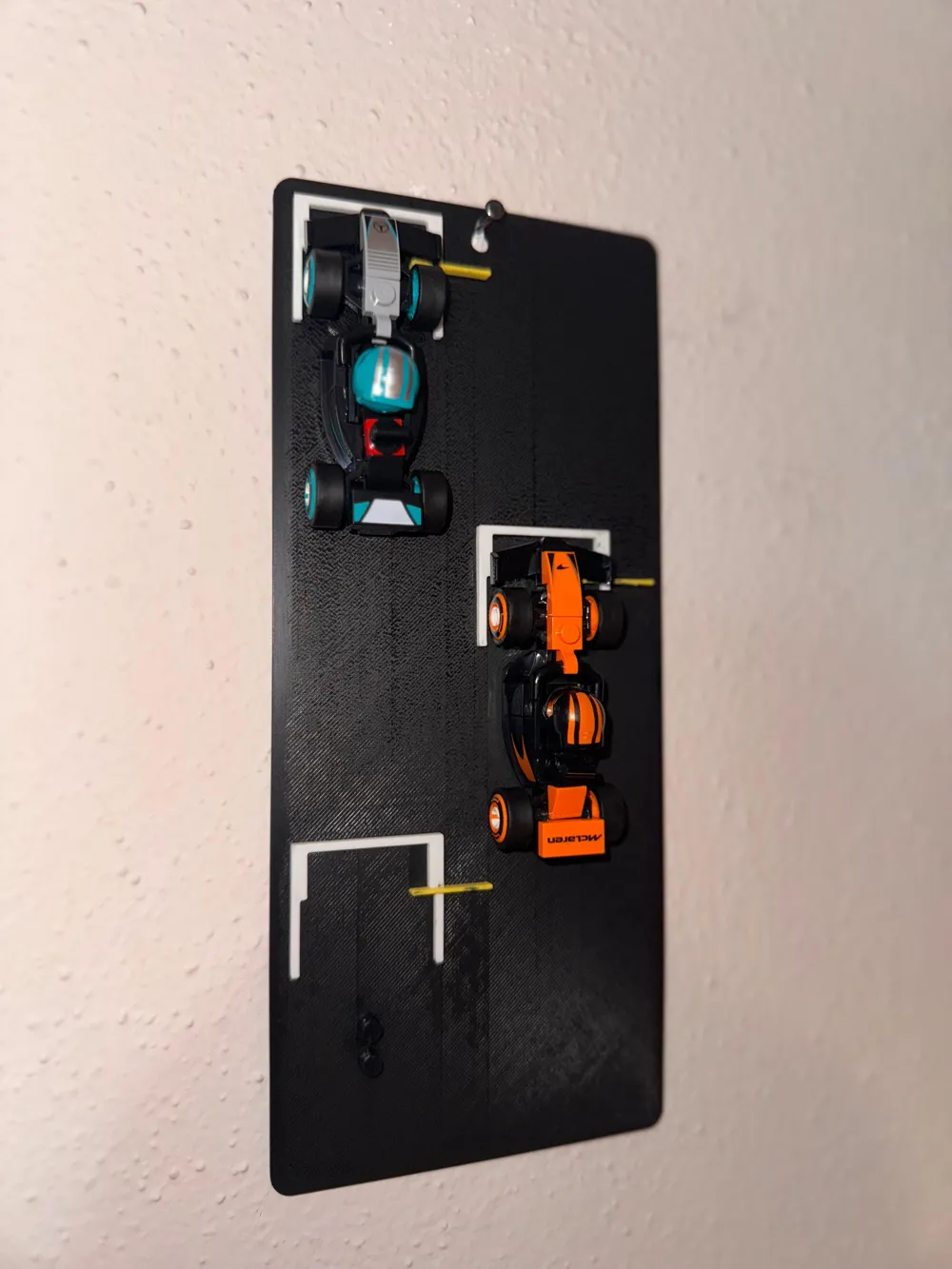

• Wall mountable: includes a hole in the back so the display can be hung on a wall
• A desk/bench version without wall-mount will be released soon
• Accurate 2025 regulation-based layout, including:
  • White “C-shaped” box border with variable thickness (as on real F1 grids)
  • Yellow front-wheel alignment line to position the car correctly

Regulation Accuracy

• FIA Sporting Regulations 2025, Article 42.5b and 44.1-44.3: cars must start from a marked grid position and pull as far forward as possible
• Grid rows are separated by approx. 16 m (scaled down for this model)
• The yellow guideline is based on FIA trials to help drivers align their front wheels correctly

Assembly Instructions

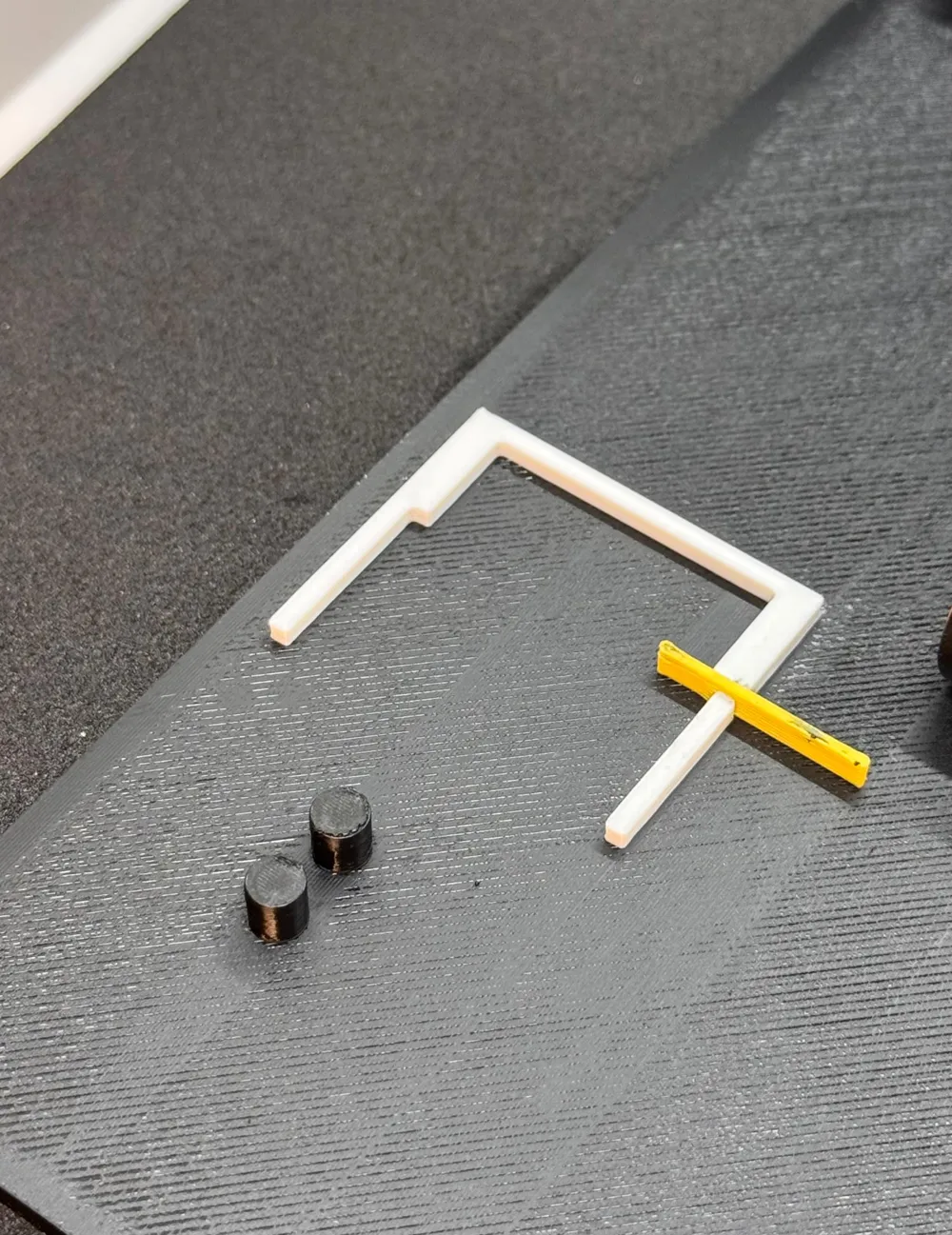

• Cars attach via snap-fit LEG.O-style hooks from below — no glue needed (tight tolerance)
• To insert: tilt the rounded end in first, then press the flat end firmly.
  If needed, place the grid face-down on a flat surface and press down around the support
• For wall mounting, use the rear hole; make sure it’s level so cars line up correctly

Copyright & Usage Notice

This model was designed and created by LP9Engineering, who retains full rights over the design.
It is provided for personal use only and may not be sold, redistributed, or commercialized by third parties.
