Red Sea NanoMat → Hello Reef AIO Adapter

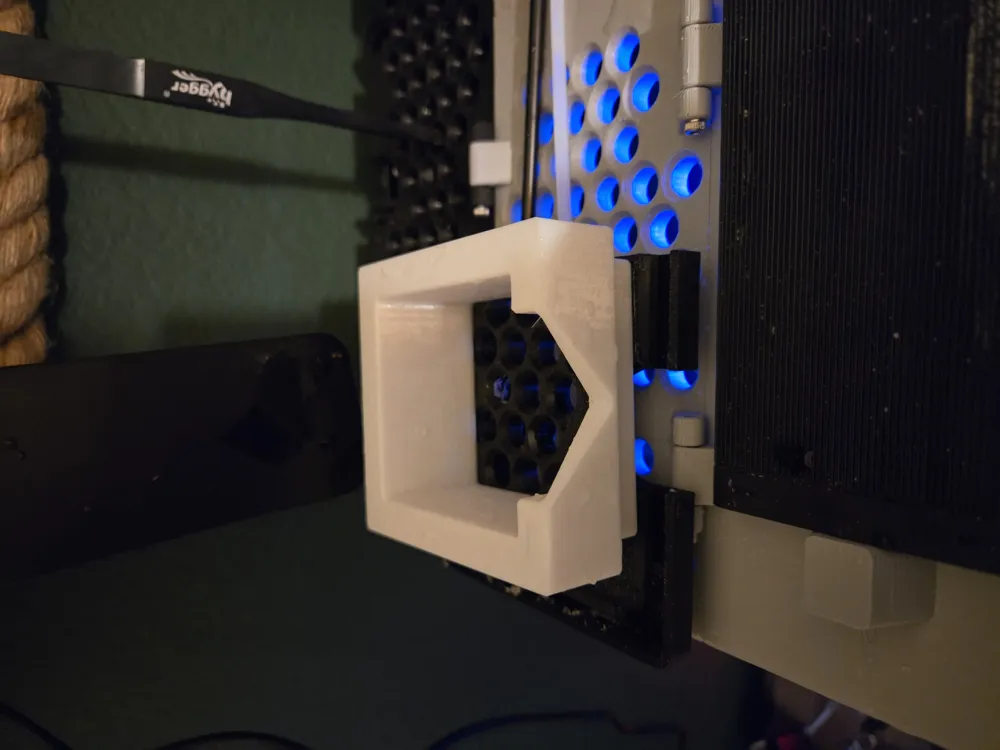

 This is a single-piece drop-in adapter that allows you to mount a Red Sea NanoMat fleece roller directly on a Hello Reef AIO aquarium. It neatly channels surface water into the NanoMat intake and keeps the install clean, quiet, and completely reversible.

Features

• One-piece design: No extra brackets, no hardware, no glue — just drop it in and hang the NanoMat.
• Directs flow: Funnels all surface water straight into the NanoMat roller, reducing bypass and splash.
• Tank-safe: No drilling or cutting required; fully reversible install.
• Clean look: Keeps fleece roll above deck and organized.

Files

• Hello Reef Nanomat Adapter.3mf – Ready-to-print file
• Hello Reef Nanomat Adapter.step – Editable CAD file for remixing

Printing Recommendations

• Material: PETG or ASA (preferred for warm, humid saltwater environments)
• Layer height: 0.20 mm
• Walls / Top / Bottom: 4 / 5 / 5
• Infill: 25–35% gyroid
• Supports: None needed
• Brim: 5–8 mm recommended for bed adhesion

Installation

1. Print & rinse (use RO/DI water to remove dust or residue).

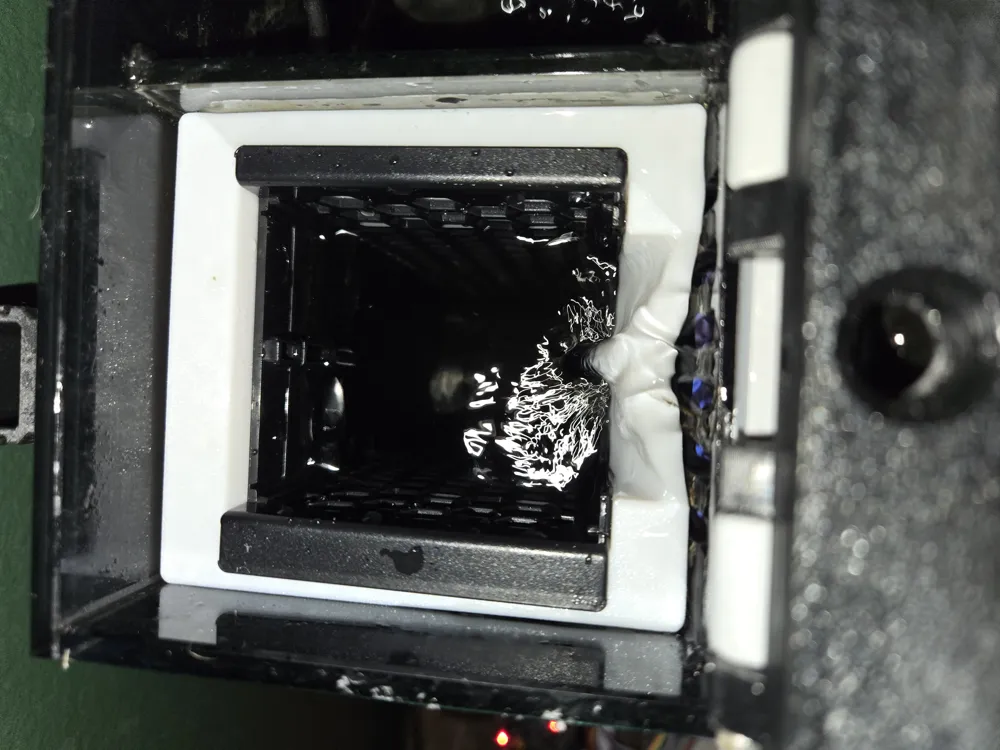

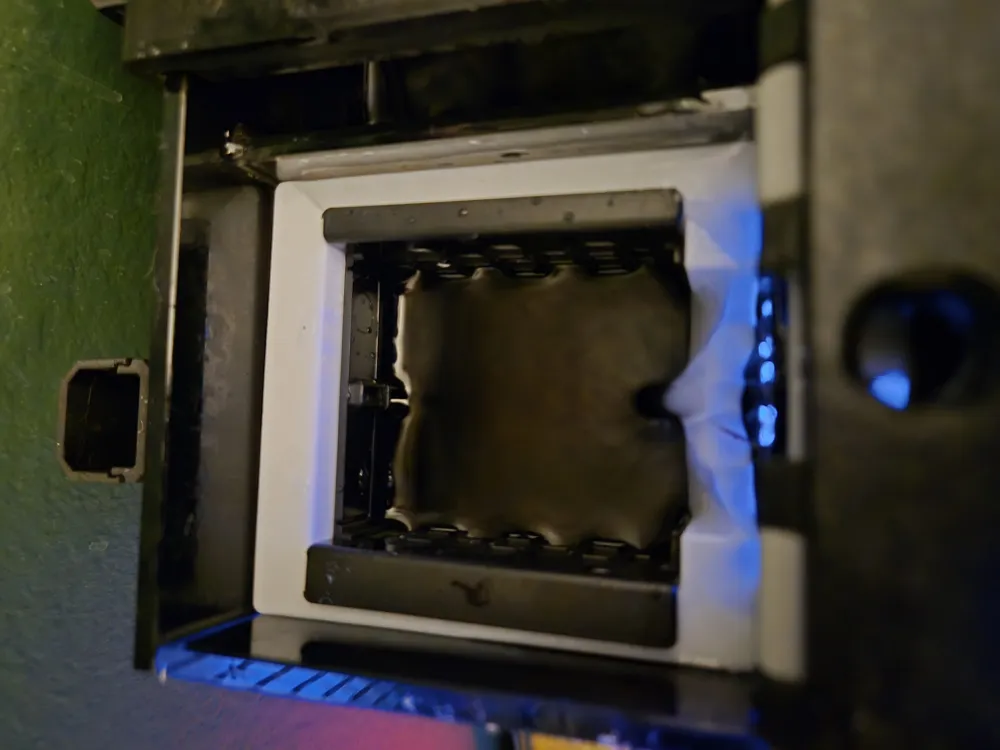

2. Drop adapter in place over the first chamber of your Hello Reef AIO.

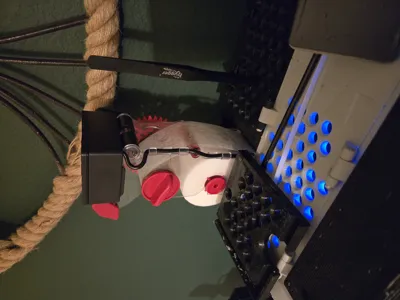

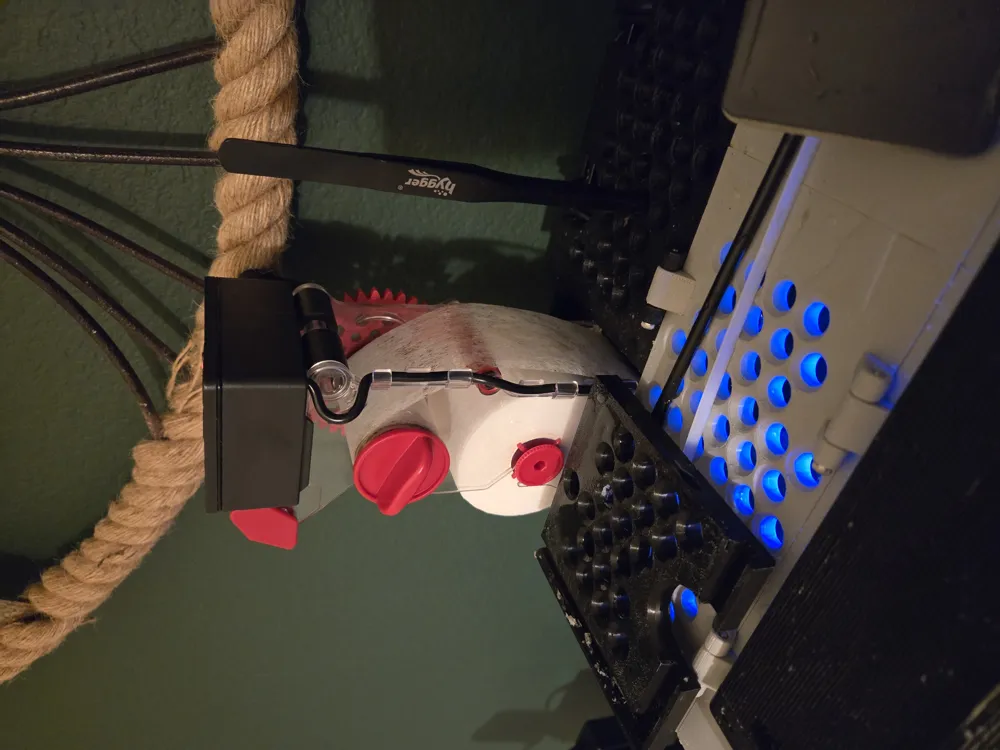

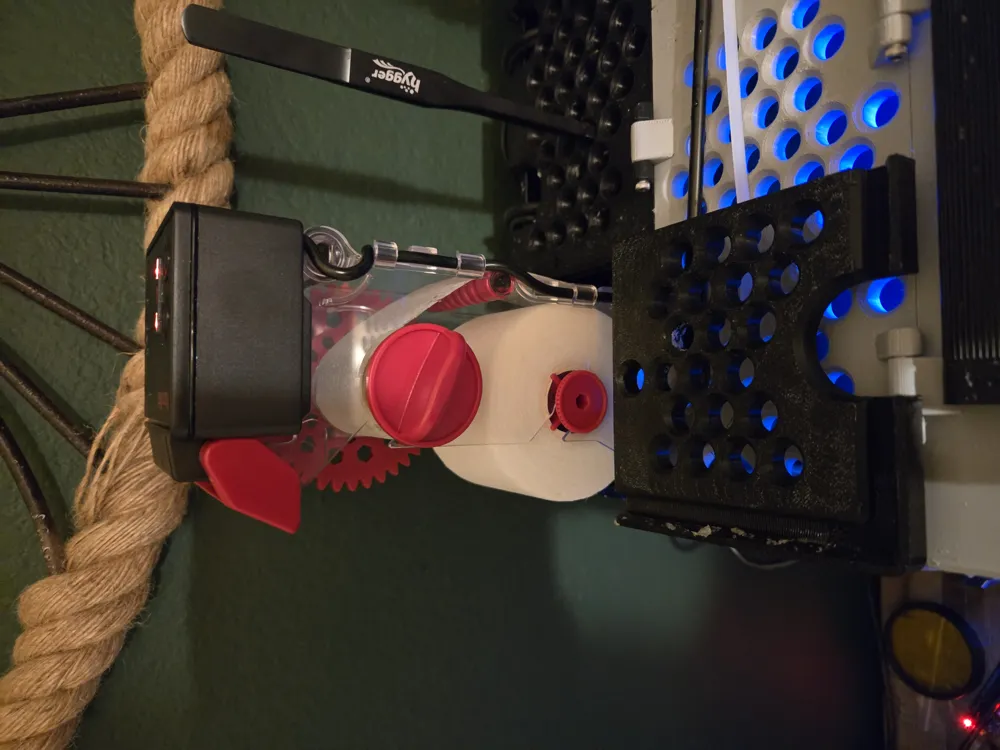

3. Hang NanoMat on the integrated mount surface — the intake will line up with the funnel automatically.
4. Thread fleece & power up following Red Sea’s normal procedure.
5. Adjust NanoMat height slightly if needed to ensure smooth laminar flow.

Maintenance

Lift out and rinse during routine cleaning to keep the V-notch clear of buildup.

Links & Attribution

• Affiliate Link (Hello Reef Tank): Buy the Hello Reef AIO on Amazon
  This is an Amazon affiliate link. I earn from qualifying purchases. Thanks for the support!

Notes

• Designed for Hello Reef AIO dimensions shown in the pictures. If your rim thickness or chamber footprint is different, you can remix using the provided STEP file.
• Works with stock Red Sea NanoMat hanger and optical sensor.
