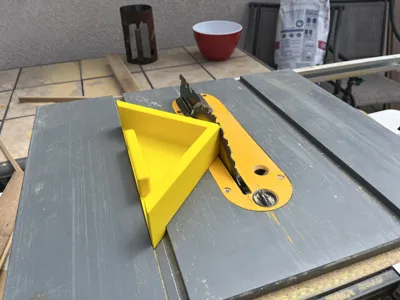

Perfect 45 Degree table saw jig / miter sled designed for the Dewalt DW745 jobsite table saw.

-works with any table saw with a 3/8" by 3/4" miter slot

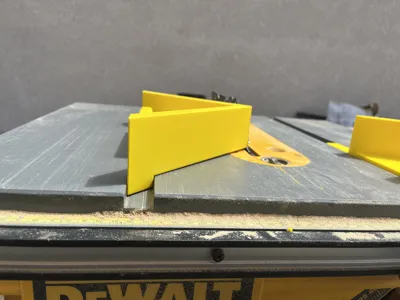

-tight fit in the miter slot (no jiggling)

-print with no supports

-Designed for small piece of fence to be trimmed by blade on first use for a perfect fit

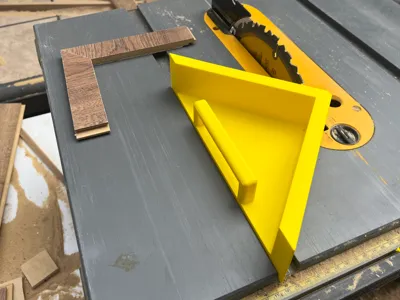

-helps make perfect picture frame or box corners

-handle for additional pushing options

-thick fence for clamping

-Prints on p1s and up only due to large size

***ENSURE TO KEEP HANDS AND FINGERS AWAY FROM BLADE AT ALL TIMES***
