Drill Template for TEM Čazež Flush-Mount Electrical Boxes (Drywall, 4M & 7M)
This drill template is designed for precise installation of TEM flush-mount electrical boxes (under-plaster), specifically for 7M and 4M modular configurations in drywall (gypsum board) walls.
Material: PLA or other

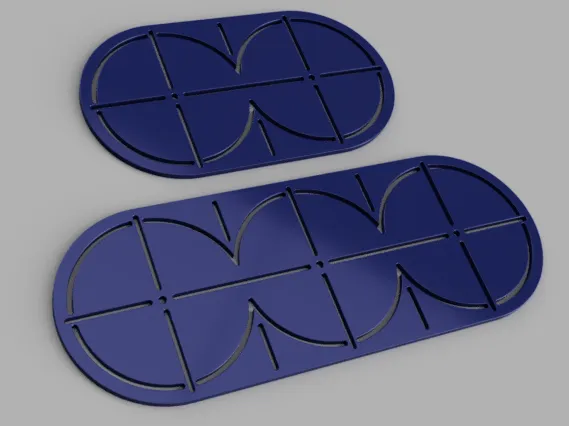

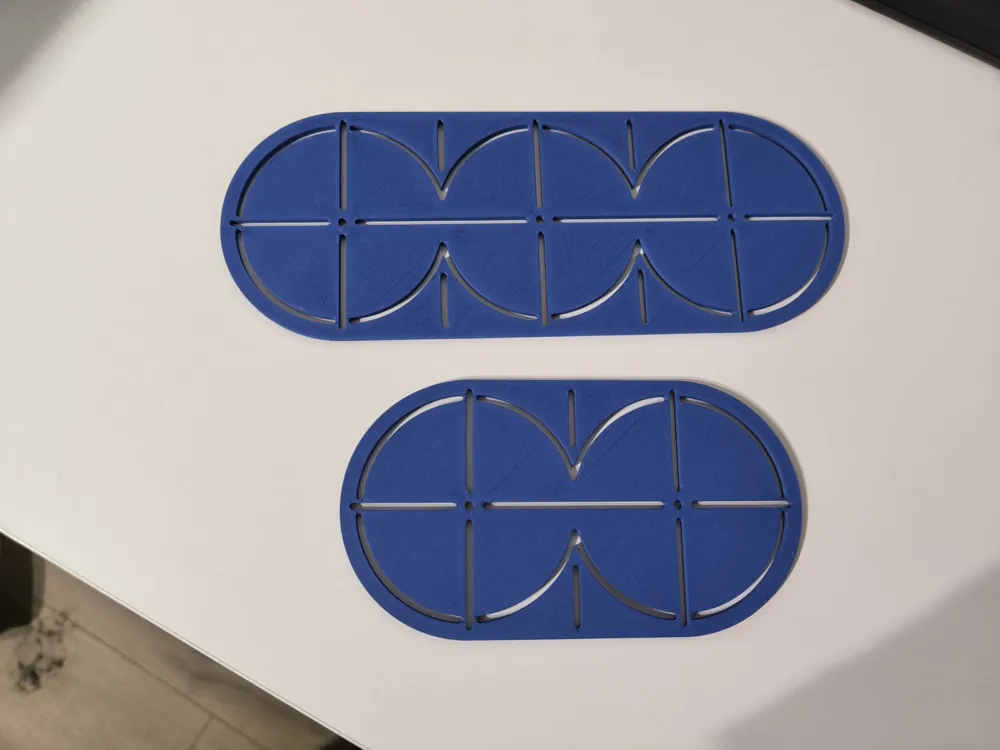

Available Sizes: 7M and 4M module versions

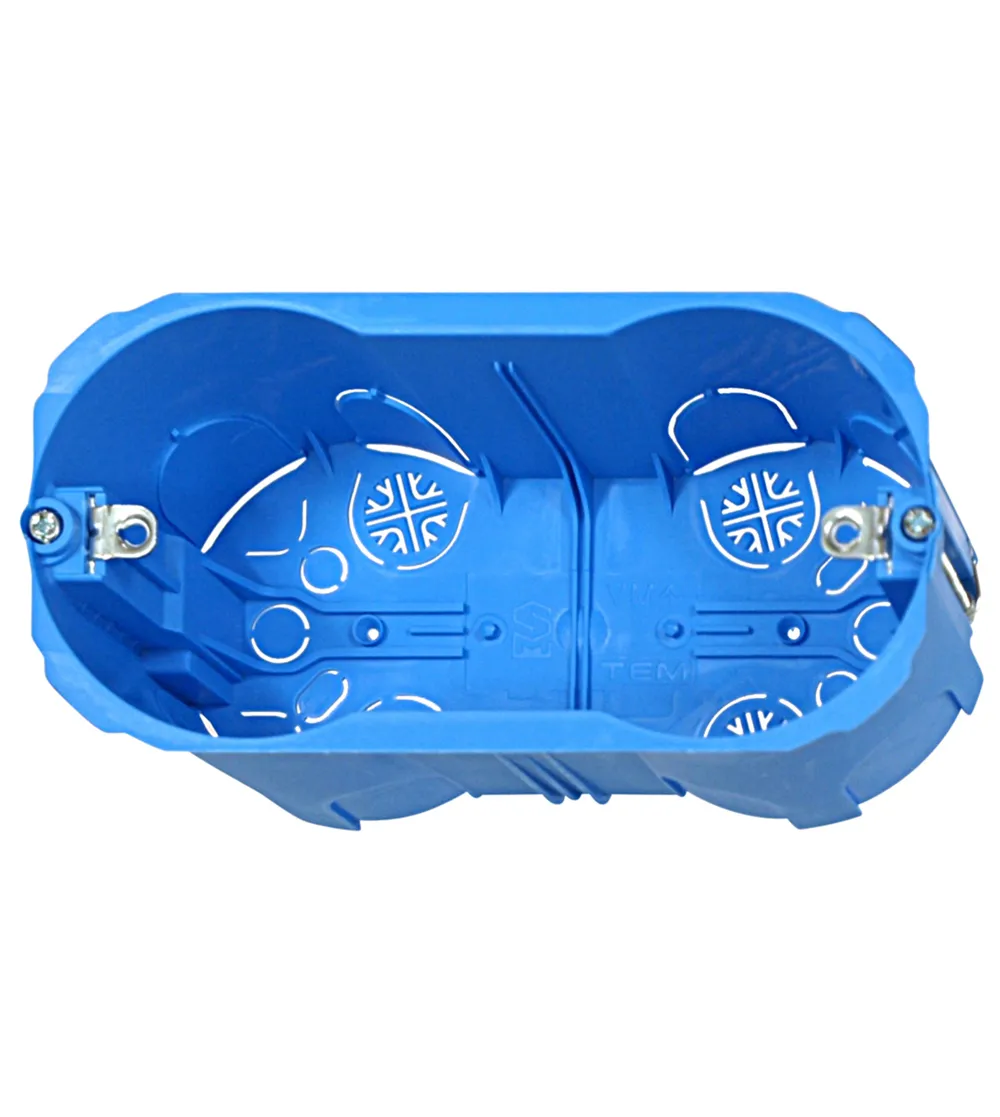

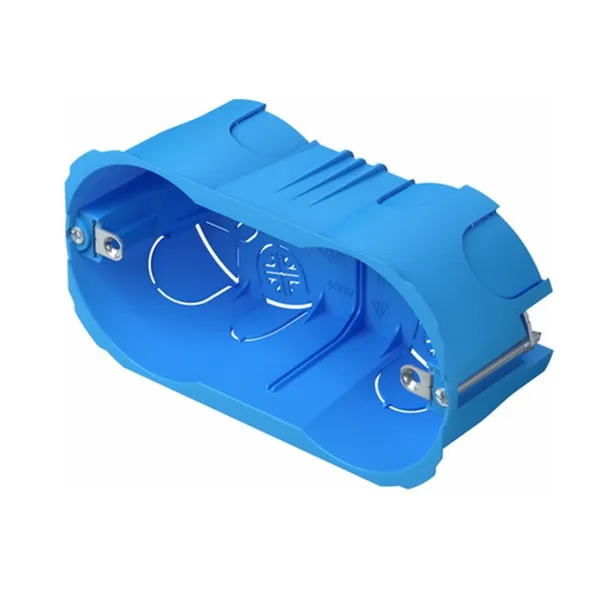

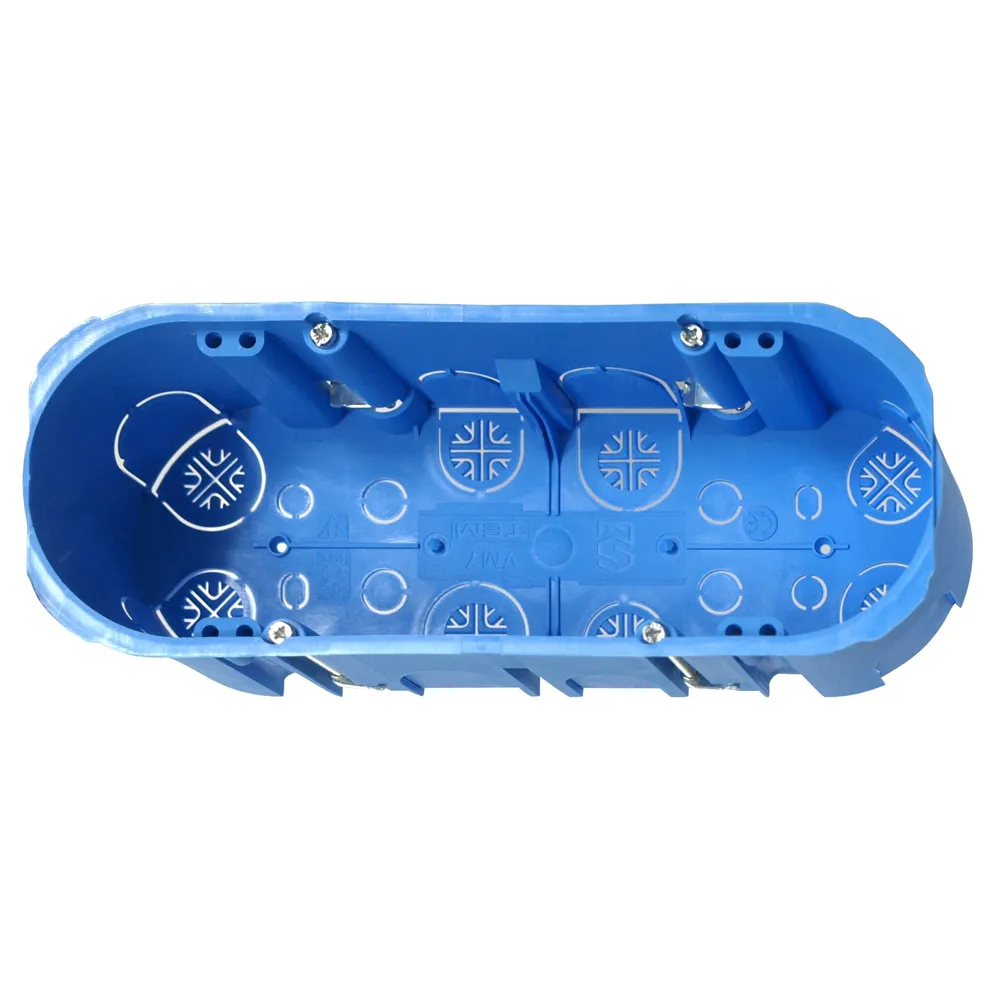

Box Diameter: Ø68 mm
Center-to-Center Hole Spacing: 66 mm
Features:
Accurate drilling guides for proper alignment and spacing of holes
Designed to fit standard Ø68 mm electrical wall boxes
Maintains exact 66 mm spacing between center points

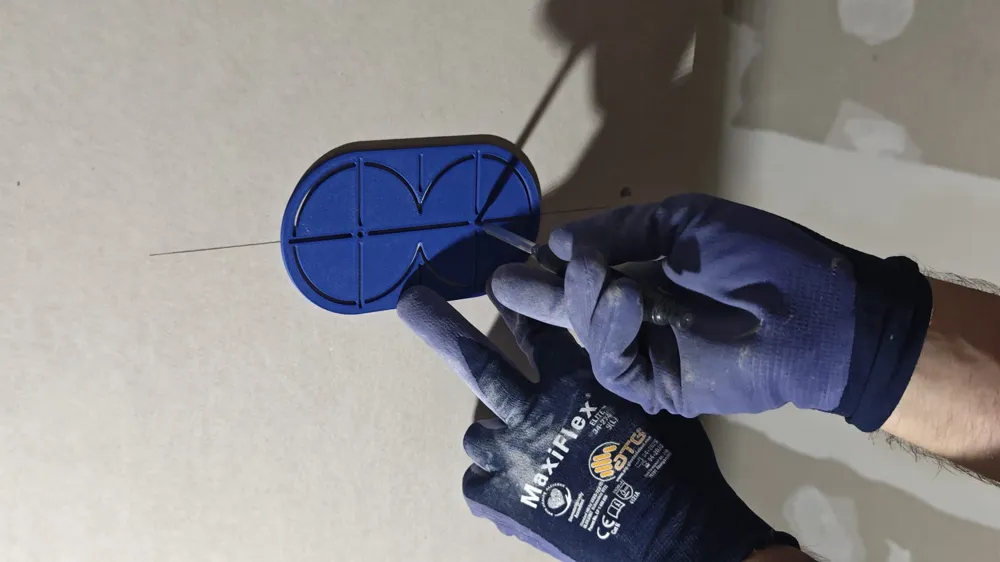

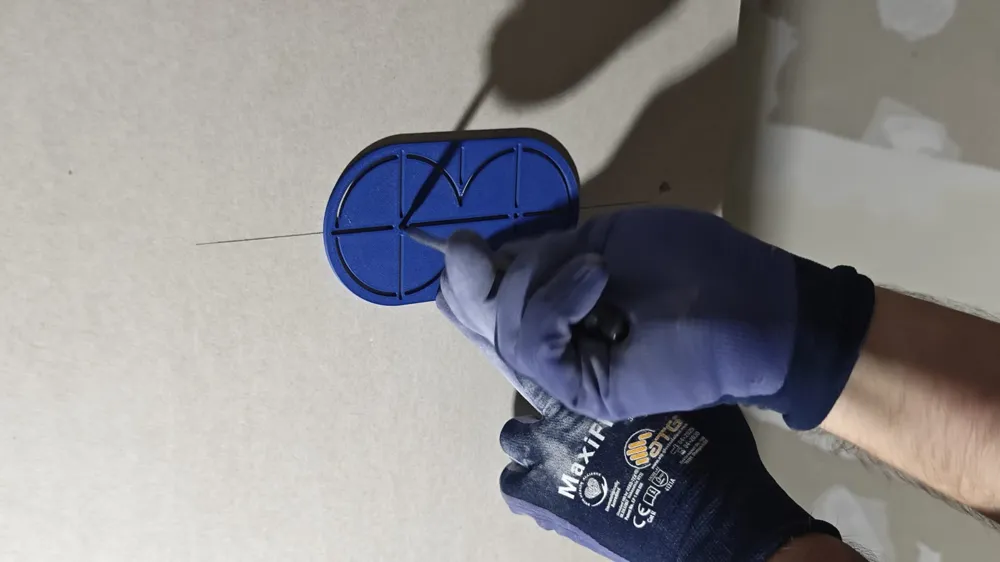

Optimized for drywall installations
Alignment marks for vertical and horizontal positioning
Reusable and durable design
This tool is ideal for electricians, installers, and DIY users looking for a quick, consistent, and professional way to mark and drill holes for TEM modular boxes.
