Chicken Water Nipple Poultry

Chicken Drinker – Easy DIY Nipple Drinker

This is a simple, low-cost chicken drinker design that can be 3D printed and assembled in just a few minutes. It uses a 10 ml syringe and a brass nipple drinker (available on AliExpress or other suppliers).

What You’ll Need:

• 1 × 10 ml syringe with rubber piston
• 1 × brass nipple drinker (8 mm)
• Screws or zip ties (for mounting)
• Drill (8 mm bit)
• hose (to feed watrer to the syringe)

Assembly Instructions:

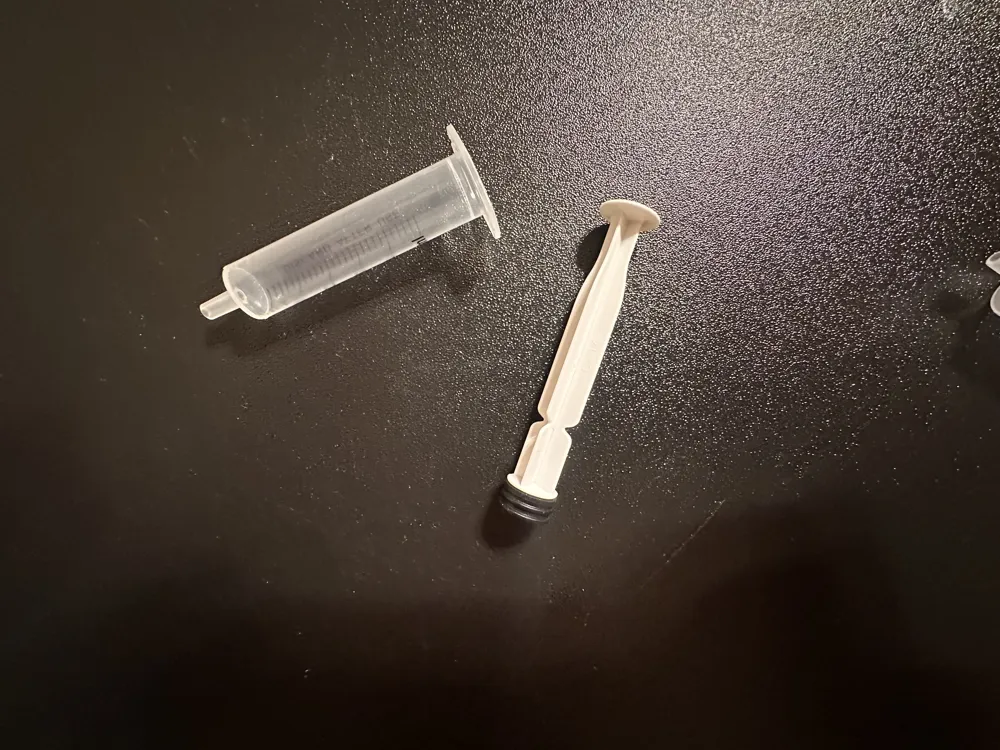

1. Prepare the syringe

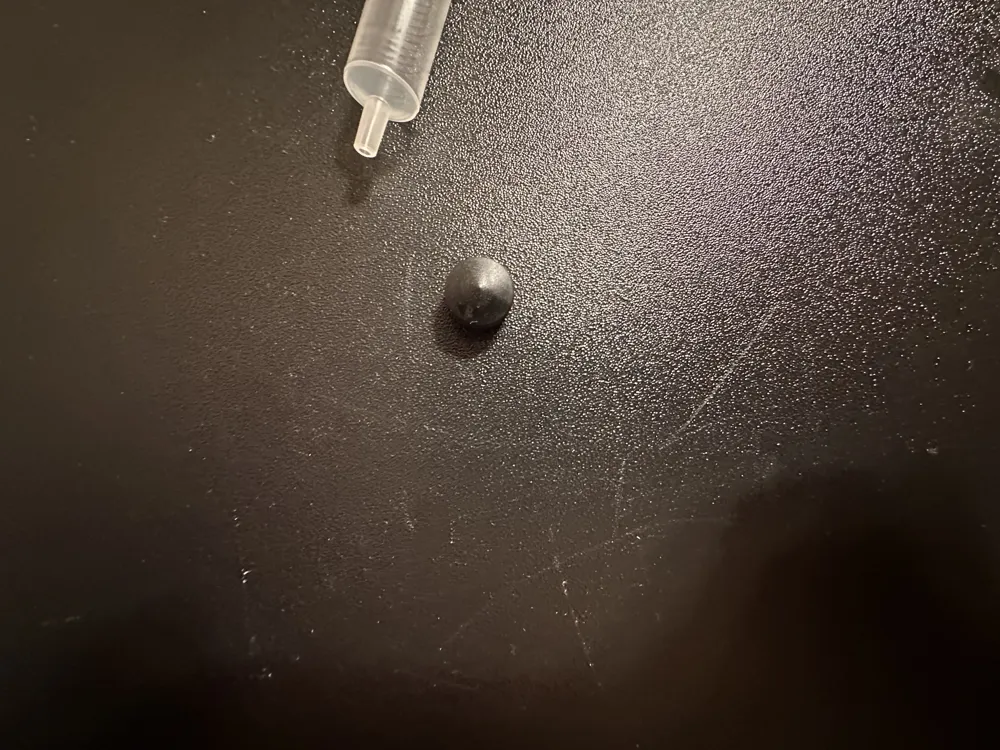

   • Remove the rubber seal from the piston.
2. Drill the hole
   • Drill an 8 mm hole through the piston (in center of the rubber seal).
3. Insert the nipple
   • Push the brass nipple drinker firmly into the drilled hole.

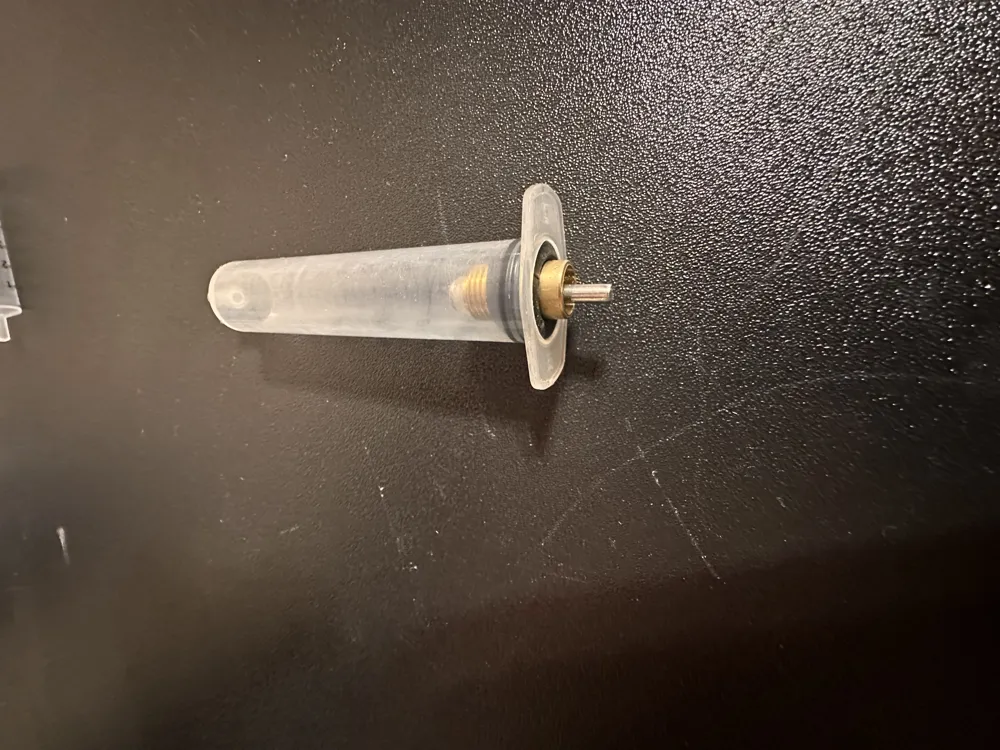

4. Reassemble
   • Insert the modified piston back into the syringe body.
5. Mounting

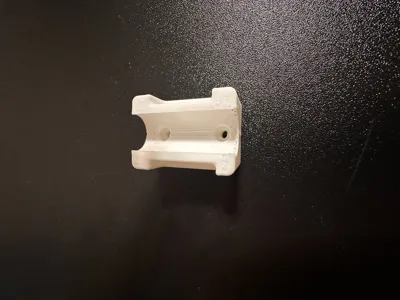

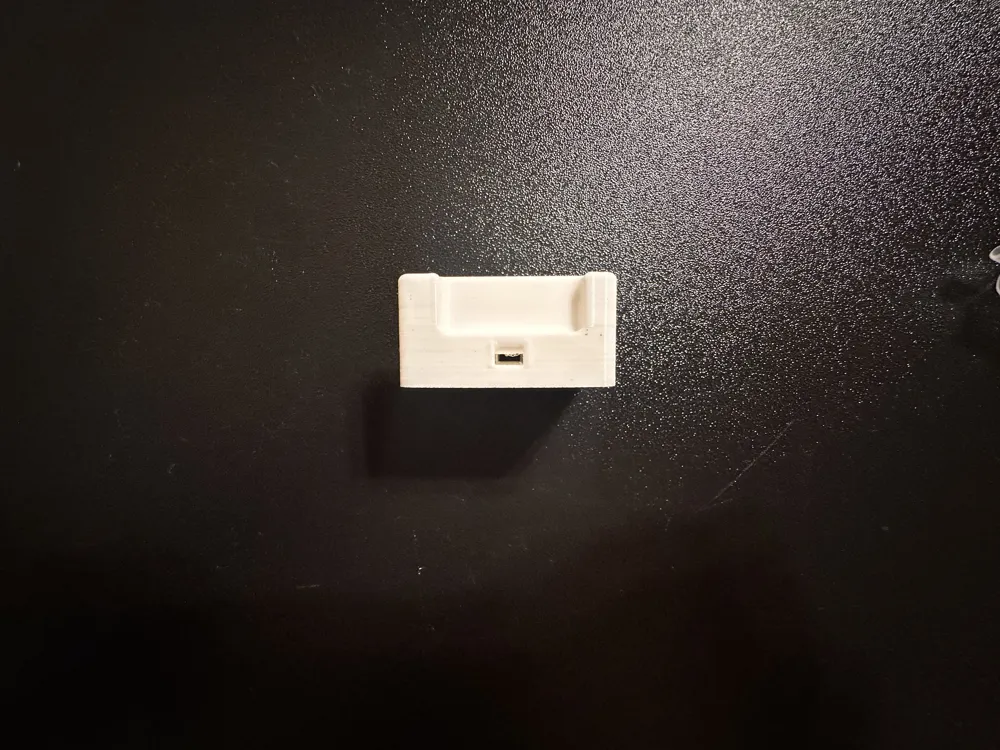

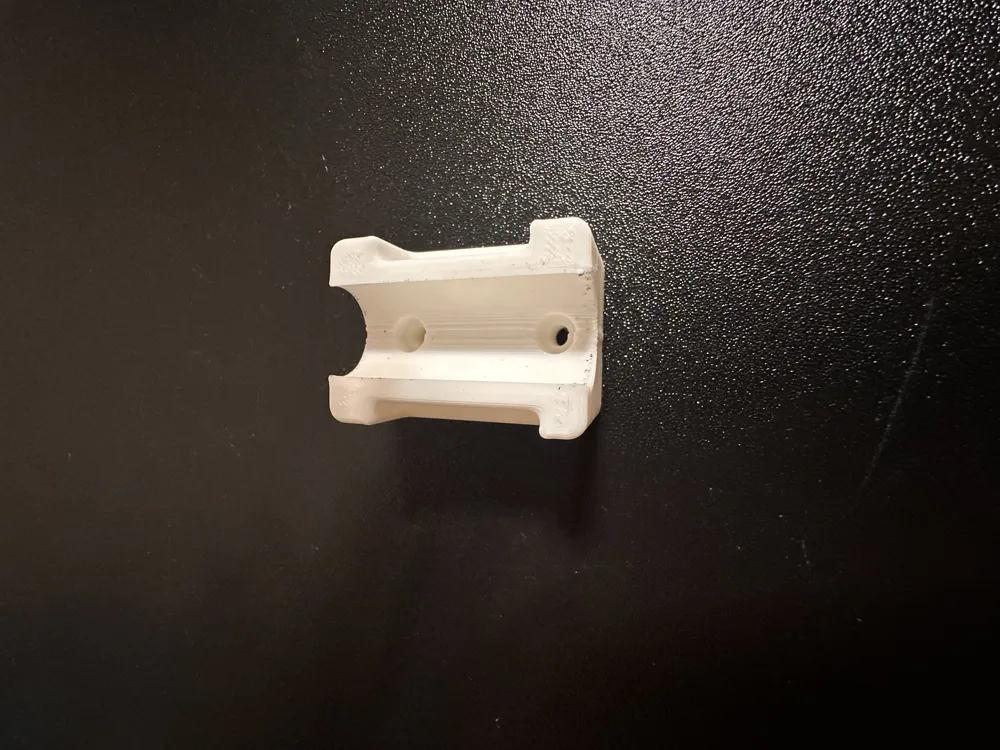

   • The design includes a mount that can be attached with screws.

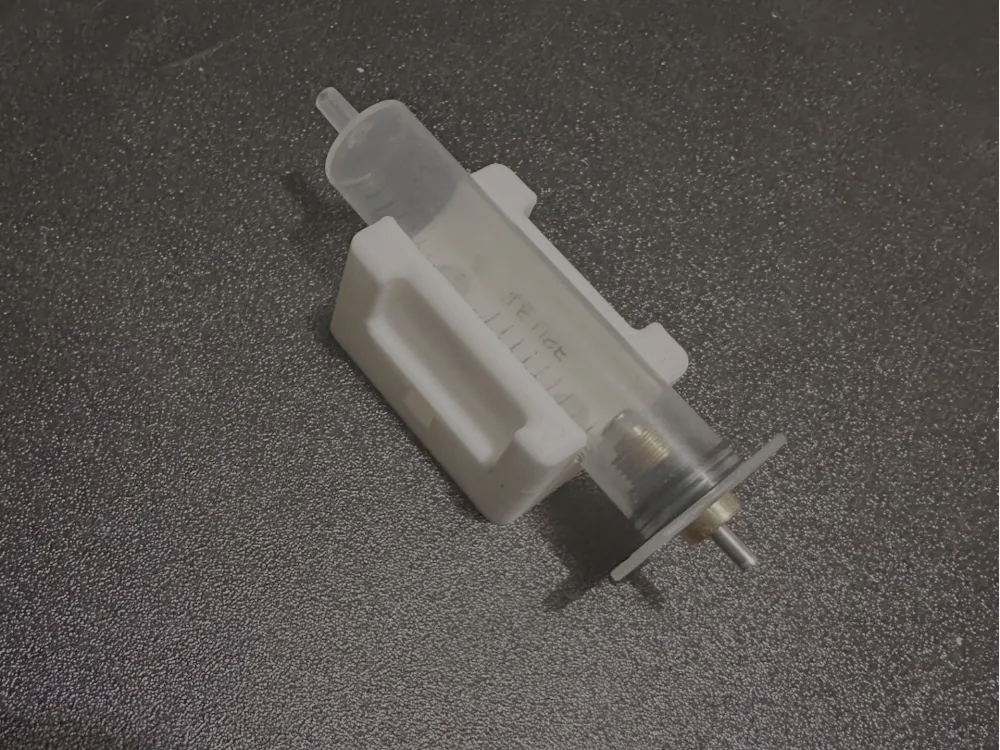

   • The syringe clips securely into place and can be tightened further with a zip tie if needed.                                                                           6. Connect to a larger water supply

• The syringe port can be connected to a hose that fits snugly.
• Attach the other end of the hose to a larger container, such as a bottle or water tank, to keep the drinker filled automatically.
