Kärcher Attachment/Nozzle for Kärcher 2001 (62.5 mm)

MSForge – Attachment/Nozzle for Kärcher Wet-Dry Vacuum Cleaner 2001 (62.5 mm)

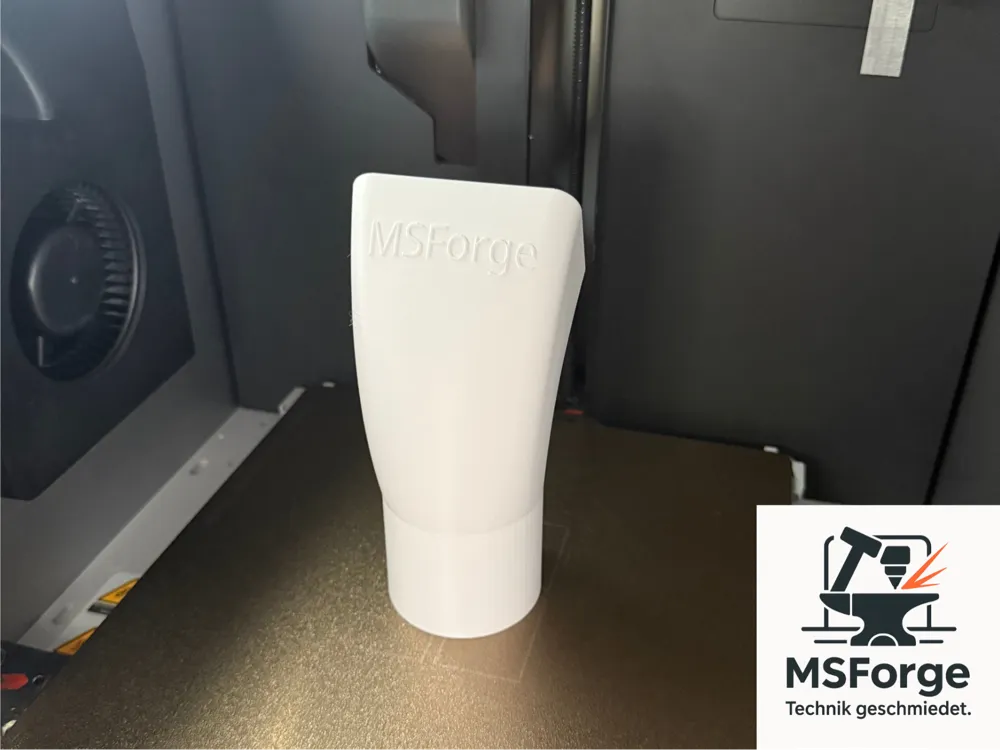

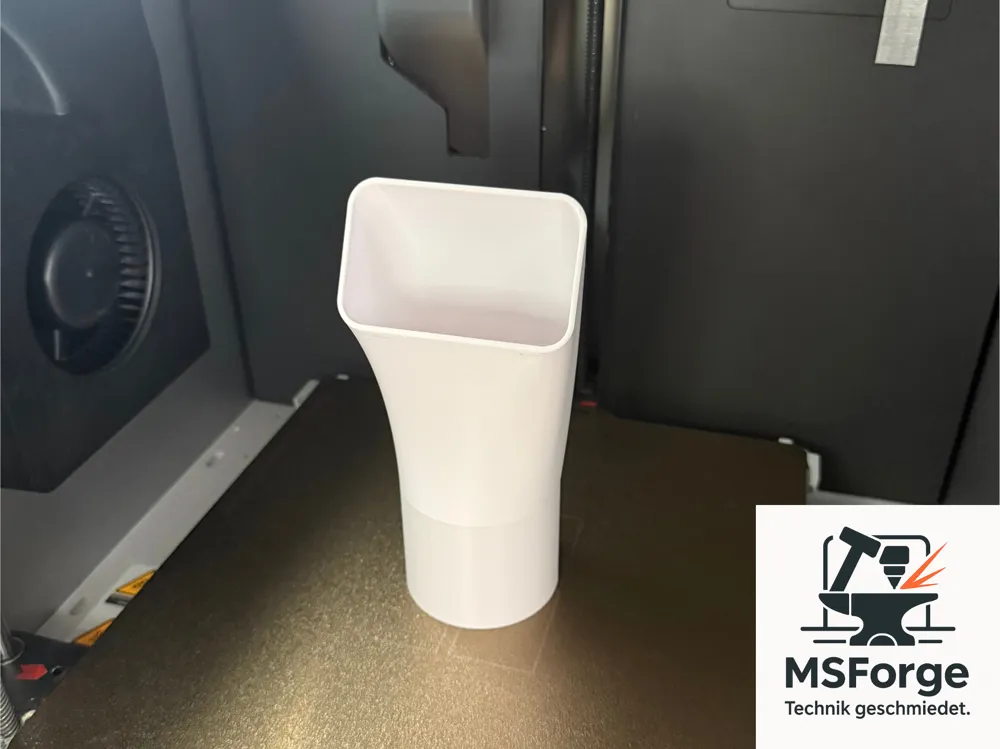

This suction nozzle was developed by MSForge in Fusion 360 and specifically designed for the Kärcher Wet-Dry Vacuum Cleaner 2001.
The attachment ensures a precise fit with a Ø 62.5 mm connection and offers improved airflow thanks to optimized geometry. It sits very firmly and reliably on the vacuum cleaner, allowing efficient suction of wet and dry debris.
The model was printed on a Bambu Lab X1C, enabling a particularly precise and high-quality implementation.

👉 This project came about because I was looking for a robust and precisely fitting solution for my Kärcher 2001

Features

• Suitable for Kärcher Wet-Dry Vacuum Cleaner 2001
• Connection diameter: 62.5 mm
• Optimized shape for higher suction power
• Robust design, ideal for 3D printing
• With MSForge lettering as branding

Print Recommendations

• Material: PETG or ABS (for mechanical stress)
• Nozzle size: 0.4 mm
• Layer height: 0.08 – 0.2 mm
• Infill: 15 – 100 % (depending on desired stability)
• Orientation: Print vertically for maximum load-bearing capacity
• Supports: no supports

Note

This model was designed with Fusion 360 and is an independent MSForge project.
It serves as an adapter or special nozzle for the Kärcher Wet-Dry Vacuum Cleaner 2001.

👉 For other diameters or suggestions for improvement, please write to me directly.
👉 I also welcome pictures of your print results or your own remixes of this project!
