Finely Tuned Angle Scraper with Hex Key Storage
Print Profile(3)
Description

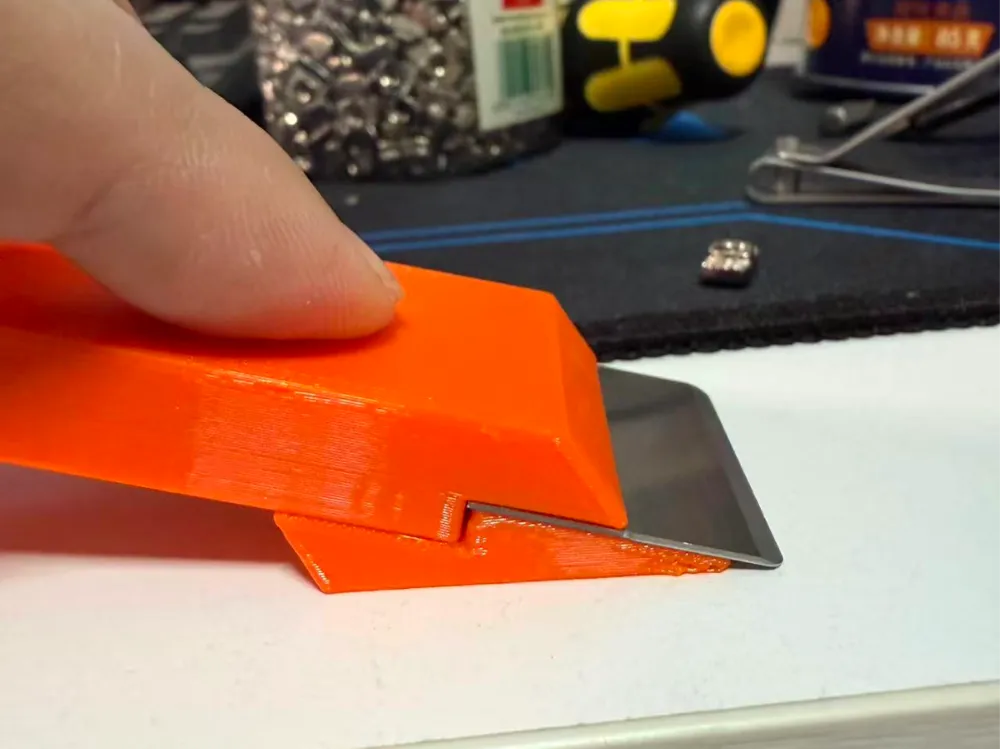

1 Main function: After continuous modifications and testing, I finally achieved this perfectly angled scraper

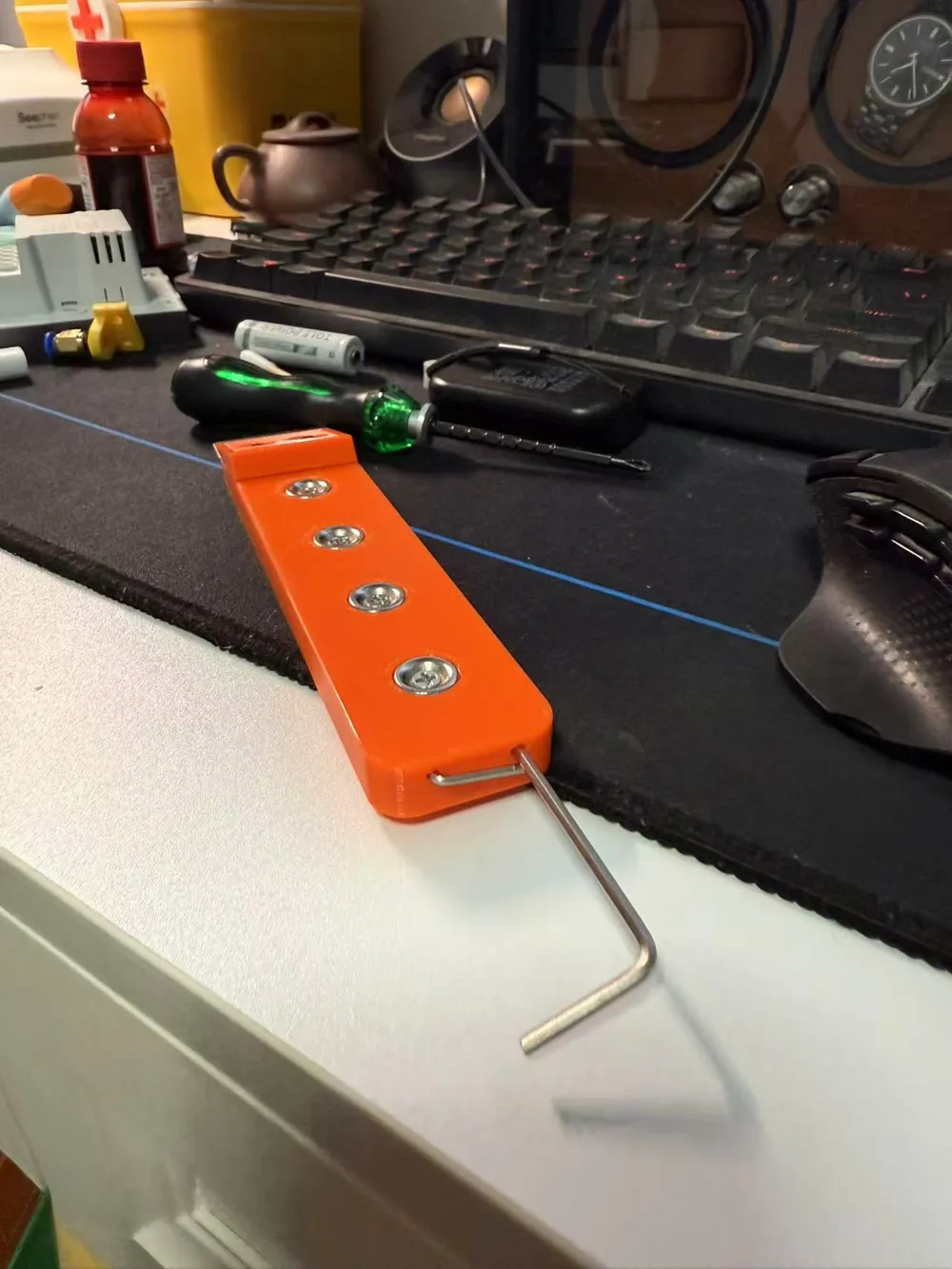

2 Additional function: I often misplace the two small hex wrenches that came with the original package. I personally think this is because they are too small, so I designed two storage holes on the scraper for inserting the hex wrenches

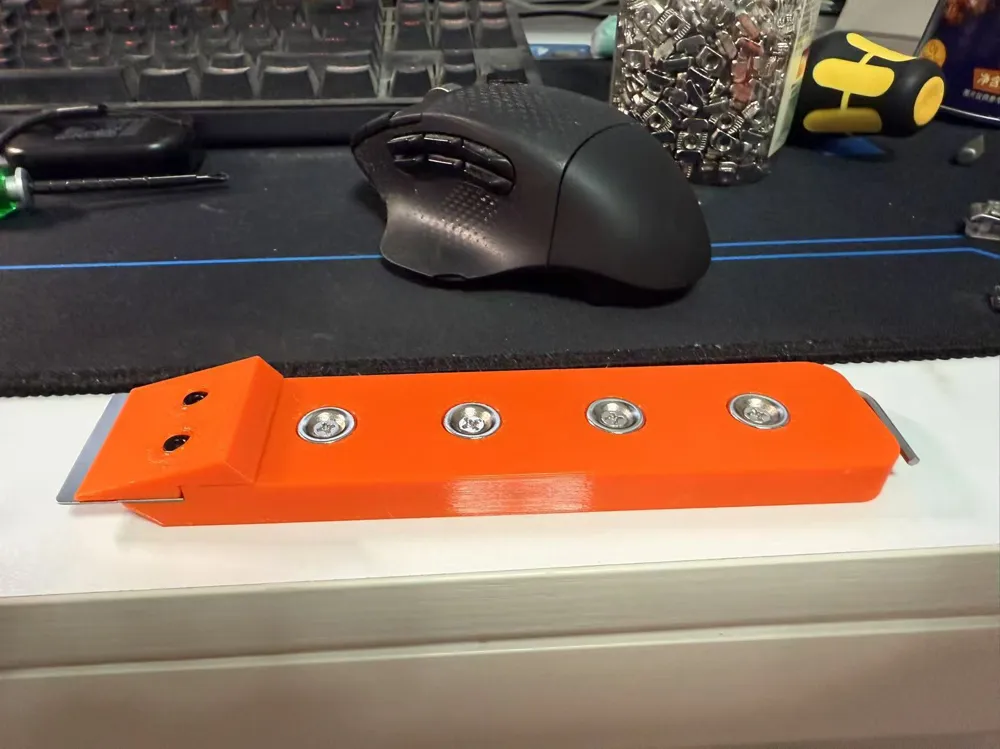

3 Scraper accessory description: Using the blade and two screws provided by the original manufacturer, the handle is designed with four magnet mounting holes. The hole size is 12mm diameter, 4.5mm depth (Taobao non-standard 5mm thick magnets are actually 4.5mm). Magnets can be installed with M3*8 countersunk self-tapping screws
4 Printing instructions: No supports needed, can be printed with high infill for an excellent feel. If magnets are added, the feel will be even better and very substantial
