Magnetic Paddle Shifter Mod for Logitech
Print Profile(1)

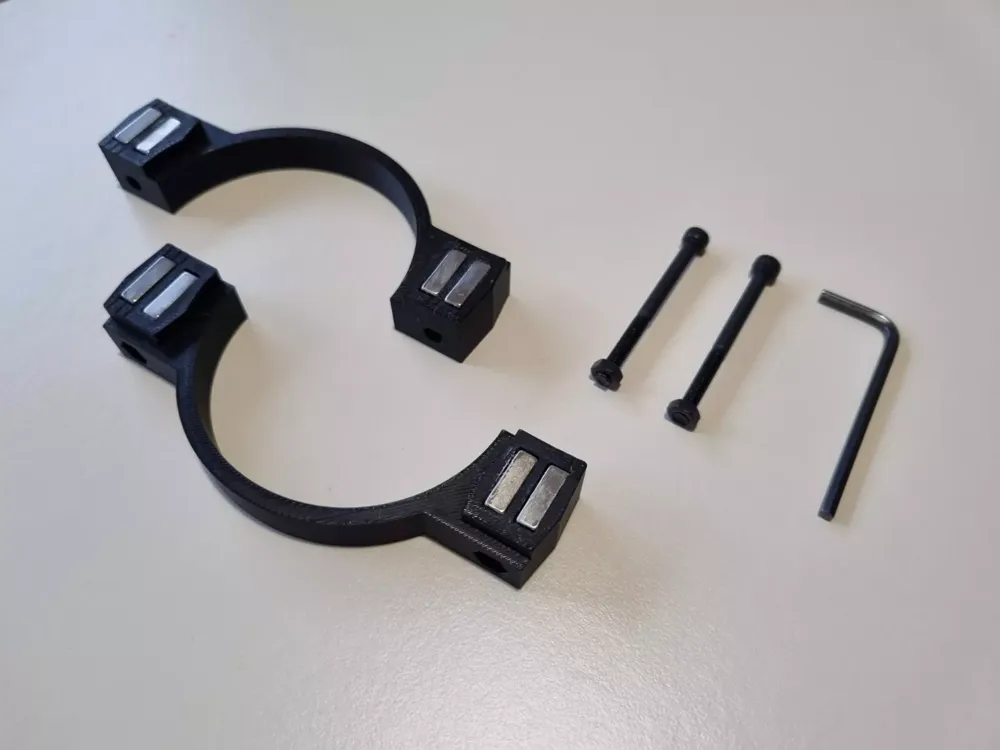

Bill of Materials
- m4x50 mm tensile allen bolt x 2:
- m4 hexagone nut x 2:
- 3mm hex(allen) key x 1:
- 15x5x3 magnets x 8:
Description

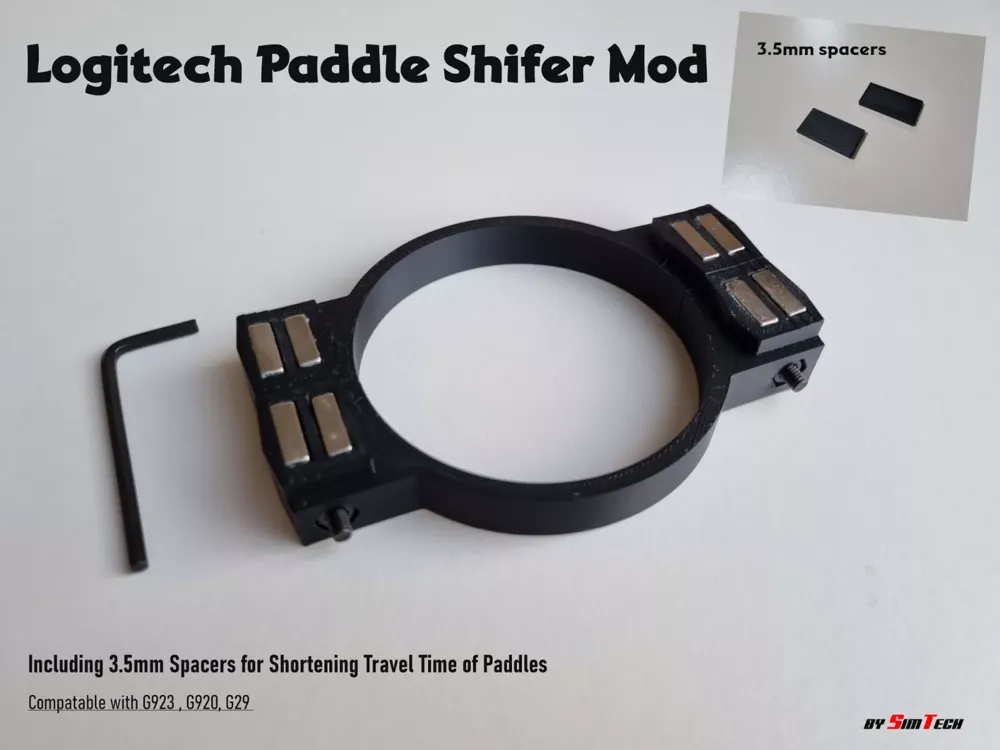

Magnetic Paddle Shifter Mod for Logitech G923, G920 & G29
This mod replaces the stock paddle feel with a precise magnetic system that delivers a crisp, consistent click on every shift. It installs directly onto your Logitech wheel without permanent modifications and includes optional spacers to shorten paddle travel for faster gear changes. Built for durability and reliability, it provides a solid, controlled response in every race.
Installation:
- Place the top and bottom pieces of the mod on the back of the paddles—magnets will hold them in place.
- Align the holes, insert the bolts, and tighten with 3mm hex (Allen) key.

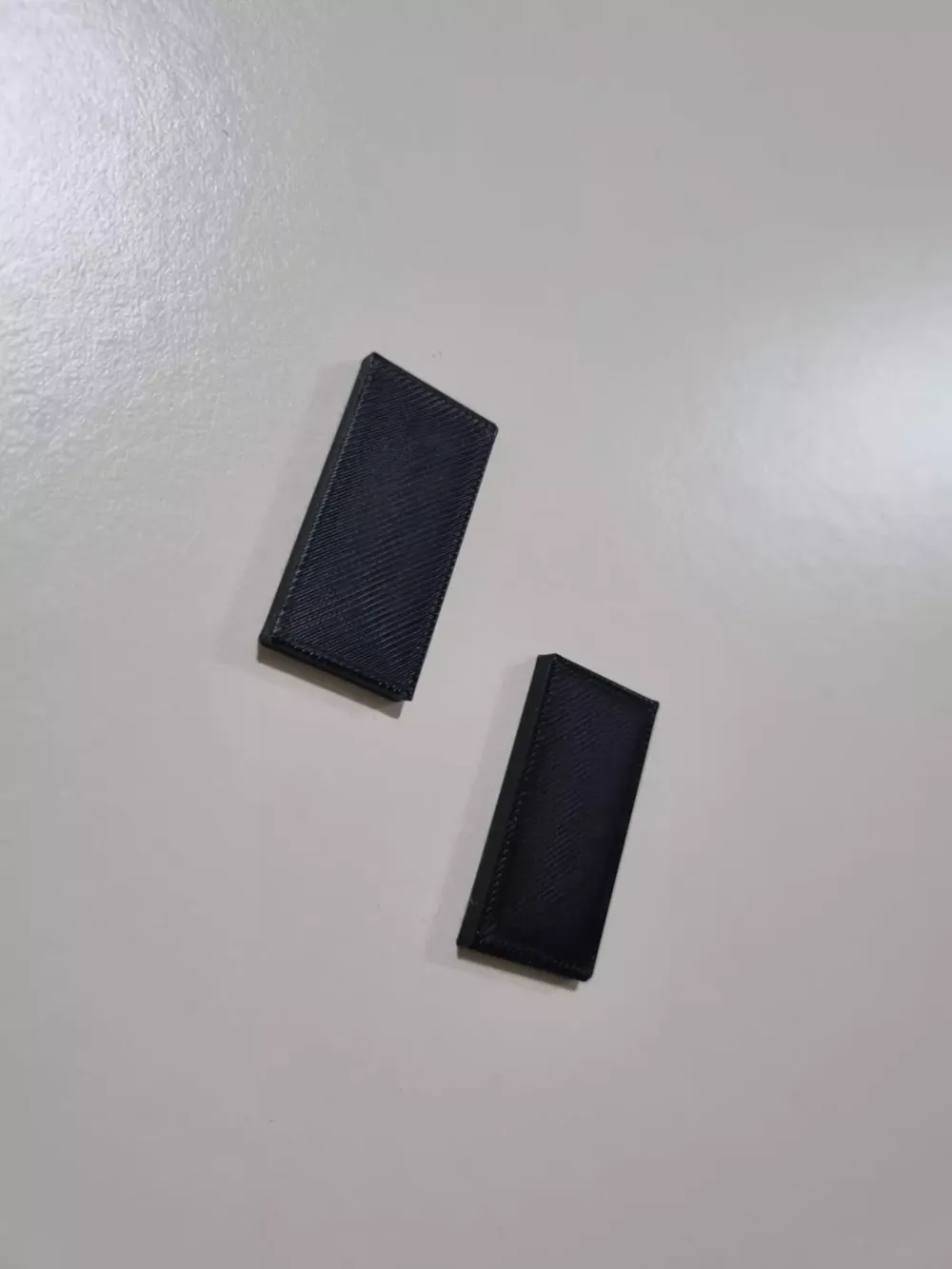

- If using spacers:

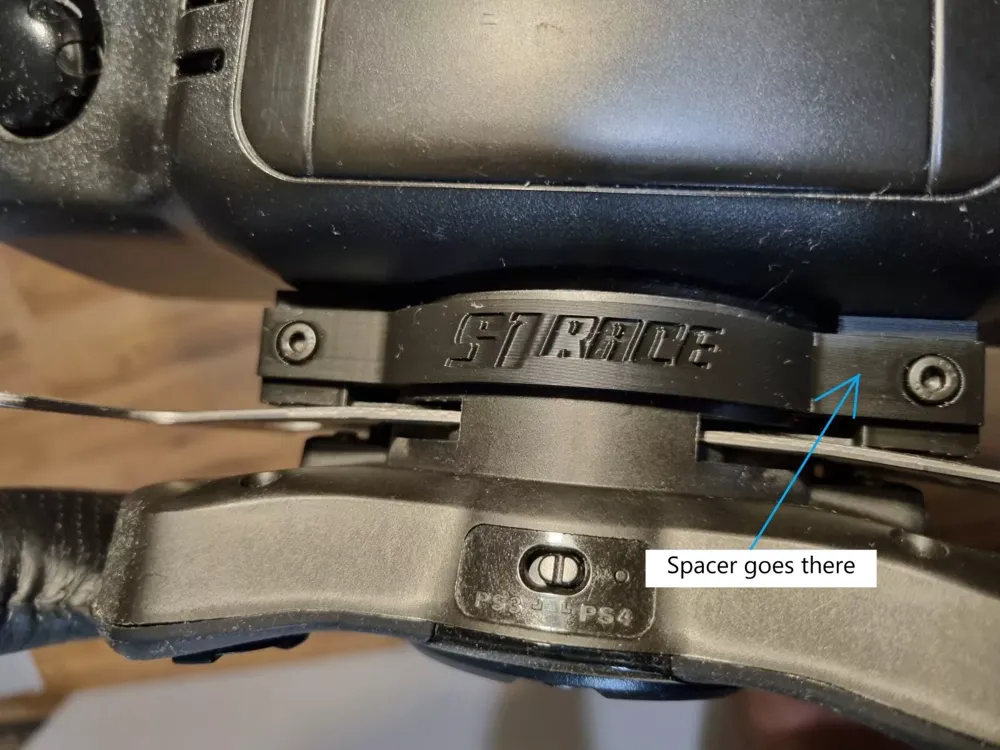

- Position the spacers between the mod and the wheelbase on both sides.
- Tighten securely, then remove the spacers by turning the wheel fully left and right.
This shortens paddle travel by exactly 3.5mm for quicker shifts.
