BiQuad + 2x BiQuad 2.4GHz WiFi bending tool
Print Profile(1)
Description

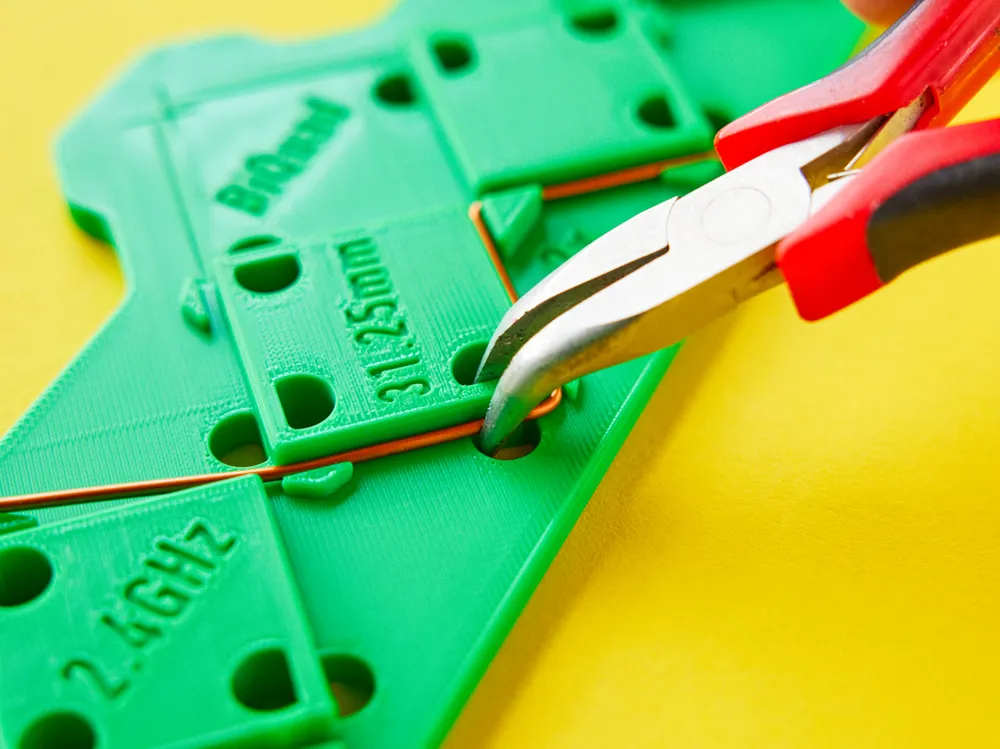

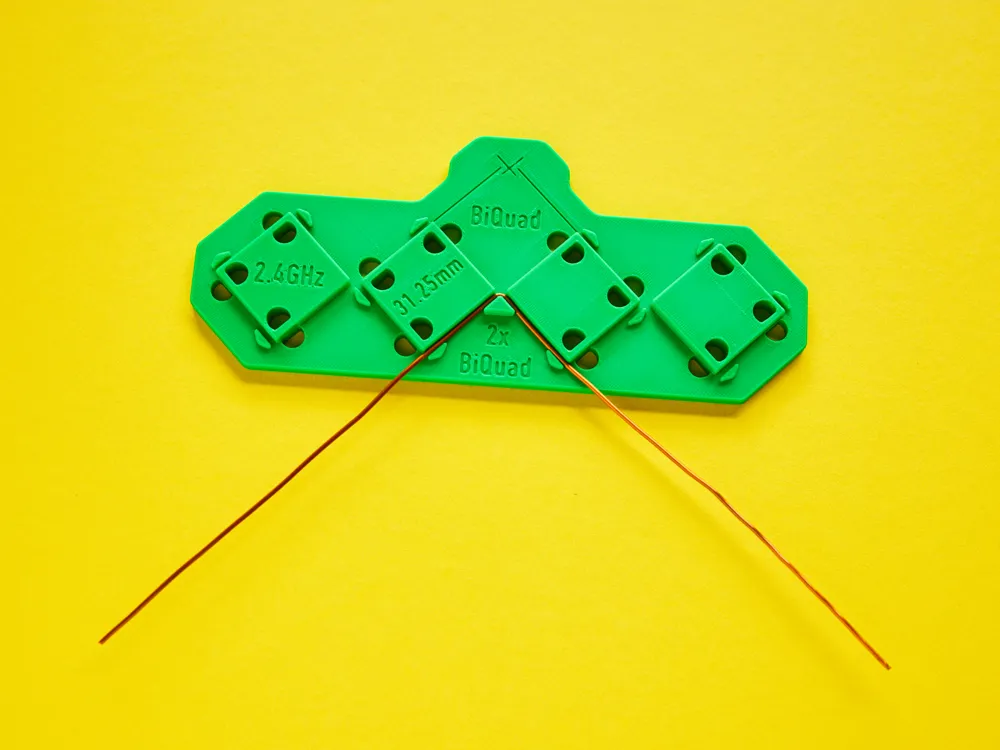

I needed some WiFi 2.4GHz double BiQuad antennas for an experiment and found a very nice bending tool on thingiverse made by SnakeP here: BiQuad bending template I really liked the concept of the holes for the pliers and markers for the side cutters.

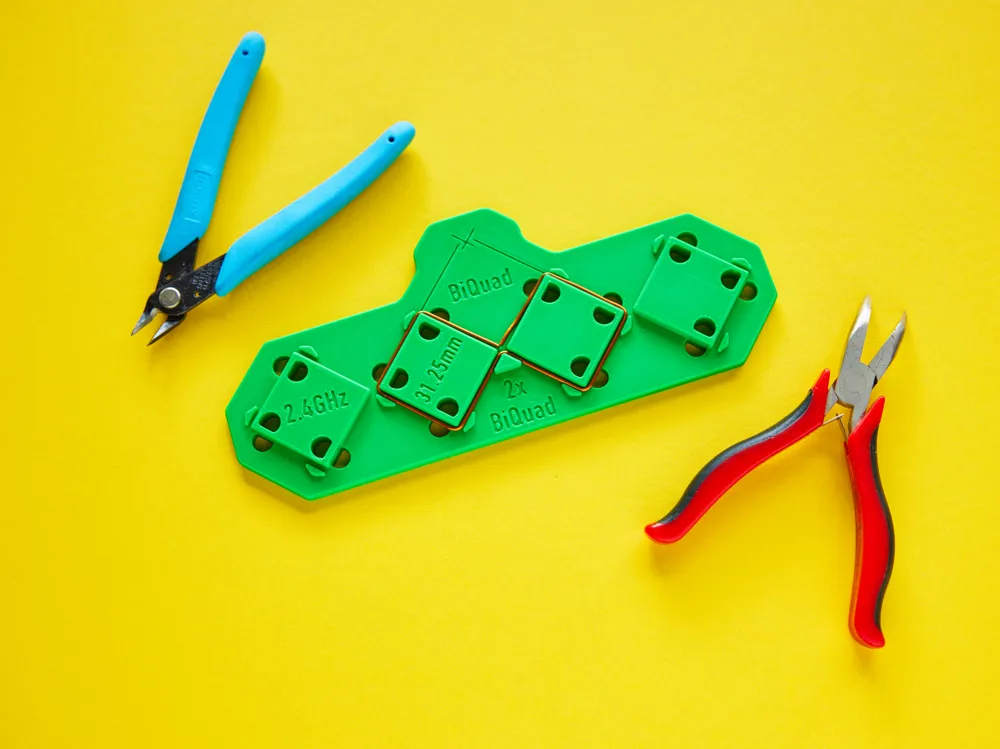

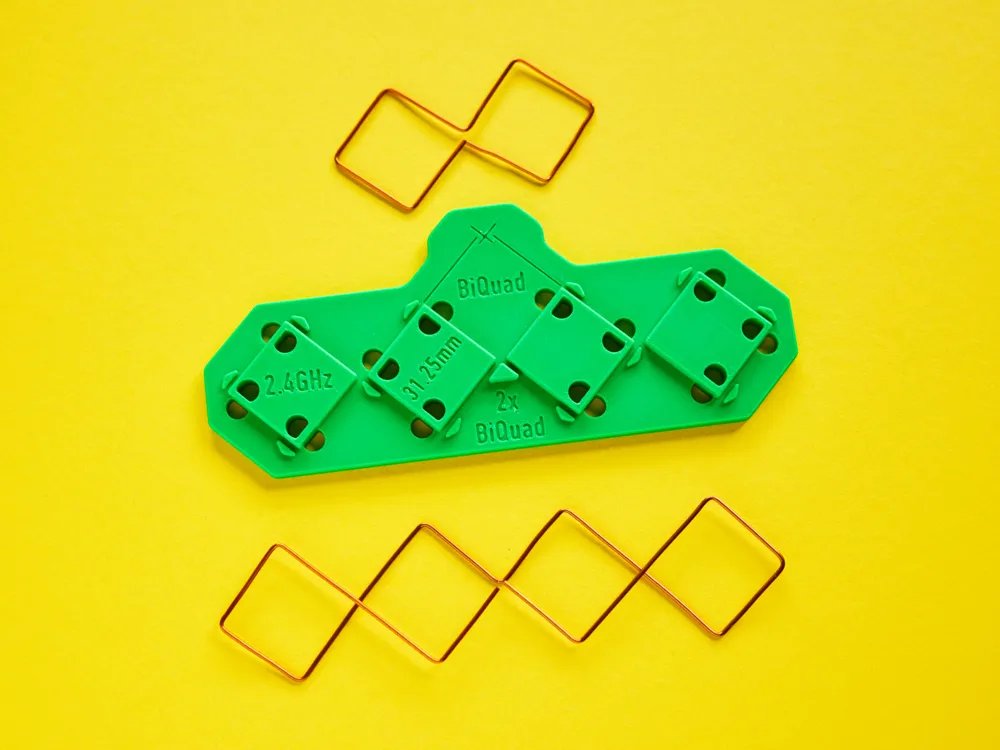

But I needed a double BiQuad so I decided to create a new bending tool that can do both BiQuad and double BiQuad.
Wire length for Double BiQuad = approx. 600mm
Wire length for BiQuad = approx. 330mm
Wire diameter 1.4mm to 1.6mm

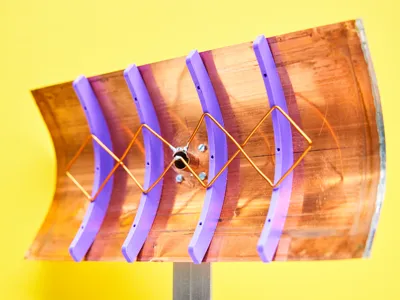

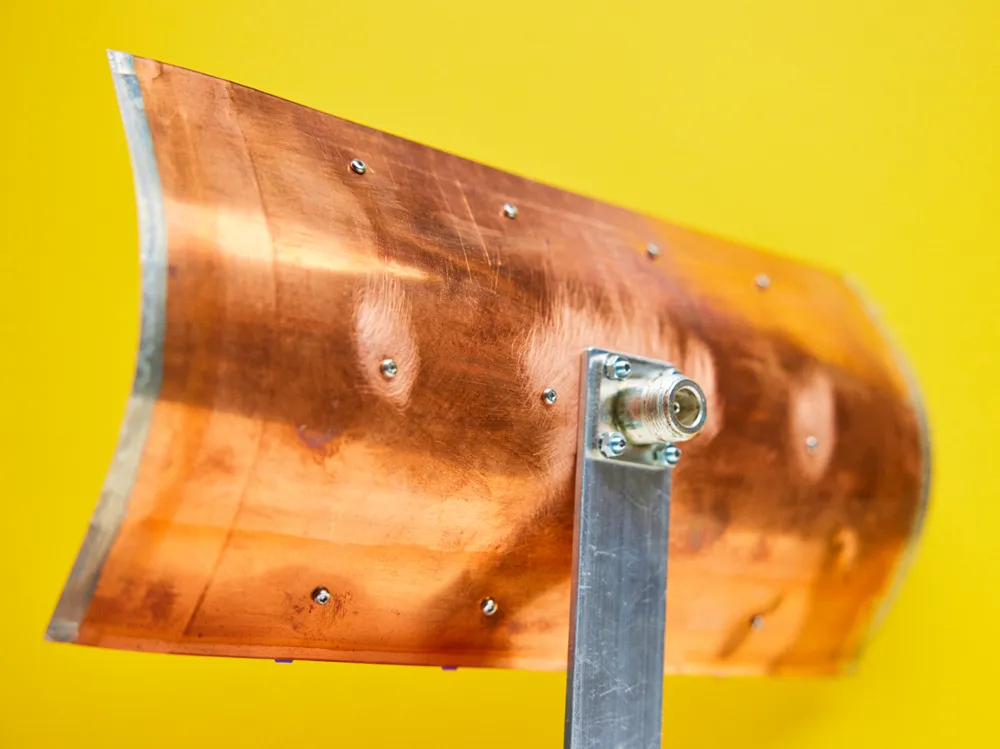

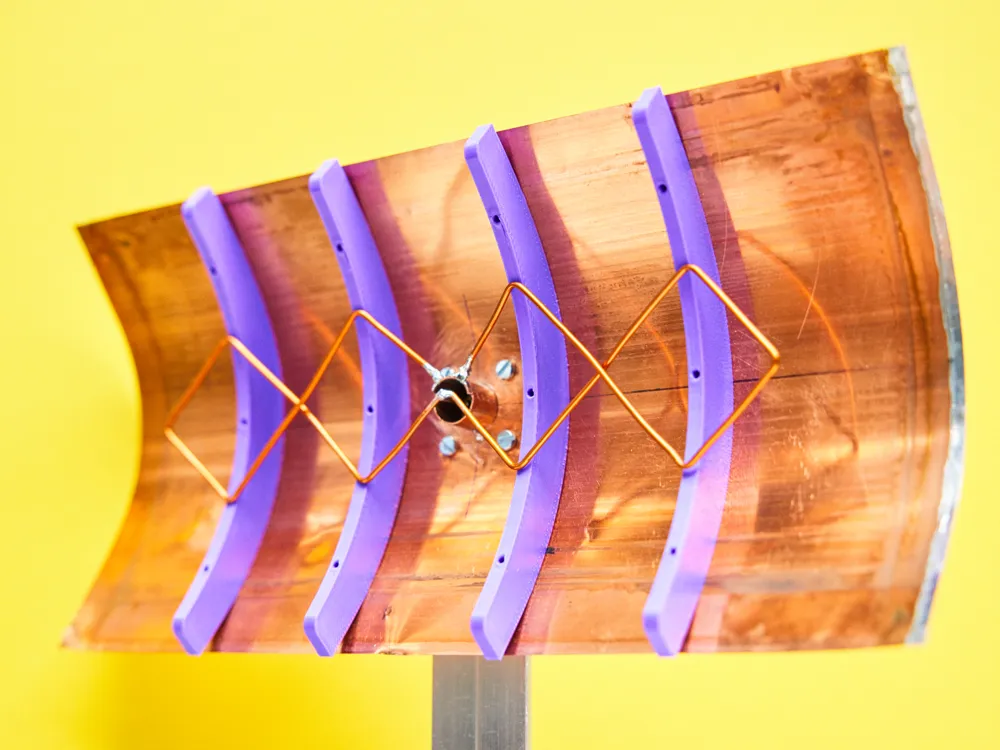

A very good tutorial by Andrew McNeil on how to build a parabolic Double BiQuad antenna:
