Wuxin Right-Angle Fixture Modification WNEW Square Reform
Print Profile(1)
Description
Hardware List:

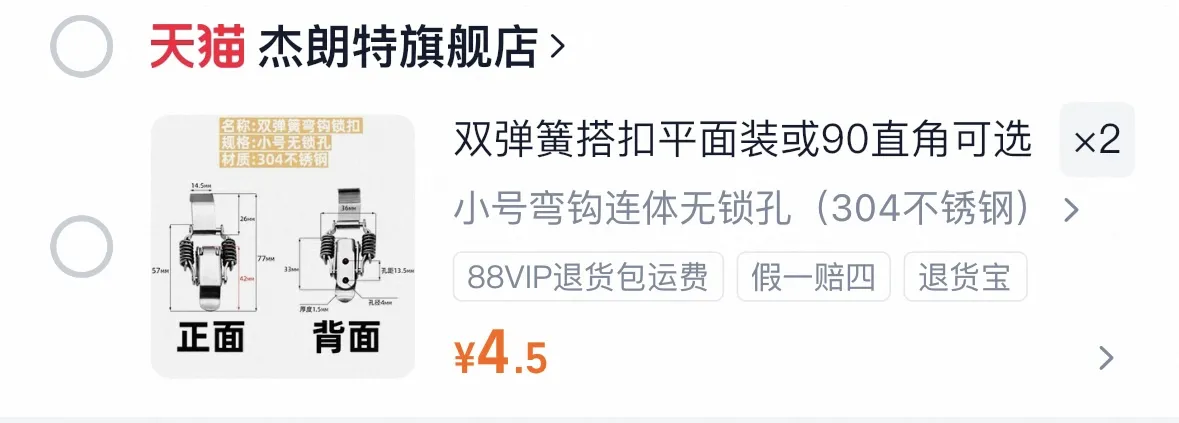

- Spring catch: Small curved hook, integrated, no keyhole *2
- Fixing screw for spring catch: M4*14 chamfered hex socket

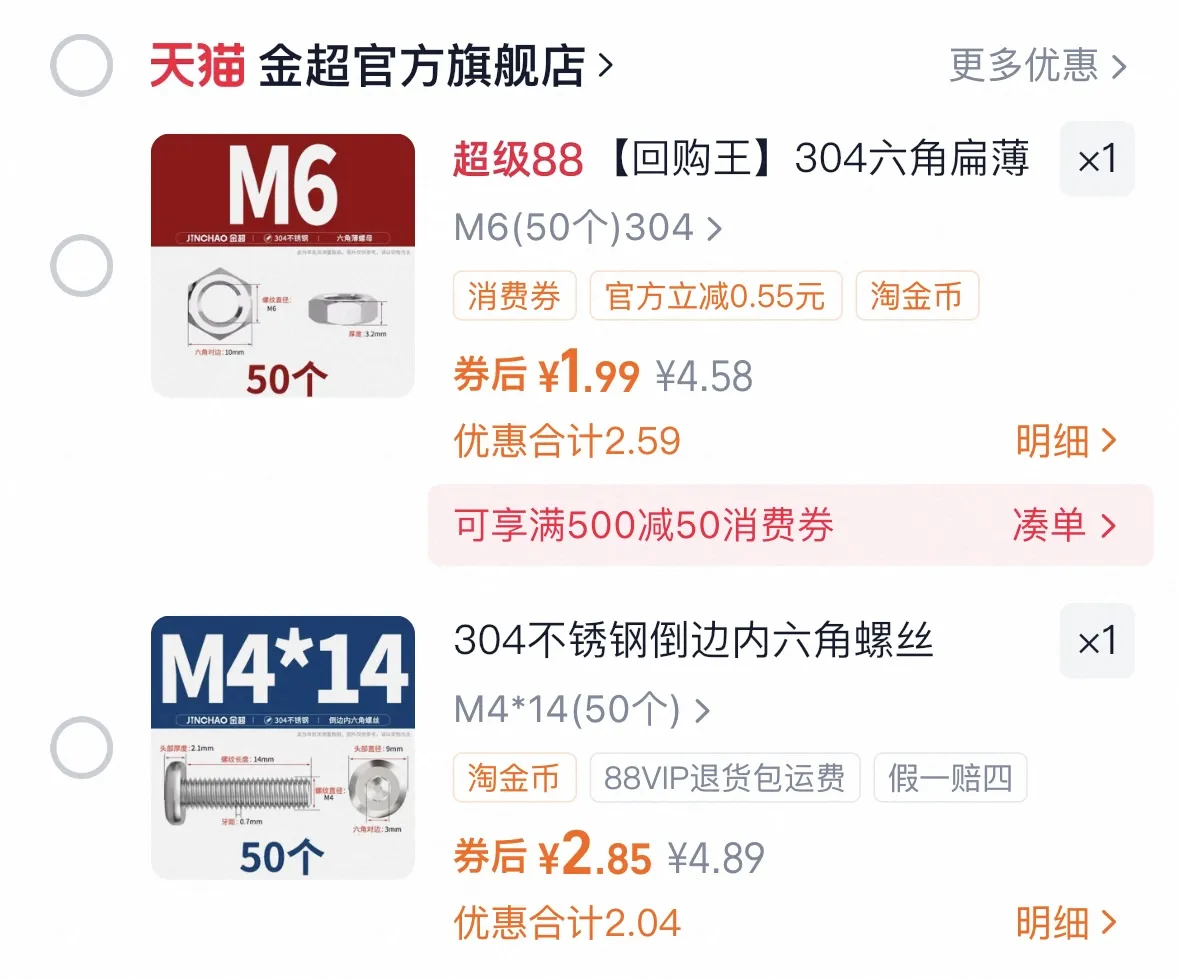

- Discard slide rail; slide rail screws are inverted, requiring: flat thin M6 nuts

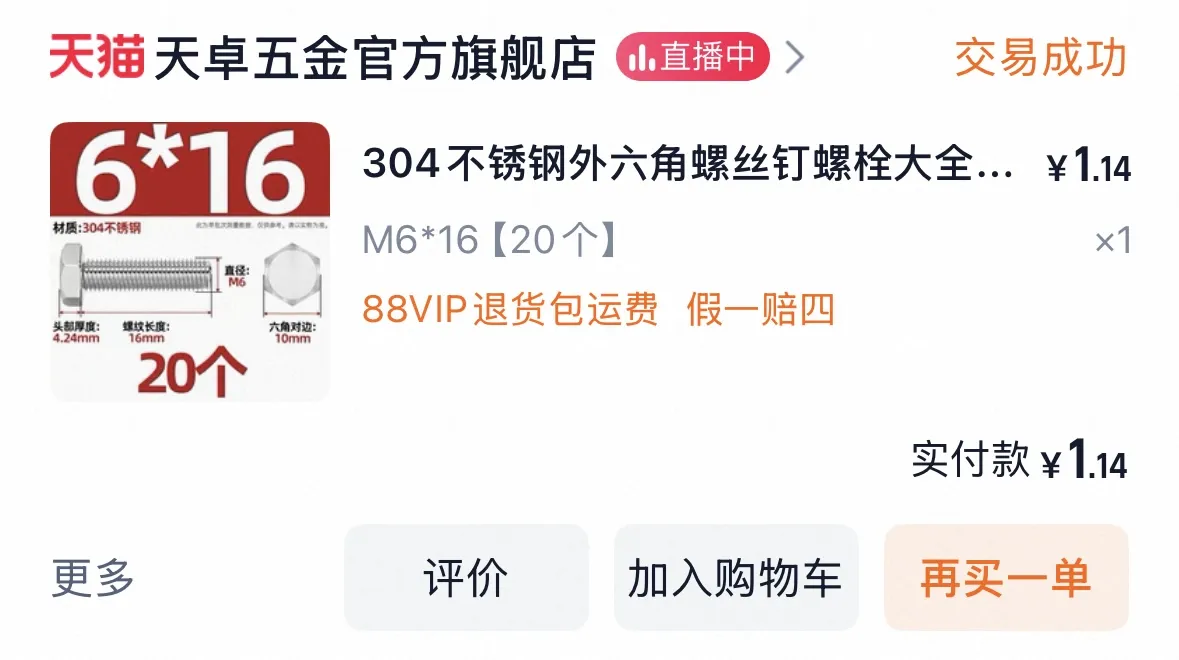

- Quick-release knob screw for plate clamp: M6*16 hex screw
Boost Me (for free)
Hope it helps!
Hope it helps !
Operating Steps:

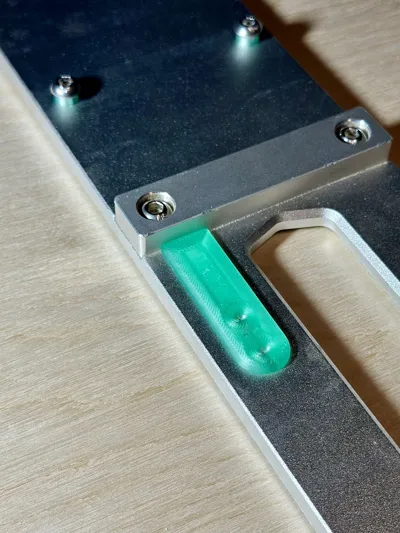

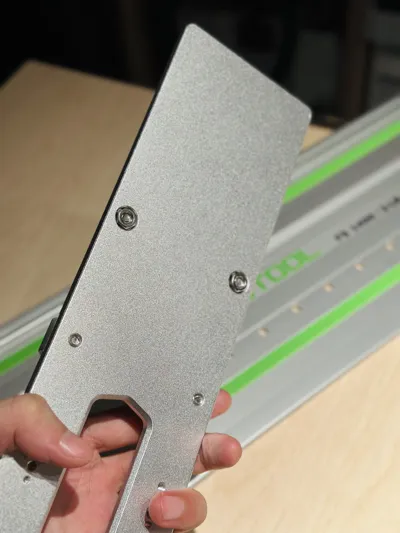

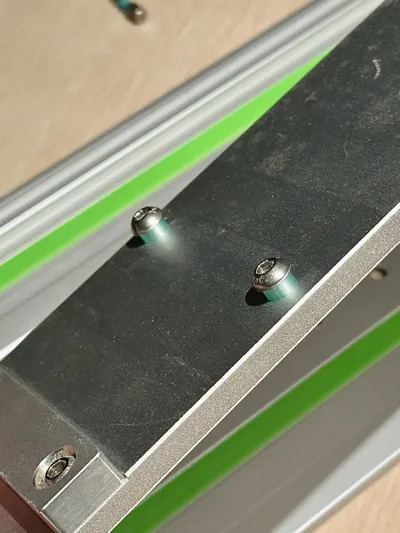

1. Remove the slide rail, obtain the screws, insert them into the printed sleeve, install in reverse, and fix with M6 nuts
2. Use the printed MARK plate to mark the hole positions, center punch to drill, drill with a M3.2 drill bit, and tap with a M4 tap

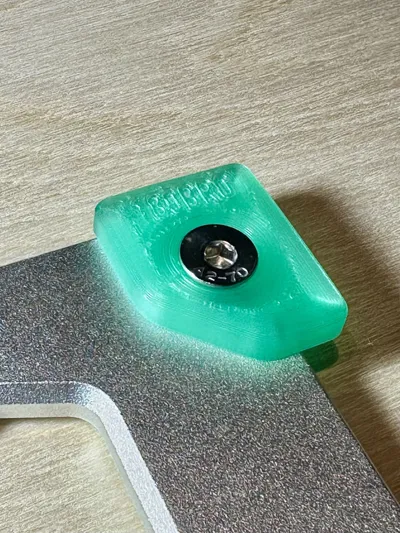

3. Screw the spring catch + printed riser block + M4*14 screw into the holes from step 2

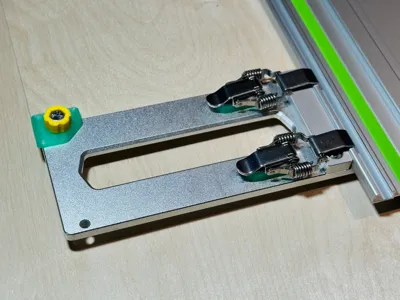

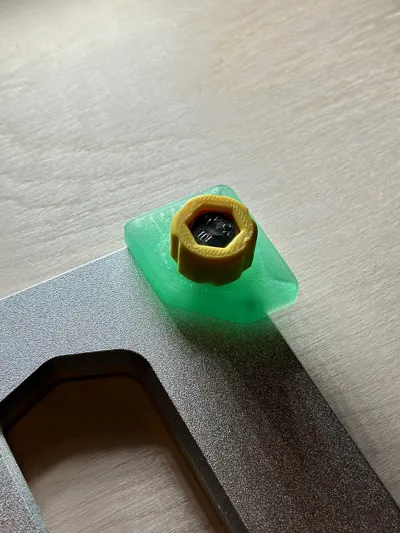

4. Remove the original plate clamp, insert the M6*16 hex screw into the knob, and install the printed plate clamp
If anything is unclear, please refer to the videos posted on my social media account!
