ROJOCO - Assembly & Display Plate (Small, D23)

ROJOCO Accesory - Assembly & Display Plate (Small, D23)

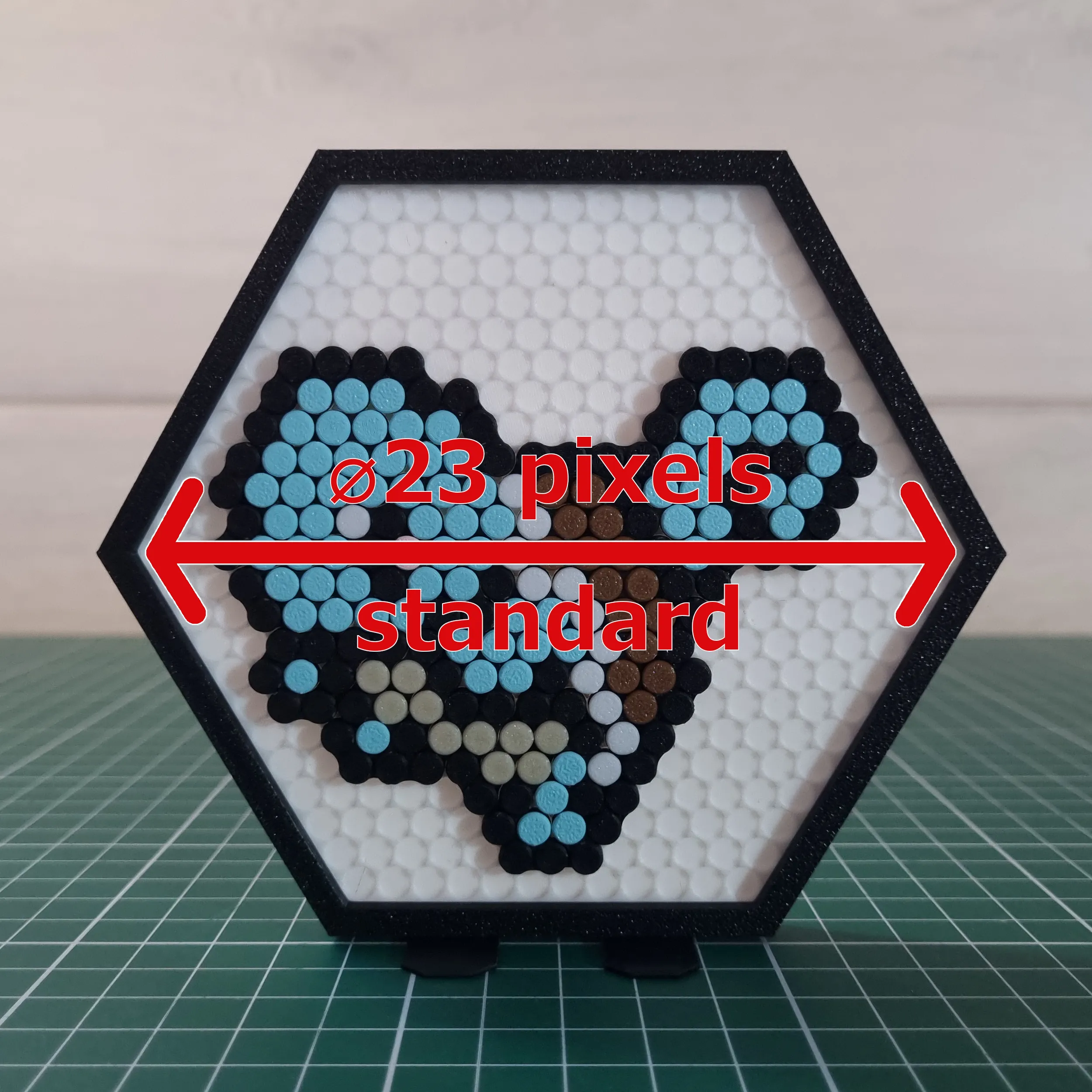

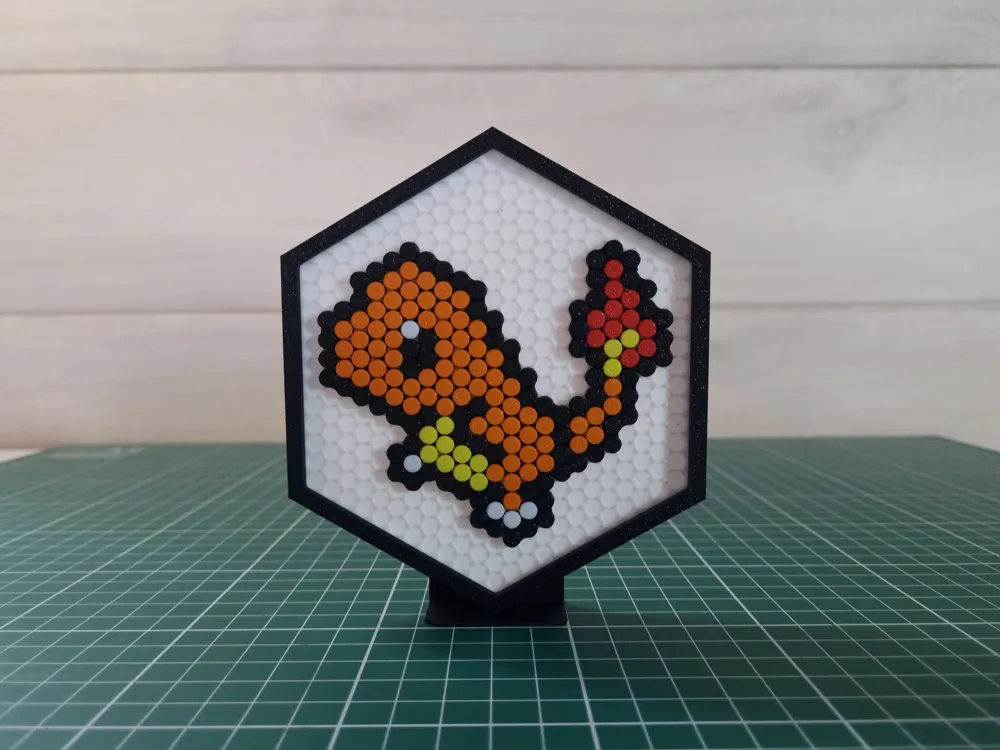

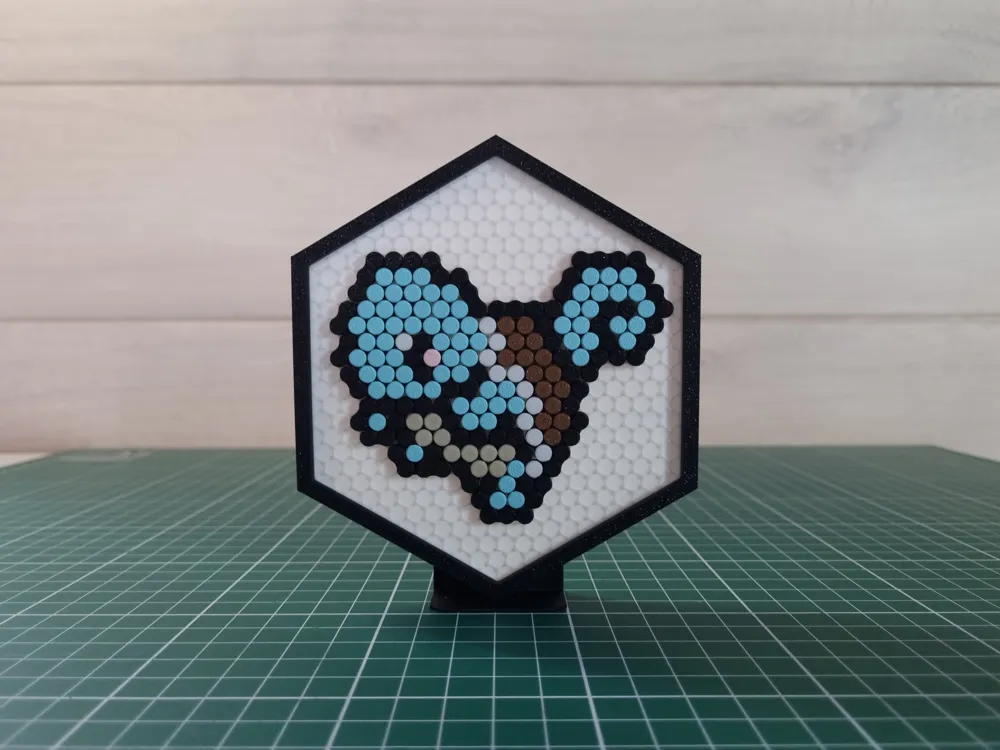

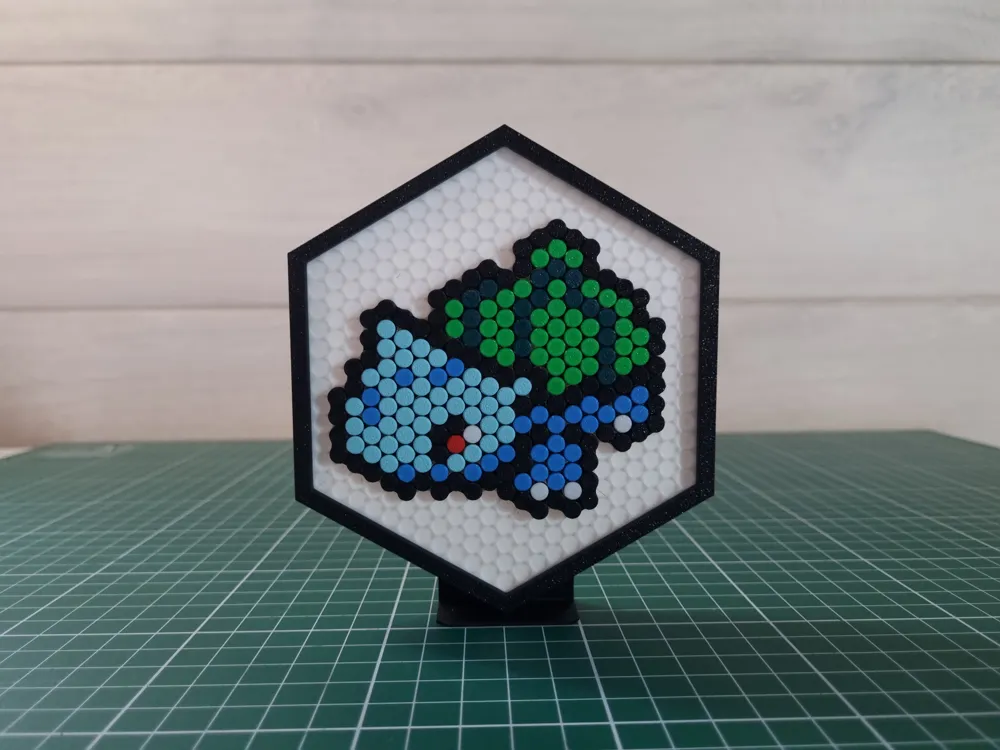

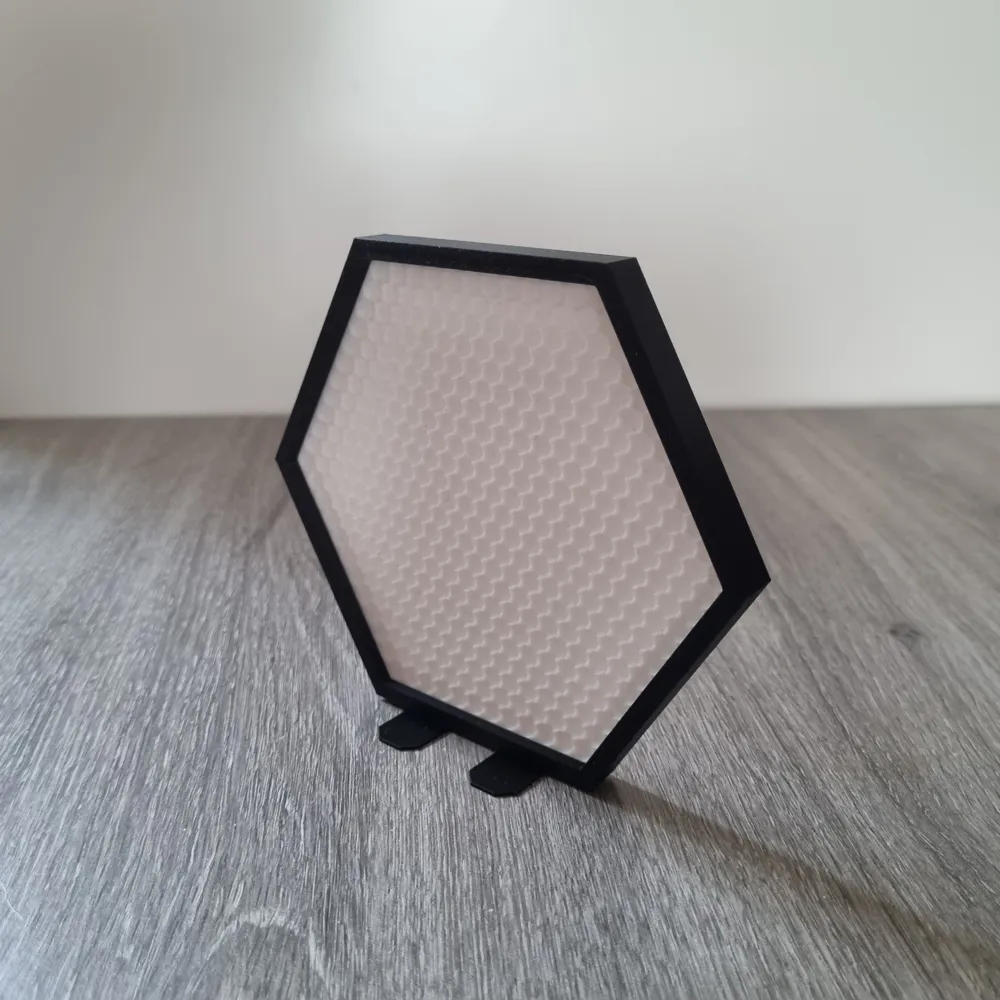

Make assembling and showing off your ROJOCO chain-link hex pixel puzzle (link) easier than ever! This accessory is designed for the small version of the ROJOCO and works as both an assembly plate and a display frame. This version has a 23-pixel diameter.

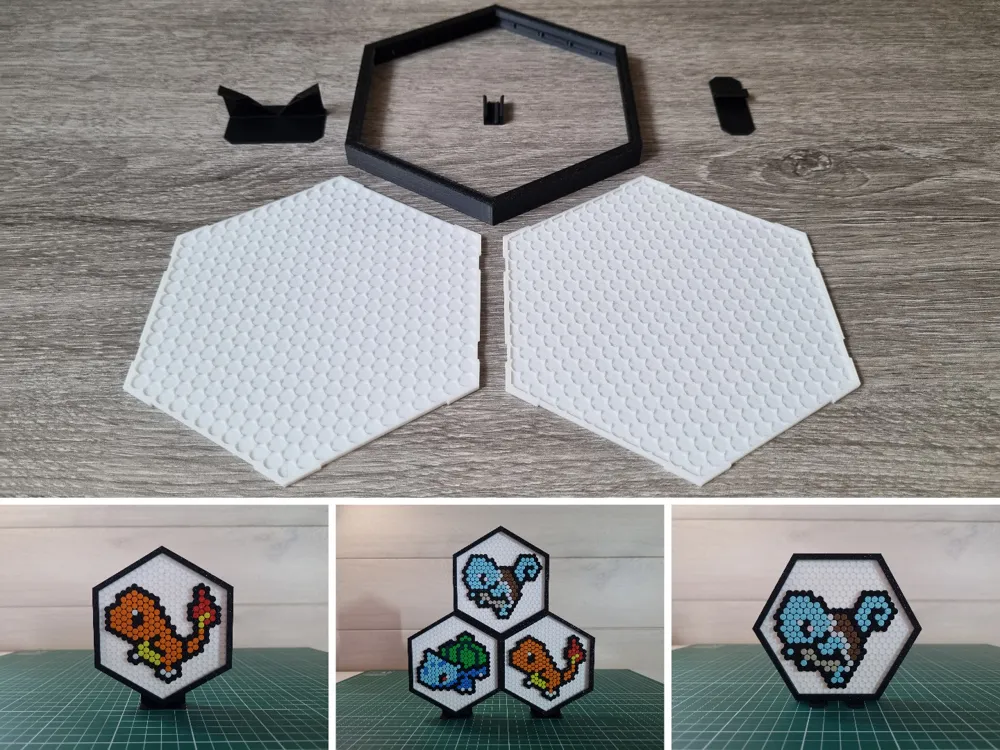

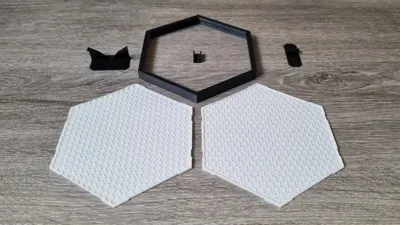

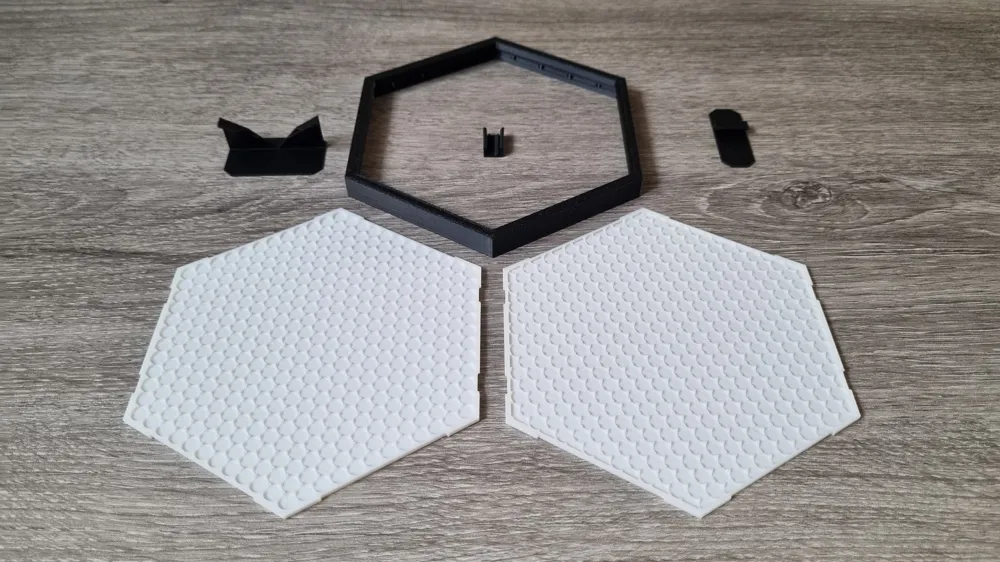

Features

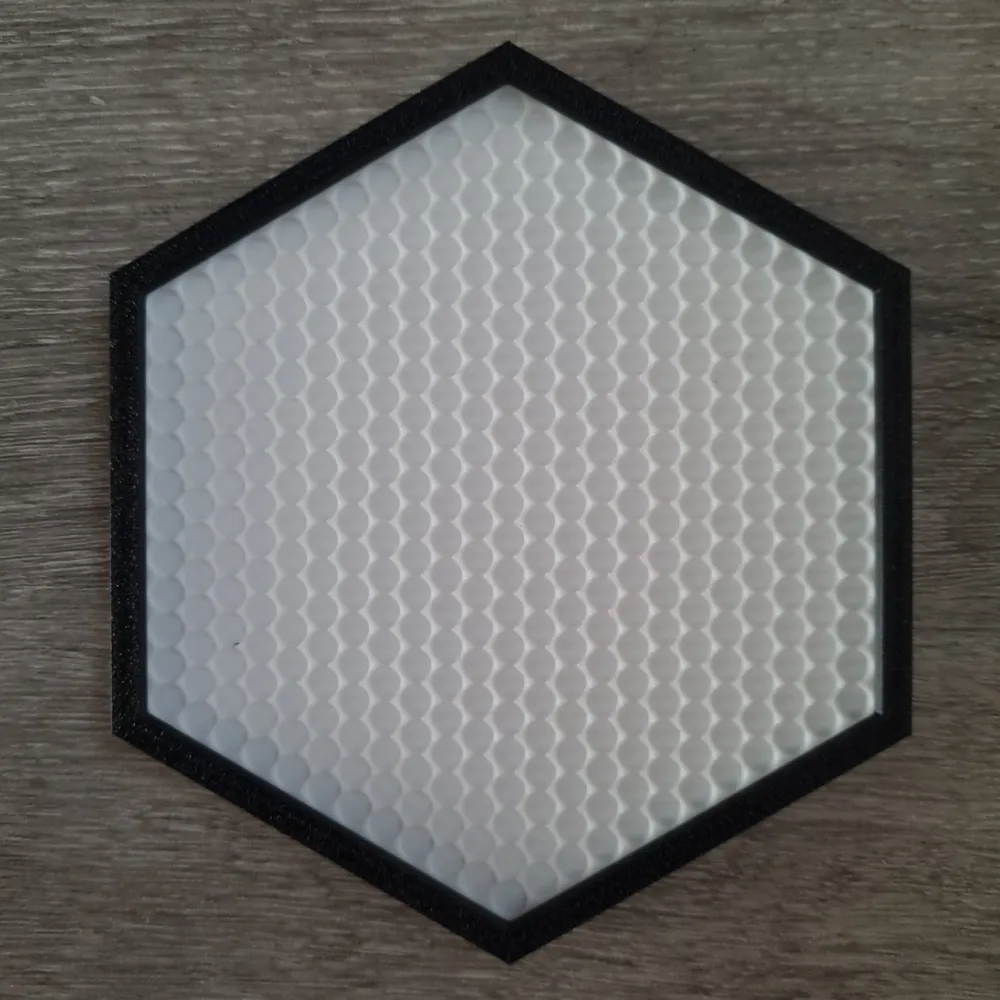

• Assembly Plate – Keeps ROJOCO pieces in place while you build, then locks the finished puzzle securely with small pin hooks.

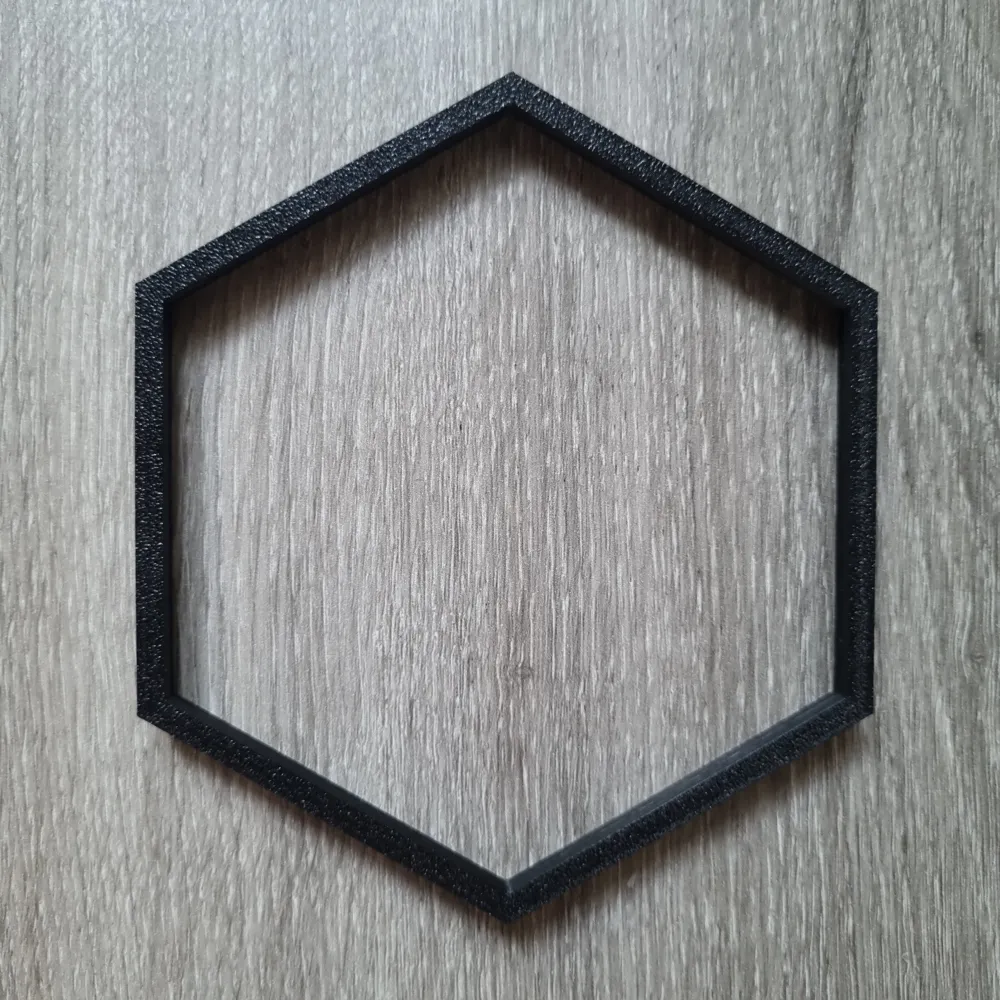

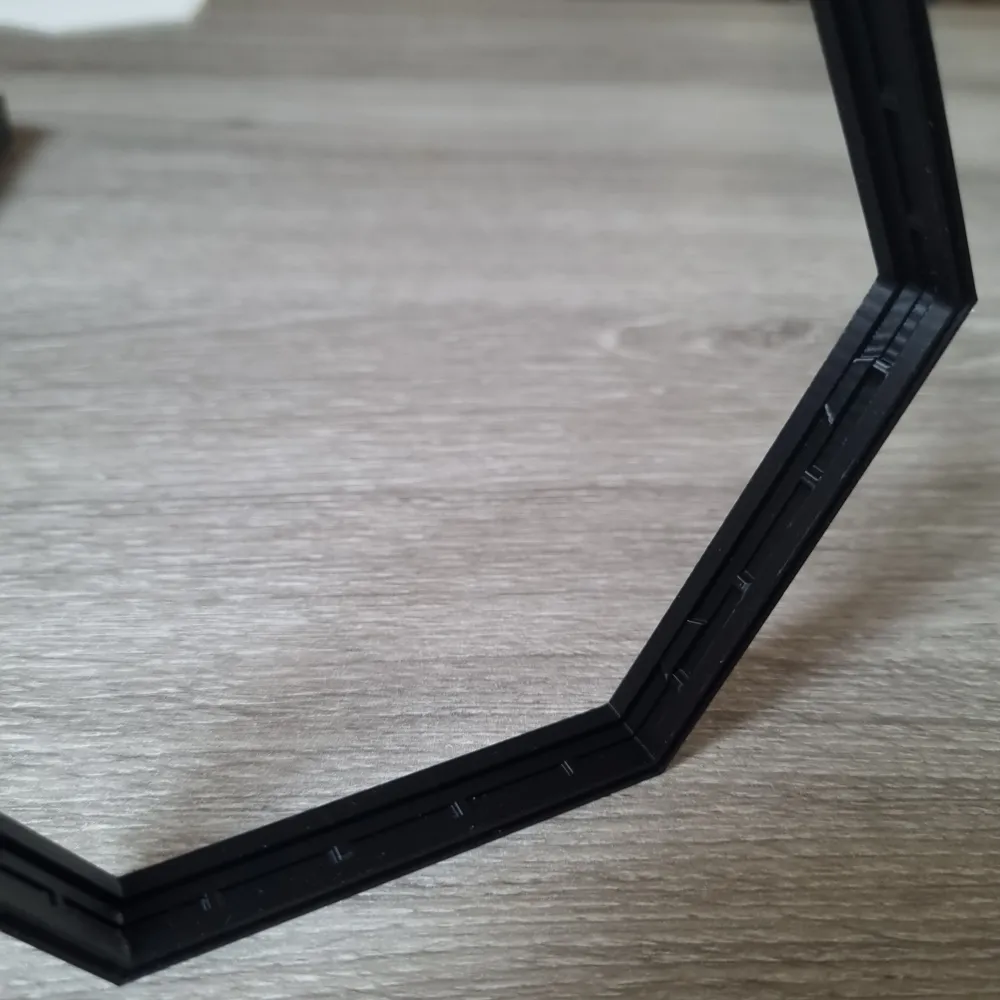

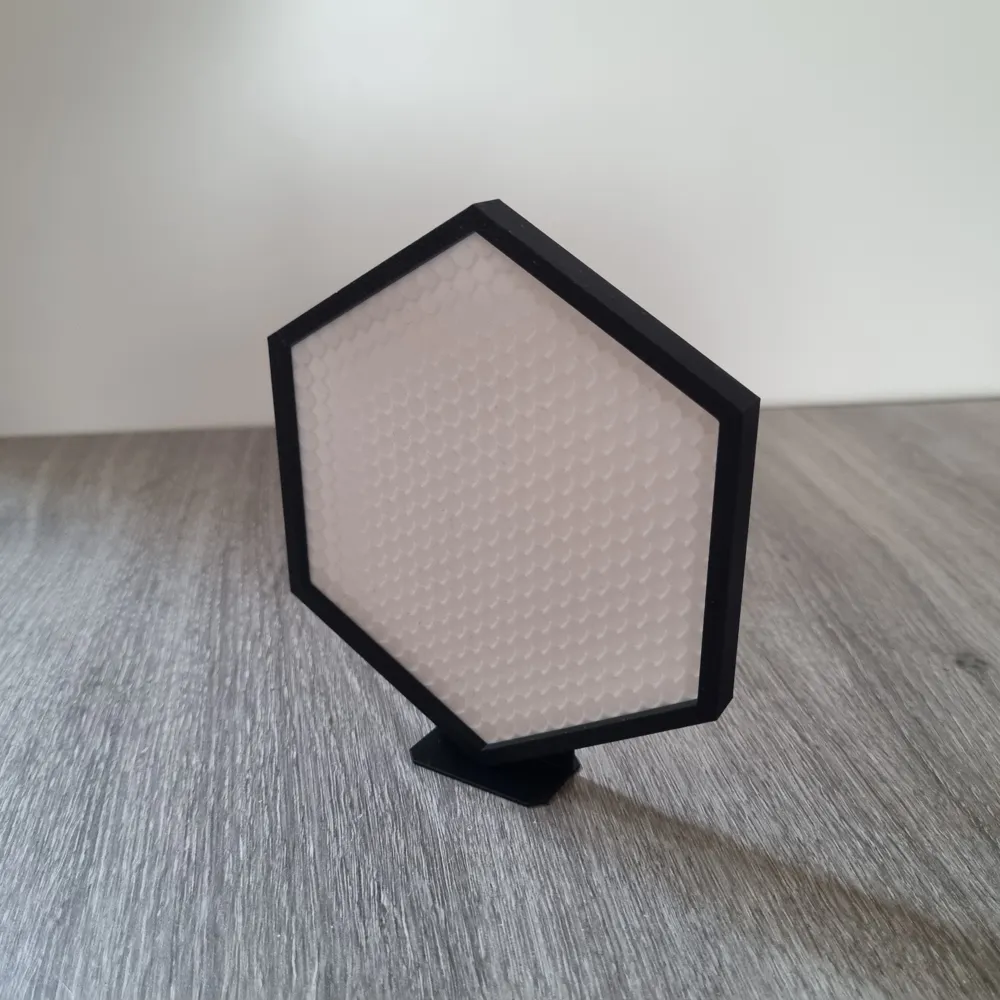

• Frame – Holds the plate with inner pegs and has ridges for attaching clips.

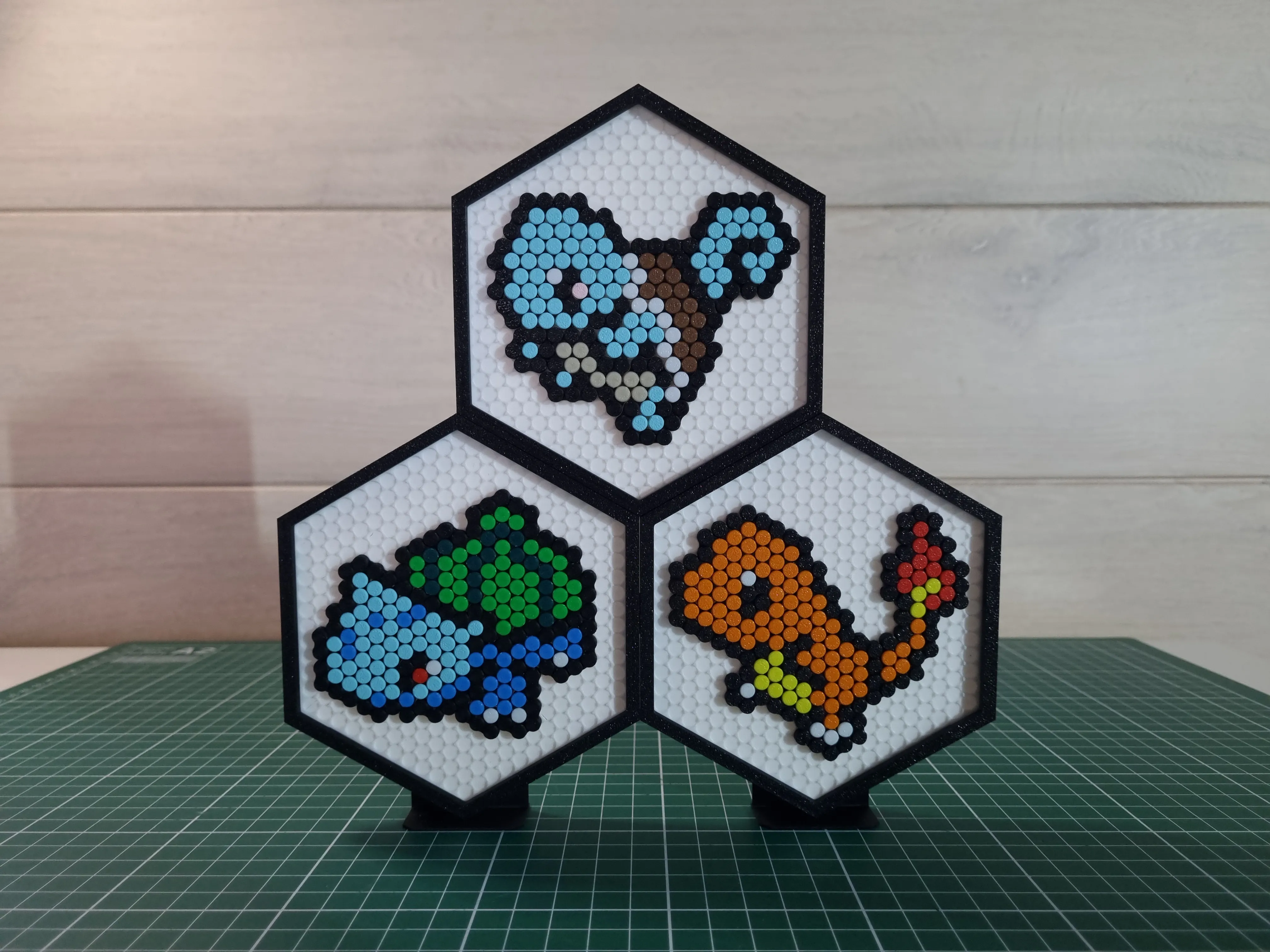

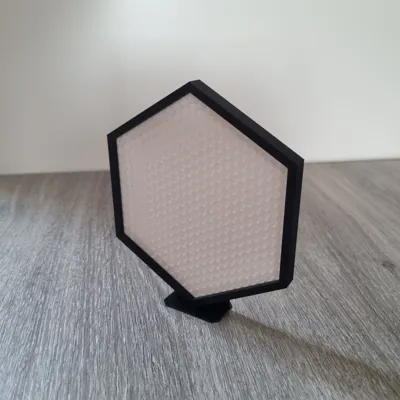

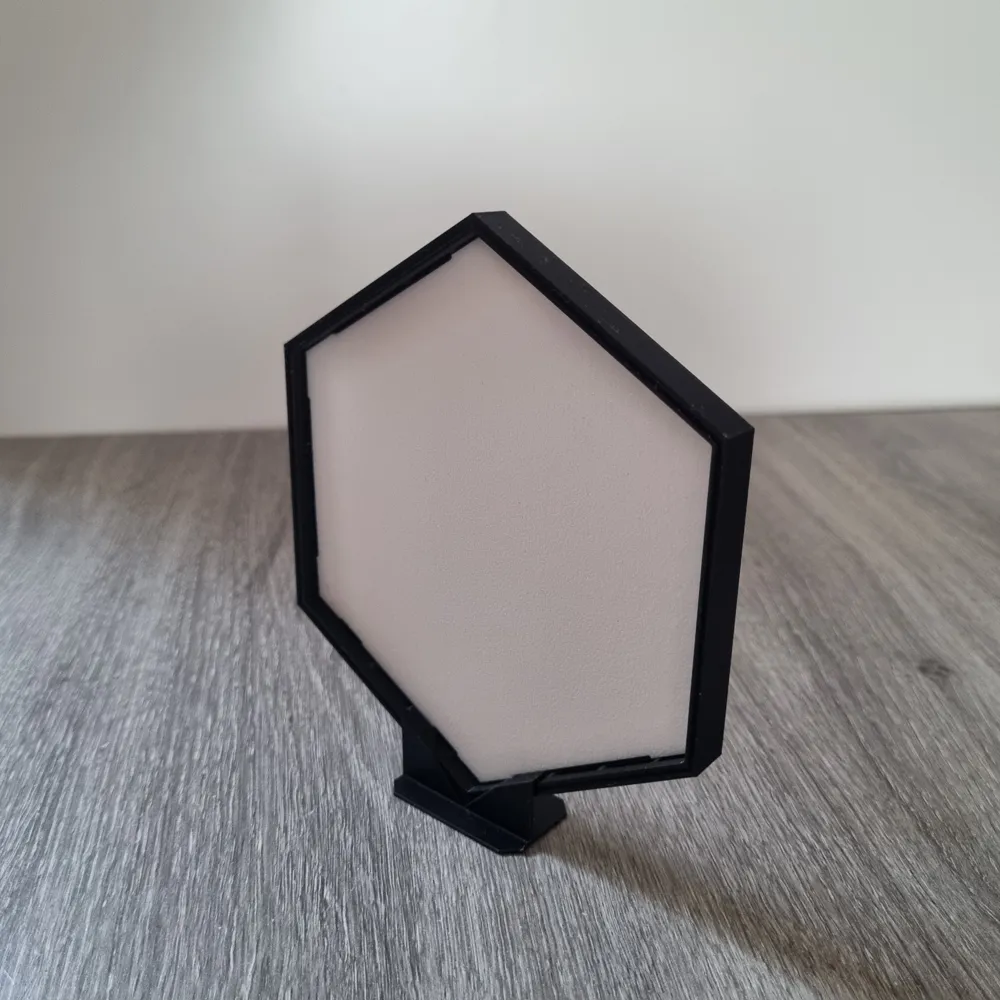

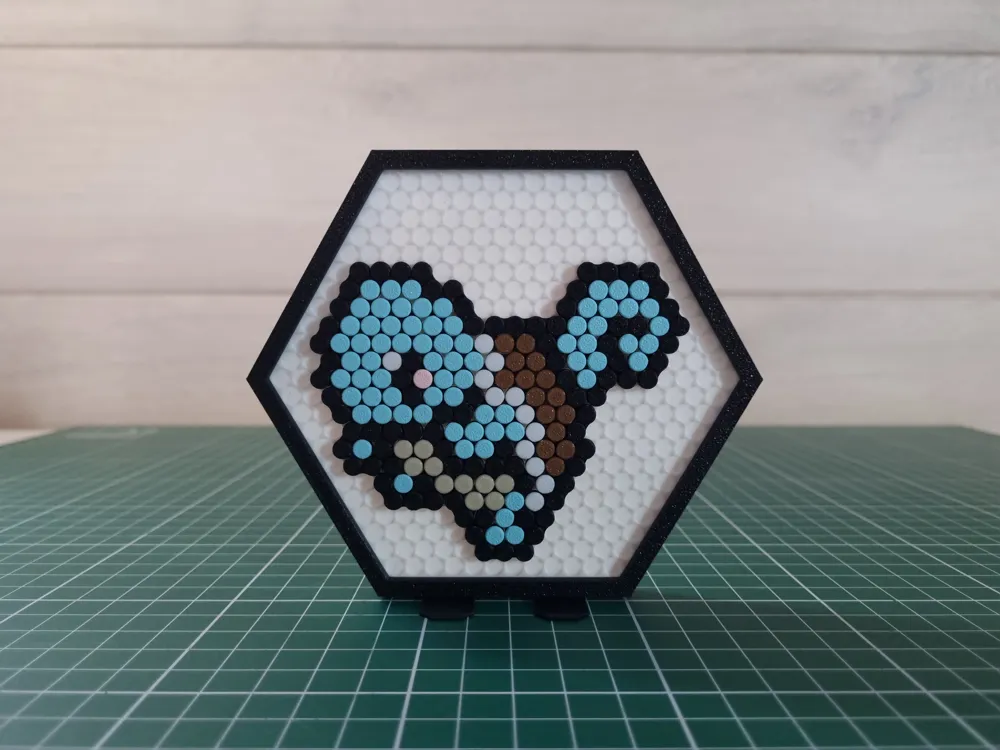

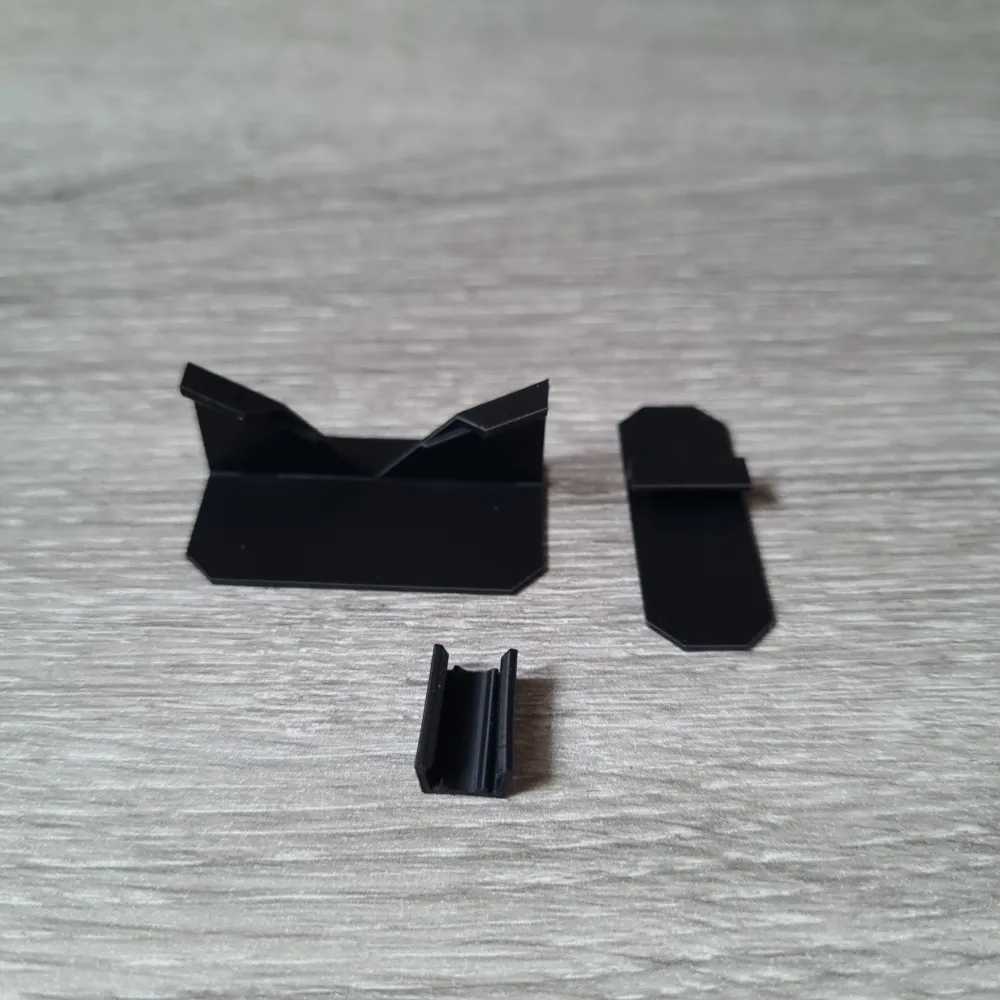

• Clips – Stand your frame up horizontally, vertically, or link multiple frames together.

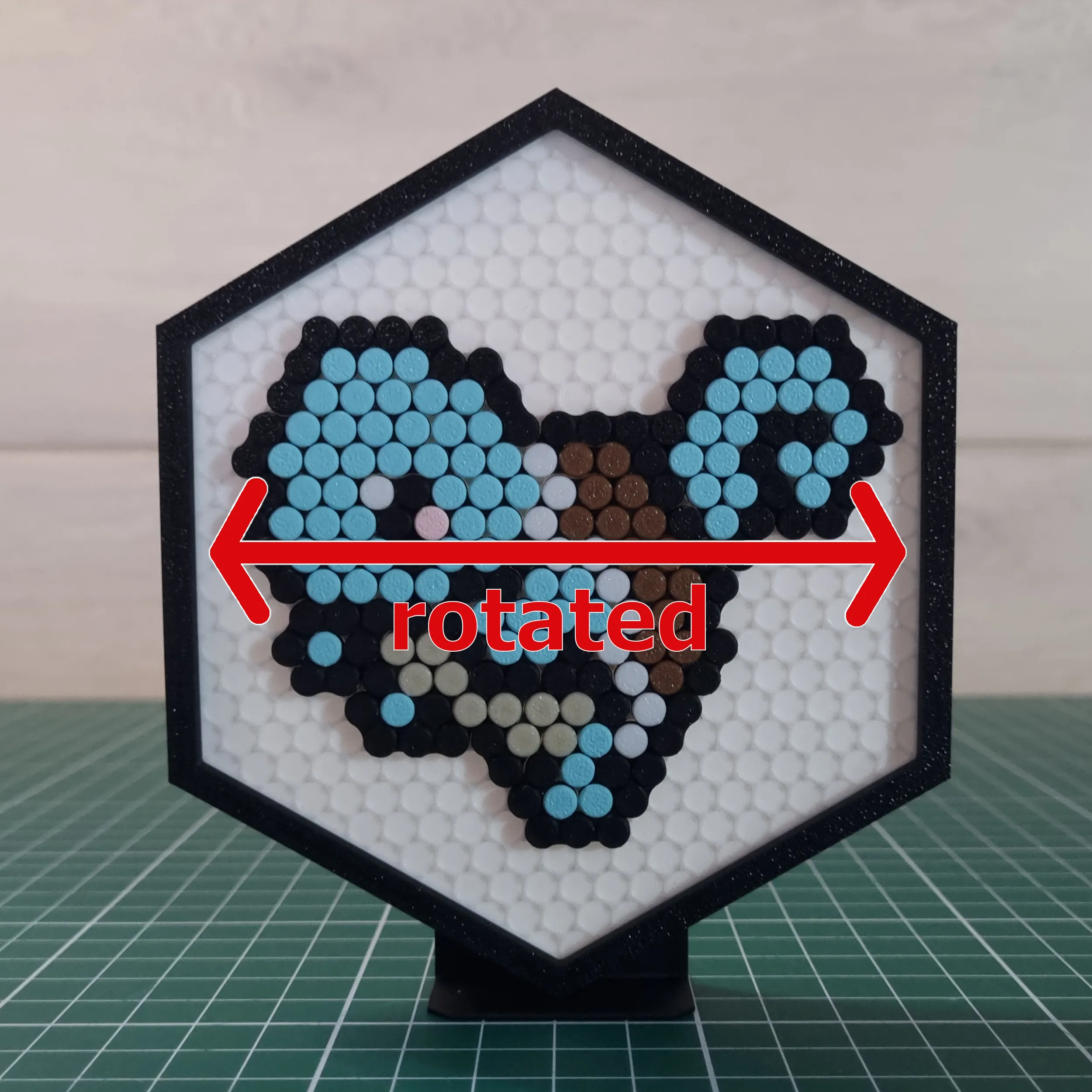

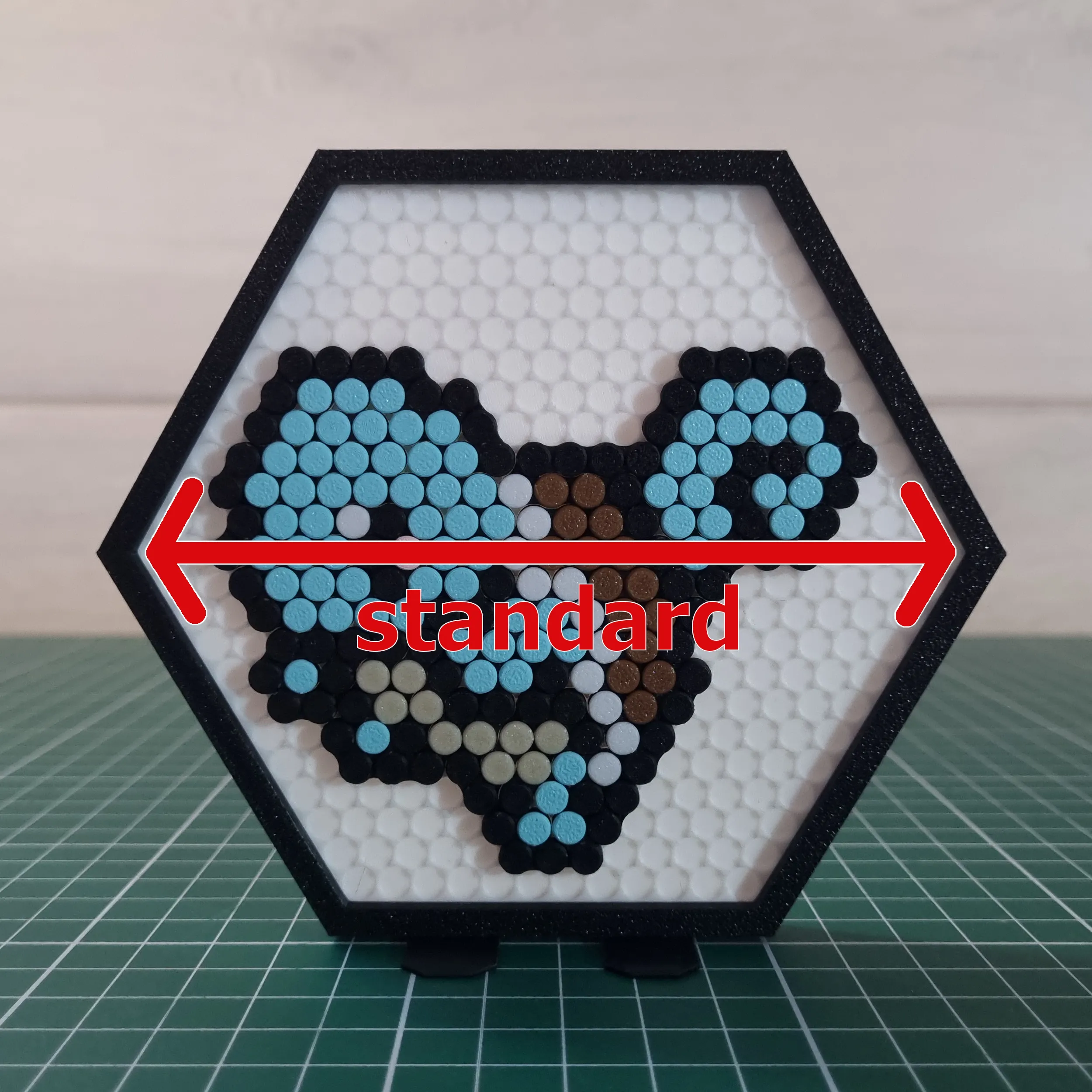

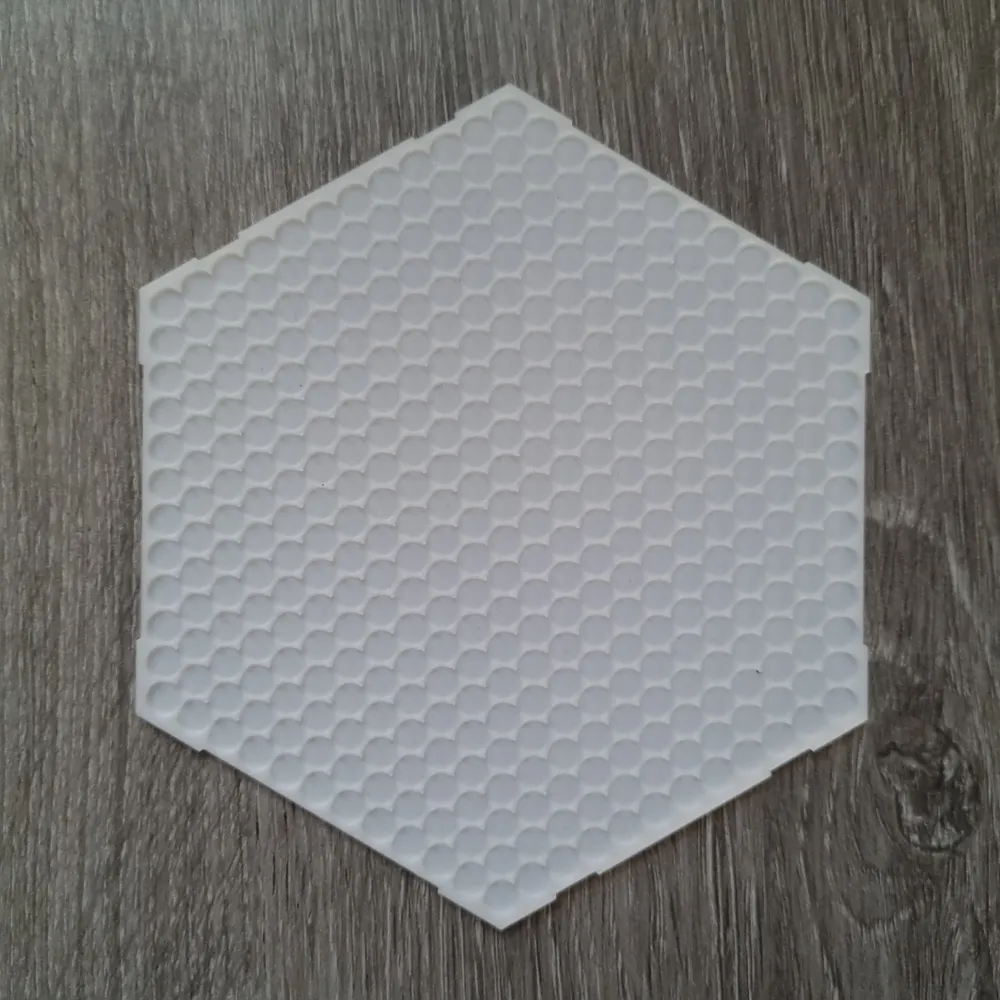

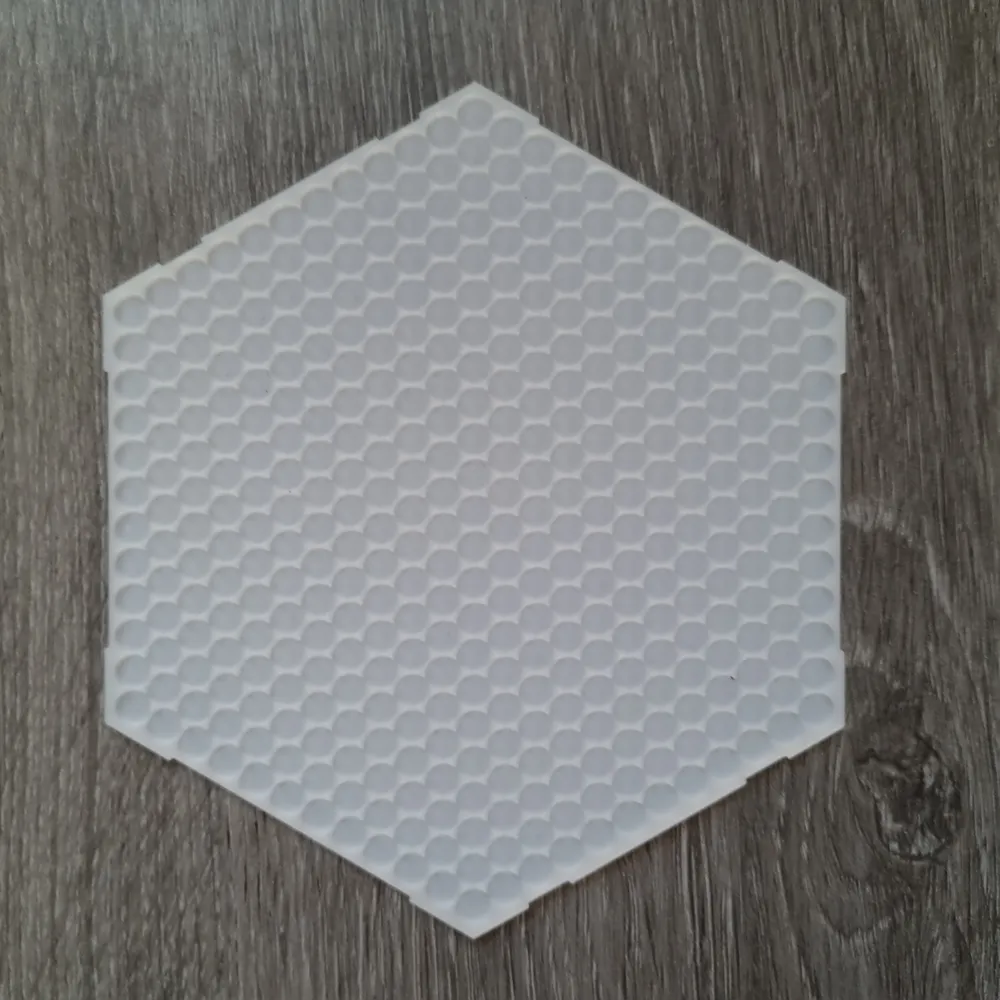

To give you more flexibility when connecting multiple frames, there are two assembly plate versions:

Assembly Instructions

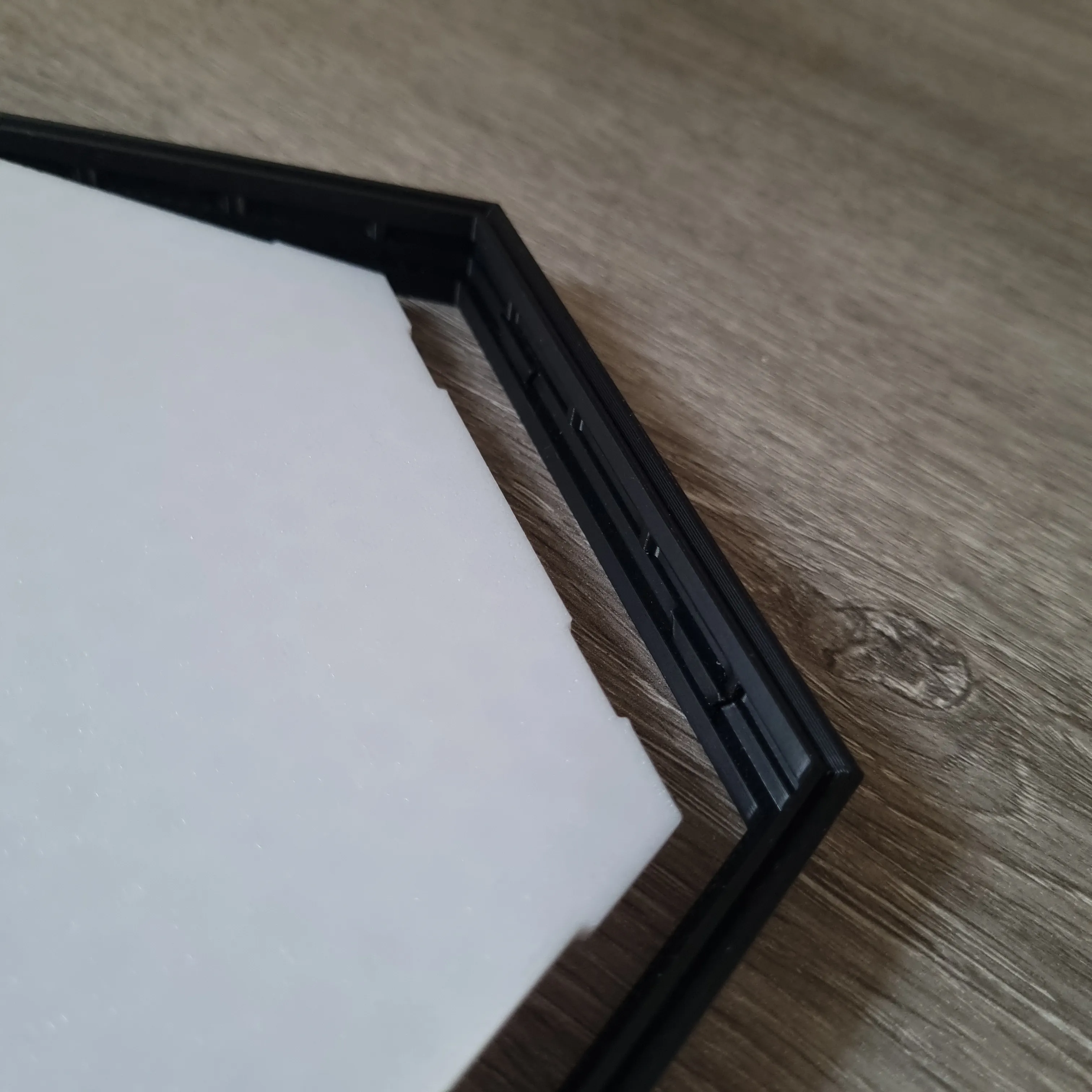

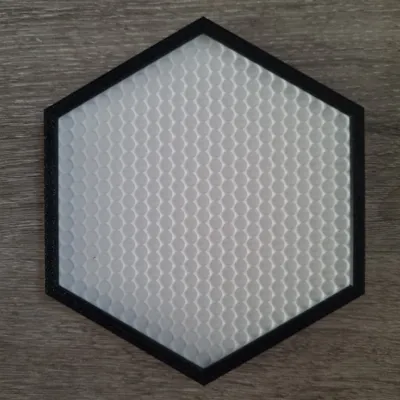

1. Place the plate into the back of the frame, aligning the two notches in the plate with the two inner pegs of the frame.

2. Slightly bend the plate and slide the two notches on the other side of the plate into the 2 other pegs of the frame.
3. Snap your chosen clips onto the frame edge, between the ridge bumps.

Tips:

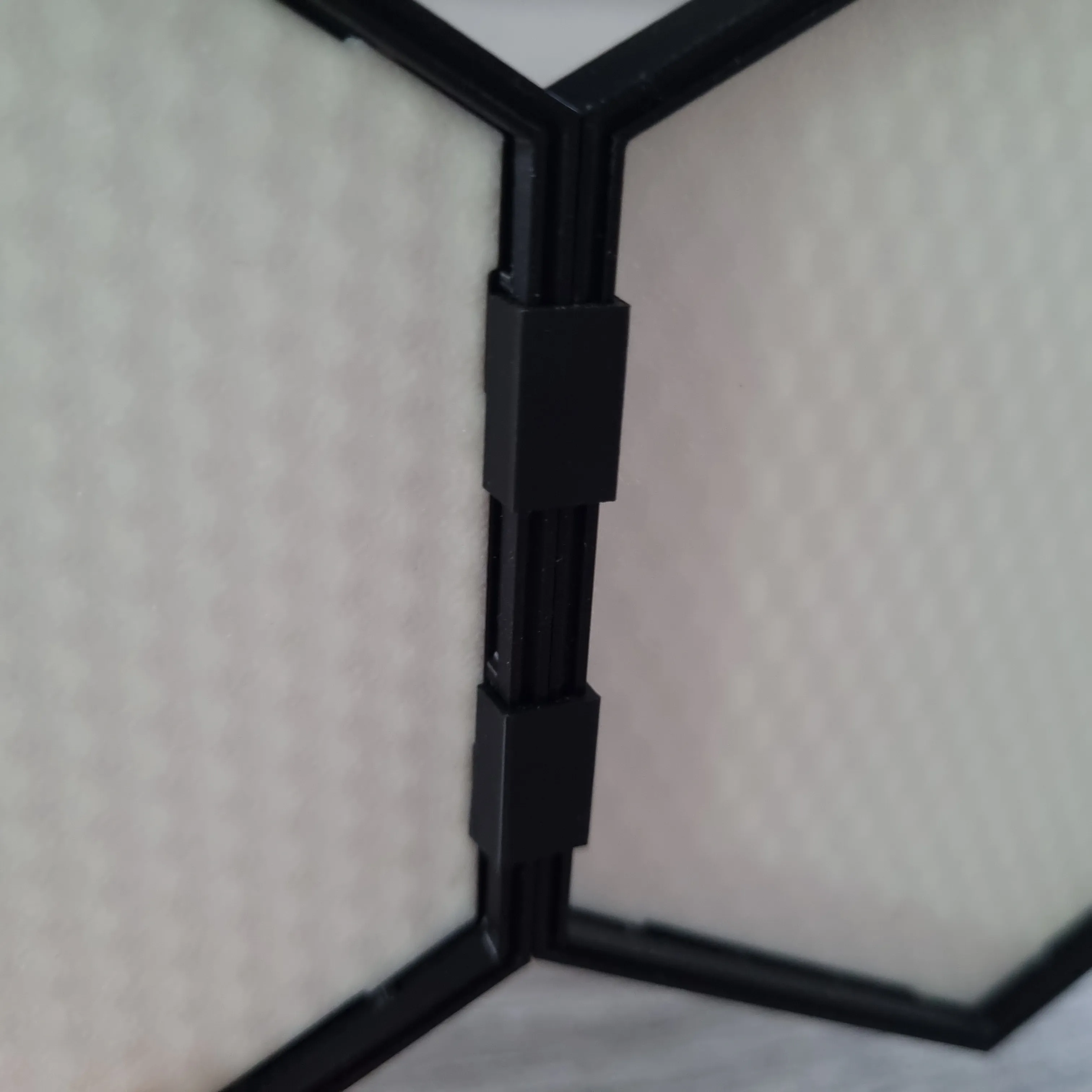

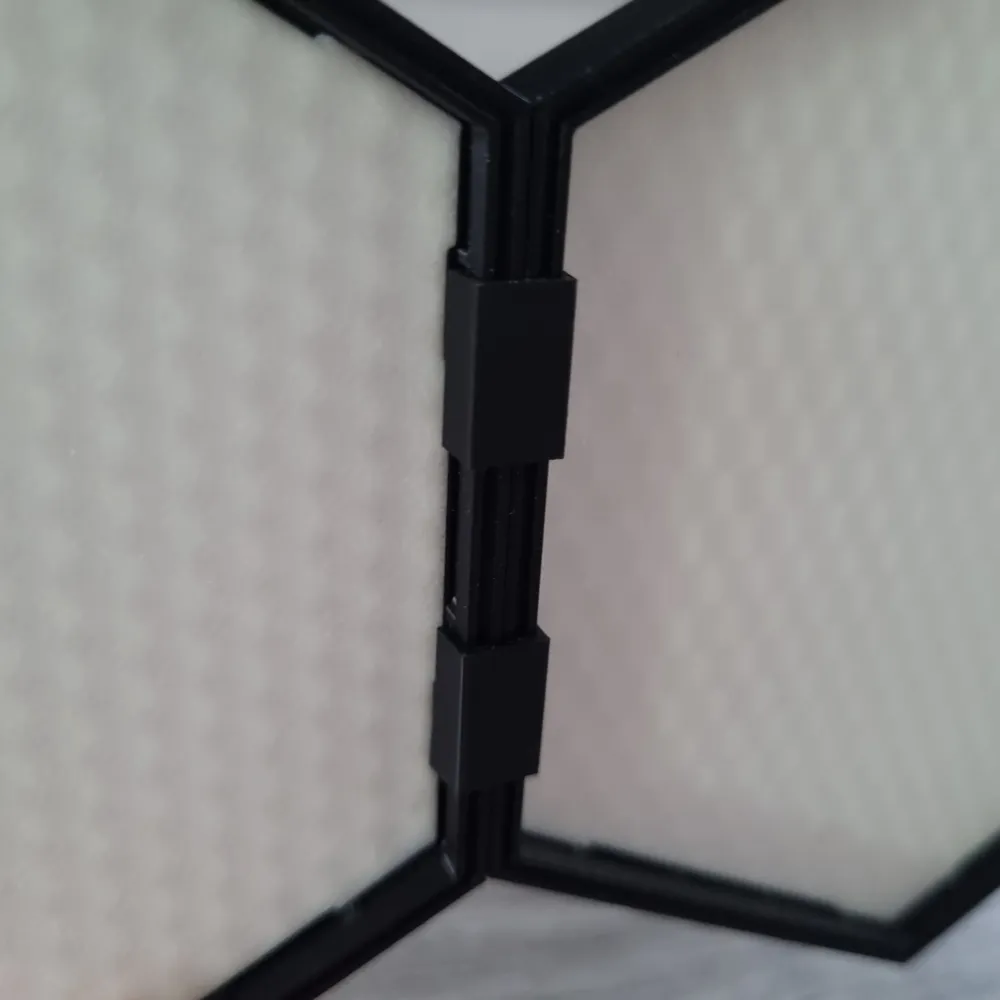

• To connect multiple frames, use two clips for a sturdy hold.



• To detach clips, either pry them loose with your nail or, if possible, slide them onto the bumps — the bumps will push them out for easier removal.

Materials:

• Designed with PLA

Commercial License

Available through my Patreon:
patreon.com/3DTjoene

Future Updates

If ROJOCO gains traction, expect additional plate sizes with different pixel counts to be released.
