🧰 3D Printed Angled Storage Bin for the IKEA SKÅDIS (Magnetic Mount)

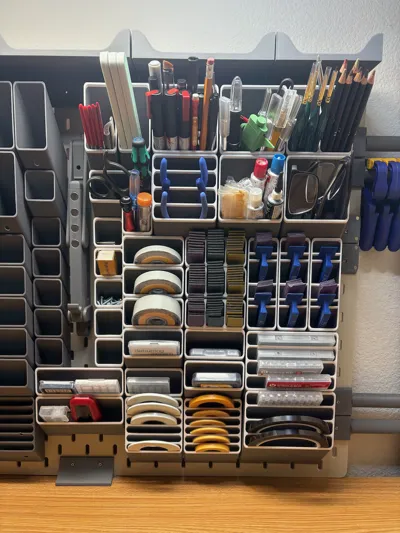

Upgrade your SKÅDIS setup with this sleek, space-optimizing angled bin, custom-designed to snap seamlessly into your pegboard grid. Whether you're organizing craft supplies, office essentials, or workshop bits and bobs, this bin brings both form and function to your wall.
Links: Magnet Guide Jig, Heat Inserts, Hex Bolts, Magnets
Print Profiles
| Profile | Width (mm) | Height (mm) | Depth (mm) |
| Small Size Bin | 38 | 38 | 50 |
| Small Size Bin (Wide) | 78 | 38 | 50 |
| Small Size Bin (Extra Wide) | 118 | 38 | 50 |
| Small Size Bin (6 Slots) | 78 | 78 | 50 |
| Medium Size Bin | 38 | 38 | 75 |
| Medium Size Bin (Wide) | 78 | 38 | 75 |
| Medium Size Bin (Sanding Block) | 38 | 118 | 75 |
| Medium Size Bin (3 Compartments) | 78 | 38 | 75 |
| Medium Size Bin (4 Slots) | 118 | 78 | 75 |
| Large Size Bin | 38 | 78 | 100 |
| Large Size Bin (Wide) | 78 | 78 | 100 |
| Large Size Bin (4 Compartments) | 78 | 78 | 100 |
| Large Size Bin (Nipper Storage) | 78 | 78 | 100 |
| Large Size Bin (4 Slots) | 78 | 78 | 100 |
| Skadis T-Nut (Remixed) 4 ea | N/A | N/A | N/A |
| 1x1 Base Plate | 38 | 38 | 5 |
| 3x2 Base Plate | 118 | 78 | 5 |
| 3x3 Base Plate | 118 | 118 | 5 |
| 3x4 Base Plate | 118 | 158 | 5 |
| 4x2 Base Plate | 158 | 78 | 5 |
| 4x3 Base Plate | 158 | 118 | 5 |
| 4x4 Base Plate | 158 | 158 | 5 |
| 5x5 Base Plate | 198 | 198 | 5 |
| Skadis T-Nut (Remixed) 54 ea | N/A | N/A | N/A |
🔧 Features:
- Angled Design: The forward-tilted geometry offers easy visibility and access to contents—no more digging around for that elusive paperclip.
- Perfect Fit: Engineered to align precisely with SKÅDIS peg spacing for a secure, wobble-free mount.

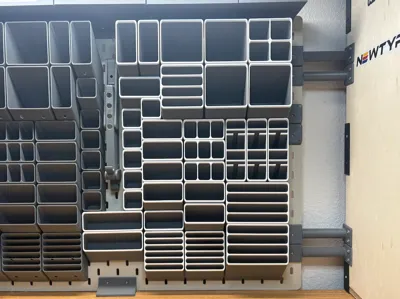

- Modular & Stackable: Combine multiple bins side-by-side or vertically to build your ideal storage layout.
- Multiple Sizes Available: Mix and match different sizes according to your needs
- Durable Material: Printed in sturdy PLA or PETG for long-lasting use, with optional textured or matte finishes.

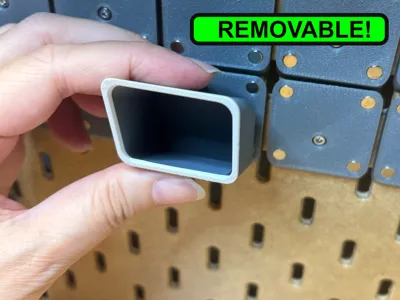

- Magnetic Mount: Easily remove and reattach bins to your liking and needs.

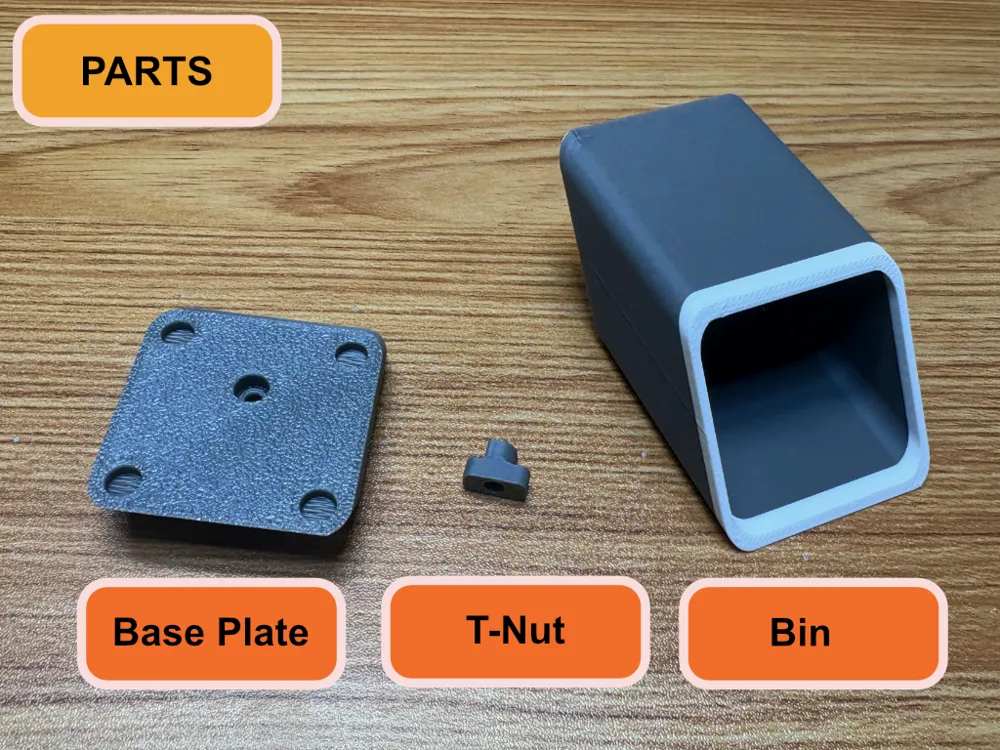

🎨 Parts Printed:
- Bins: The main storage

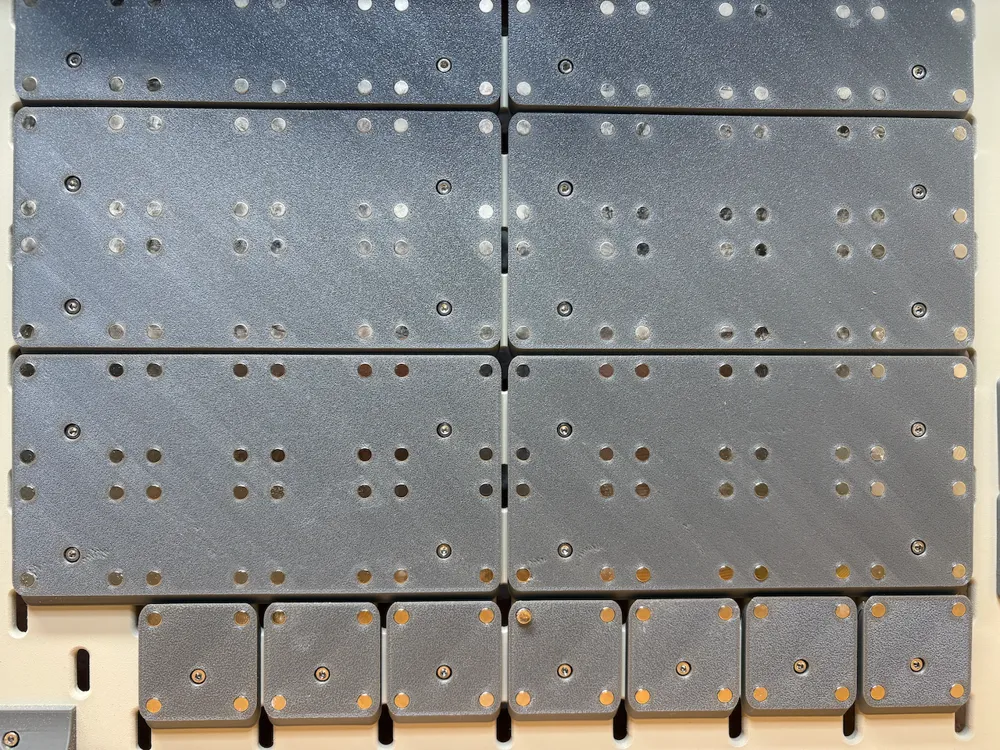

- Base Plates: Holds the bin in place
- T-Nuts: Used to attach the Base Plate. Remix of Skadis T-Nuts Mounting System for Ikea Skadis Pegboards from Printables.

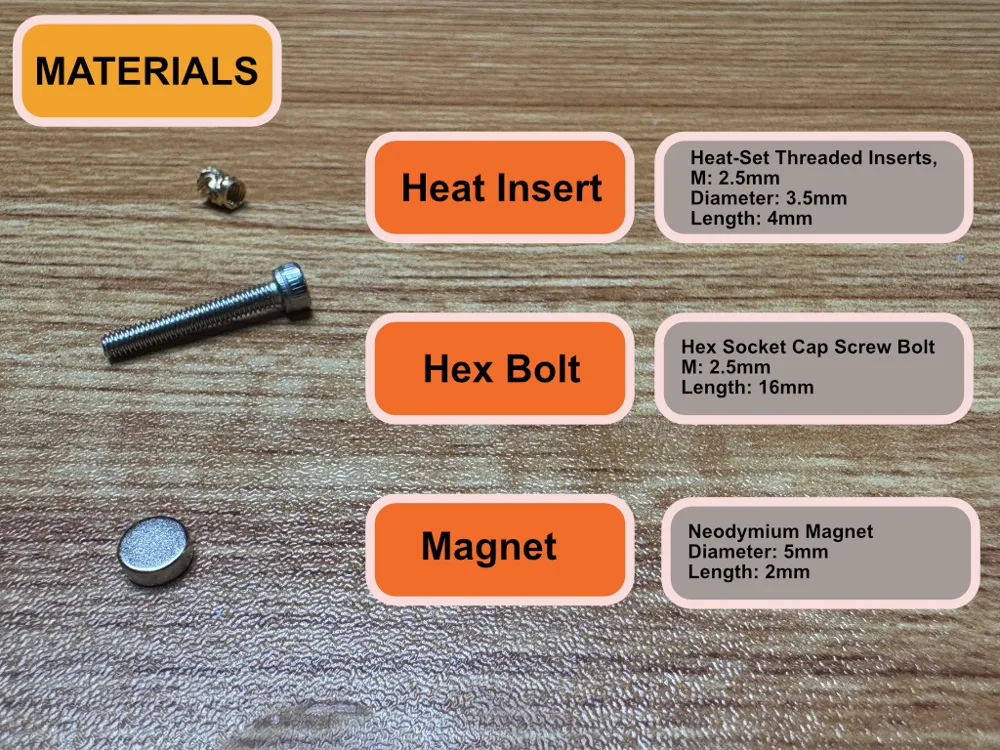

🎨 Materials Required:
- Heat Insert: M2.5 heat insert, Diameter 3.5mm, Depth 4mm. Amazon link
- Hex Bolt: M2.5 Hex head bolt, Length 16mm. Amazon link
- Magnet: Neodymium magnet Diameter 5mm, Depth 2mm. Amazon link

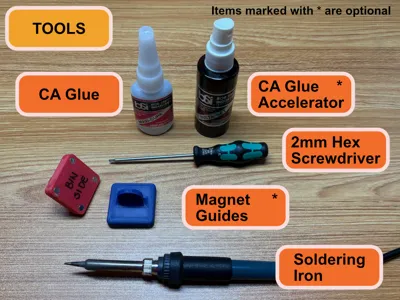

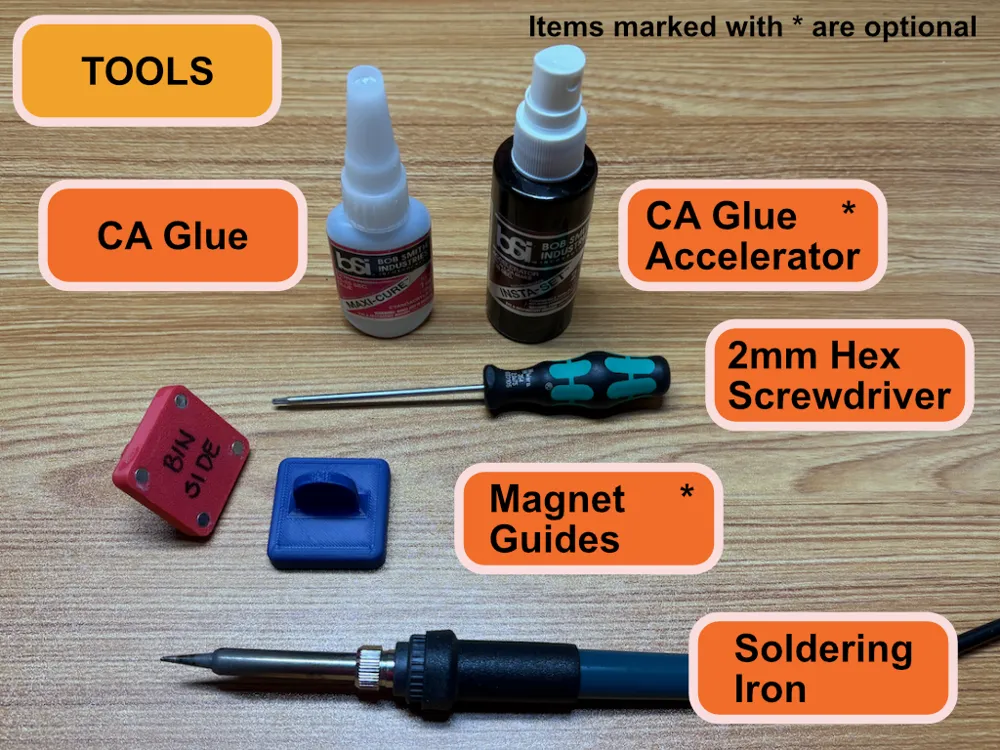

🎨 Tools:
- Hex Screwdriver: M2 hex screwdriver
- Glue: Cyanoacrylate Glue
- Soldering Iron: Used for embedding the heat insert into the T-Nut
- Glue Accelerator: Speed up the drying process of CA glue (Optional)
- Magnet Guide: Assists with the correct orientation of the magnets before gluing. (Optional)
🎨 Assembly:

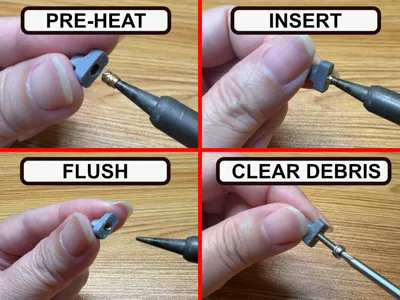

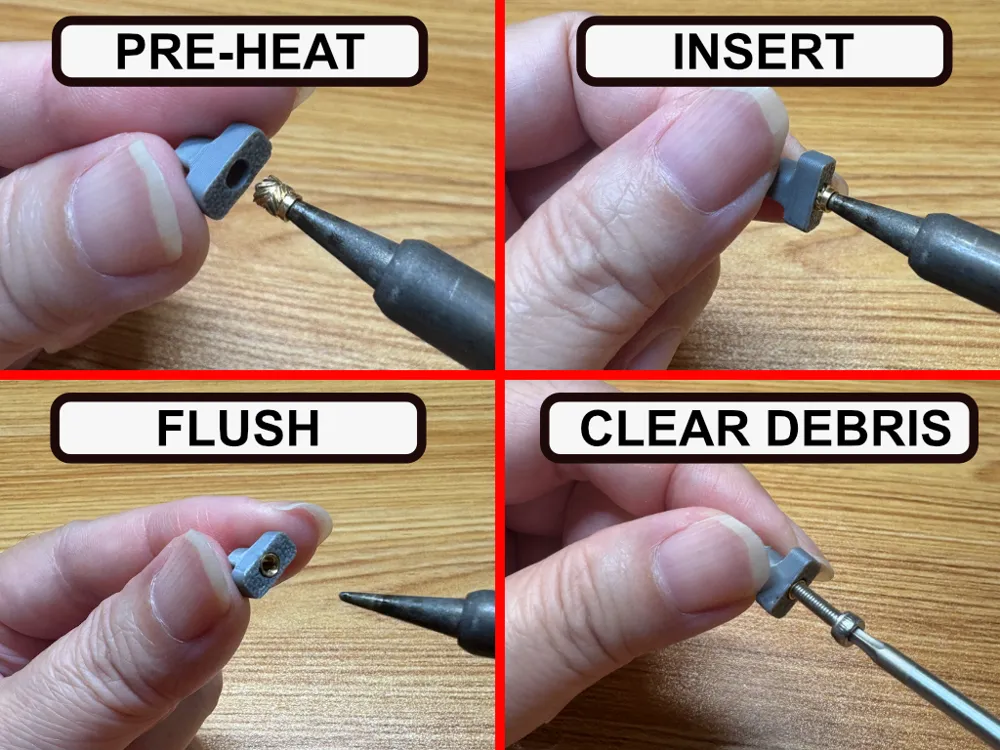

- Attach the heat insert into the T-Nut. Clear debris by screwing the bolt until material comes out the other end.

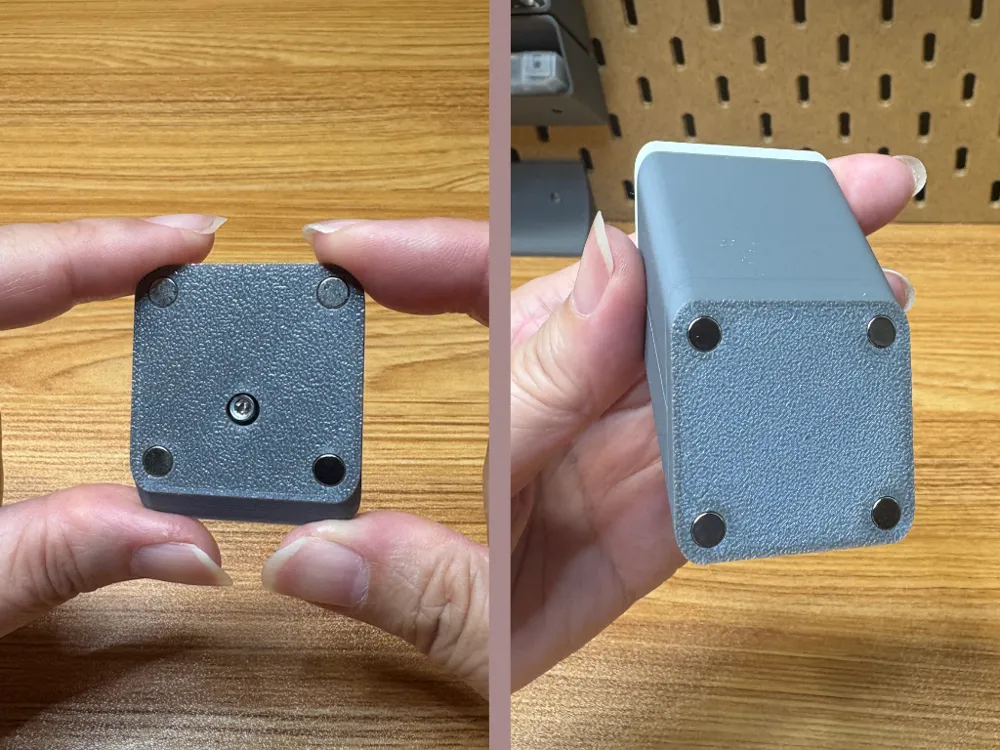

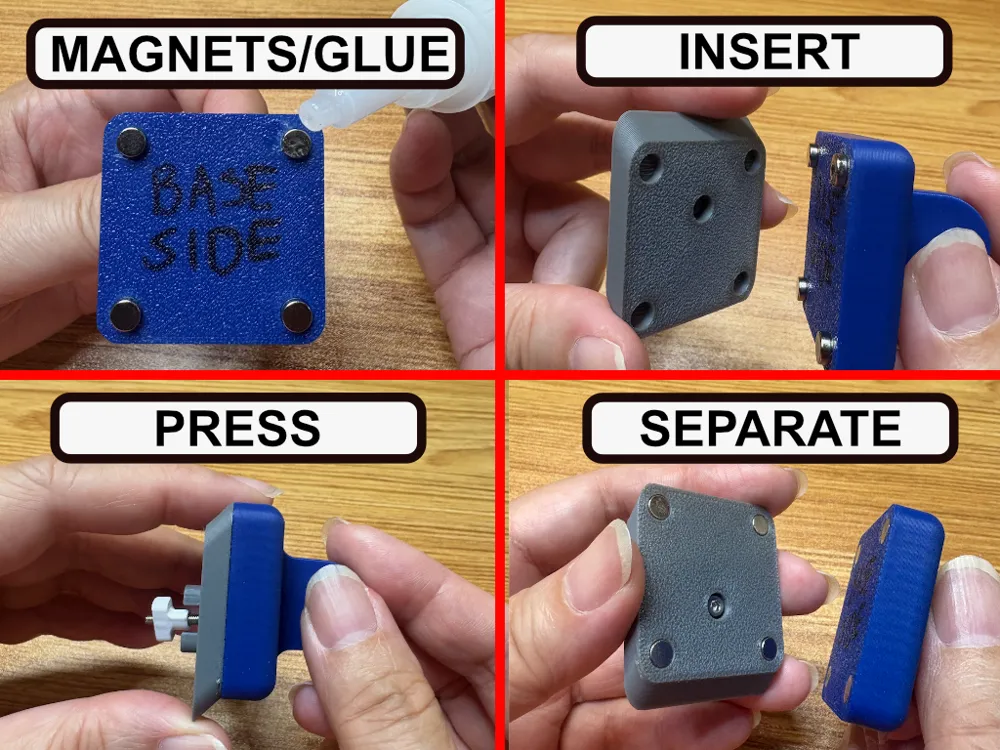

- Embed magnets into the Base Plate and Bin.

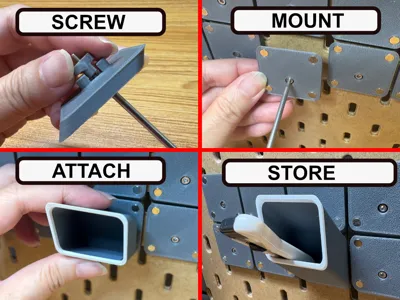

- Screw together the Base Plate and the T-Nut.
- Glue Accelerator: Speed up the drying process of CA glue (Optional)
- Magnet Guide: Assists with correctly orienting magnets. Print this model
