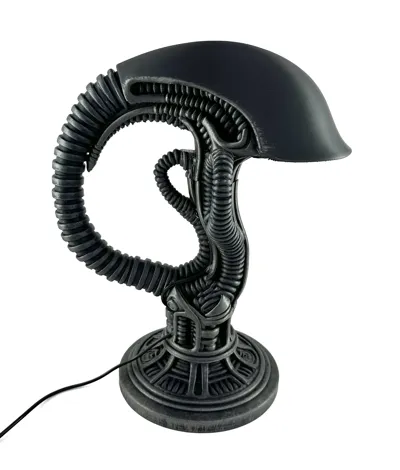

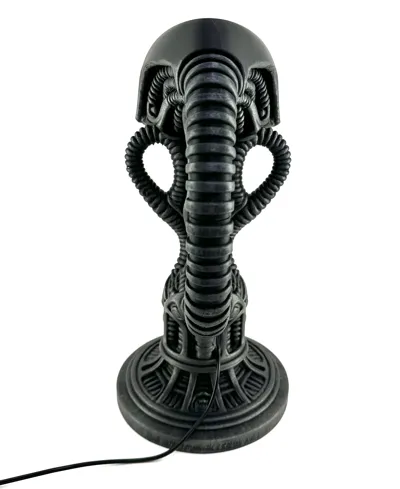

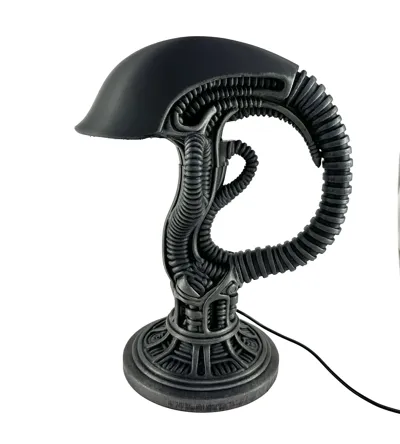

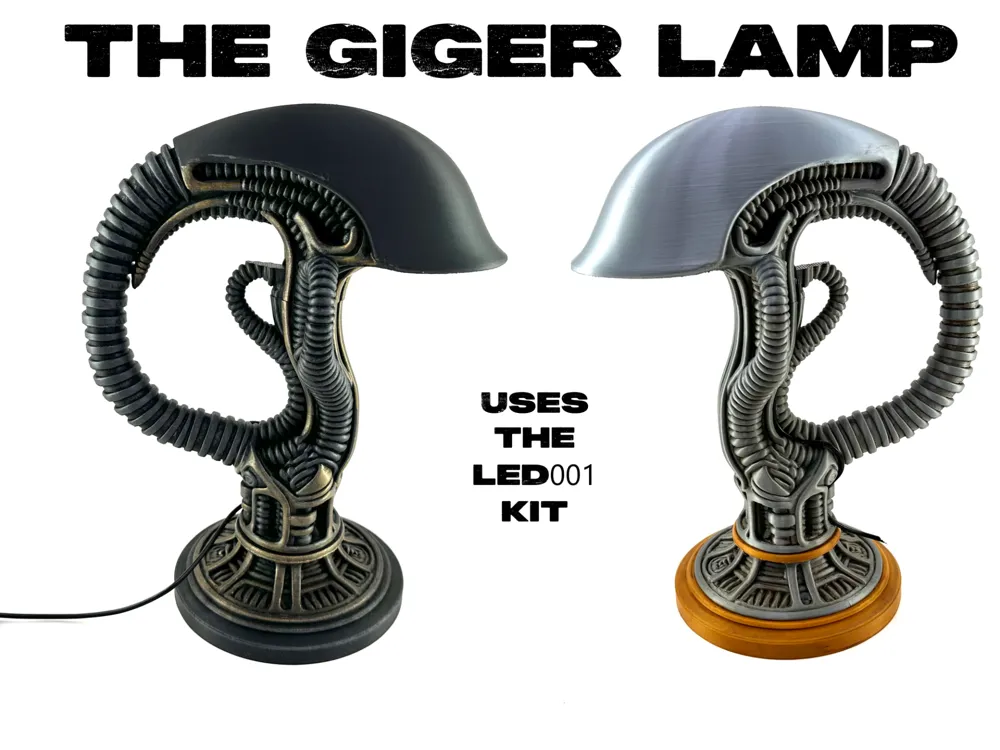

The Giger Lamp - uses LED001 Kit - Xeno style desk

The main build of this is a 3 Plate build, and it assembles with glue assembly for the top 2 pieces, and the bottom snaps into the middle section. You can also glue this, as the snap is not the greatest fit, however I like to keep the ability for the lamp to rotate with the snap assembly.

Plate 4 is a clearance test. I recommend printing the top section, and the middle sections first. Then, print the clearance test to see how it fits into the middle section. You can then adjust the base plate, to fit your middle section better by either adjusting the scale of the connector, or the entire base as well. Each filament is different, and you will want to do a test before printing out the base and trying to snap it together. Nothing worse then printing and entire piece only to find out that it doesn't fit. This test is also great for making sure the filament you use will not snap off and break, as Silk PLA tends to be more brittle along with other materials.

For the LED part, plate 1 is designed for the Bambulab LED001 Kit. Thread the usb and cable into the square through the front and out the back. The LED will snap into place, you may need a little force as well. Plate 5 fits the AliExpress or Amazon versions of the 001 Kit light.
The square is larger to accommodate the larger switch those lights have.
