VW Logo Cover for Fan / Air Outlet round
Print Profile(1)
Description

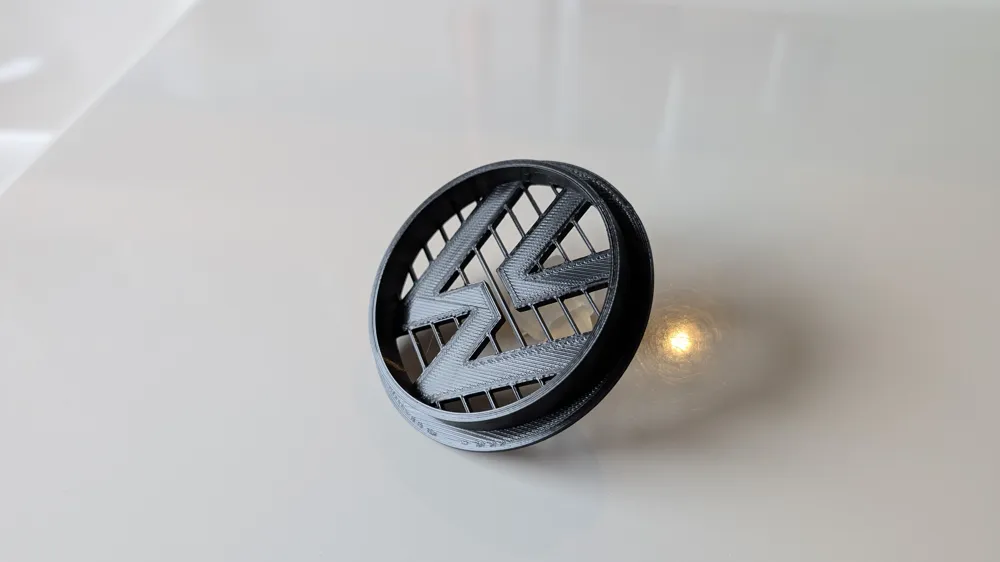

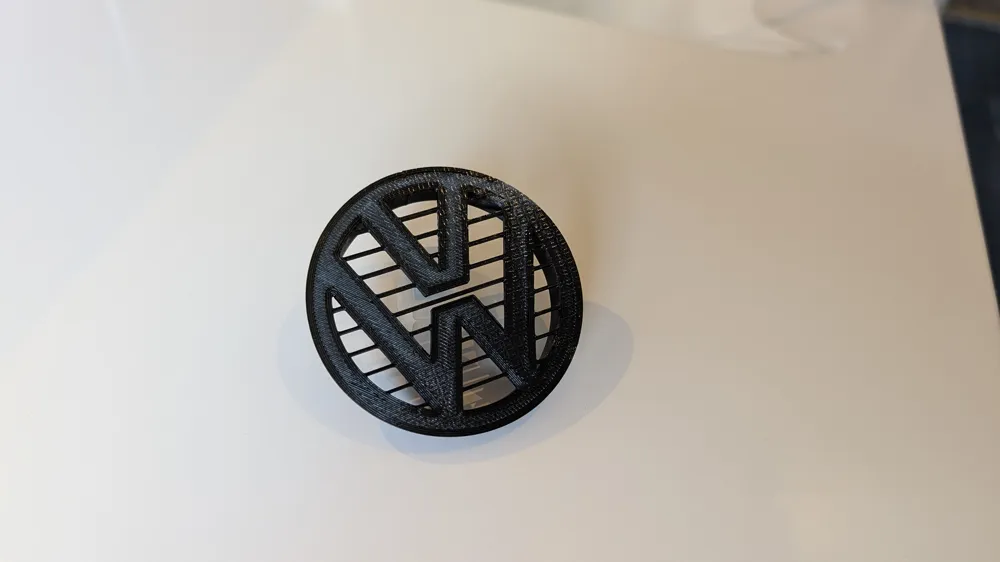

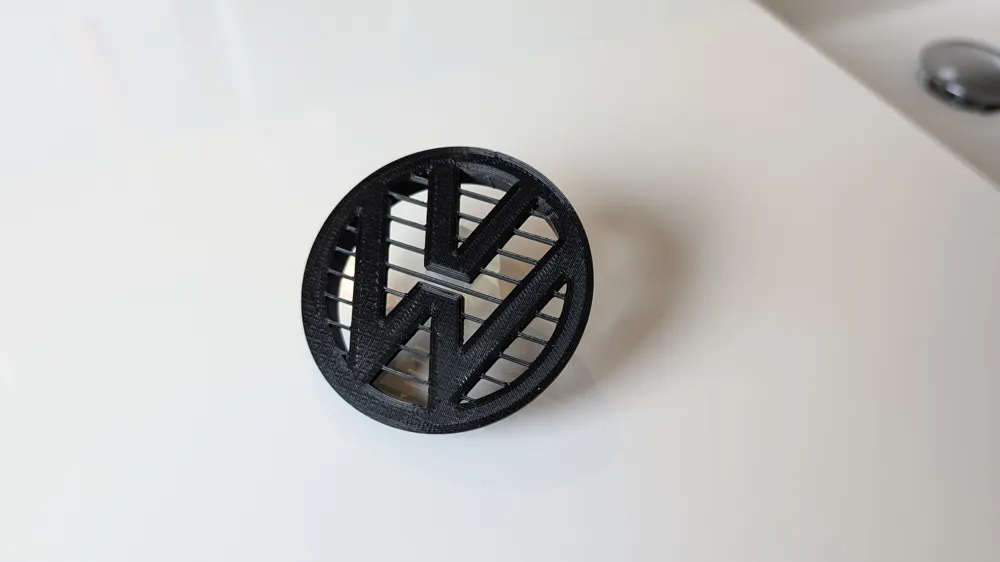

Round cover with Volkswagen logo.
This cover was originally designed for the air outlet of a VW T3 Camper.
However, it can also be used in all round openings.

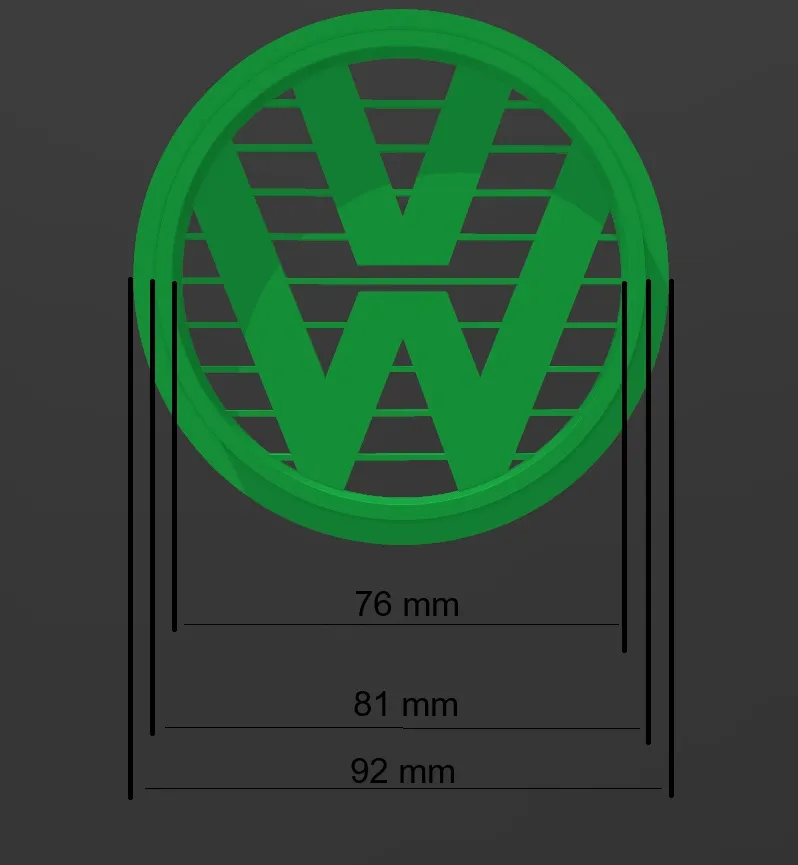

You can see the standard dimensions in the picture - clamping diameter 81 mm

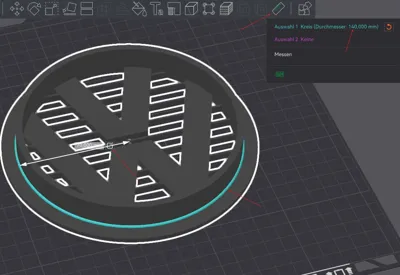

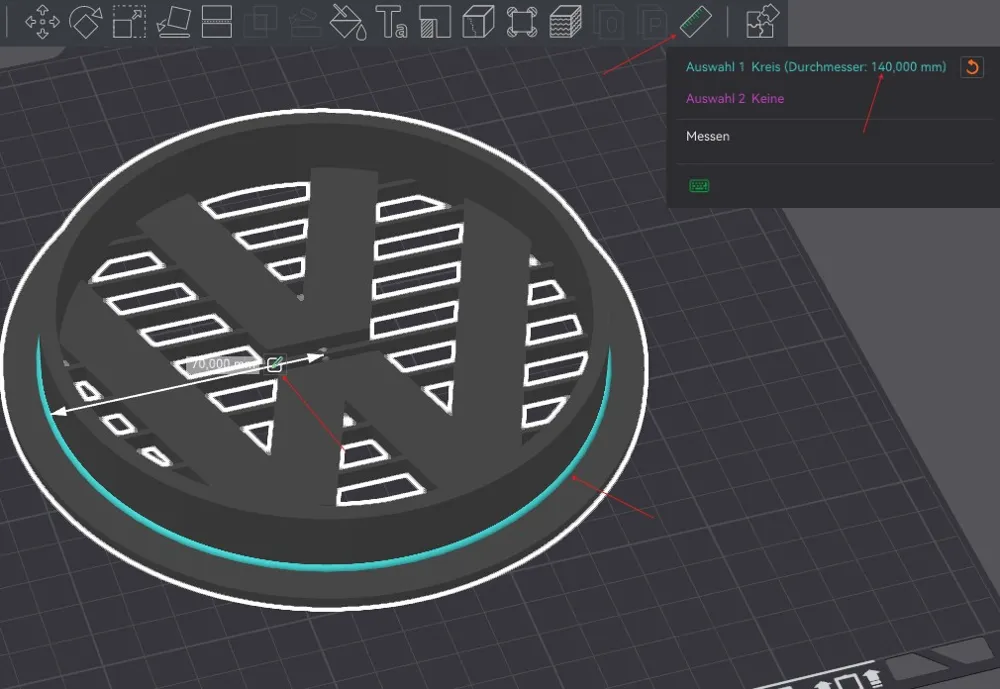

However, the diameter can be easily adjusted in Bambu Studio. See also the 5th picture:
- Select Measure tool
- Click on the diameter in the corner (see blue line)
- the diameter will now be shown as a radius ( Diameter / 2)
- click on the pen here and enter the new value
- check the new value at Selection 1 in the top right - here the diameter Ø is indicated again
I hope this design helps someone.
