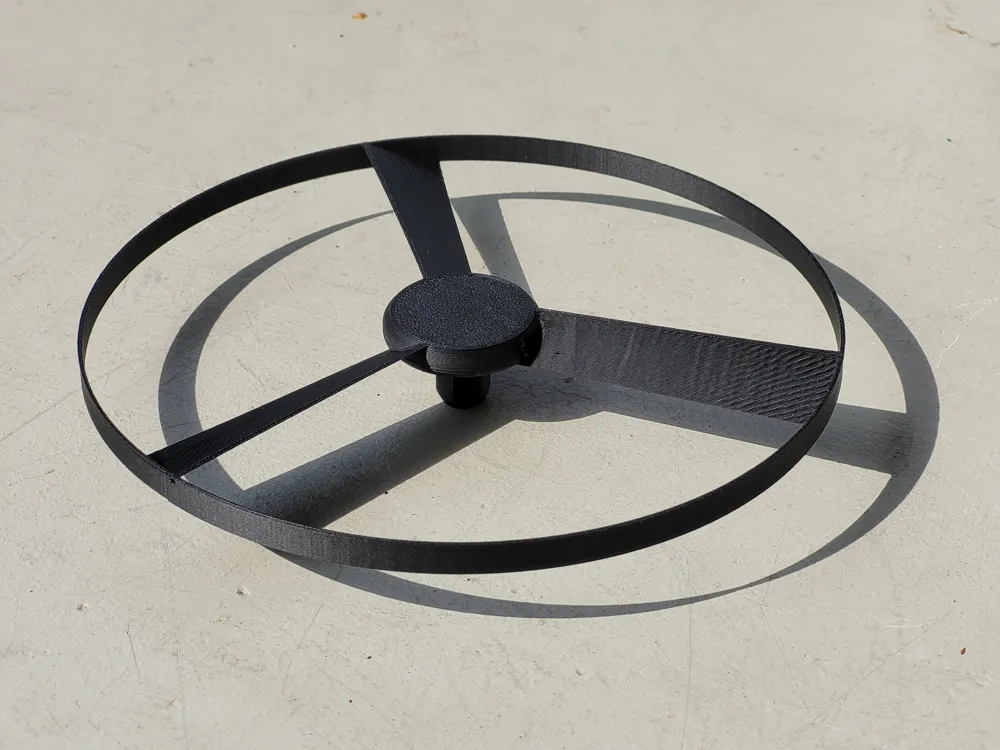

Propeller

Designer

58 min

1 plate

5.0(9)

Gear Add-On (Stackable Element)

Designer

2.3 h

1 plate

4.8(9)

Handpiece

Designer

3.5 h

1 plate

4.4(13)

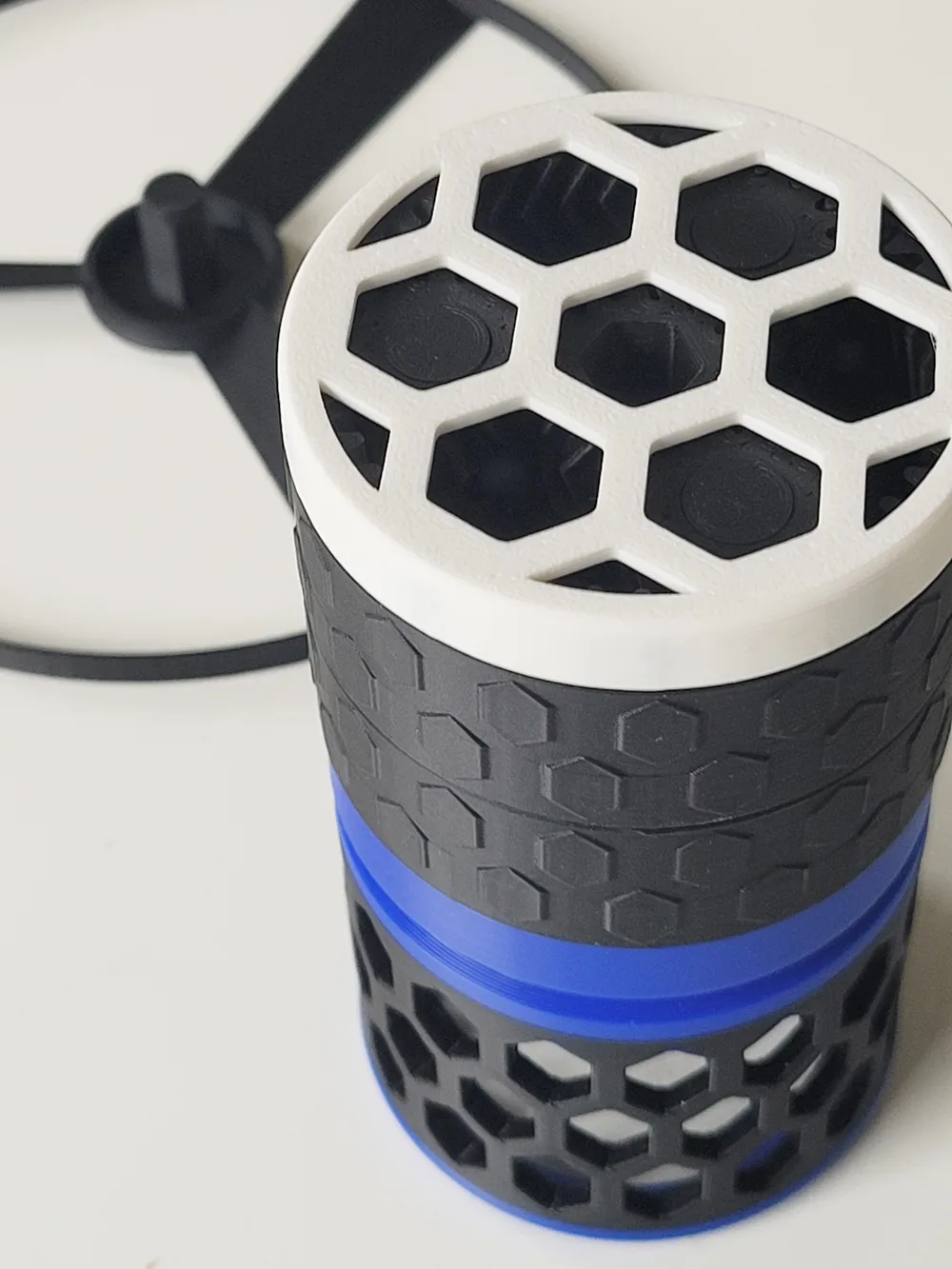

(optional) Cover Lid

Designer

22 min

1 plate

5.0(3)

Open in Bambu Studio

Boost

116

283

449

254

Released

Description

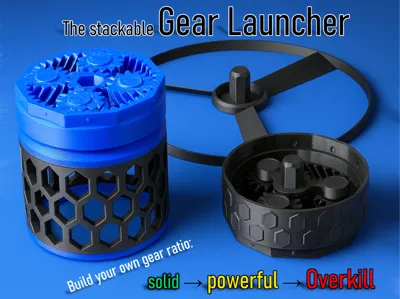

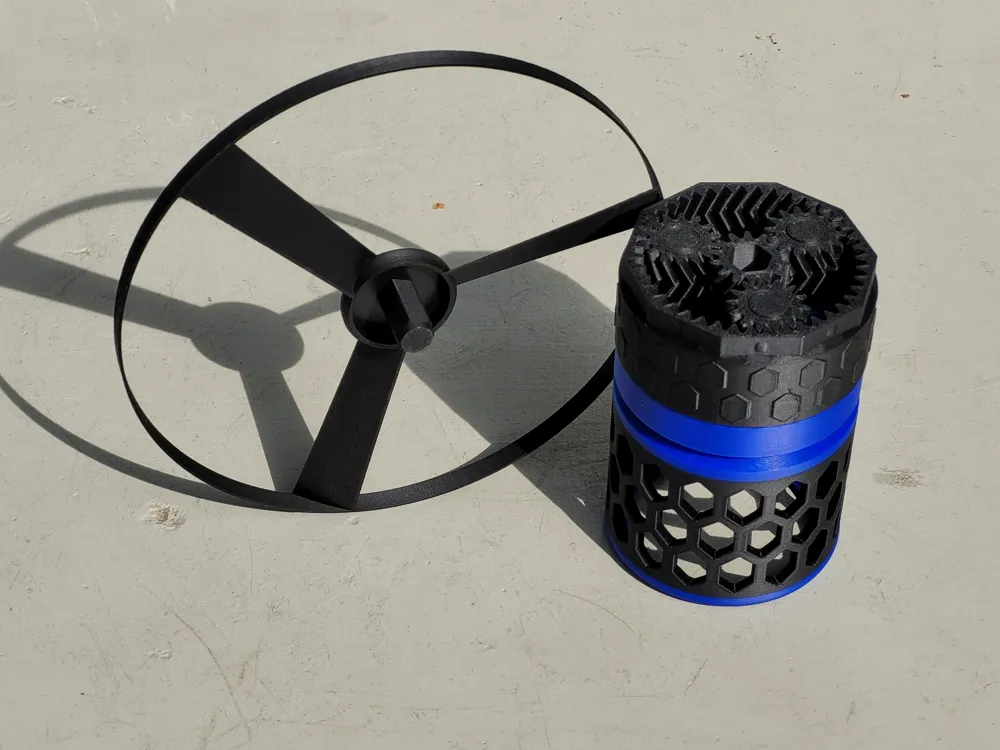

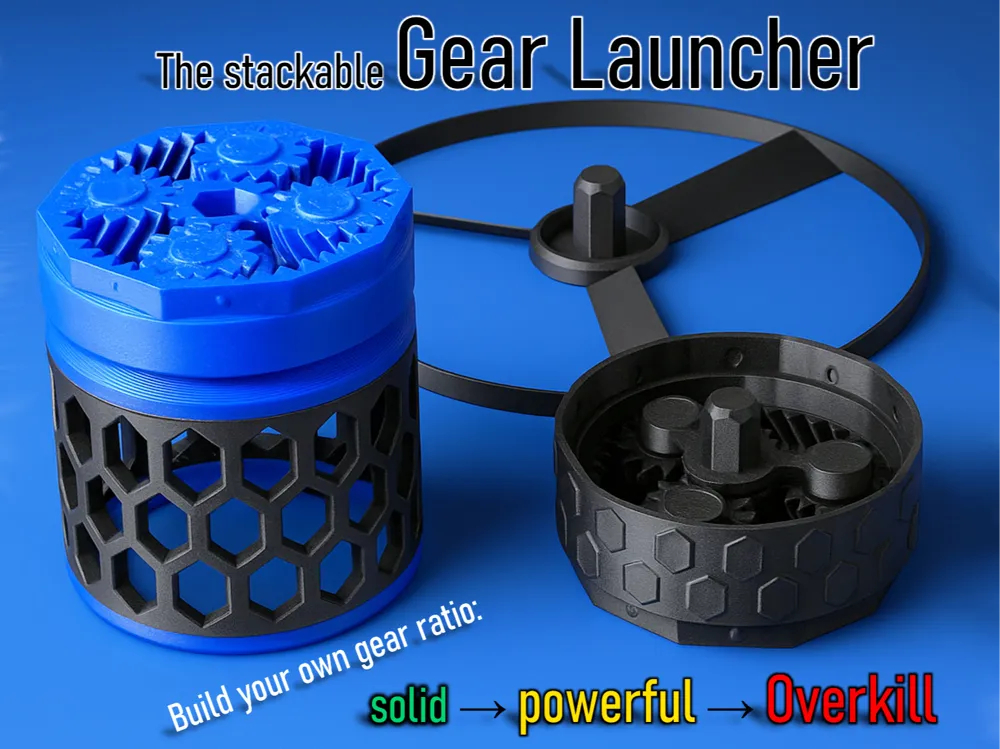

⚙️ The Stackable Gear Launcher 🚀

Get ready for some serious mechanical fun!

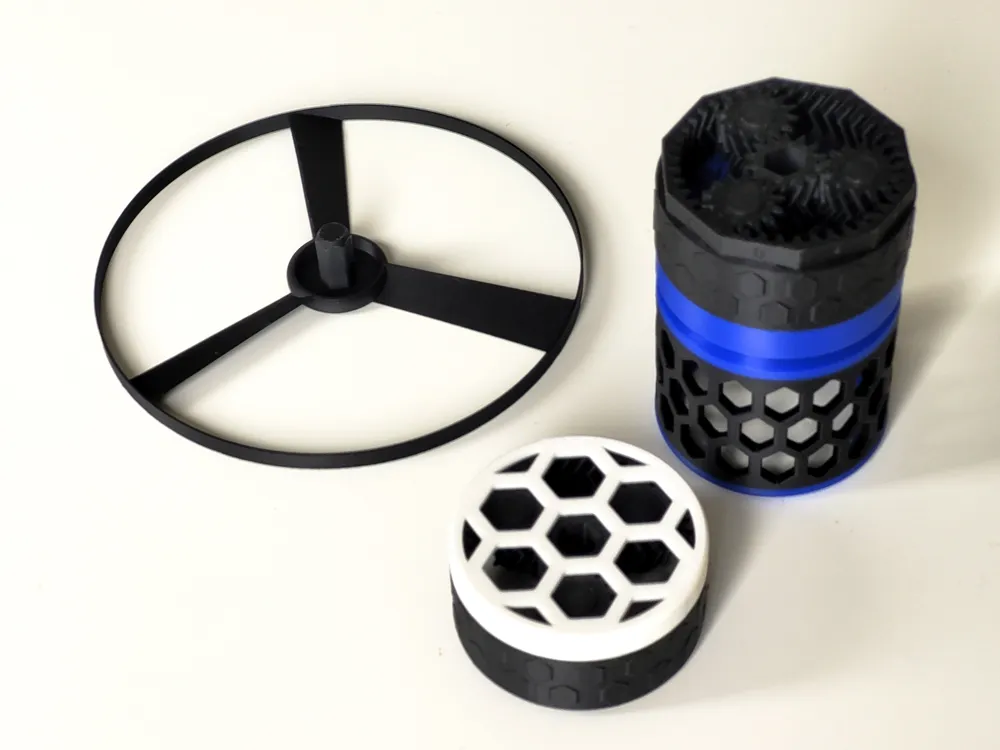

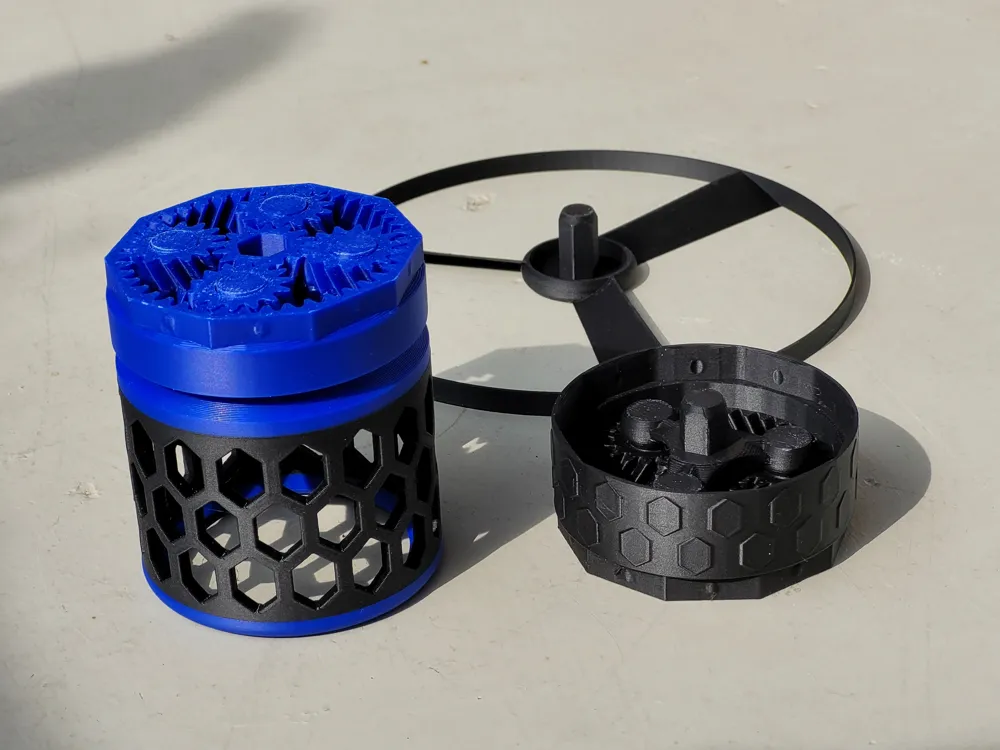

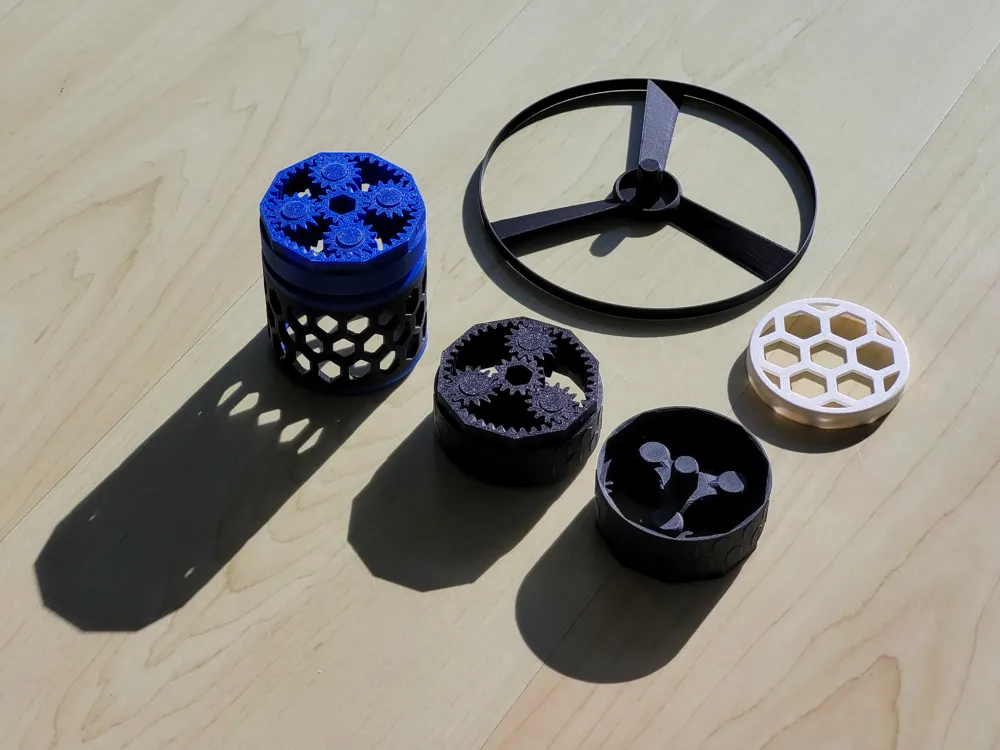

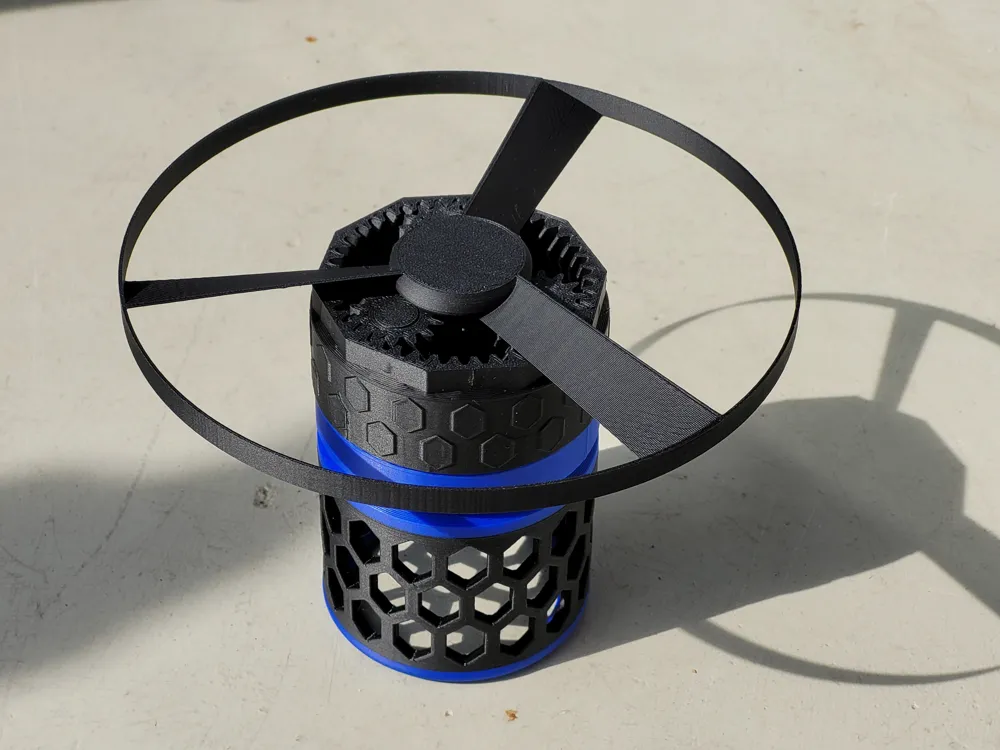

This modular system lets you stack planetary gear stages and build your very own power launcher. Each stage clicks firmly into place 🧩, no supports needed, and the propeller fits onto every module for maximum flexibility.

Key Features:

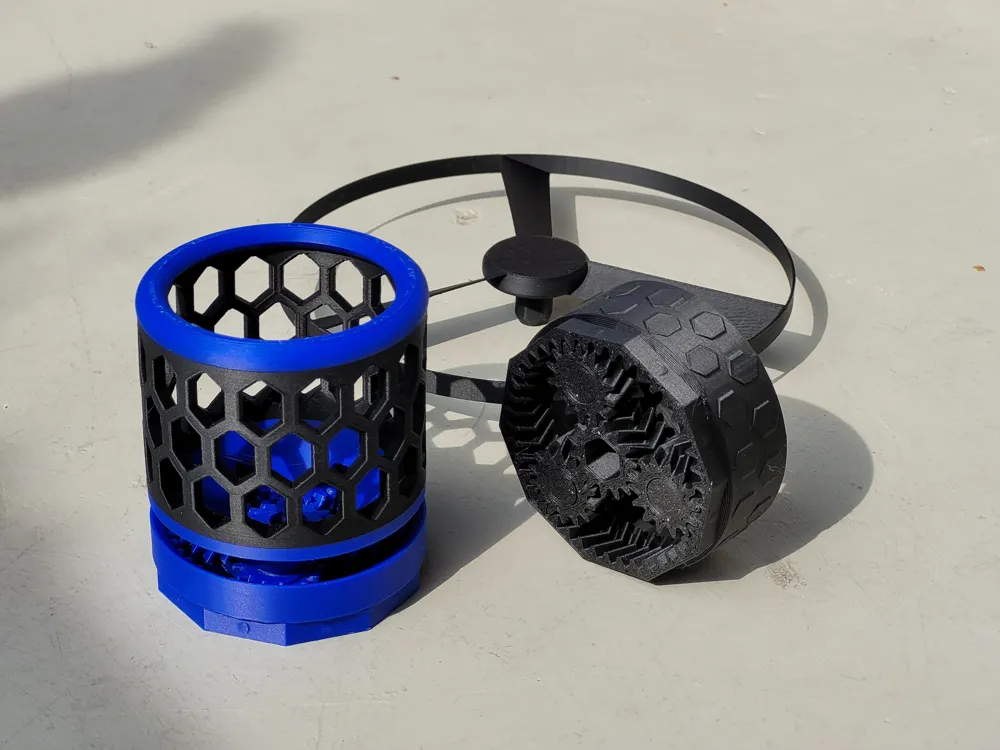

1 Stage (Handpiece): Gear ratio 1:4 (4 planetary gears)
2 Stage: Add another gear segment: ratio 1:4 (3 planetary gears)
🔄 Infinite Expansion: Add as many stages as you like!

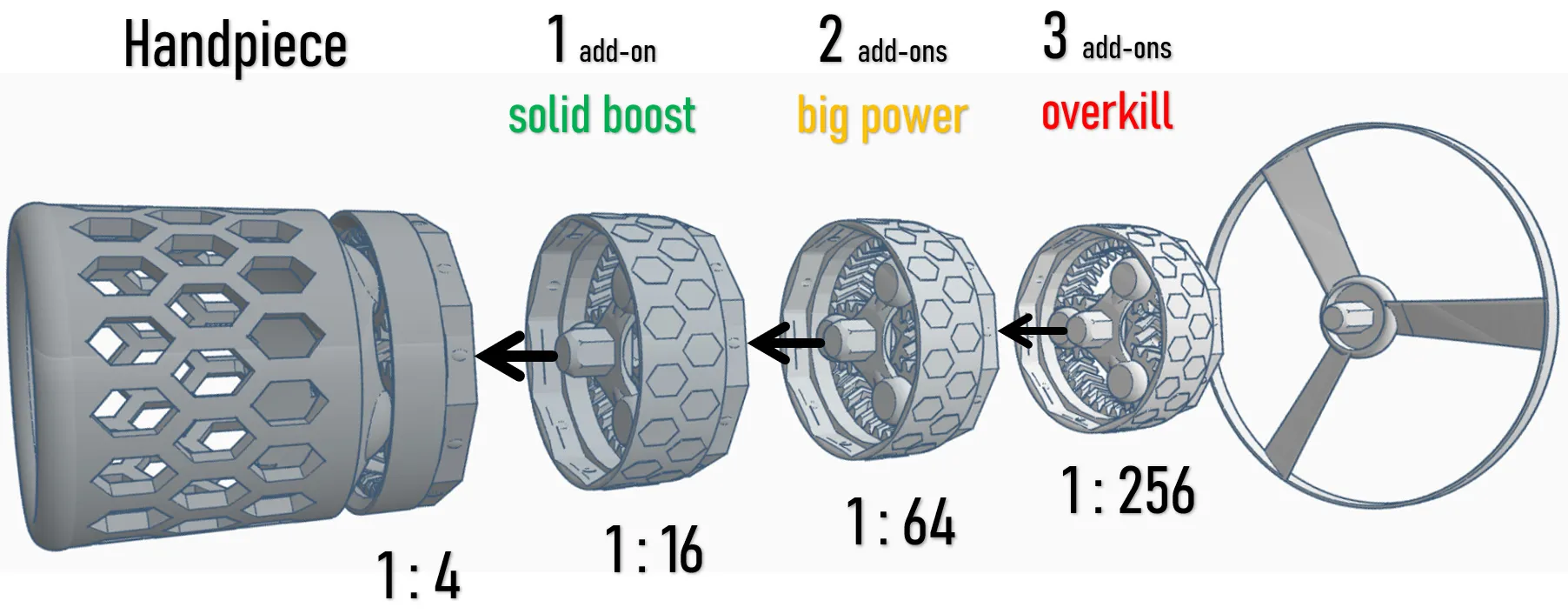

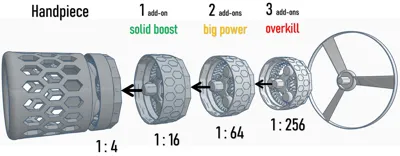

Recommended Setups:
A) Handpiece + 1 Addon = 1:16 ratio → Solid boost 💨
B) Handpiece + 2 Addons = 1:64 ratio → Big power ⚔️ (my personal favorite!)
C) Handpiece + 3 Addons = 1:256 ratio → Overkill 💥 MAX POWER (⚠️ add a drop of oil for smooth running)

🖤 Prints cleanly without supports
✨ Parts snap together firmly with a little force
🎨 Works best with basic/silk filament for lower friction

🚀 With the 1:64 gear ratio (big power) , it can fly above 20 meters.

Whether you want a fun desk toy, a learning tool for gears, or just the thrill of building a modular launcher, this design is pure maker magic.

Are you ready to unleash the Stackable Gear Launcher?

"Feel free to leave a comment. Feedback, suggestions, and even pictures are also very welcome.”

Boost Me (for free)

If you like my models and would like to support me, you’re very welcome to give me a boost!

Membership

If you’d like to sell prints of my models, you can obtain commercial licenses by joining a membership.

Join

Enjoy and happy printing ;)

Comment & Rating (55)

@Rensschipper24

Please fix the handpiece it just keeps failing, I print w PLA. if it doesn’t depend on the file please let me know how to fix it

(Edited)

@Smithymcboi

something is seriously wrong with your printer if it looks like that. that’s not the print files fault at all. have you ever maintenanced your printer? what filament are you using?

@Smithymcboi

is your filament dry?

@Rensschipper24

Replying to @Smithymcboi :

My printer is fine I did maintenance after this print but it was a cooling issue

@Mylo_3D_Prints

I found that the prop was way too thin and kept breaking, so I thickened it up. Here is a link to the download... https://makerworld.com/en/models/2805751-thick-prop

(Edited)

@user_1132843149

I really like this. It looks so cool and fun, but I can only find the file for the planetary gear addon. Can someone explain why I can't find them and help me get them?

The designer has replied

@micmey78

there is a dropdown menu, where you can select the other print profiles from

@user_1132843149

Replying to @micmey78 :

Thank you so much! I have the files now. I didn't know that was a thing before.

@user_1132843149

Replying to @user_1132843149 :

Also if I pint this I think I might print 4 addons.

@nibscat

Print Profile

Propeller

Very cool desing, thank you!

@nibscat

Print Profile

Gear Add-On (Stackable Element)

Very cool desing, thank you!

@nibscat

Print Profile

Handpiece

Very cool desing, thank you very much!

@nibscat

Print Profile

(optional) Cover Lid

Very cool desing, thank you!

@user_1053301048

have printed this looks awsome. cant seem to get the thing to twist on the holder am i doing something wrong?

The designer has replied

@micmey78

hmmm..maybe some gears are stuck.. try to break them free

@user_1053301048

Replying to @micmey78 :

thats what i thought. ive tried but it wont move at all. ill try print another one, thank you for the reply.

@micmey78

Replying to @user_1053301048 :

maybe try another filament (bambulab PLA basic / matt) works fine

@user_297582245

Print Profile

Handpiece

(Edited)

Strength Issue:the handle to twist the gears almost instantly broke after printed on 50% speed

The profile uploader has replied

@micmey78

I did not know what went wrong, please print with my print profile settings. 50% speed is not good for the overhangs. I recommend a reprint with 100% speed and use of bambu lab basic or silk filament..

@user_297582245

Replying to @micmey78 :

I reprinted at 100% and still broke

@micmey78

Replying to @user_297582245 :

I’m not sure what happened, but I tested it several times, even with an A1 Mini, and it worked fine. That said, the choice of filament is important—I recommend using basic Bambu Lab PLA.

@user_2782001613

What would happen if you stacked 80 of them together to make it 90 feet long and then spun it
