Description
I am offering my version of the Deeper mount for a Chinese bait boat.

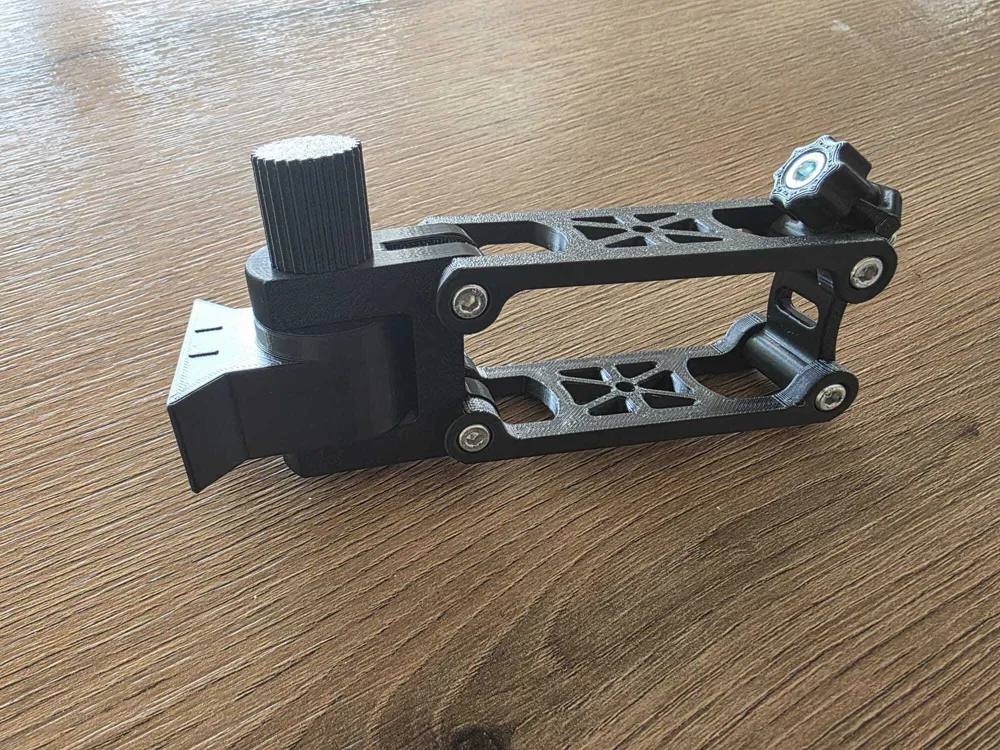

I tried a lot of things and was never really satisfied with the stability, so I designed my own holder.

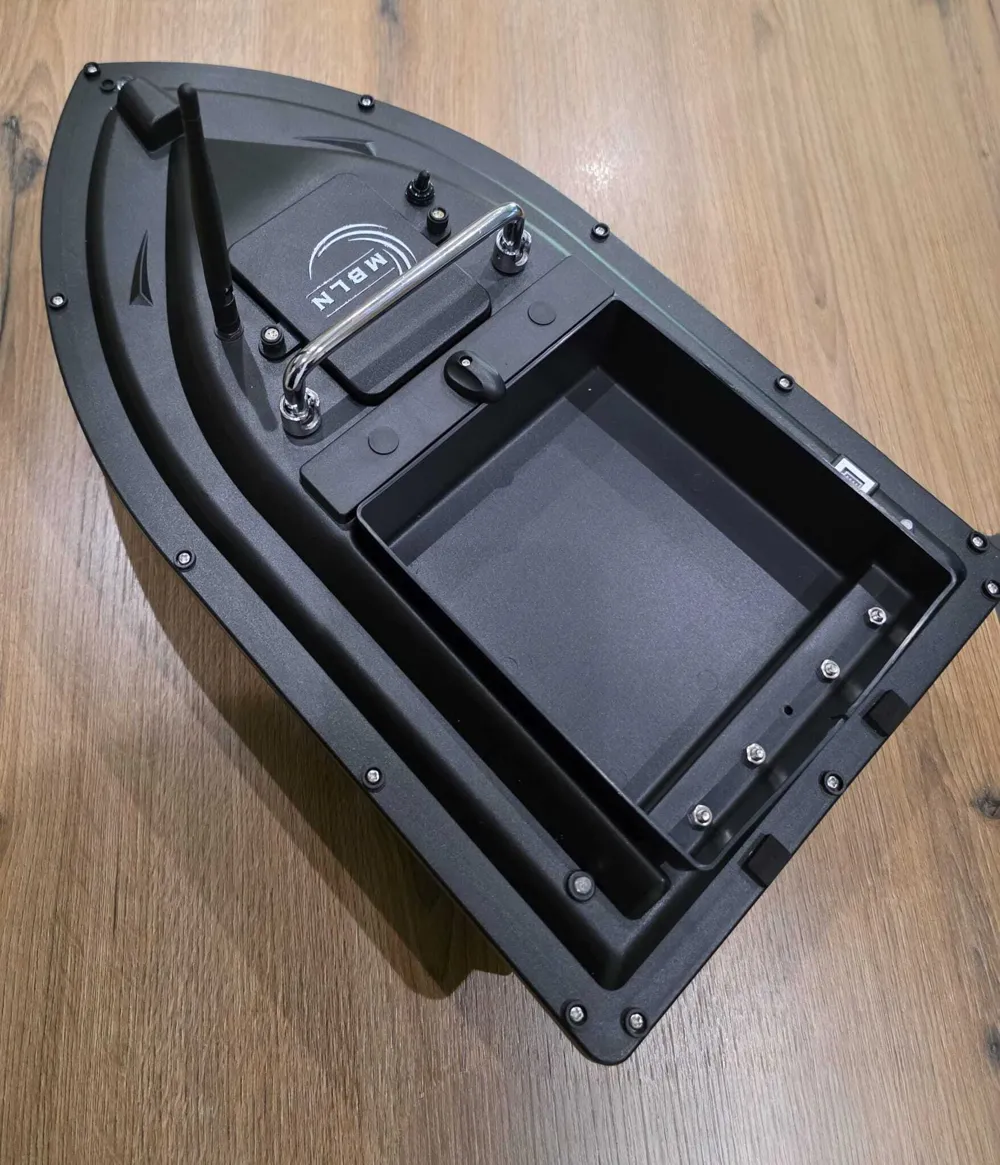

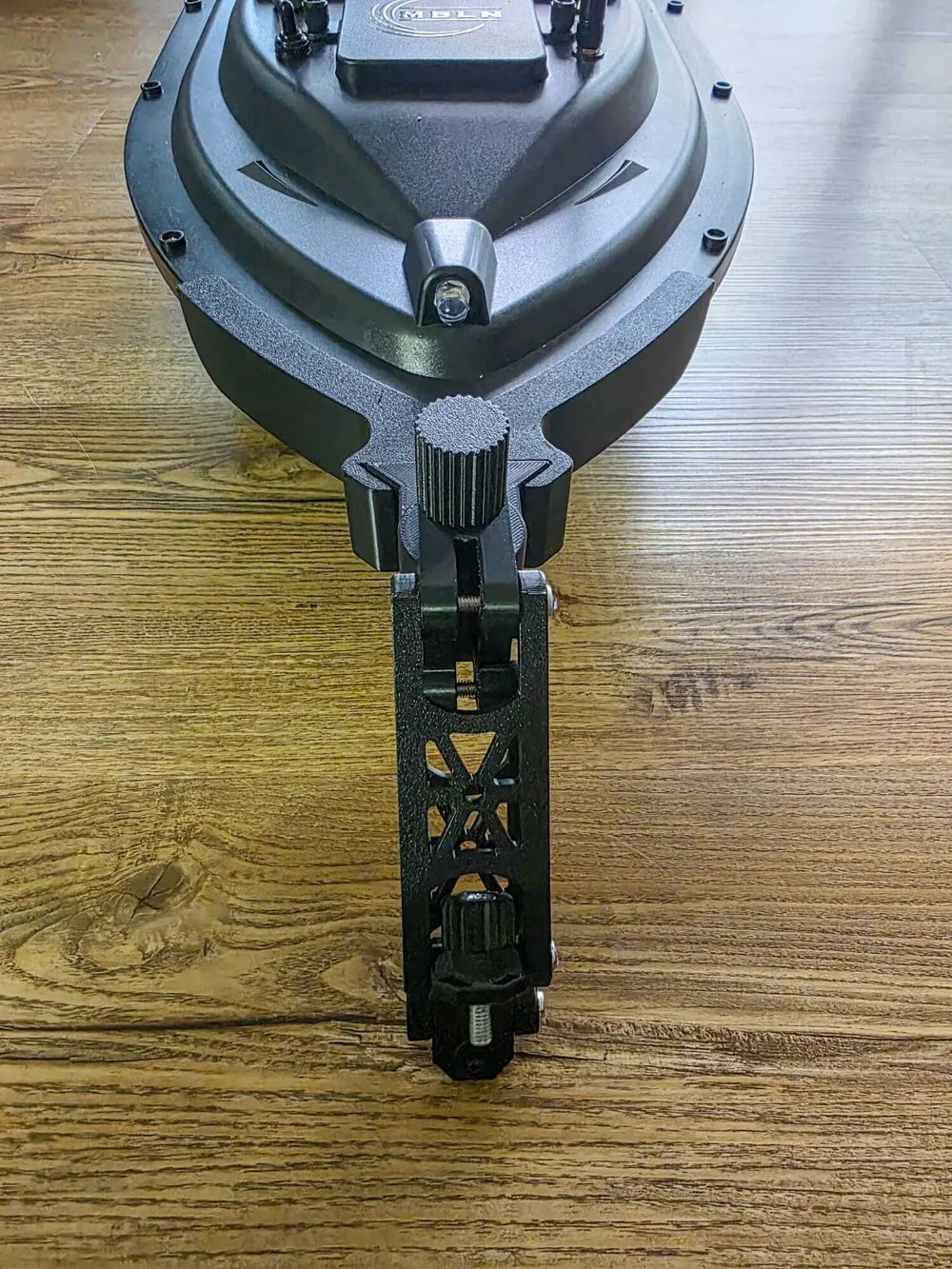

The holder fits the boat as shown in the picture, but also many other manufacturers' boats. However, this needs to be determined by yourself.
I printed all parts in ASA, but it should also be possible without problems with PETG or other filaments.
Printed with 80% infill (I use it a lot on the river with rock formations)

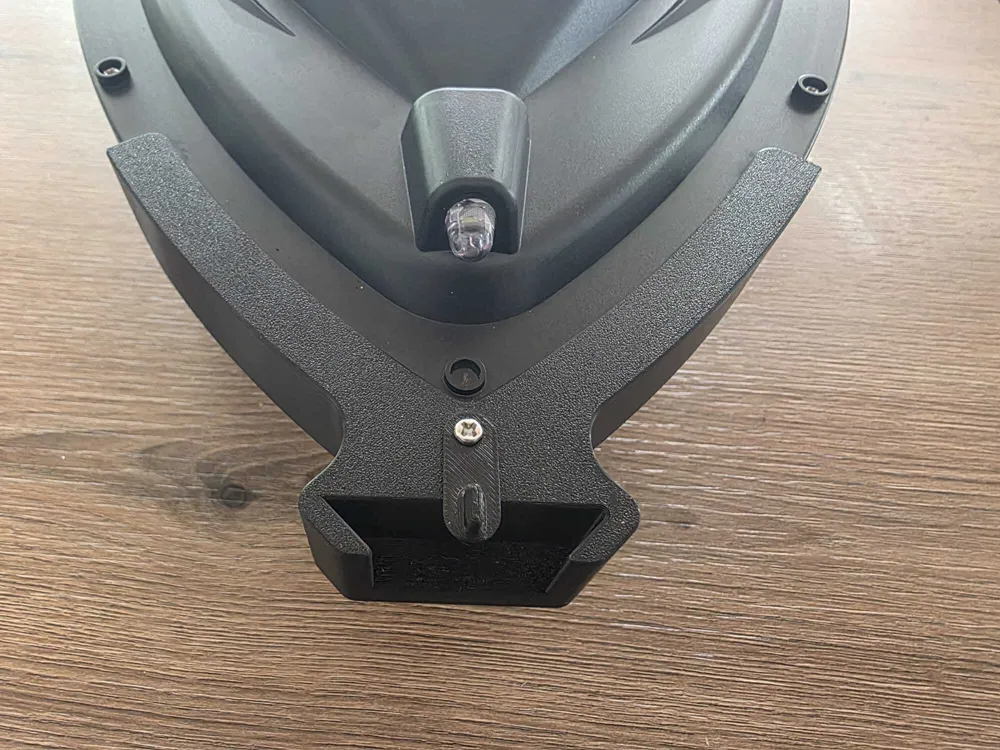

NO additional hole needs to be drilled for mounting. The device for this can be easily attached to the screw at the very front.
The arm must be duplicated as it is needed twice.
The following is required for assembly:
M5 x 25mm for mounting the Deeper

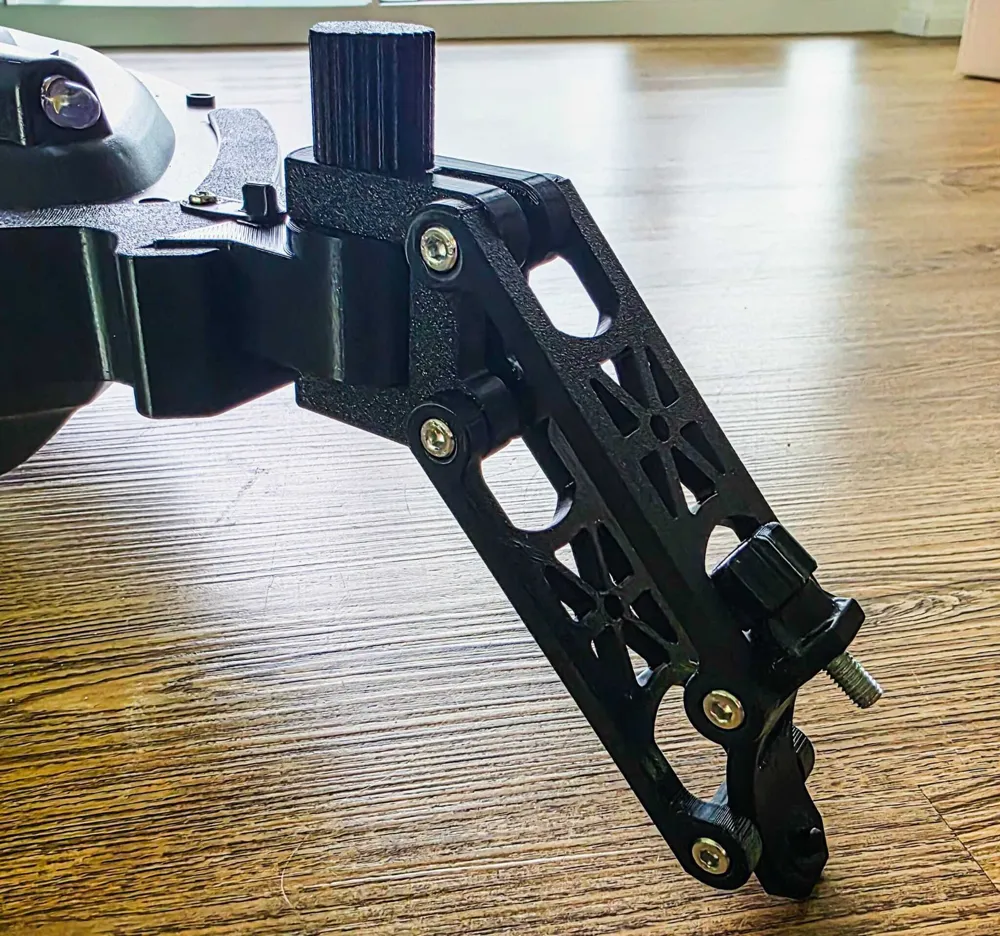

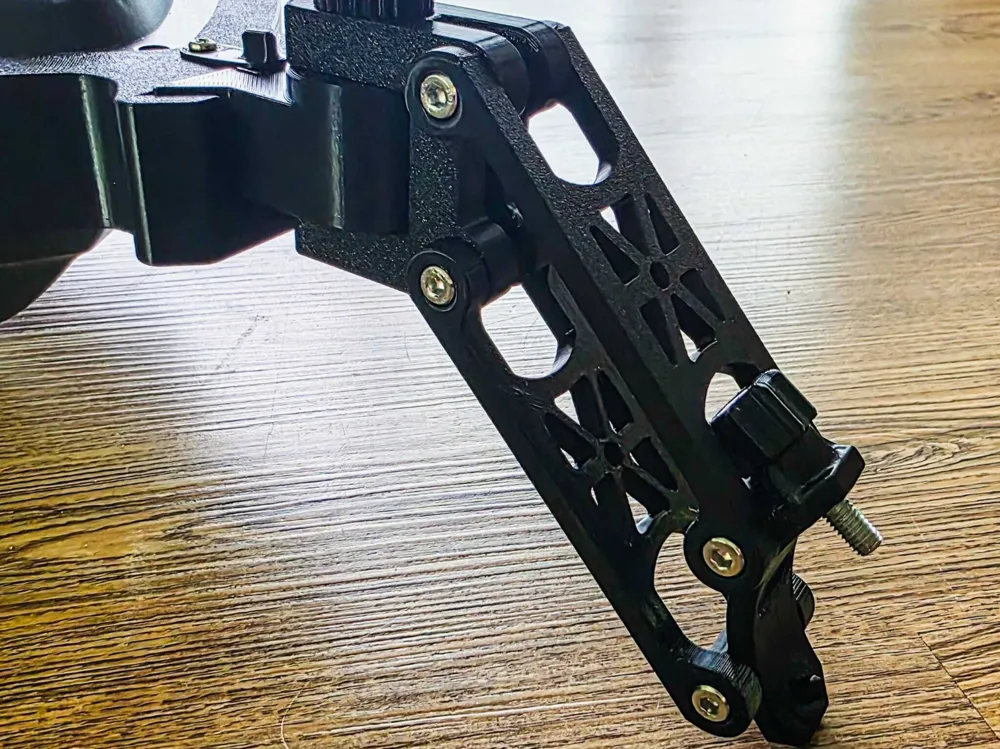

M4 x 30mm for mounting the movable arm
M5 x 50 for attaching the arm to the base for hanging.
M5 heat set insert for attaching the M5 x 50 screw.
I have successfully tested it on the river, however I assume no liability for potential loss of parts.
A short advertisement for it: the bait boat / feeding boat is available on various platforms such as Amazon, Temu, AliExpress and Shein.
I would be pleased if you appreciate my design and the work put into it, as well as positive feedback.
