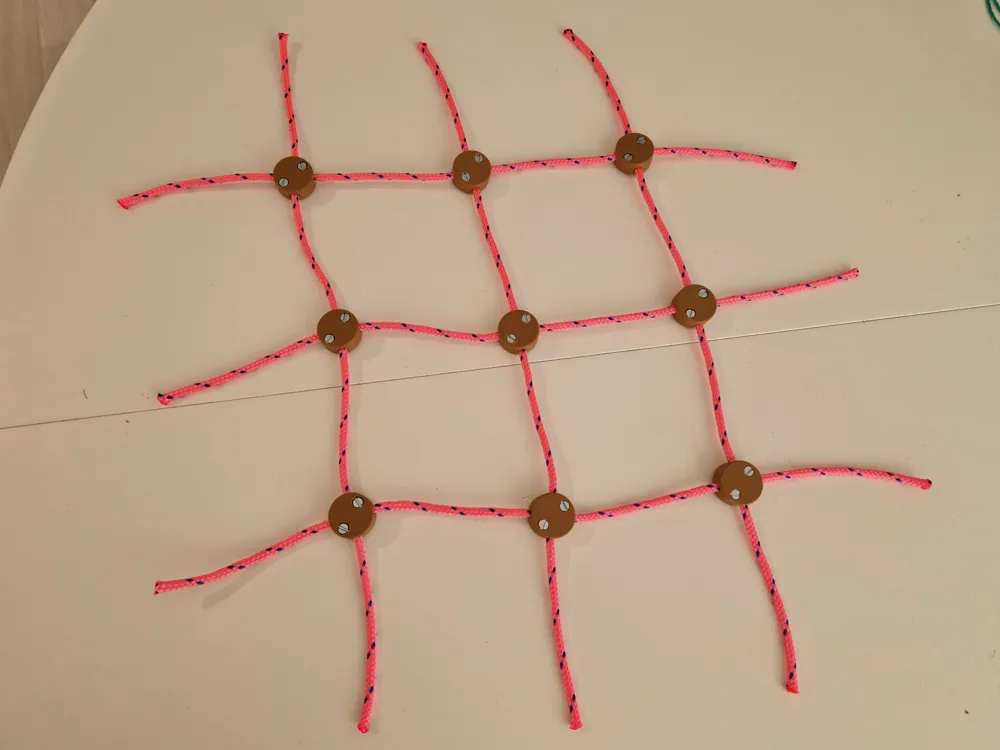

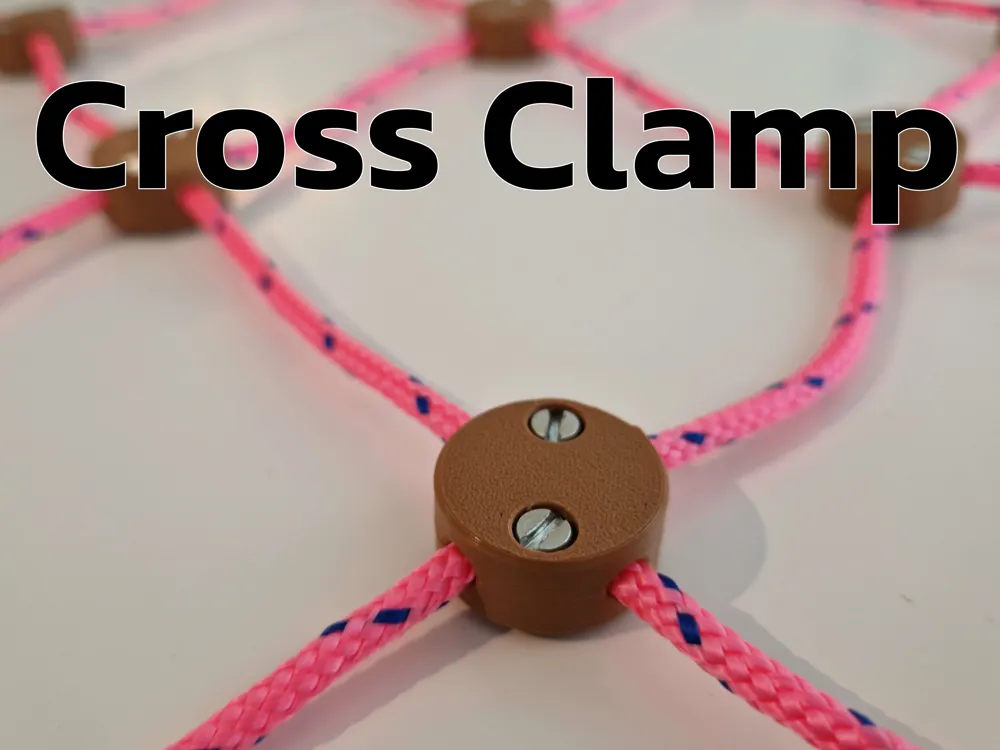

Cross Clamp - Create A Rope Structure

Create a structure for your climbing plants against a wall, a harness for your plant pot, or perhaps an art piece!

Made for 4mm (5/32") wide rope

550 Paracord

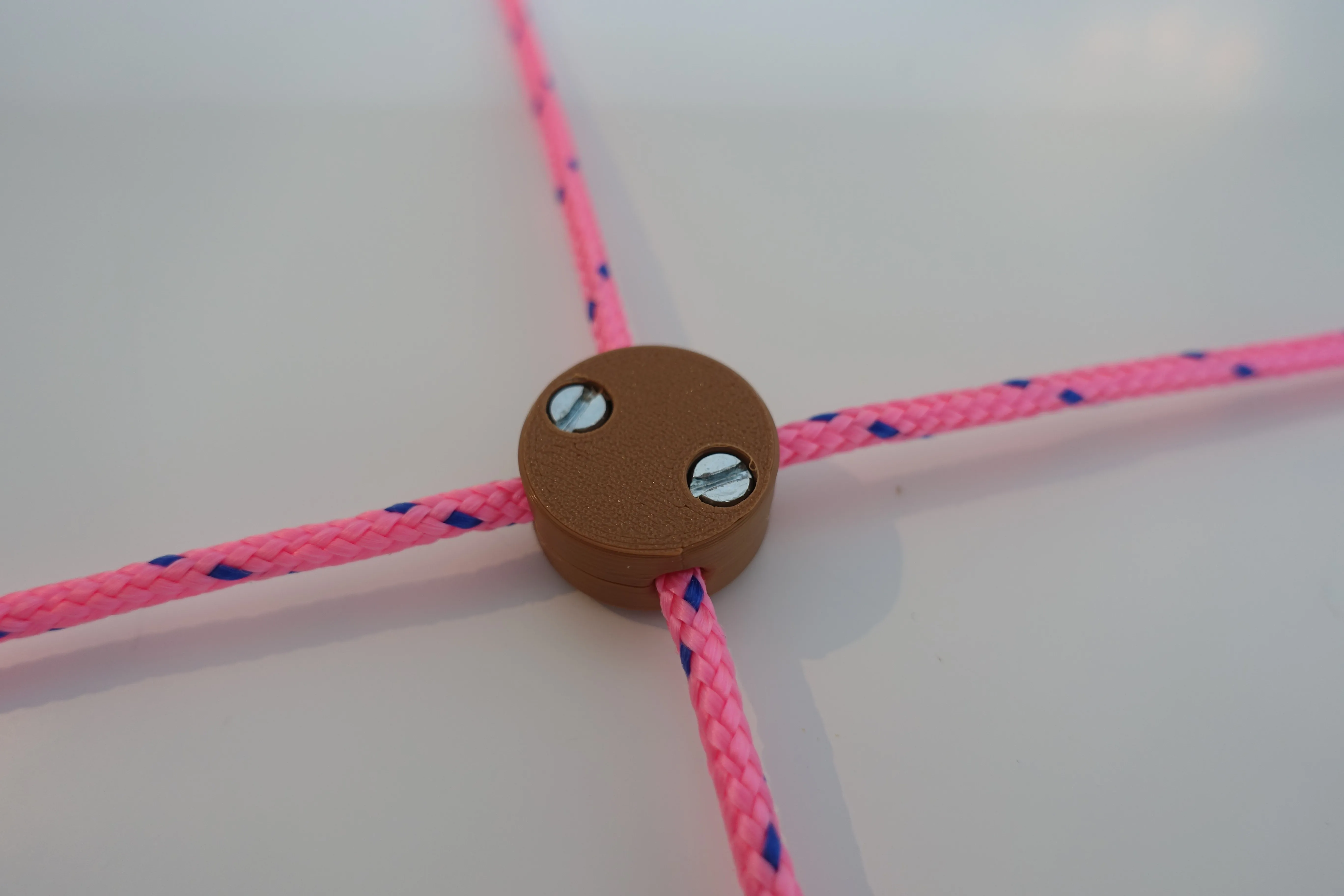

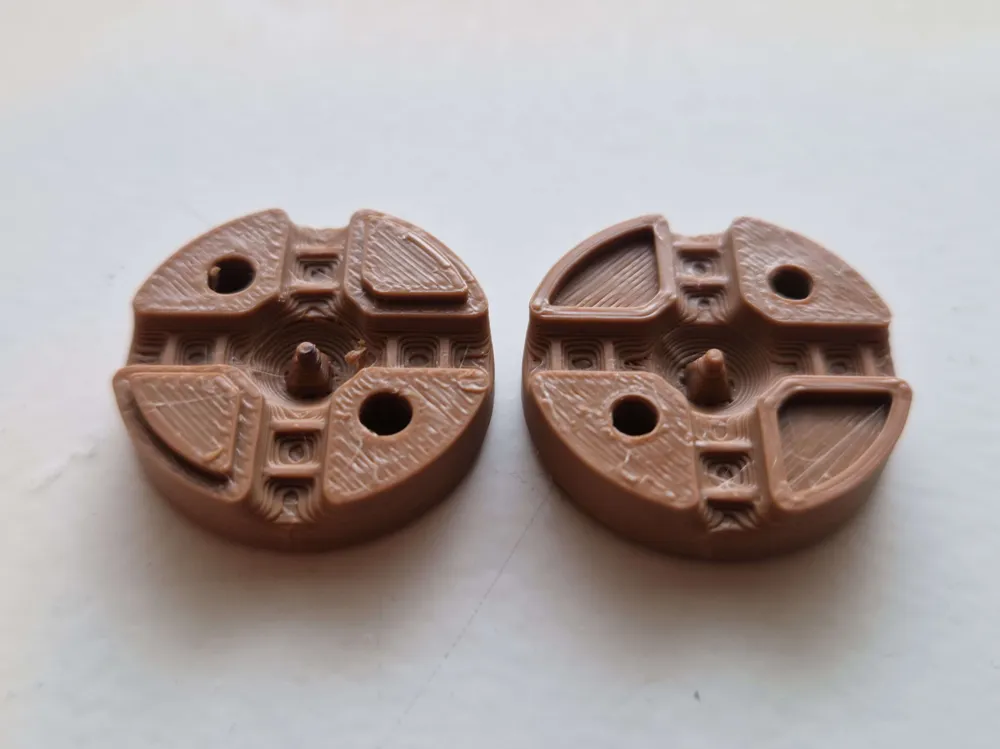

Connect the top and bottom part with two M3 screw 6 to 12mm long for each cross clamp (Optimal length is 8mm)

NB: Not for human climbing (Your cat maybe)

Print instructions:

• 0.2mm layer height
• 0.4-0.6mm wall width
• 10-30% infill
• No support

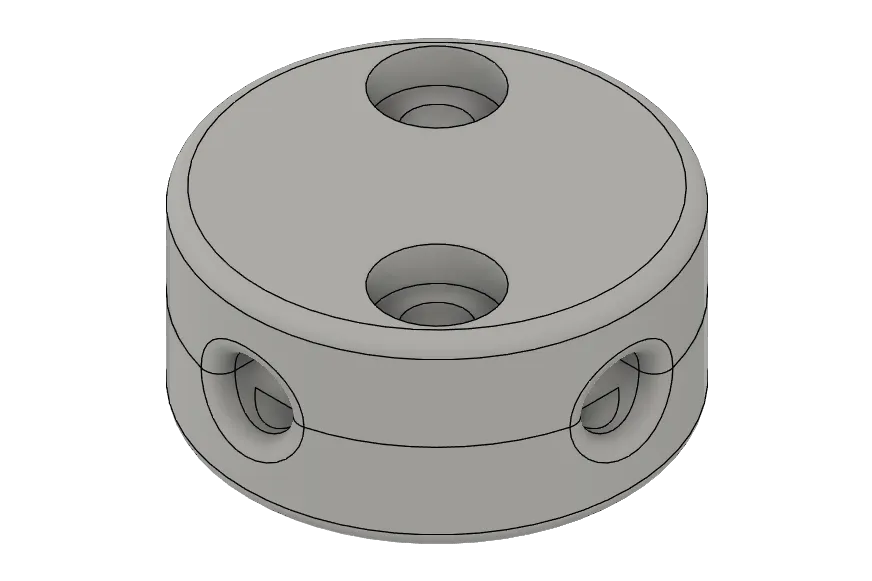

Step file is included if you wish to edit the size to fit a different size rope

Changlelog:

28 Aug. 2023: Updated to v2 where the clamp holds the ropes together better.
