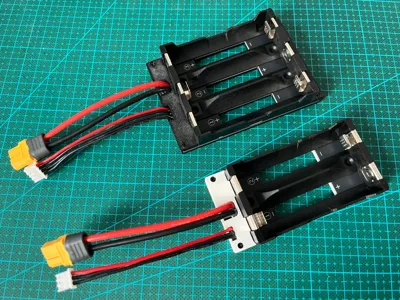

2S 3S-21700 Detachable Battery Box Solder-Free Power Pack Open Structure
Print Profile(1)
Description
2S 3S 21700 Removable Solder-Free Battery Case with XT60 Output and Balance Port | RC FPV Drone Field Power Pack/Outdoor Power Supply/Electronic DIY/Your Creative Ideas!
Boost Me (for free)
Your support motivates me to open source~
Bilibili Video Link:[Open Source] 21700 Removable Battery Case | Solder-Free Power Pack - with XT60 and Balance Wire_Bilibili_bilibili Thanks for your support~
PCB Open Source Link:21700 Removable Battery Case 2S 3S 4S 6S Power Pack - LCSC Open Source Hardware Platform Thanks for your support~
Commercial use and sales in any form are prohibited, for DIY use by enthusiasts only
4S 6S versions and battery holders are also available on the homepage~

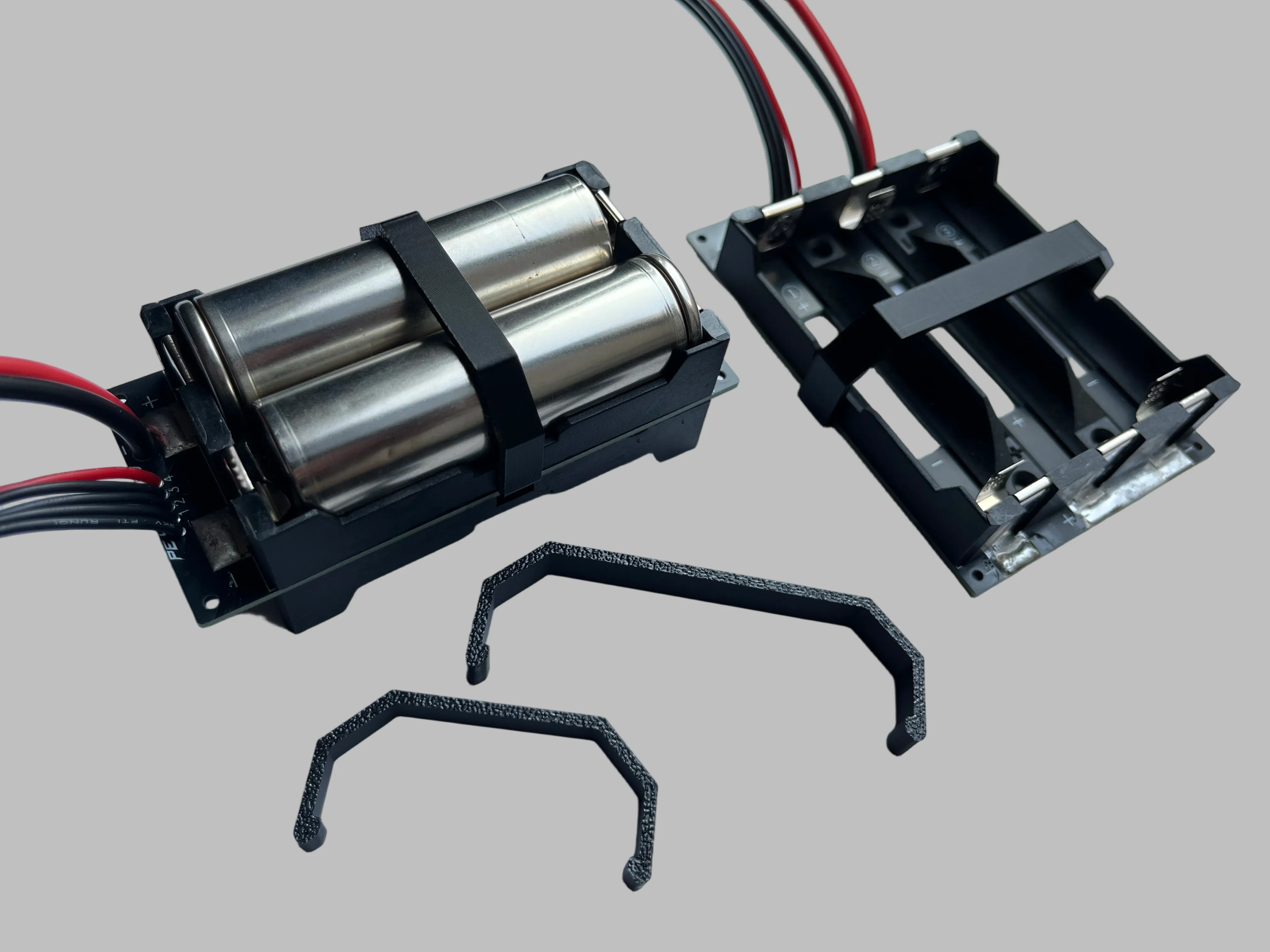

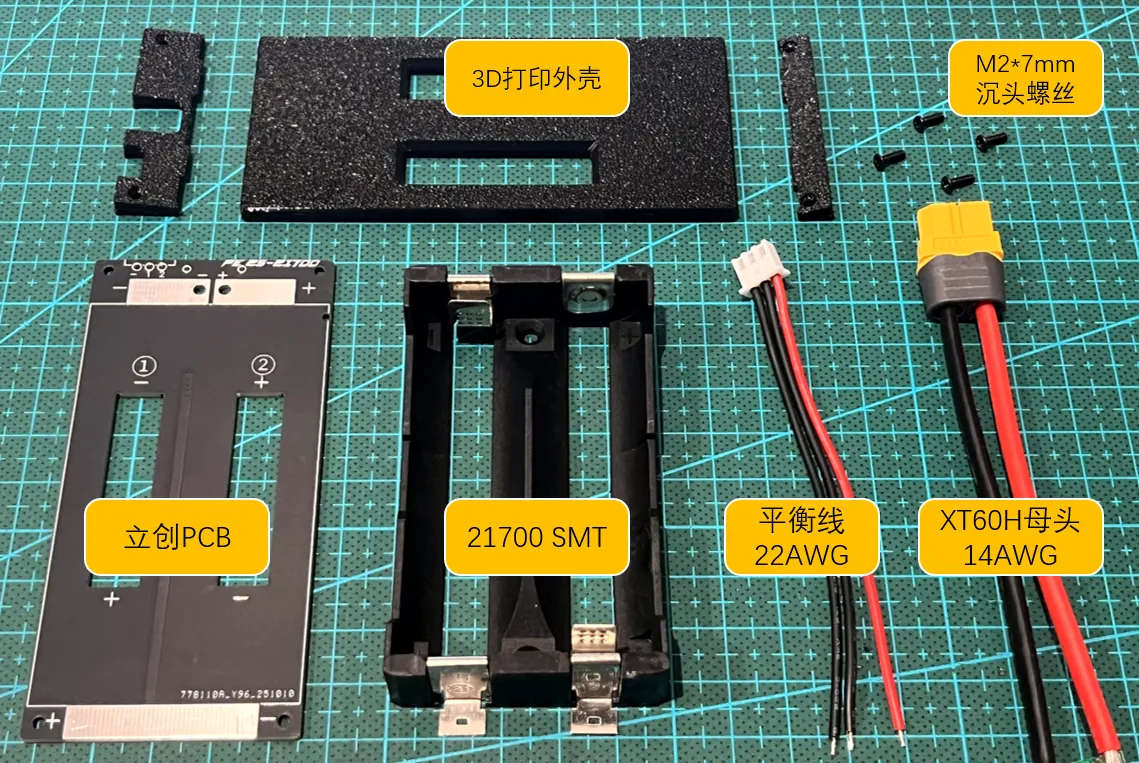

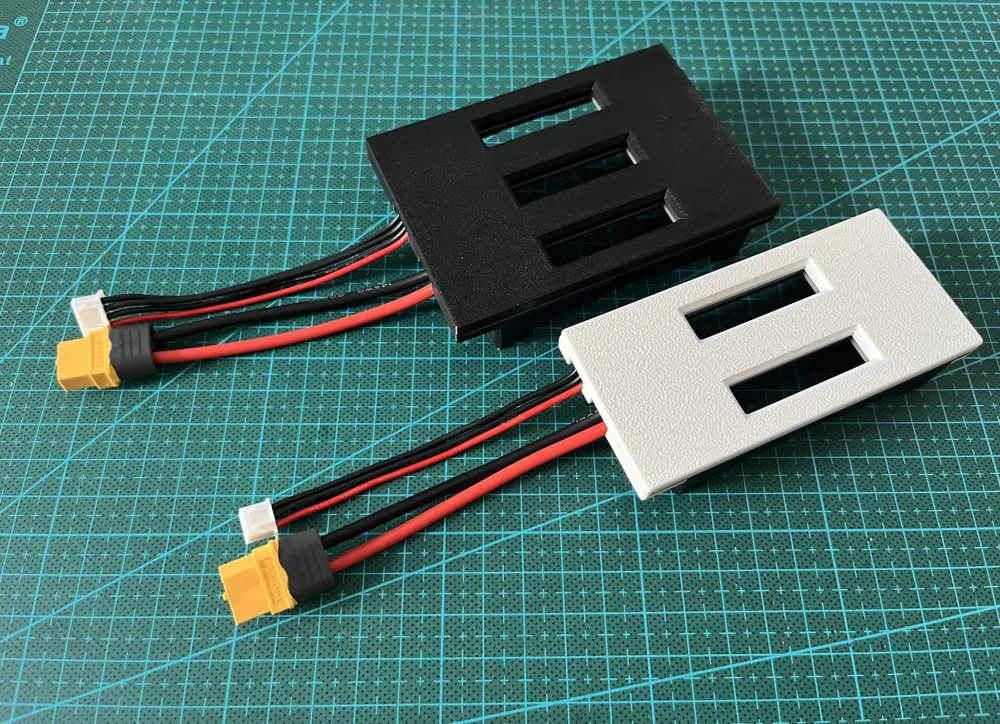

★Open design, lightweight structure, hollowed-out base plate, easy battery removal and installation, say goodbye to soldering troubles!
★PCB window tinning, genuine Amass XT60 gold-plated connector, extra-thick high-temperature resistant silicone wire!
★Equipped with 2.54XH balance head, supports mainstream balance chargers!

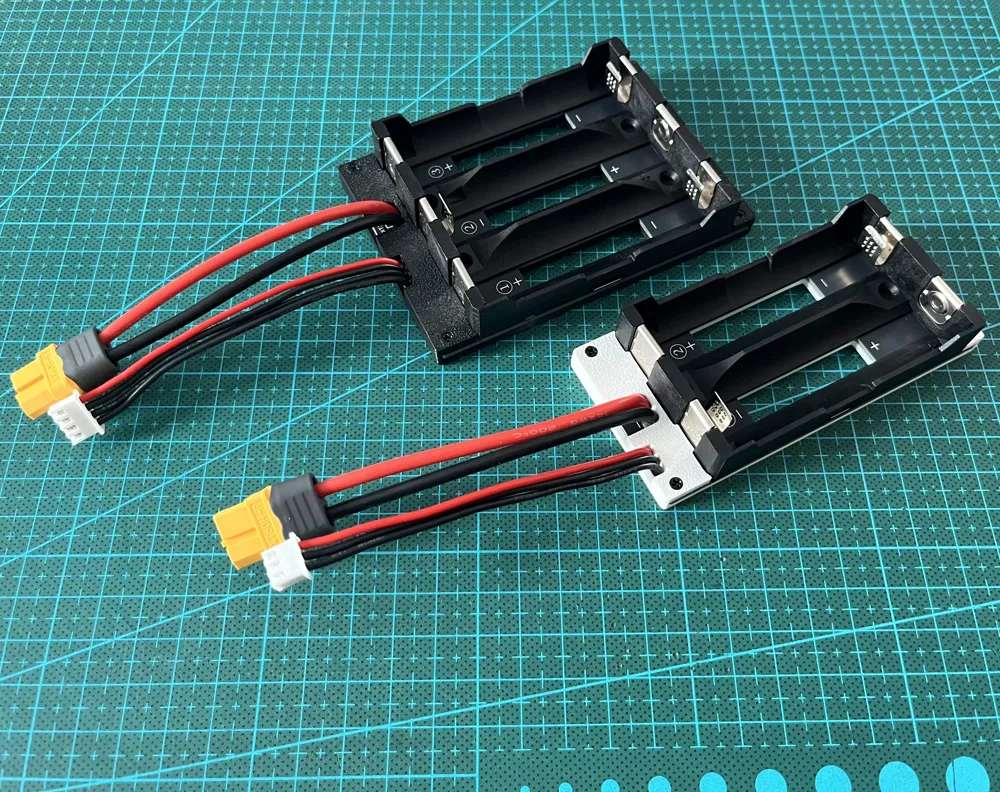

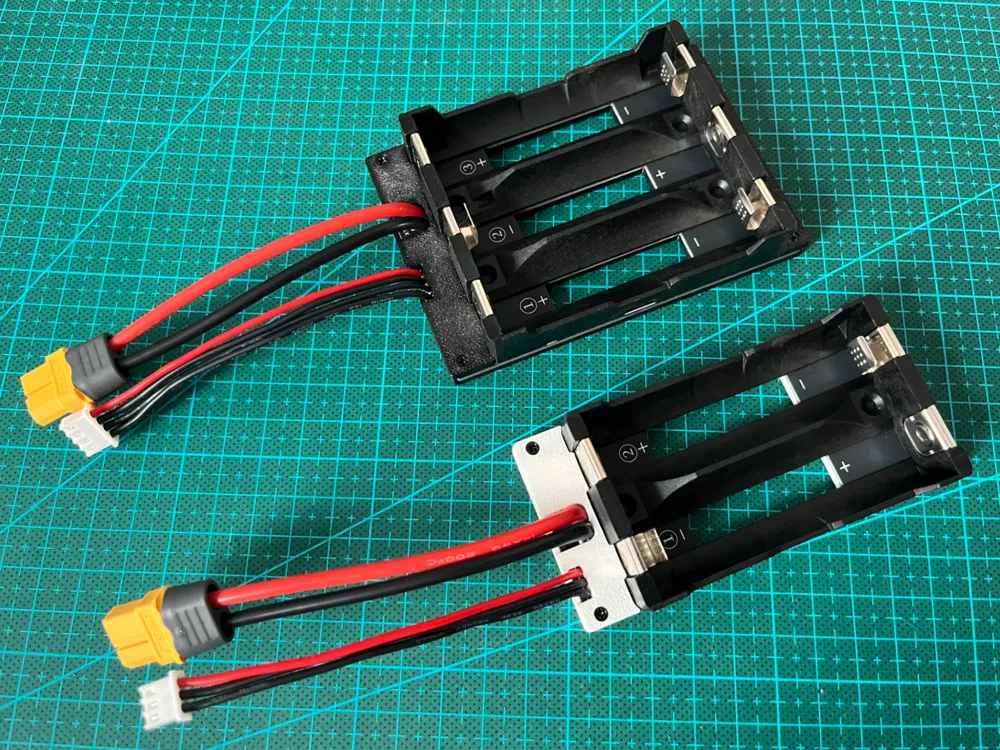

◯Battery configuration: 2S: 2 x 21700 in series
3S: 3 x 21700 in series
◯Output voltage: Full charge 8.4V/12.6V, single cell 4.2V
◯Output connector: XT60 female
◯Balance connector: 2.54XH connector
◯Dimensions after battery installation: 10.3*4.8*2.7cm (2S)
10.3*7.1*2.7cm (3S)

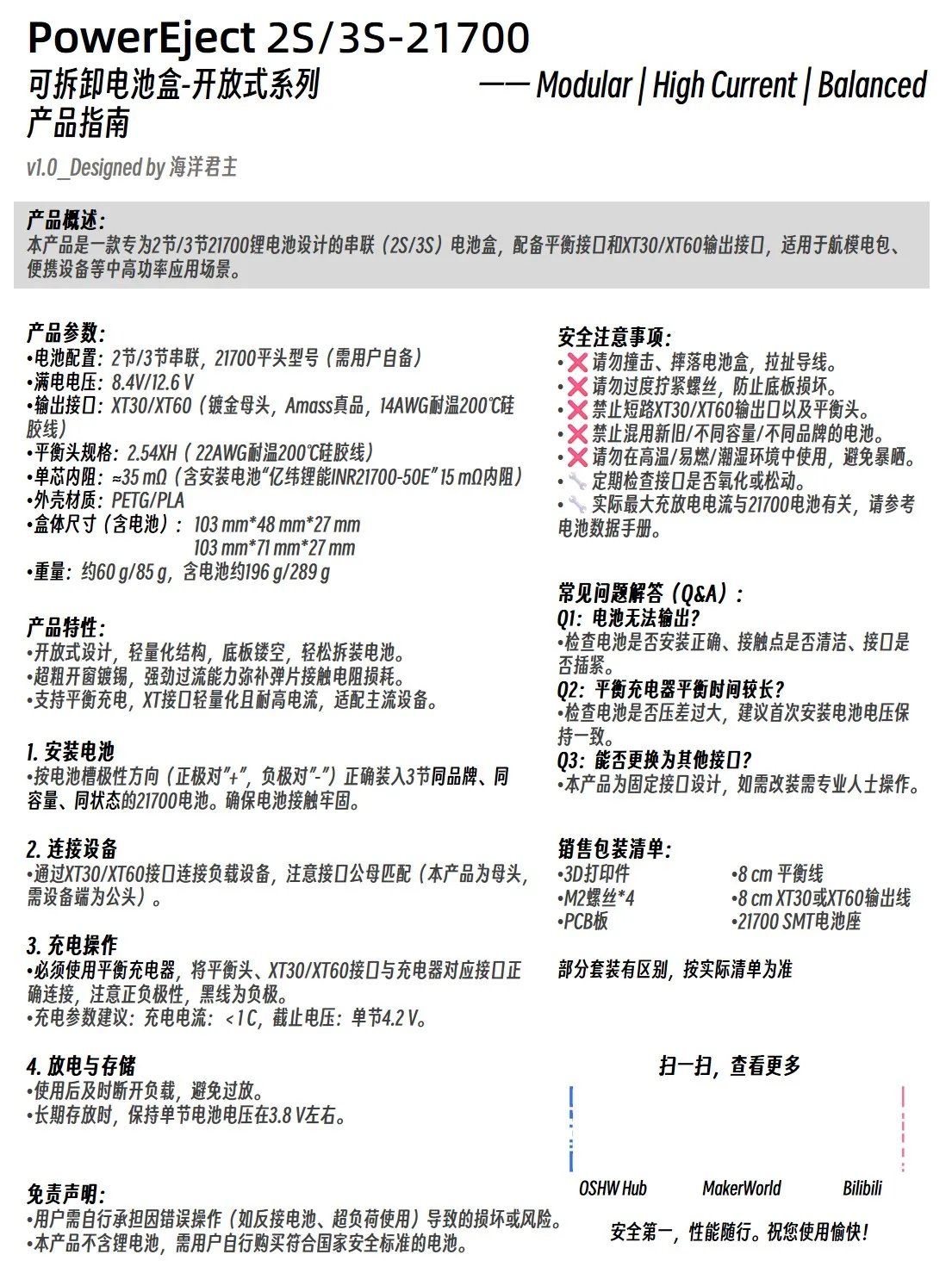

⚠ Requires flat-top 21700 cells, pointed-top cells cannot be used! Please see the manual for details.

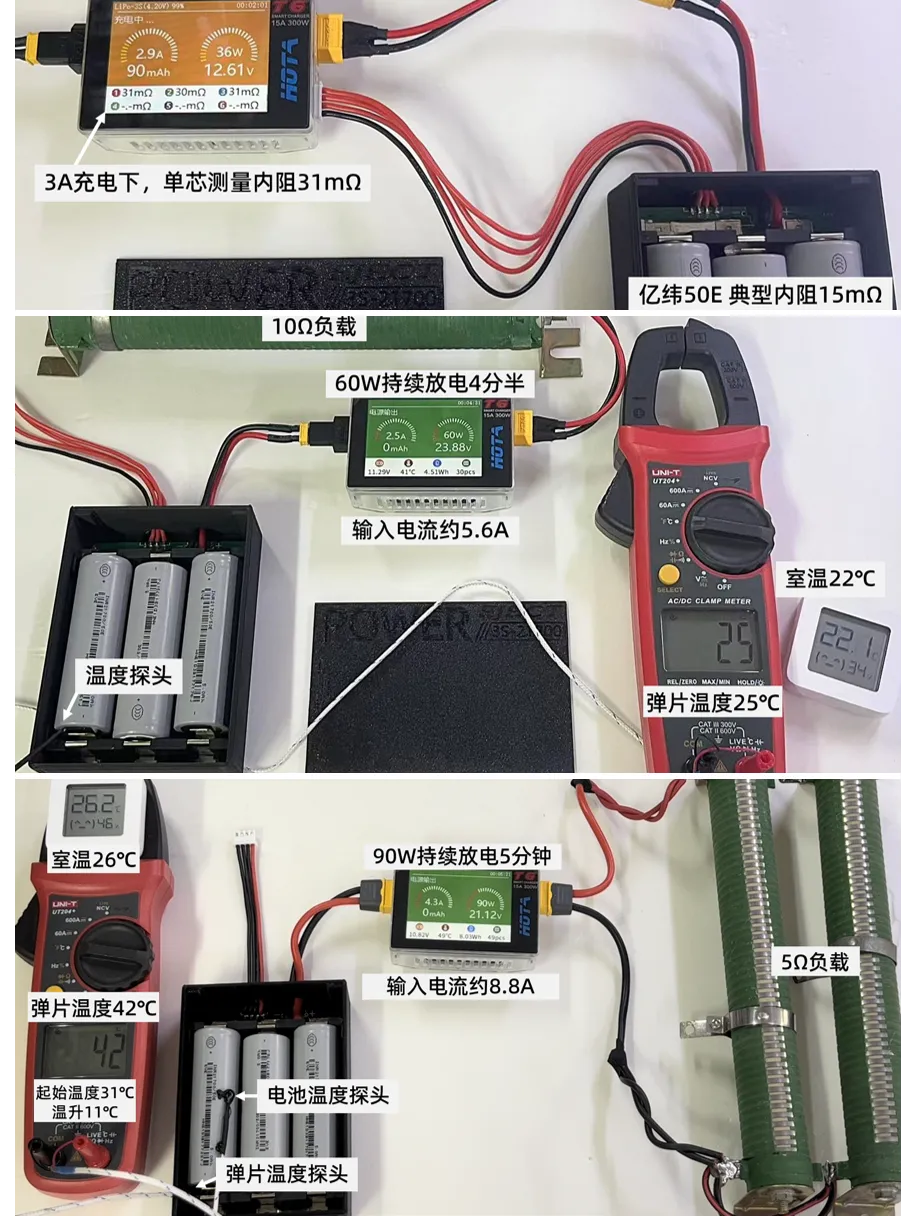

Internal Resistance and Discharge Temperature Rise Test (the pain of not having thermal imaging...)
