Quadcopter Drone 70mm EDF - Dual battery system

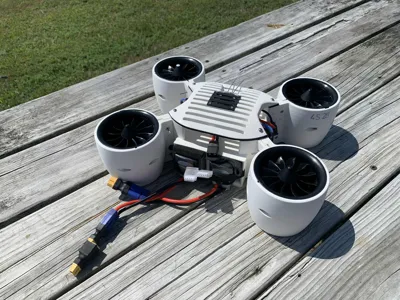

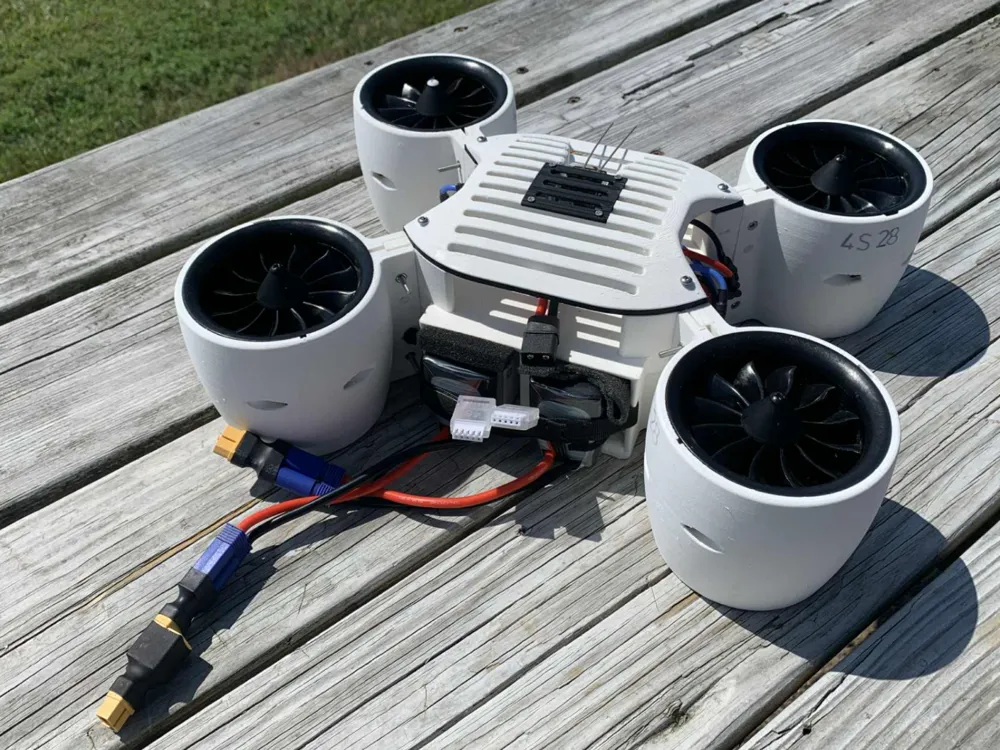

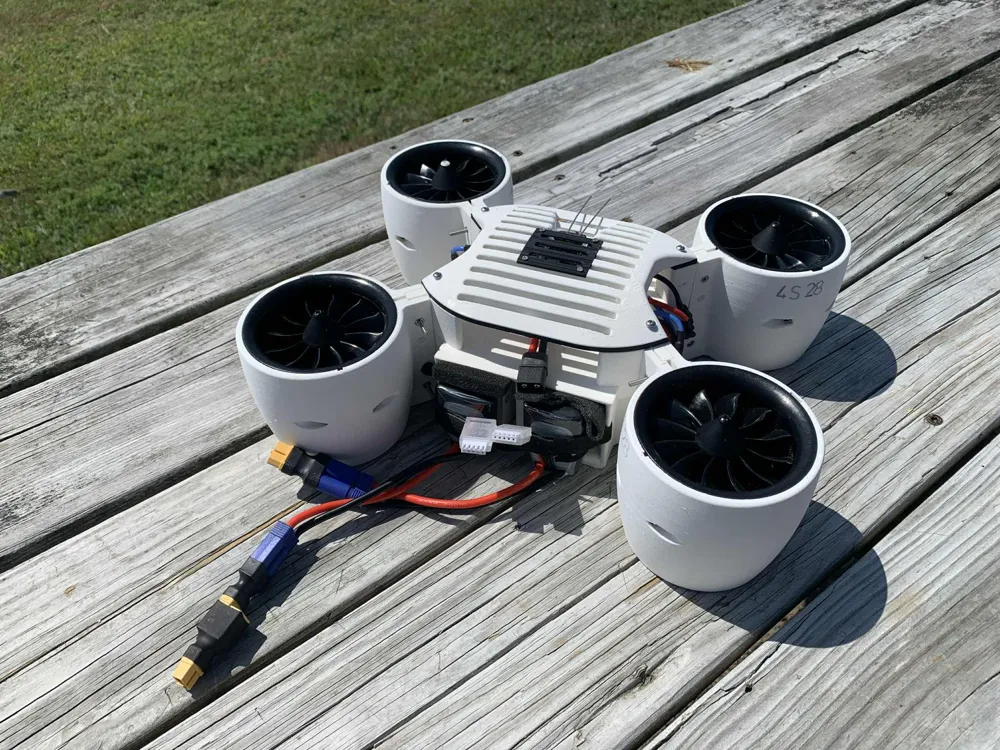

Quadcopter 70mm EDF with double battery pack.

This model is an adaptation to support 2 batteries 6S or 4S, it increases the battery compartment size to a 48mmx48mmx132mm for each battery. The goal is to have more options to power the motors , with higher discharge current to feed the 4 EDF.

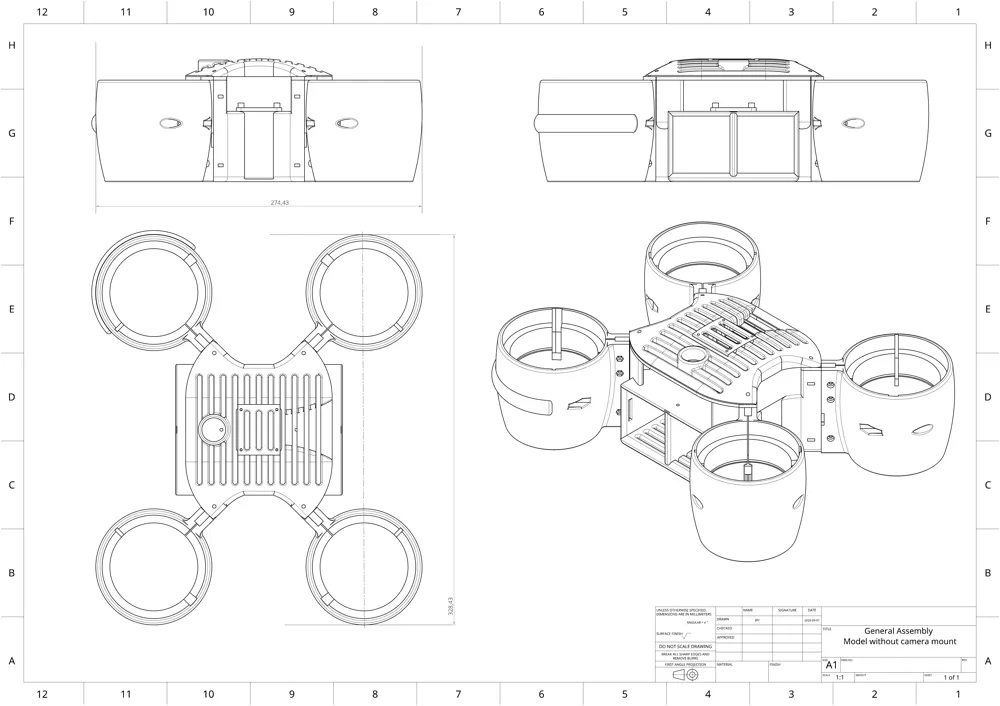

Designed with Onshape.
Printed on BambuLab X1C printers

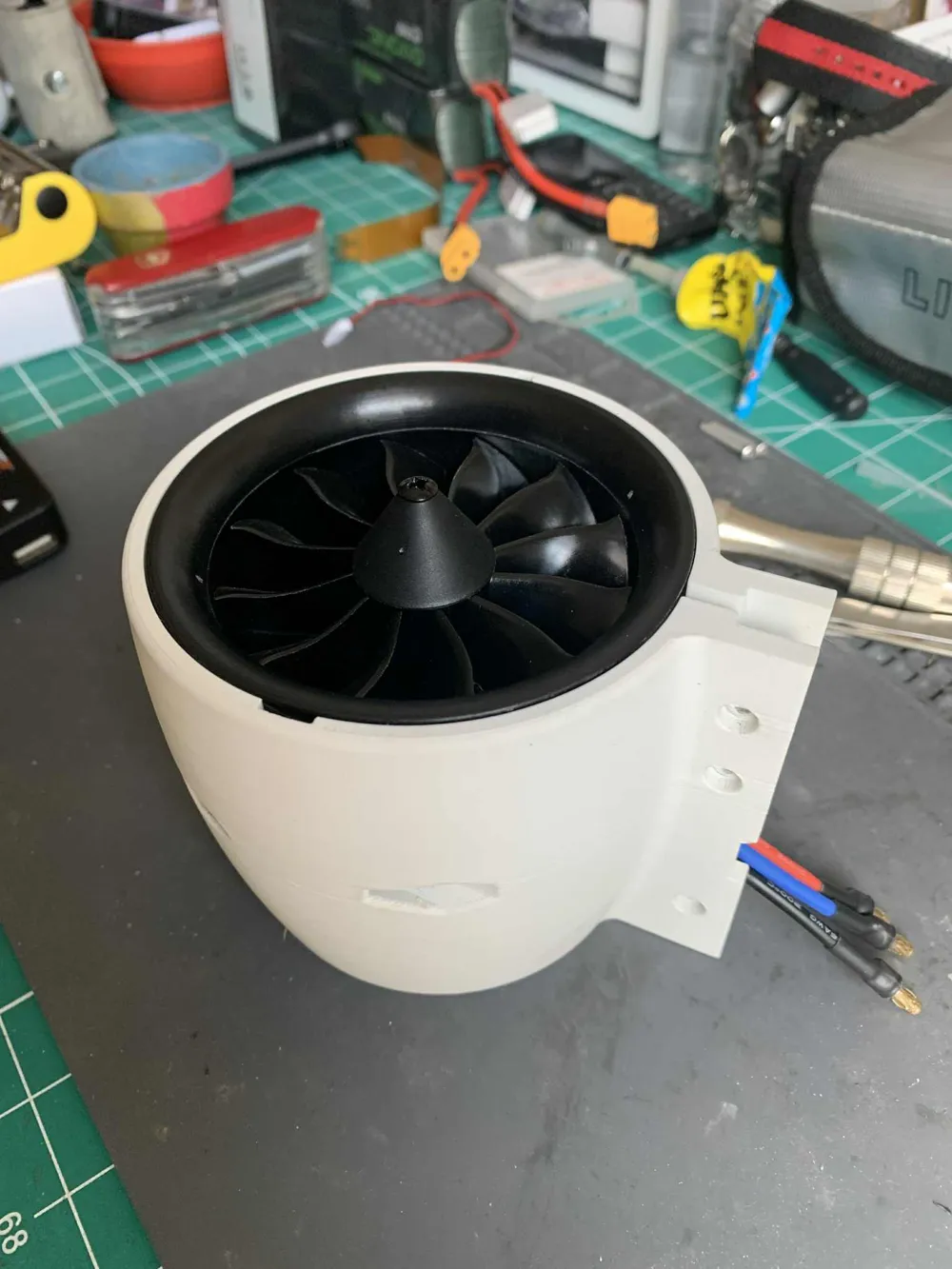

PLA Aero -  for core body and nacelles.
TPU for shock absorber TPU 64D

Tested with 2 4S batteries.

Model components:

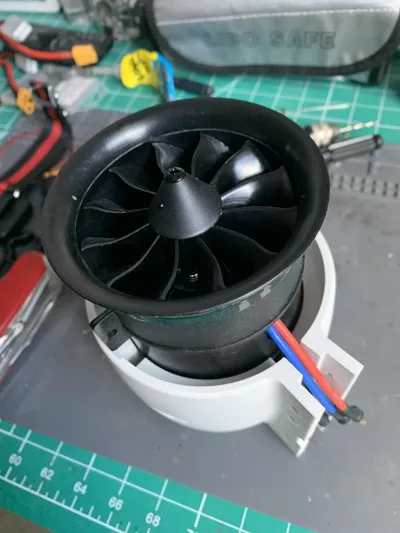

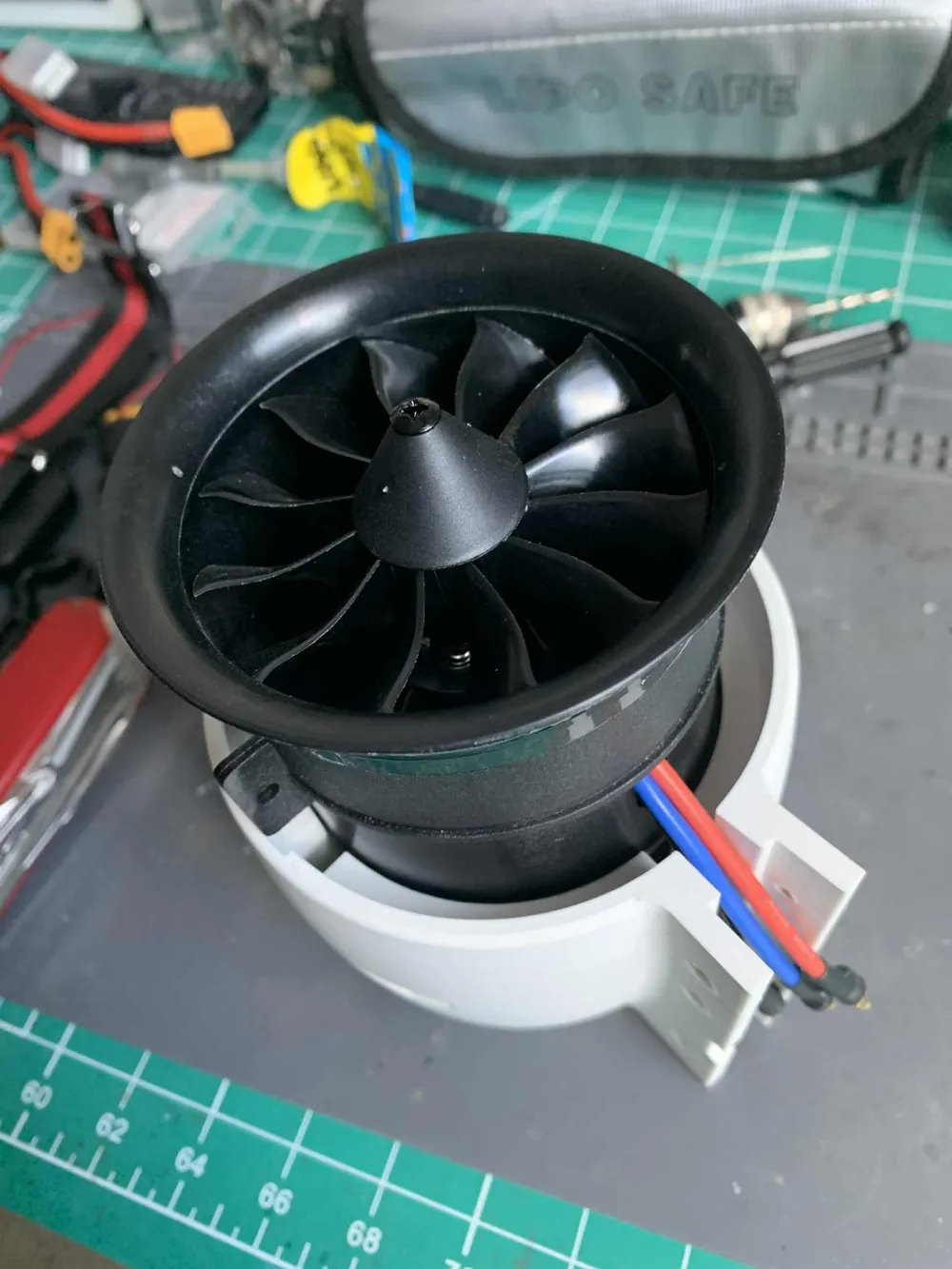

- 70mm EDF Brushless Motor 2800KV CCW/CW
- 2x4S LiPo Battery 14.8V 4500mAh 130C
- JHEMCU RuiBet 60A 65A 4in1

- GF30F722-ICM F722 FC

- Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver, SPM4651T

Camera Holders/FPV

- Adapters have been redesigned for this model

  - One RS with 360 lenses

  - Insta360 GO 3S

  - XPLorer HD FPV
