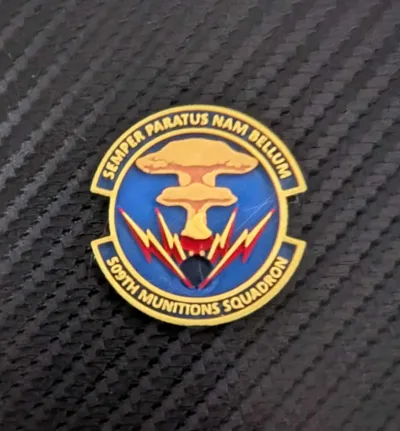

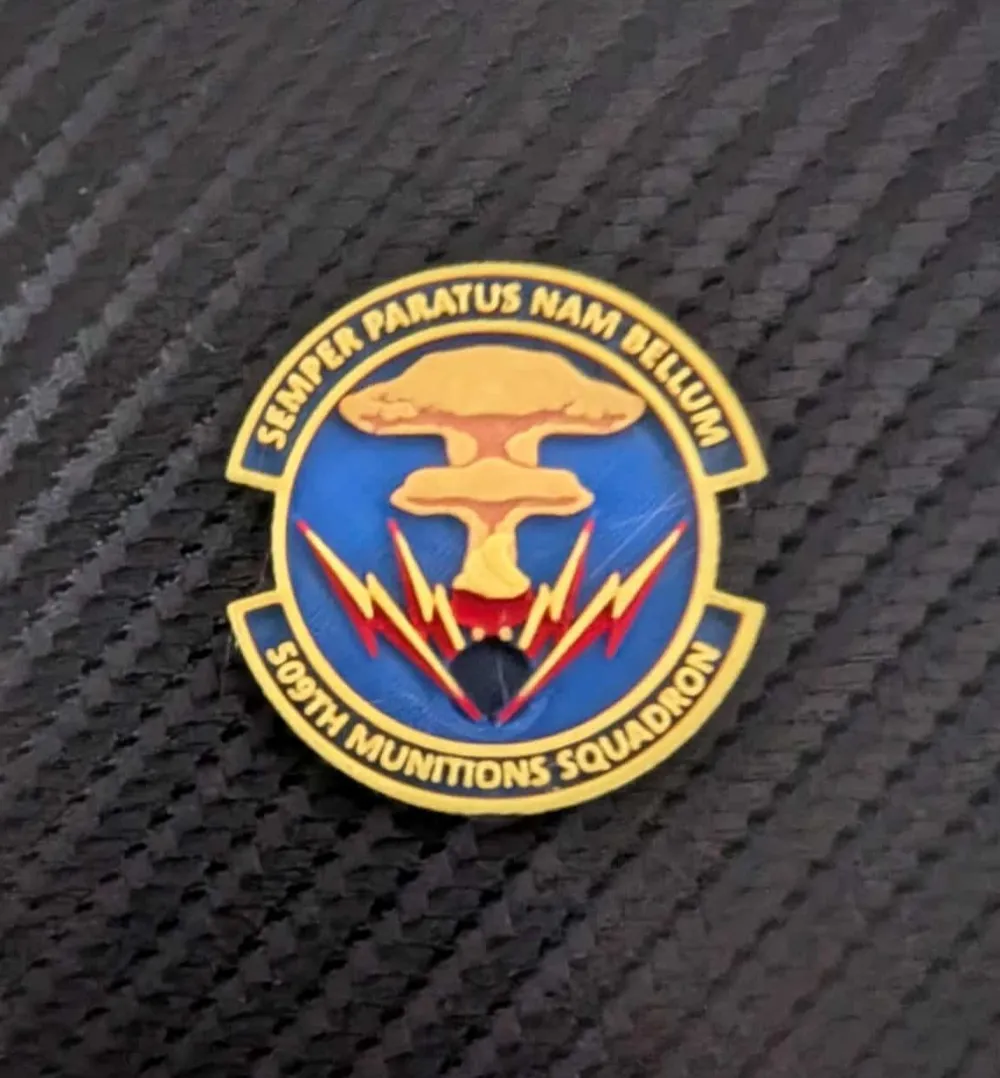

509 MUNS Emblem

The size can be changed, but be sure to keep Z-height the same in order for the color changes to be accurate!

Project: 509MUNSLogo.hfp
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

You may print at higher layer heights below the Min Depth of 0.48mm
The Max Depth is 2.2mm and the Actual Depth is 2.3mm

Filaments Used:
    PLA PolyLite Black Transmission Distance: 0.3
    PLA BambuLab Basic Blue Transmission Distance: 4
    PLA BambuLab Matte Dark Red Transmission Distance: 1.5
    PLA BambuLab Basic Yellow Transmission Distance: 6
This print uses 4 unique filaments

Swap Instructions:
    Start with Black
    At layer #7 (0.64mm) swap to Blue
    At layer #13 (1.12mm) swap to Dark Red
    At layer #16 (1.36mm) swap to Yellow for the rest.
