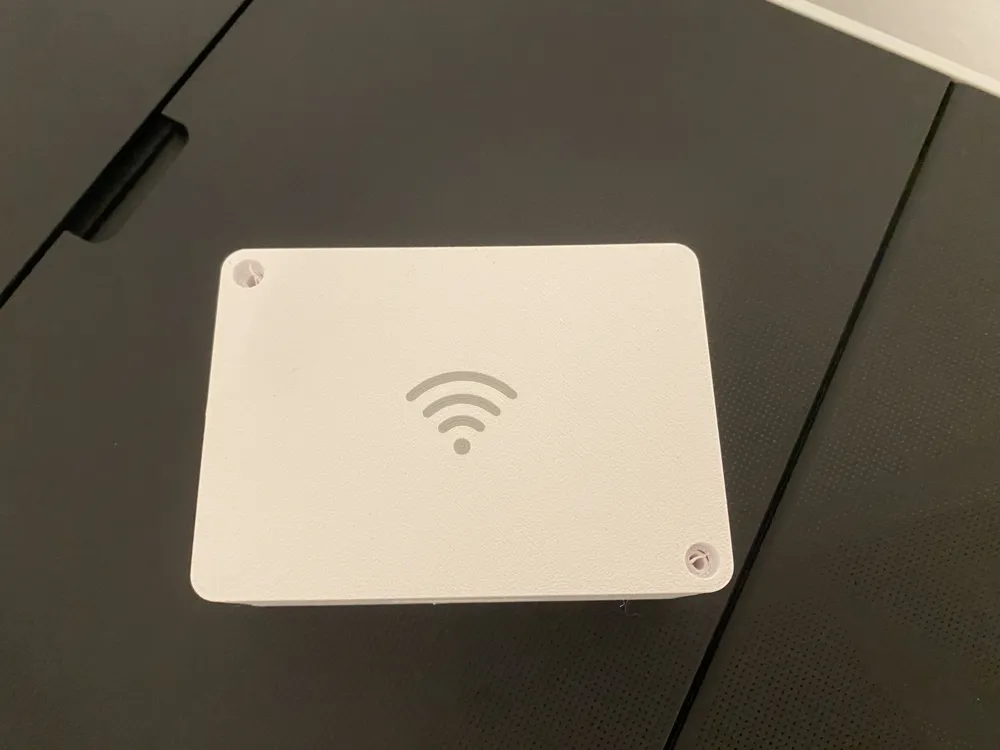

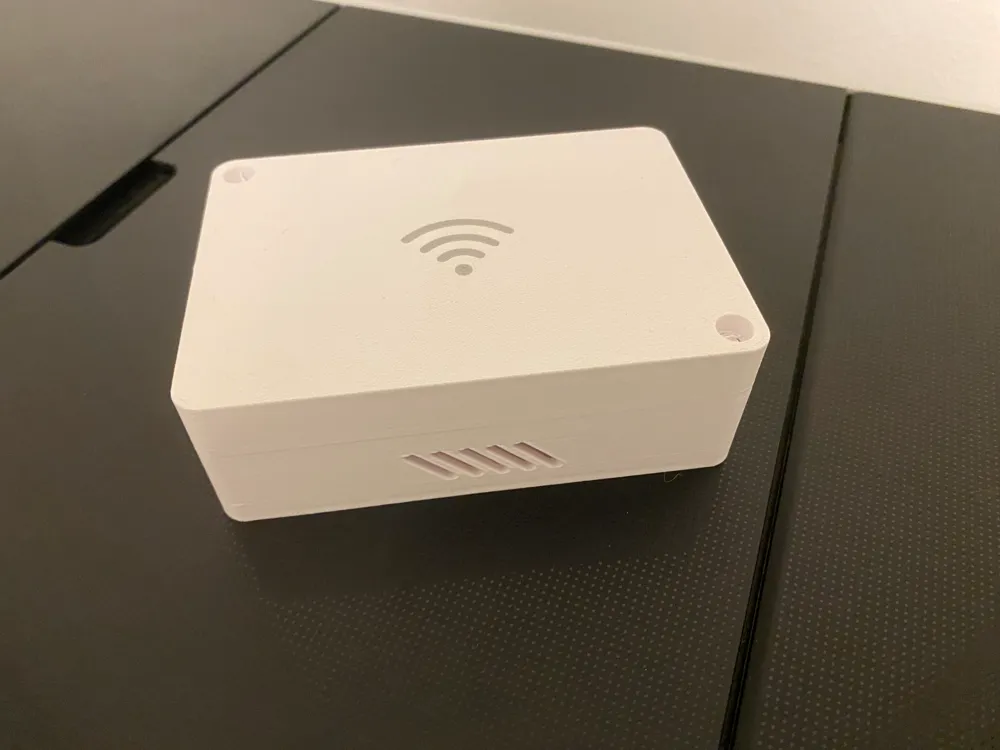

A beautifully designed enclosure for small electronics projects with side ventilation slots

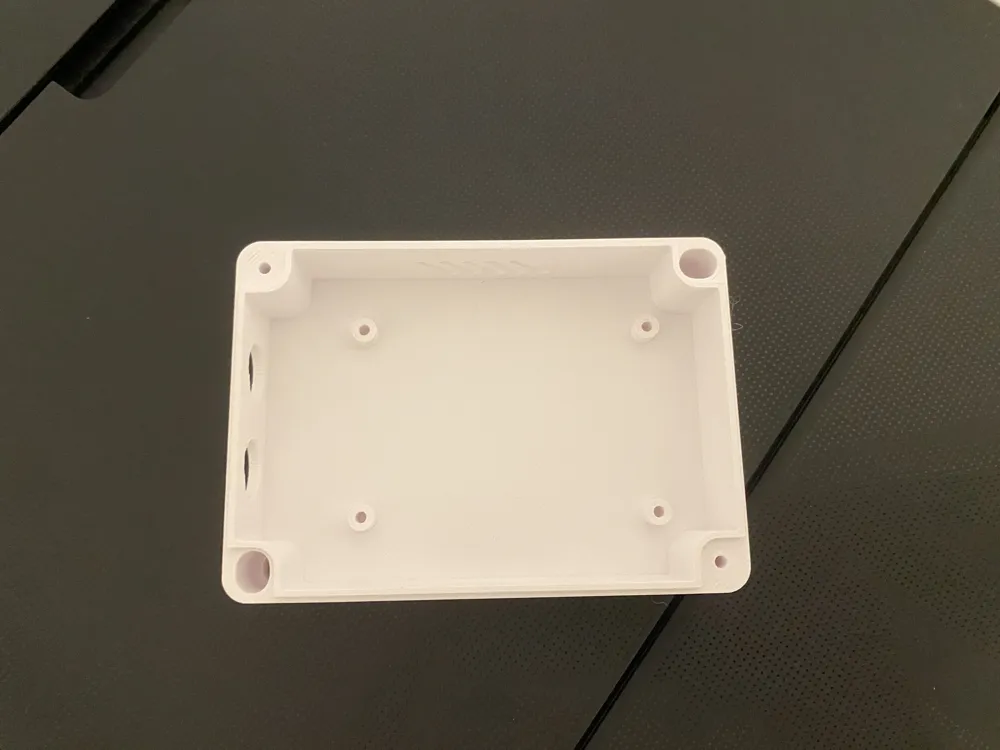

A circuit board can be mounted inside the enclosure
The hole spacing is 40x60mm
For other spacings, an adapter plate can be designed and printed
The outer dimensions are 100x70mm (wall thickness is 2.5mm)

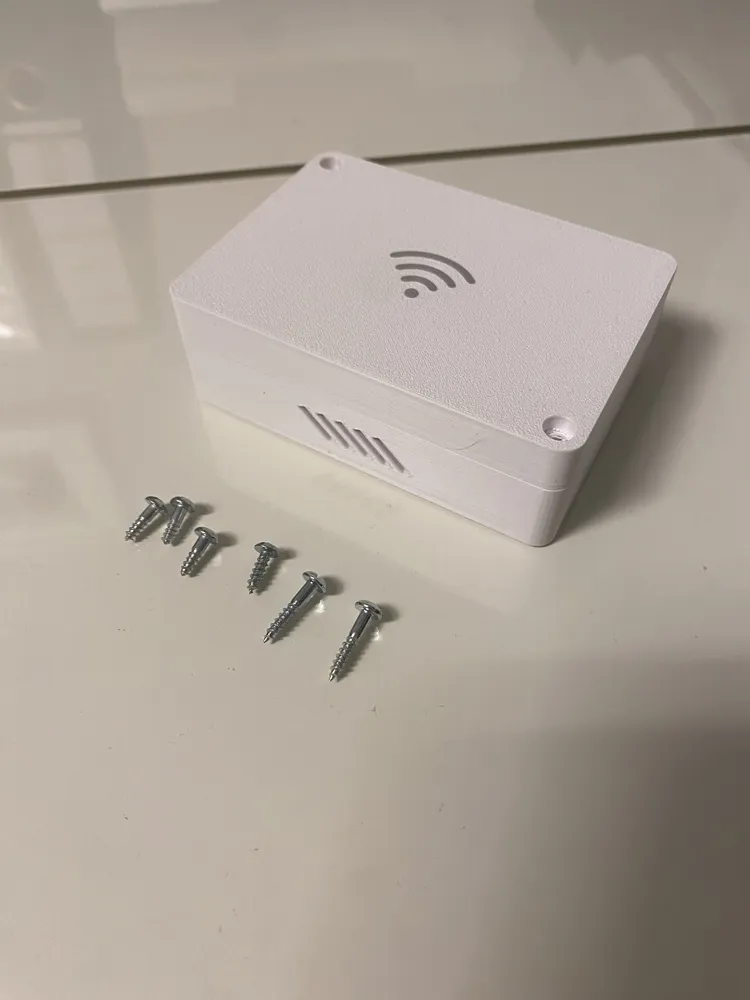

To mount the circuit board, 4 pieces of 3x10mm screws are needed
To screw on the lid, 2 pieces of 3x16mm screws

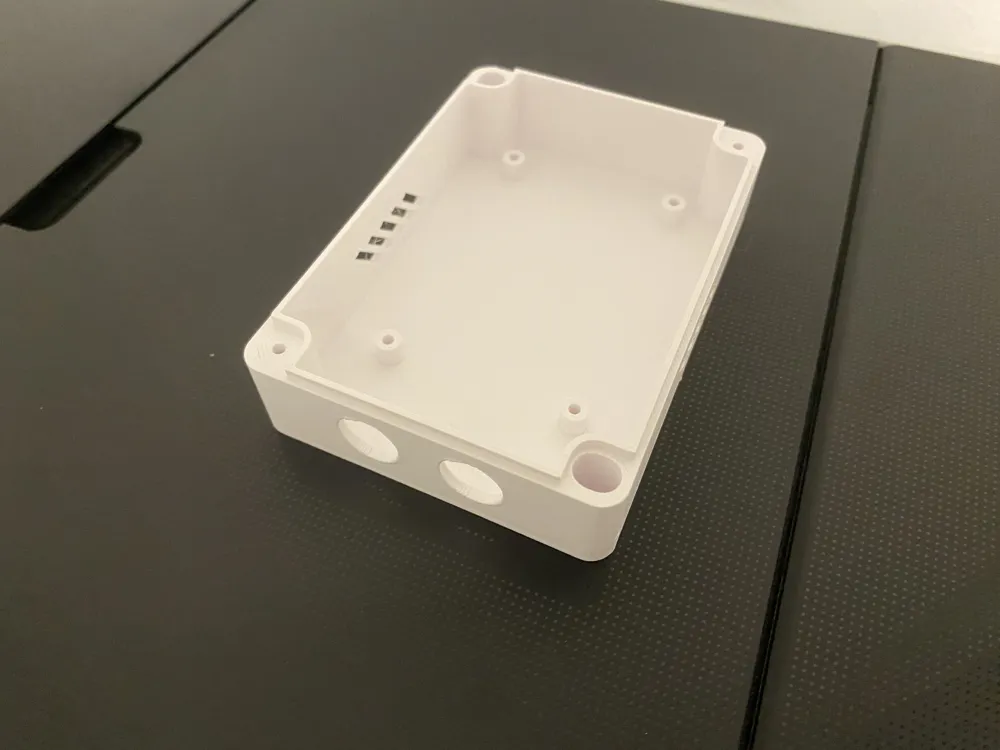

The enclosure is available in two variants. One of them has two side 12mm holes for jack sockets:
https://amzn.eu/d/0M99o2B
Note: PETG is not fire resistant! Print and use at your own risk!
Suitable filaments according to the manufacturer would be:
https://fiberlogy.com/en/fiberlogy-filaments/pet-g-v0/
Have fun printing!
