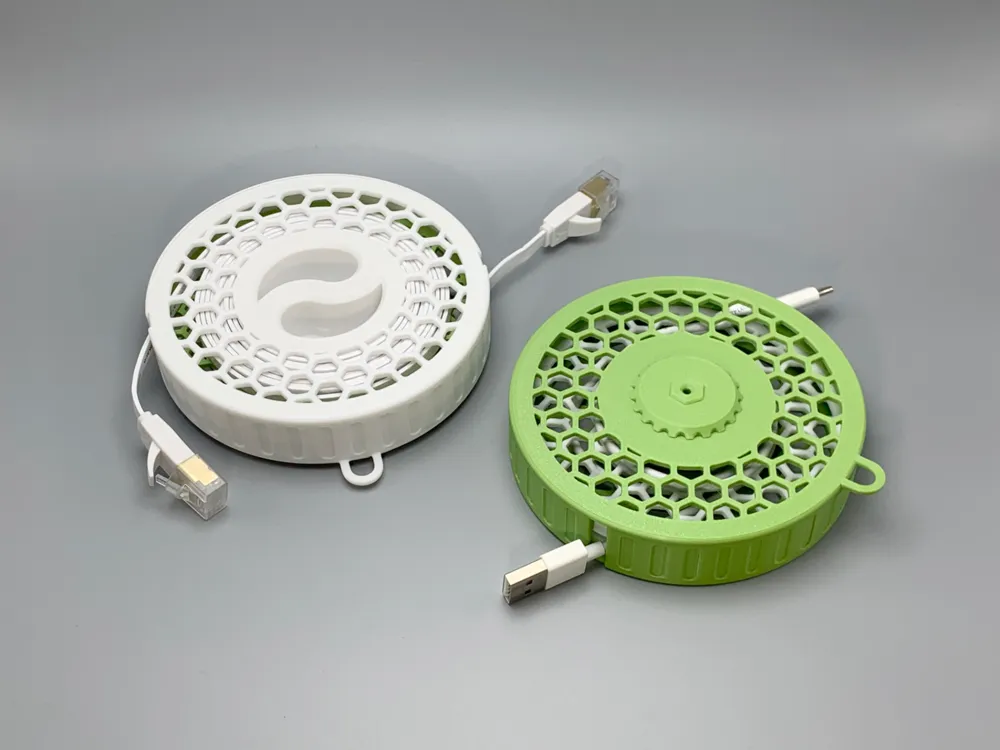

Double-Layer Large Spooler (Flat Ethernet Cable, Long Data Cable)

This model is a large flat network cable organizer, also suitable for storing extra-long data cables, with dimensions of 110*110*23mm

It aims to address the issues faced by network maintenance engineers who frequently use network cables

Features:

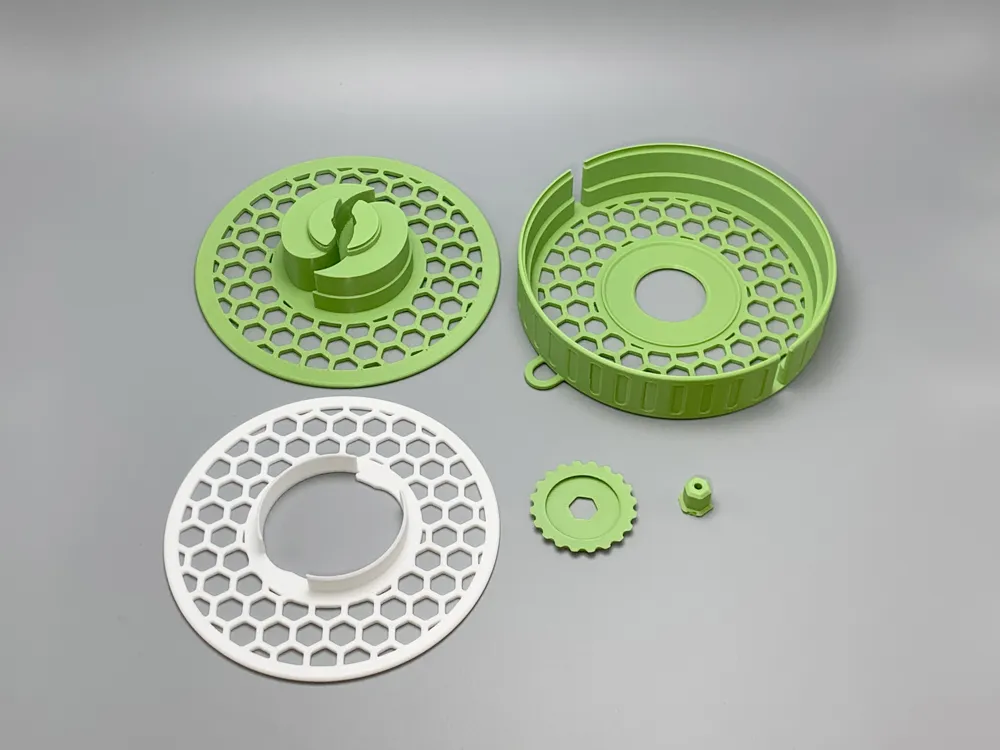

• Threaded buckle assembly, no hardware required
• Easy to print, no supports
• Fully hollow design, lightweight, and easy to observe the winding
• Threaded and pin design, stable and not easily loosened
• Double-layer winding position, can store longer cables simultaneously

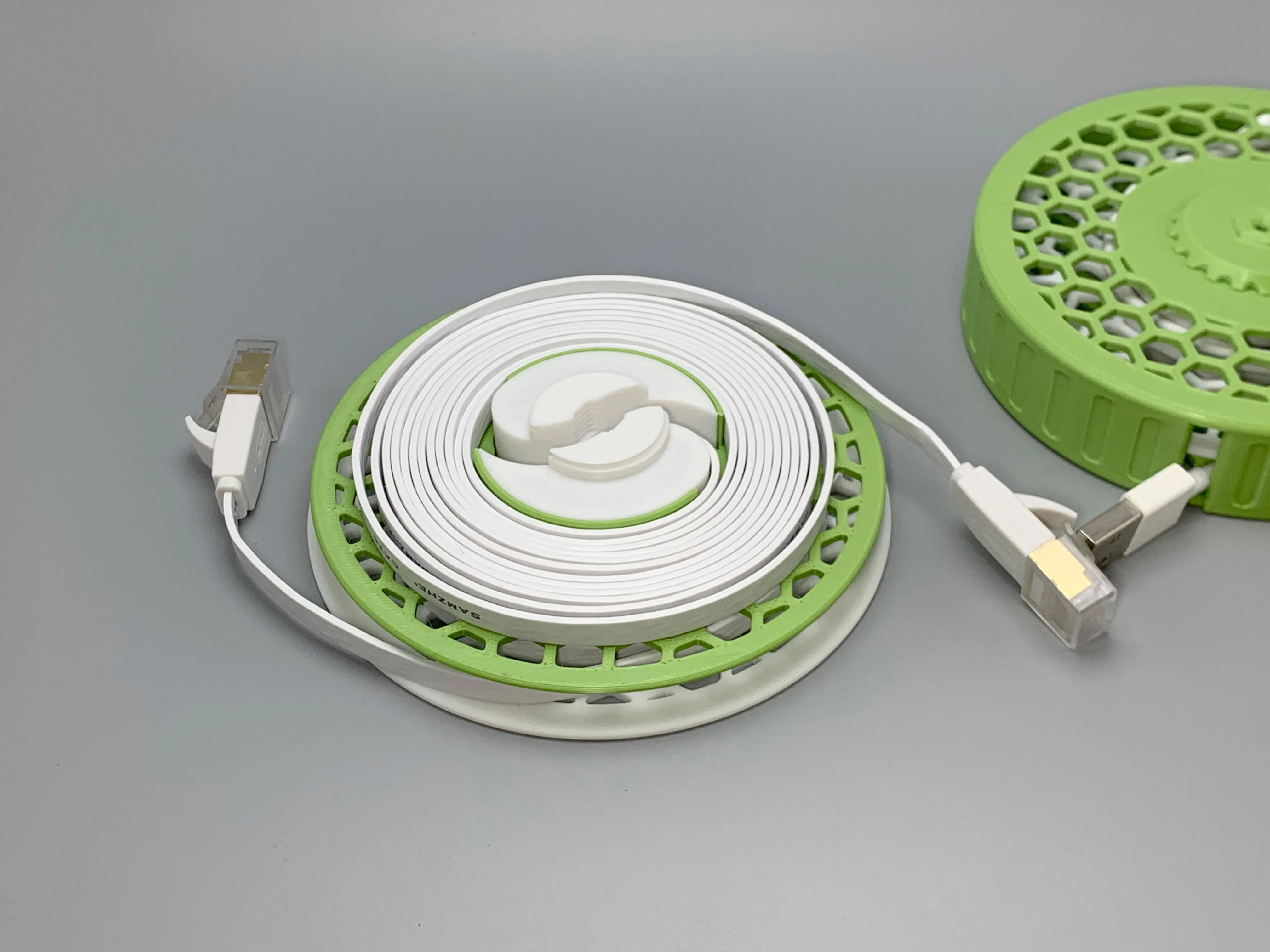

• The 1.5mm thick flat network cable can store up to 8 meters (a 10-meter version is also available), and it can also accommodate extra-long data cables

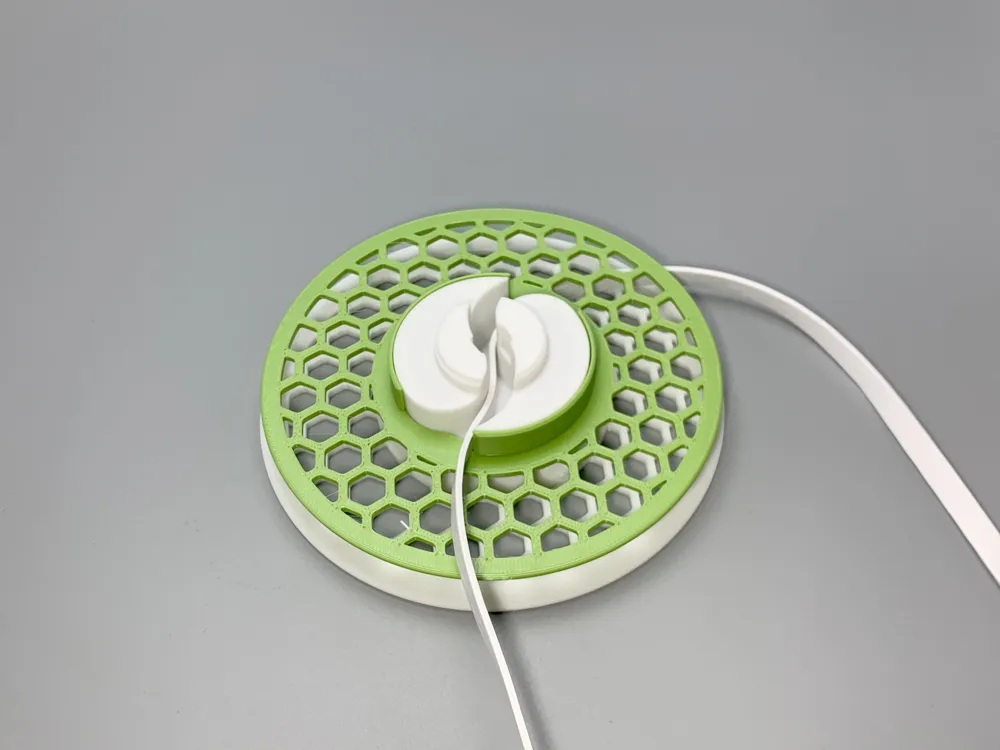

• User-friendly knob design, making winding easy and convenient
• 5mm wide openings at both ends, so flat network cables are not easily bent
• Circular cables should not exceed 5mm in diameter, or you can enlarge the opening yourself

The flat network cable used for testing is a Shanze Category 6 flat network cable, with cable dimensions of 1.5x7mm. This model aims to address the challenges faced by network maintenance engineers who frequently use network cables, allowing them to carry and store extra-long network cables and other types of cables conveniently

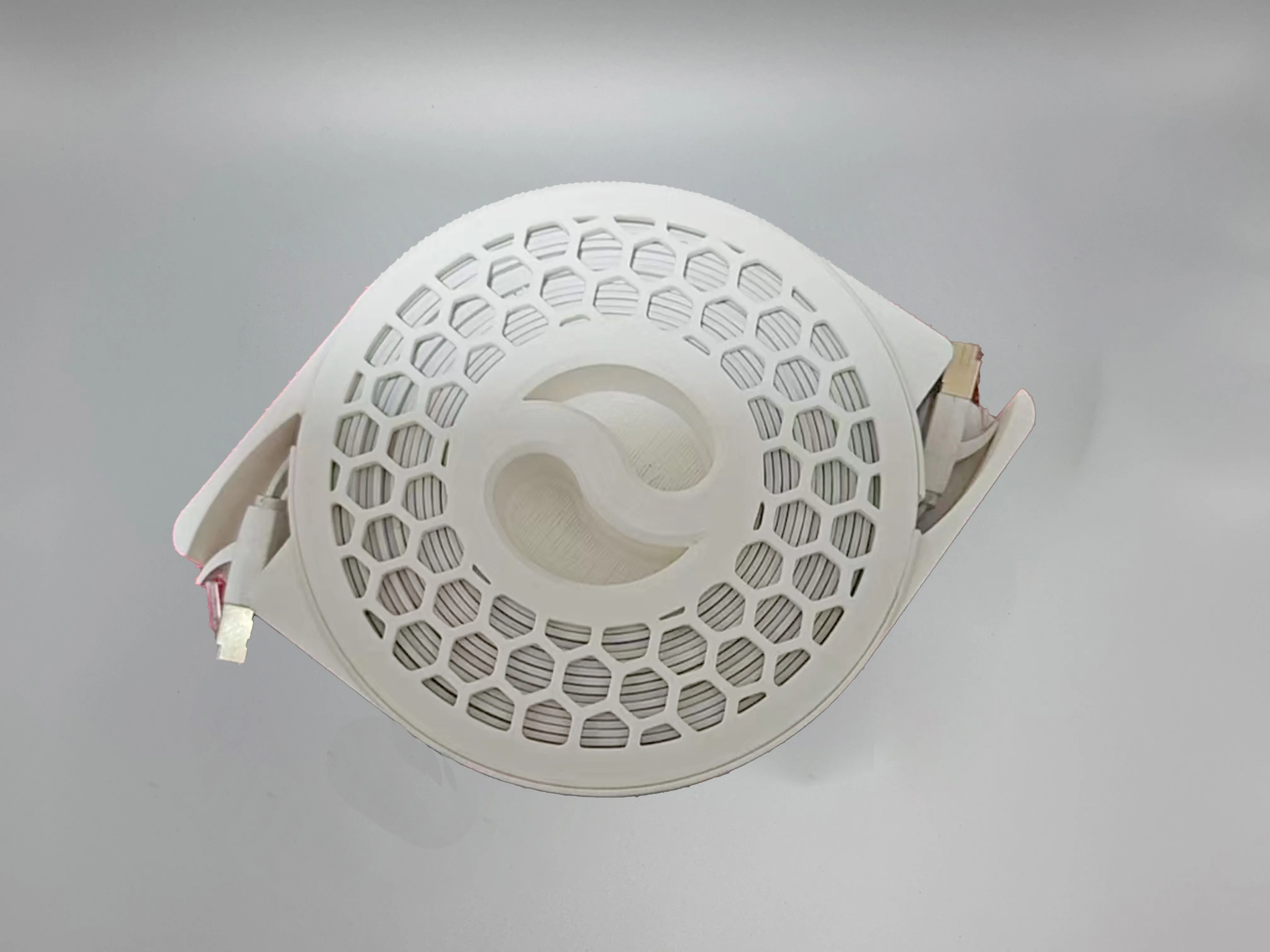

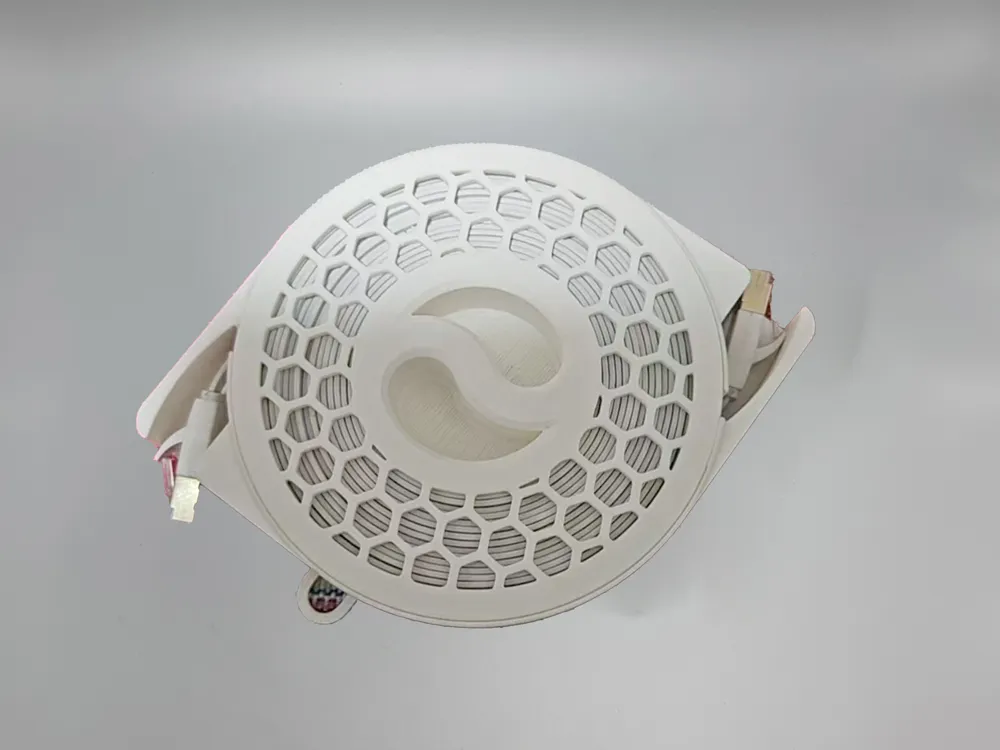

2025.9.23 Update: Added a 10-meter network cable version (the original model's XY axes are enlarged by 115%)     2025.9.23 Update: Added a diamond version (10-meter), with space on both sides to store network cable connectors. The hanging ears are removed and replaced with two holes. The knob part has 3 holes for two 6mm magnets and one 5mm magnet (the magnet holes are tight, trimming may be required before installation for magnets to fit smoothly)
