ShimanoSPD-SL-SH11(6deg)
IP Report
Print Profile(1)
0.2mm layer, 8 walls, 15% infill
Designer
1.7 h
1 plate
Open in Bambu Studio
Boost
44
122
13
2
132
69
Released
Description
Content has been automatically translated.

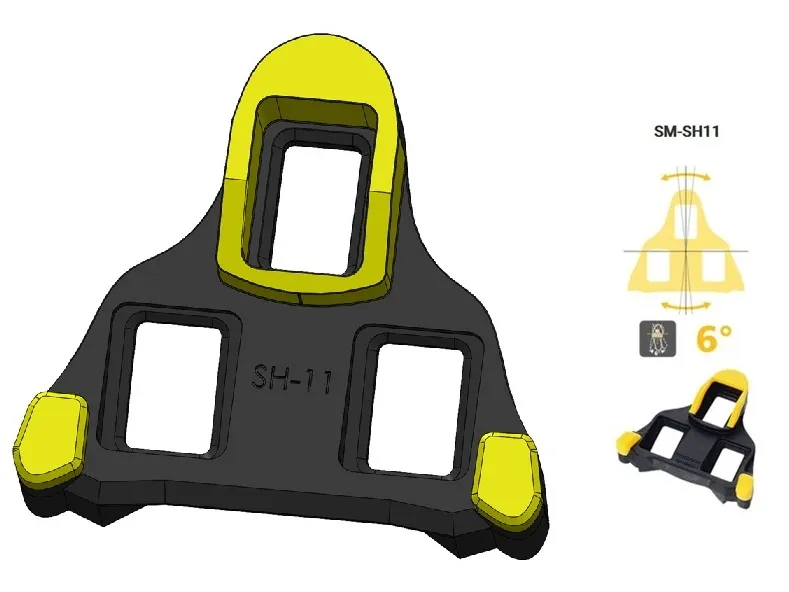

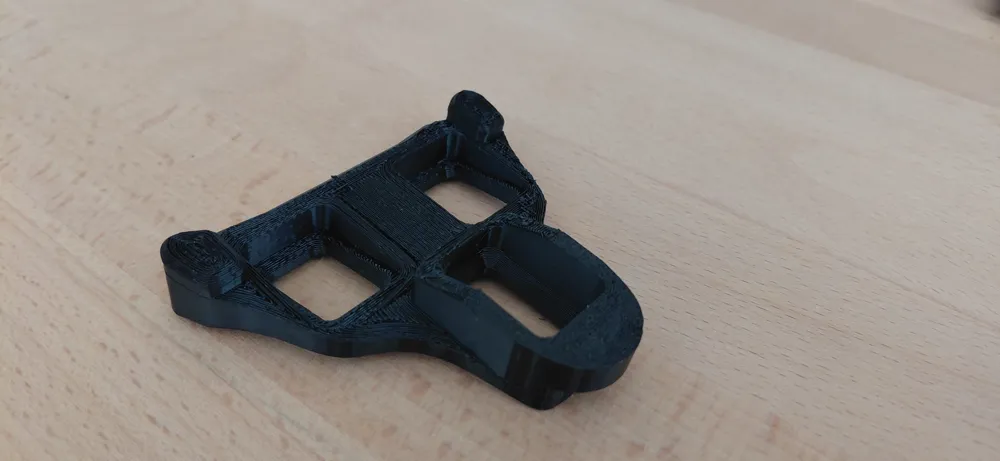

Allows the attachment of cycling shoes to SPD-SL clipless pedals with 6° of angular float (3° on each side), ideal for joint comfort.

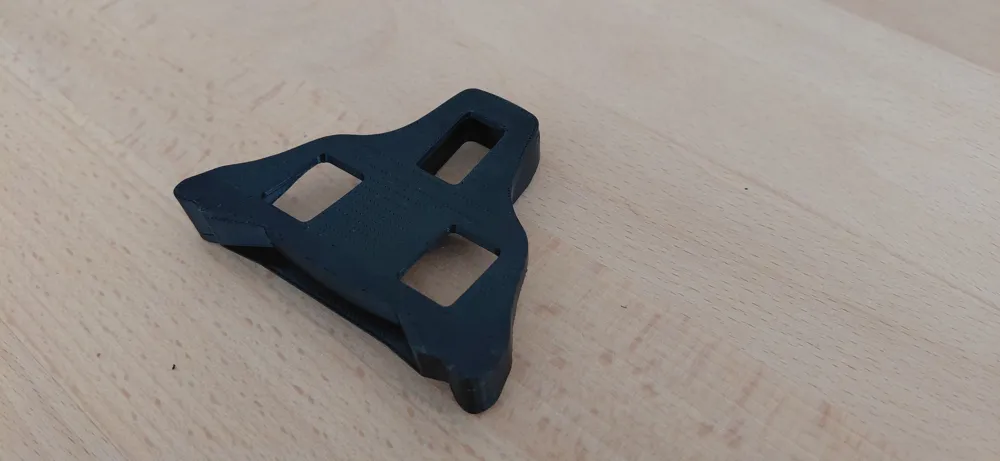

Physical Characteristics :
- Shape : Triangular with three attachment points (SPD-SL standard)
- Approximate Dimensions :
- Length : ~70 mm
- Width : ~60 mm
- Thickness : ~8 mm at the highest point

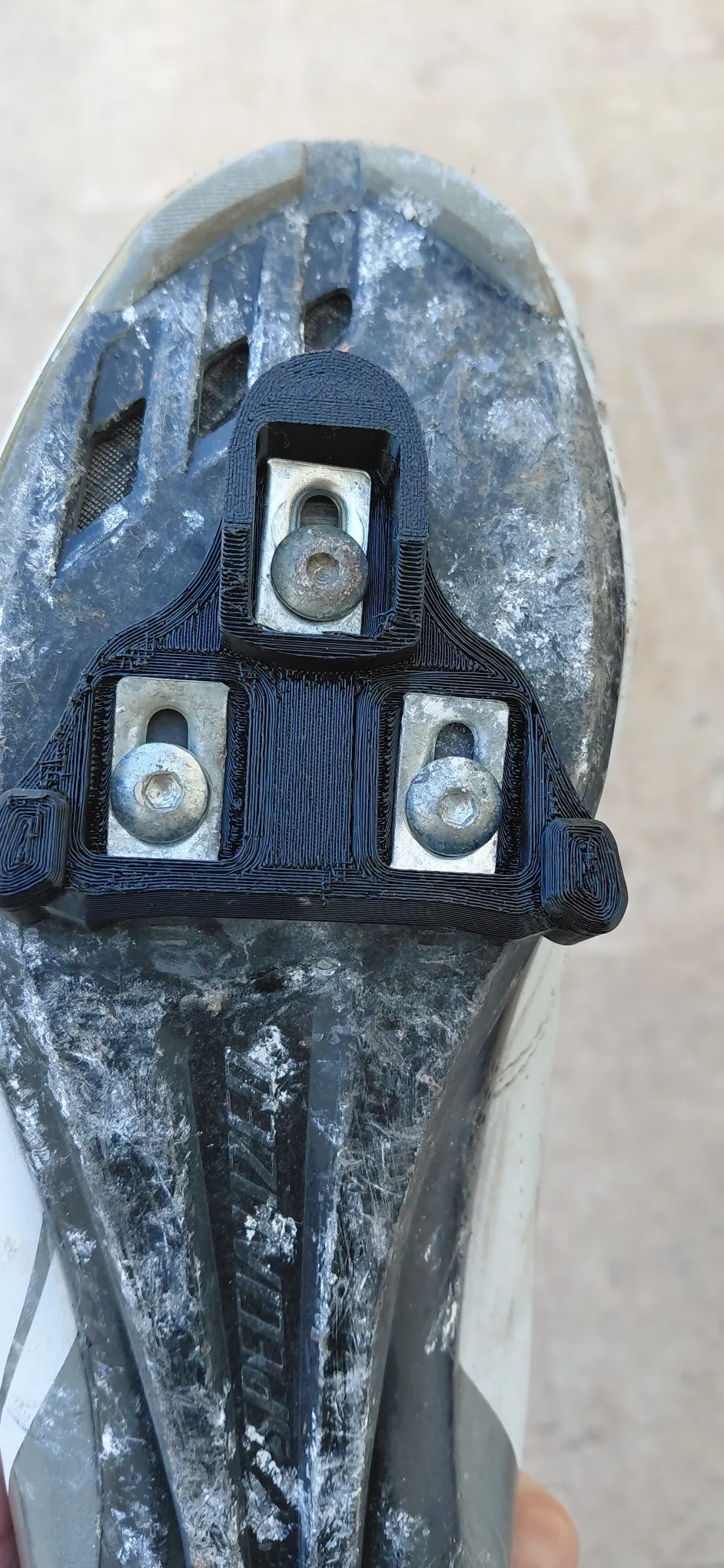

- Attachment : 3 screws (Shimano standard) with grooves for lateral adjustment
- Contact Areas :
- Flat surface with reinforcements at contact points
- Integrated anti-slip pads (to be modeled or replaced with TPU inserts)
Original Material : Rigid thermoplastic with rubber inserts for grip. For 3D printing, we recommend :
- Reinforced PLA or PETG for the structure
- TPU for wear or grip areas
Compatibility :
- Shimano SPD-SL pedals (e.g., PD-R7000, PD-RS500)
- Shoes with 3-hole road type inserts
3D Printing Tips :
- Tolerances : allow for slight play for screws and adjustment grooves
- Strength : reinforce contact areas with additional layers or an infill > 50%
- Post-processing : light sanding of contact surfaces to prevent premature pedal wear
