Sewing Machine Presser Foot

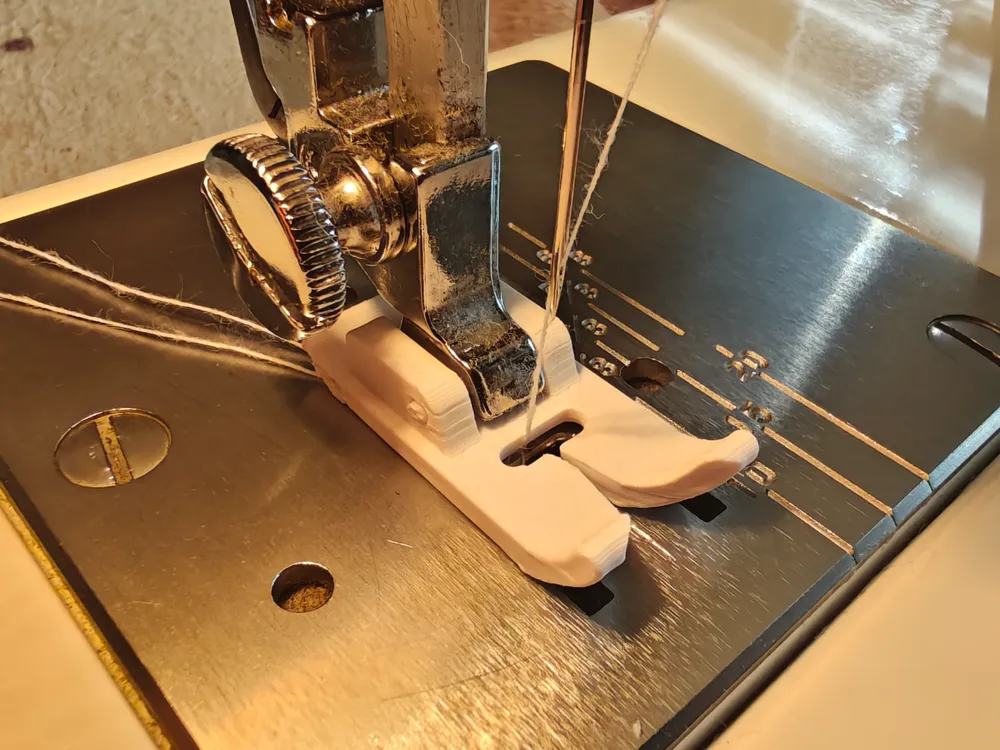

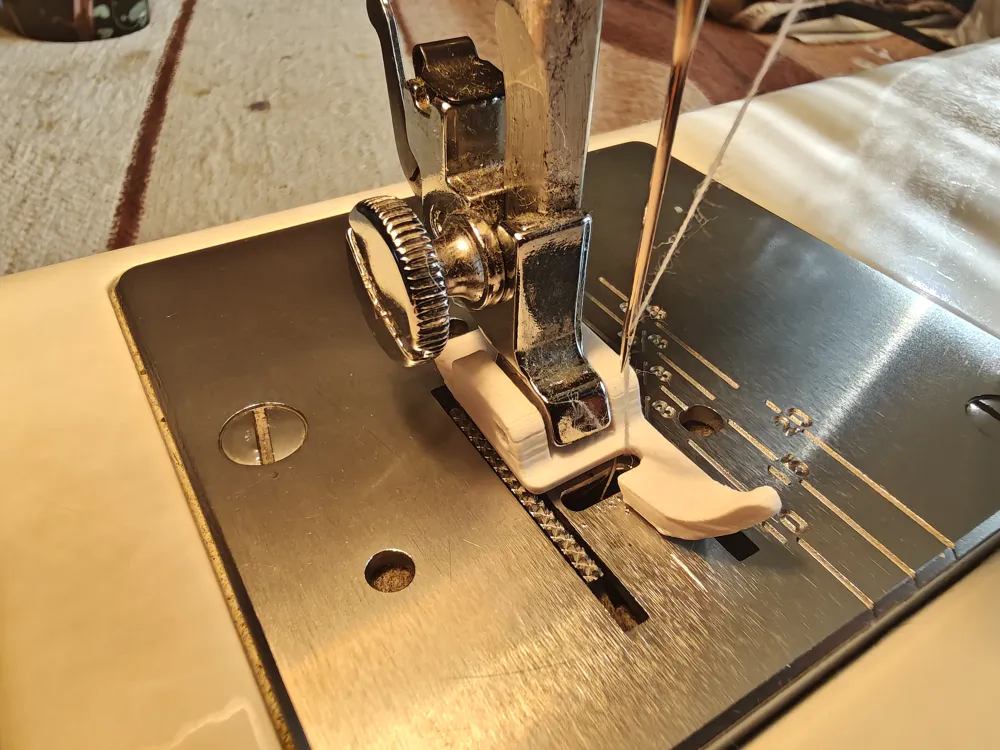

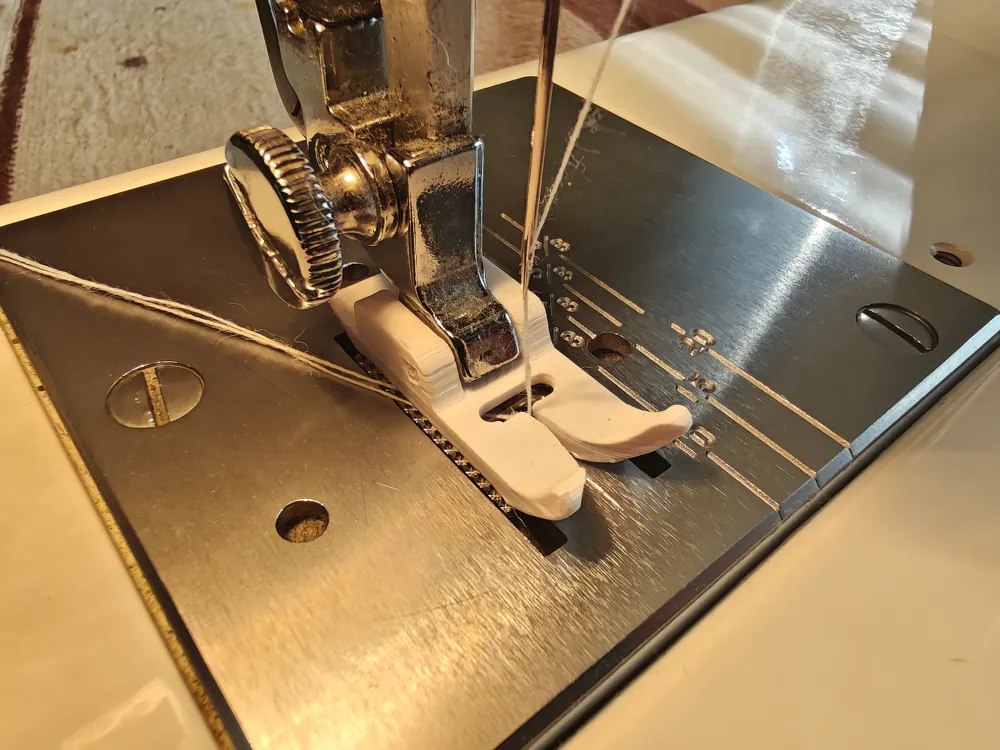

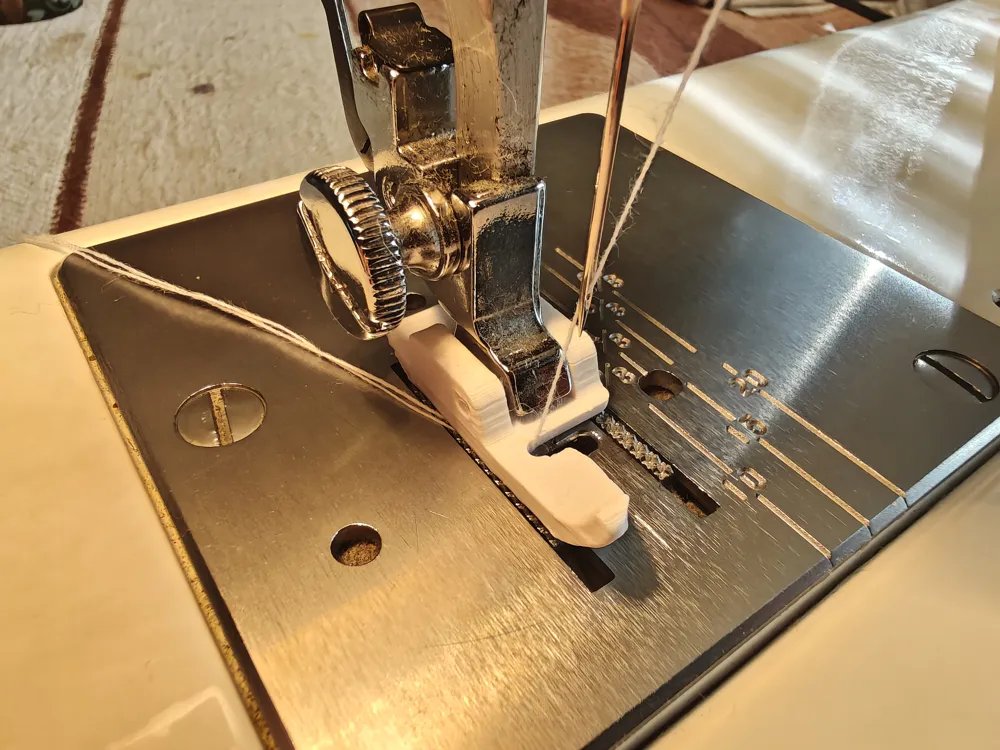

I needed a zipper foot for my Janome 110, so I designed this snap-on presser foot. While it’s made primarily for the Janome 110, it should fit most low-shank household sewing machines (Brother, Singer, Baby Lock, Elna, Kenmore) with a maximum stitch width of 5 mm. The foot snaps on easily and stays securely in place. This design may not withstand heavy daily use, but as a quick, reliable emergency presser foot, it does the job perfectly.

PETG recommended (PLA may be brittle). For best results, print on a smooth build plate so the bottom surface glides more easily over fabric. You may need to sand the corners slightly to prevent the foot from catching on.

The snap-on bar is made from a short piece of filament, the bar is designed to fit snugly into the foot’s holes. If it’s a little loose, you can use glue, though I didn’t need any.

This project includes four variations:

• Regular Foot – replicates the original factory foot
• Narrow Foot – reduced width
• Zipper Foot – ideal for sewing close to zippers
• Zipper Foot Inverted (Foot on right-Side)

Sebtember 7, 2025:

• First release
