Pavo 20 Pro - DJI O4 Pro Air Unit Canopy with GPS
Print Profile(1)
Description

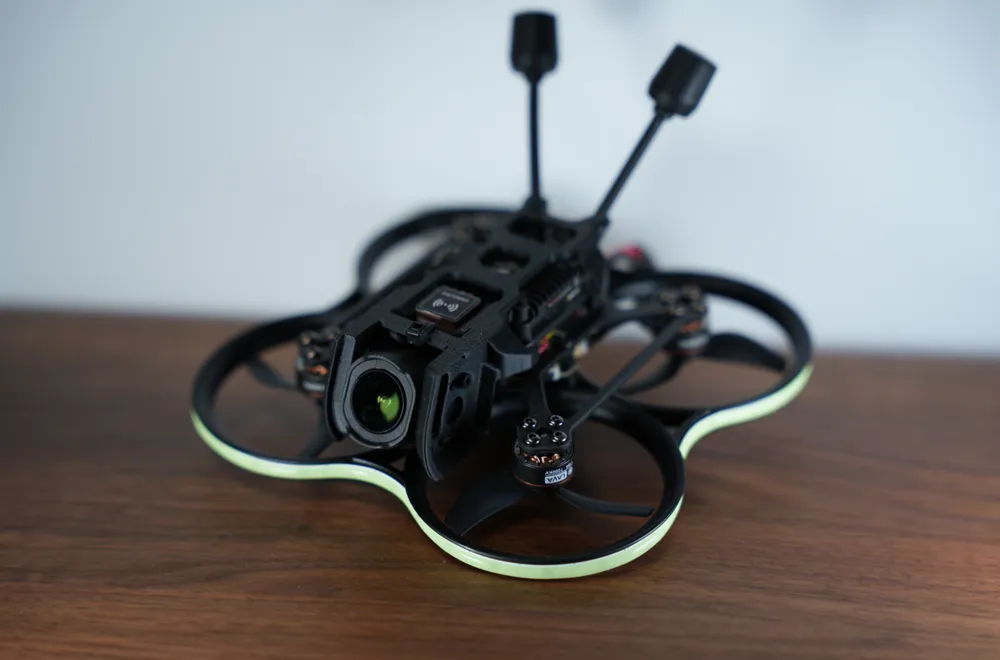

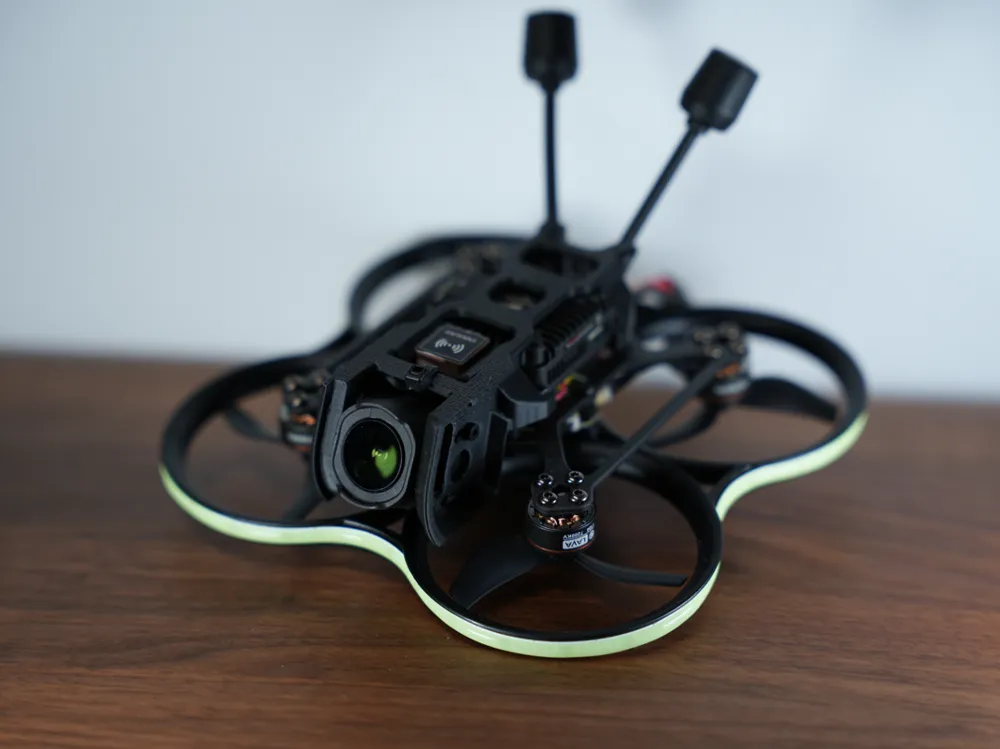

A canopy (VTX bracket/mount) for mounting the DJI O4 Air Unit Pro for the BetaFPV Pavo20 Pro FPV drone.

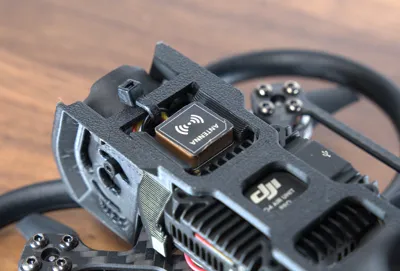

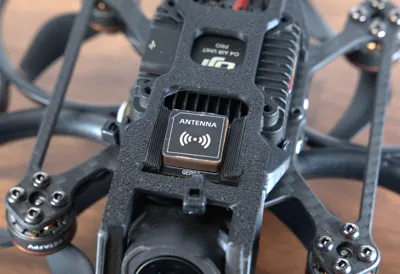

Compared to the original model, a mount for a GPS GEP-M10 Nano GPS module has been added between the camera mount and the O4 Pro. The GPS can be soldered and wired according to the specifications provided by GEPRC and BETAFPV and then simply clipped into the designated mount. Two tabs at the front of the mount and the O4 Pro module at the rear prevent the GPS from falling out.
I printed it in PLA with 5 walls and have not had any problems with mechanical stability or temperature so far.
In addition, the radial hole for attaching the camera has been slightly enlarged to flatten the camera angle a little.
Standard O4 Pro / Avata 2 filters (ND/UV/PL) are still compatible.
This remix is based on
