Summary:

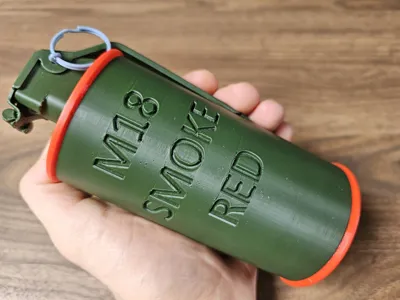

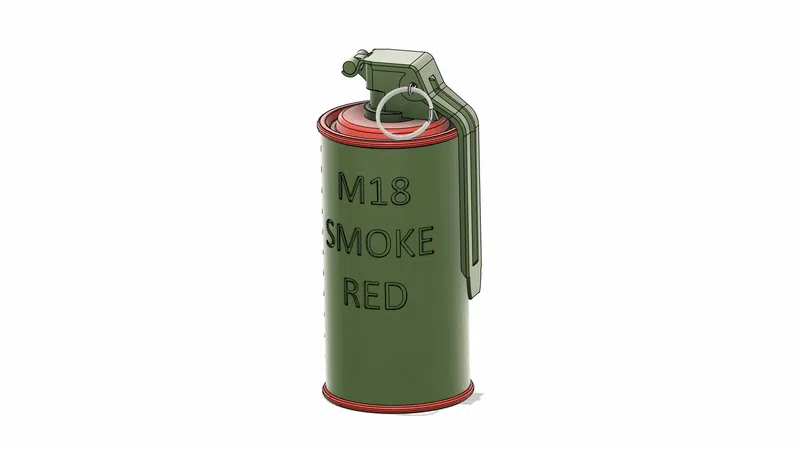

A cool M18 Smoke Grenade prop featuring a working, spring-loaded fuse mechanism and a secret, screw-on storage compartment in the base. Great for cosplay or as a fun desk container.

Description:

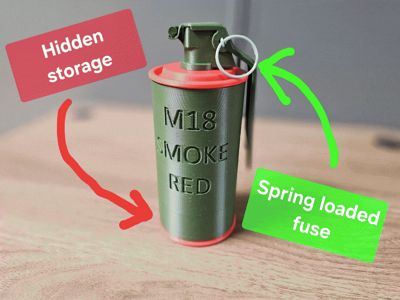

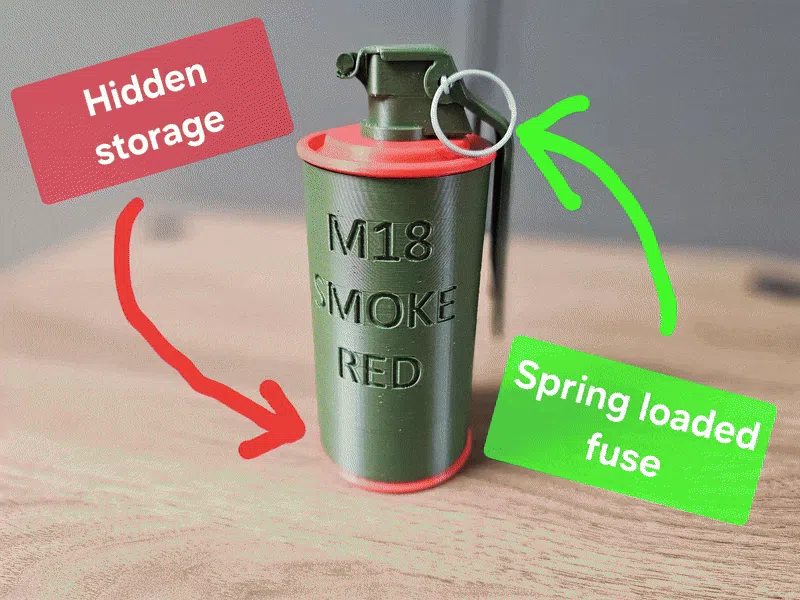

This isn't your average static prop! I designed this M18 Smoke Grenade model with two fun features:

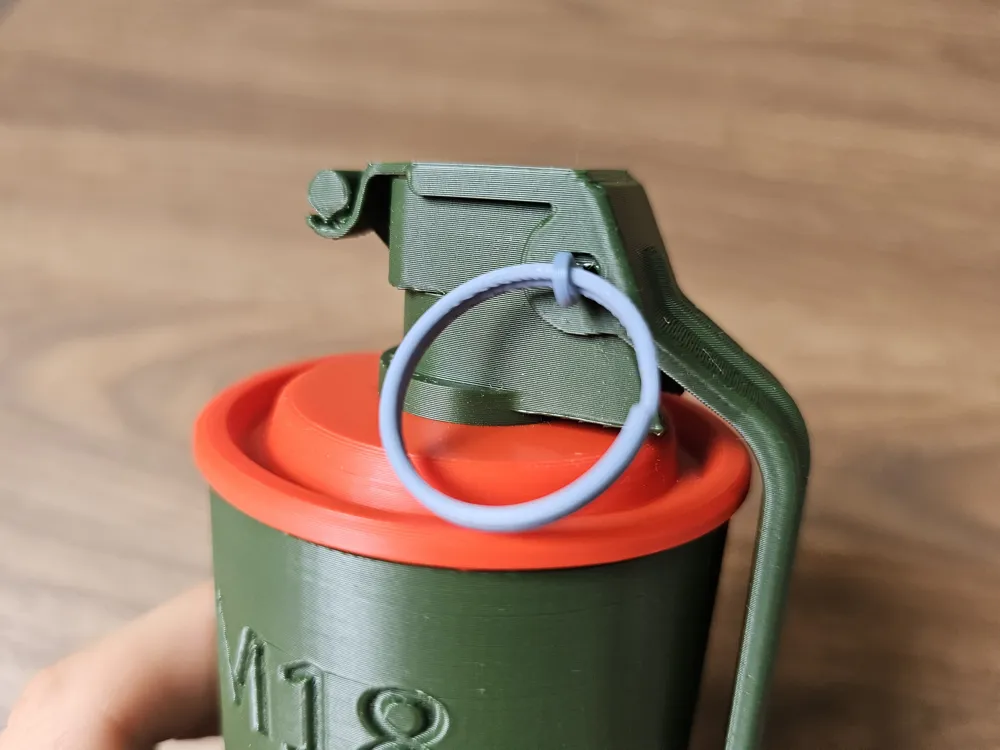

Working Spring-Loaded Fuse: Use a spring from any clicky pen or buy one that is listed in BOM, and the spoon will fly off when you pull the pin. It makes for a very satisfying and realistic action.

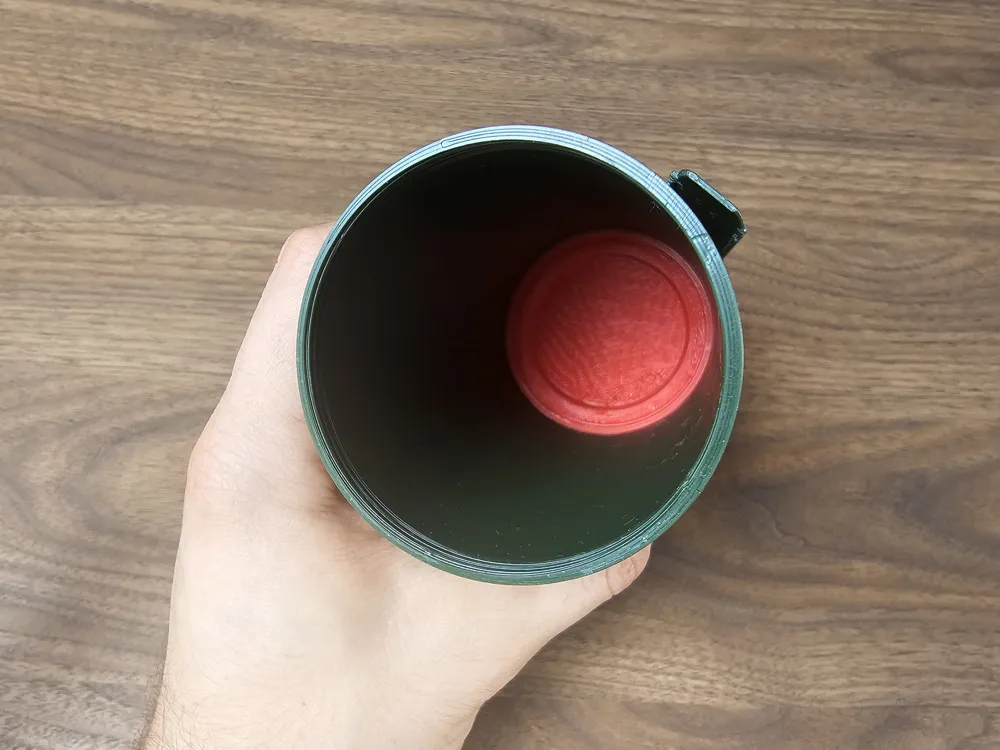

Hidden Storage: The bottom cap has a thread and can be unscrewed, turning the entire grenade body into a secret container.

Assembly:

You will need 1x spring 0.5x5x25 mm.
Screw on the top and bottom cap.
Insert the spring and piston into the fuse.
Screw on the fuse.
Hold the spoon down and secure it with the pin.

Assembly video:

(Optional) Realistic Pin:

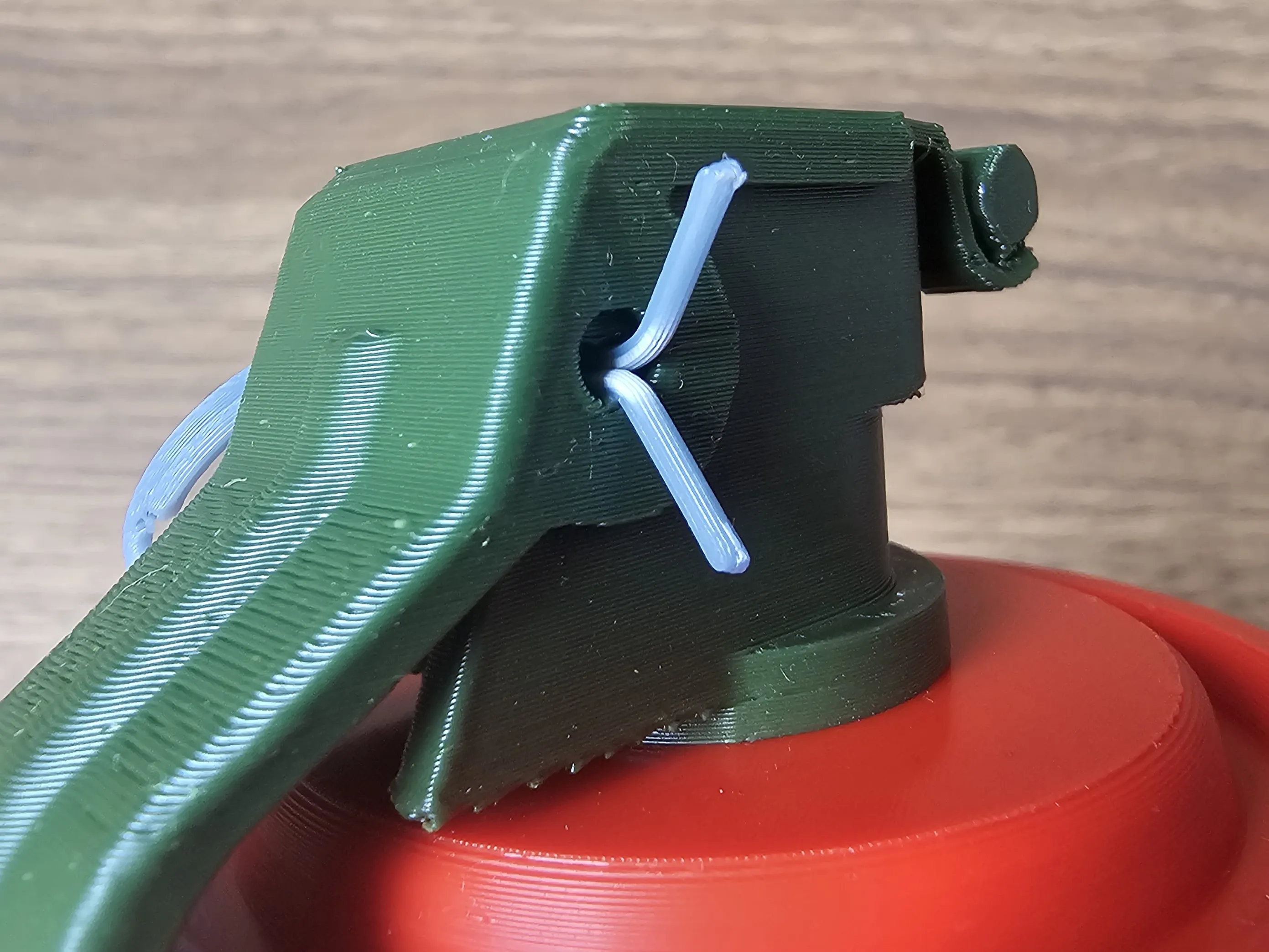

For a more authentic look, you can bend the pin outwards after inserting it (see picture below).

Please note: Bending the pin will likely make it a one-time use item, as it's difficult to bend back. I recommend printing a few extra pins if you plan to do this!

Disclaimer:

This is a prop/toy for private use, cosplay, or display. Please be responsible and do not display it in public in a way that could cause alarm.

Enjoy the print! Don't forget to post your makes!
