Description

Please be sure to comply with your local laws and do not use the model for inappropriate purposes.This is a cosplay prop.

Due to the new regulations, I cannot provide the complete model here. I will share the complete model on a cloud drive. After downloading the .3mf file here, you will receive the password, and you will have the complete toy.

Boost Me (for free)

Please do not open the downloaded .ZIP file directly with Windows Explorer, as it cannot be opened with a password. Please use unzip software such as 7-zip to open it.

Due to some comments in the comments section, I will no longer reply to any comments from now on!If you can understand the introduction, you will be able to obtain the complete model. If you cannot obtain the model, I will not provide any further explanation.

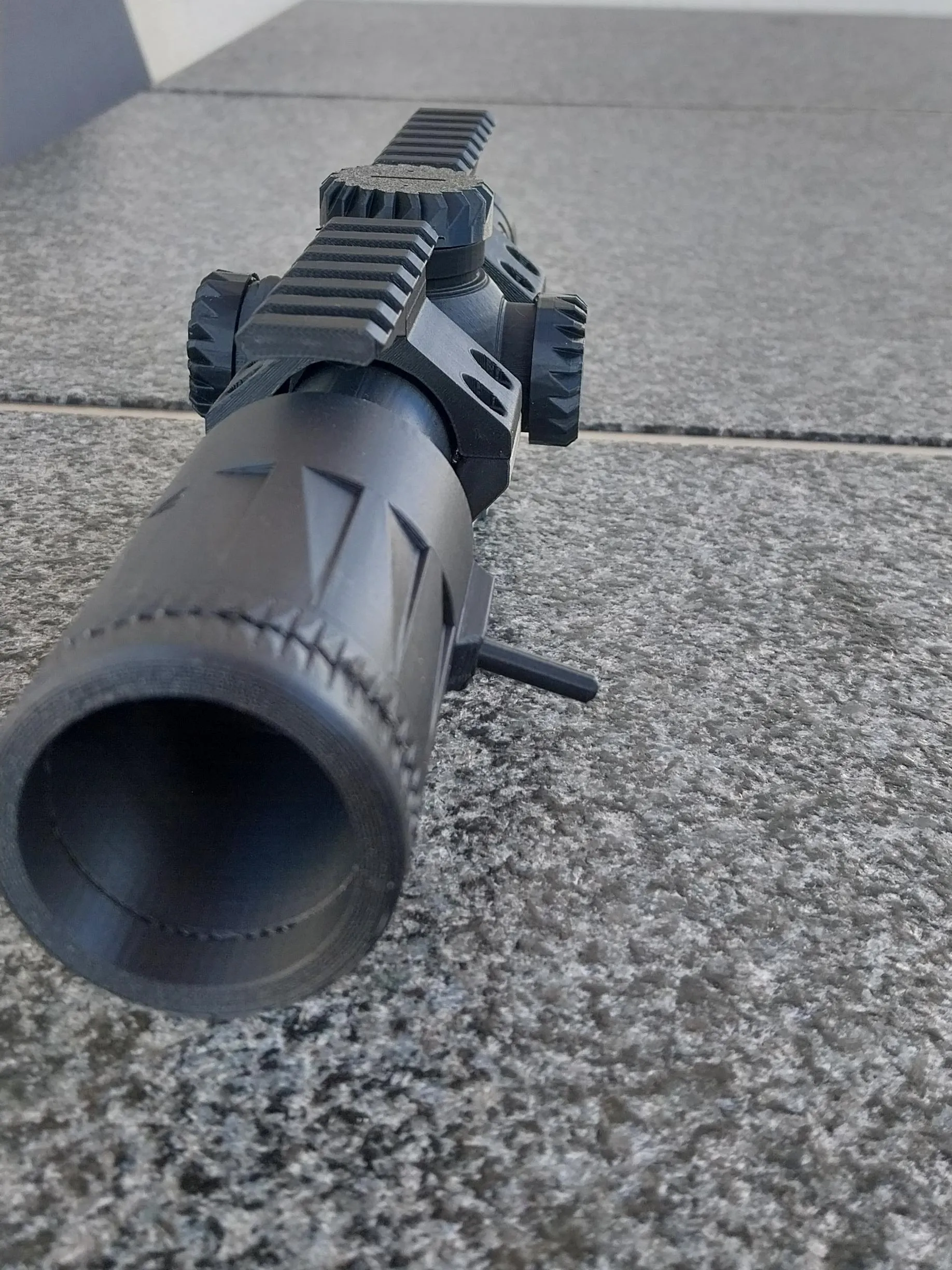

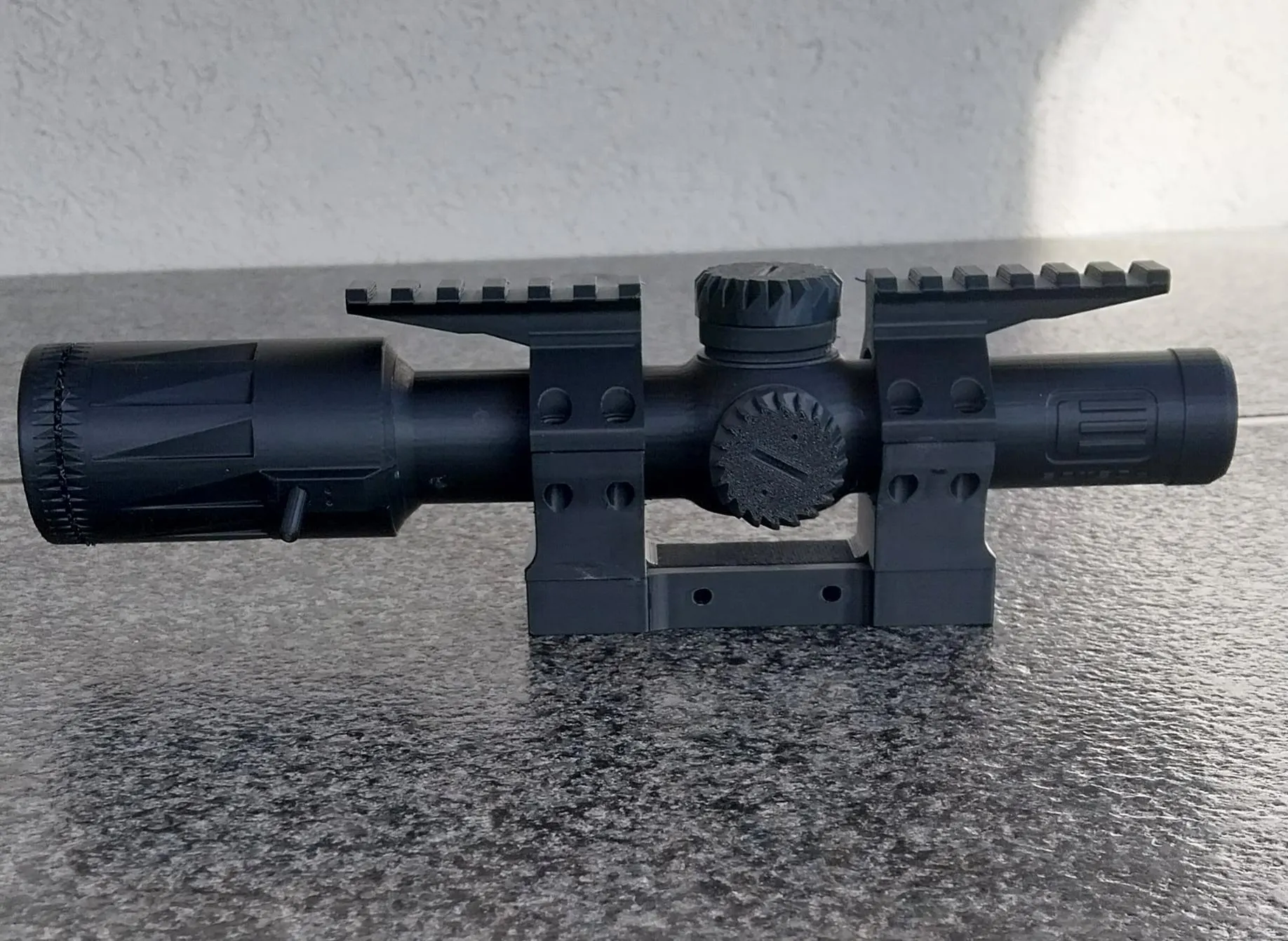

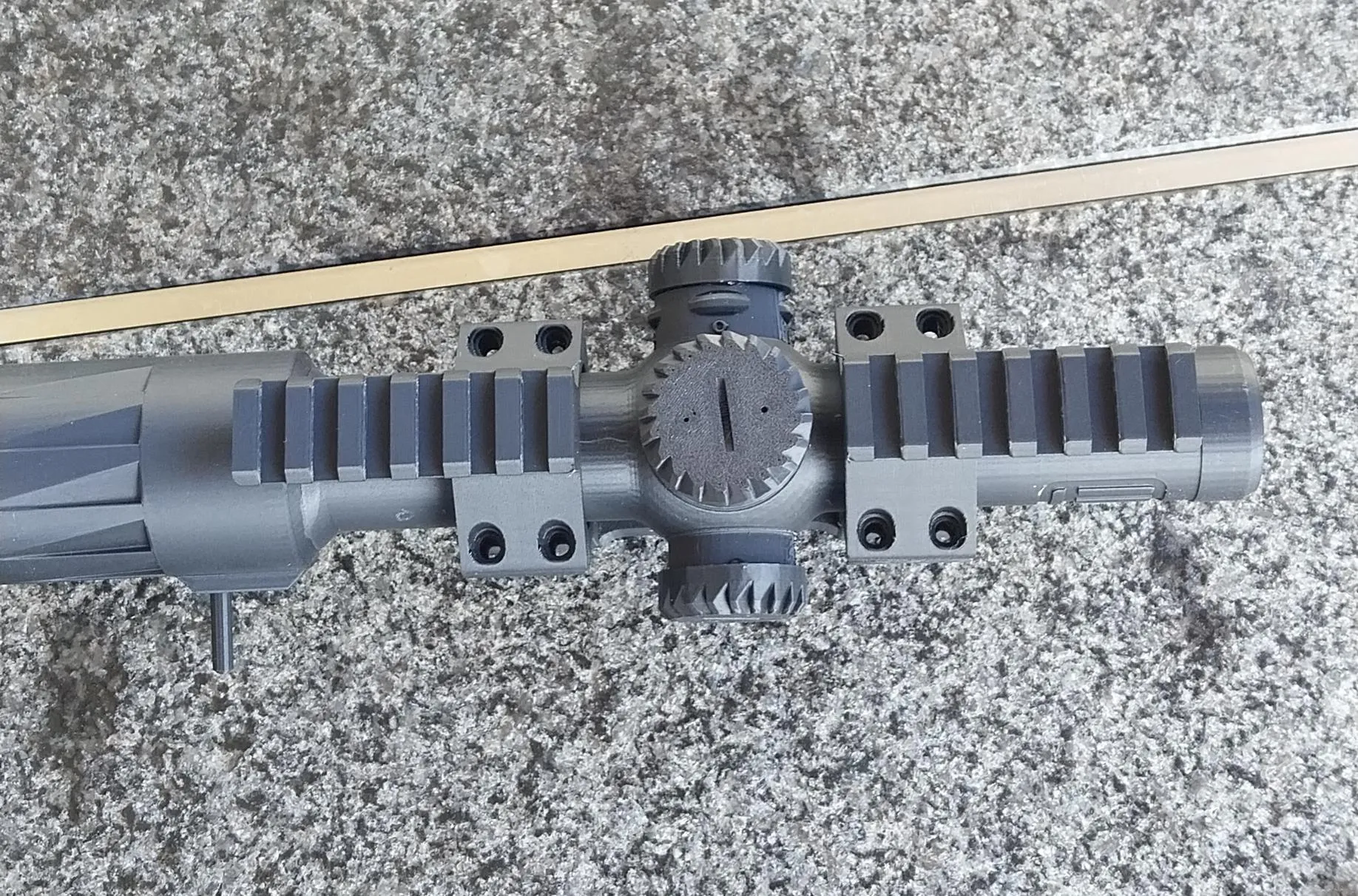

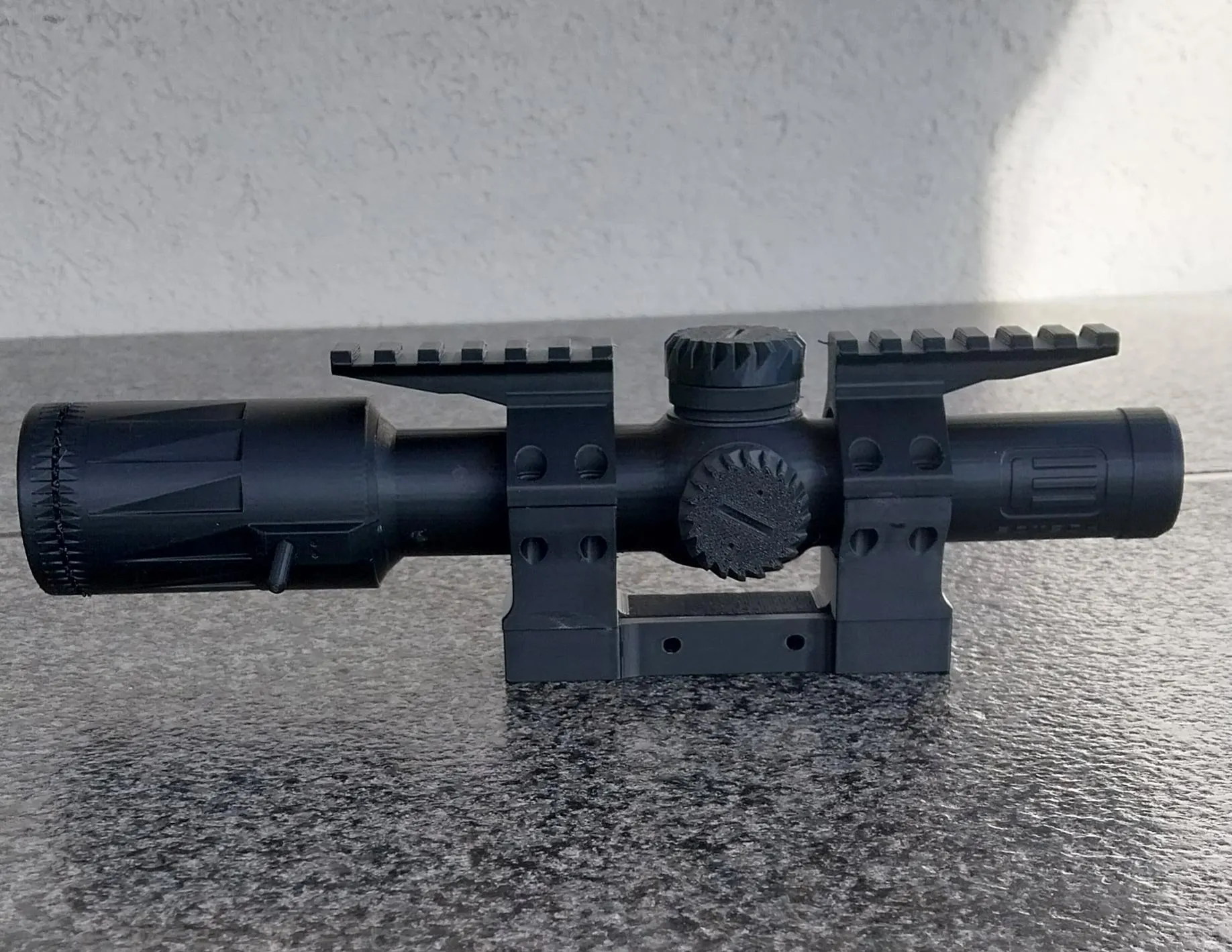

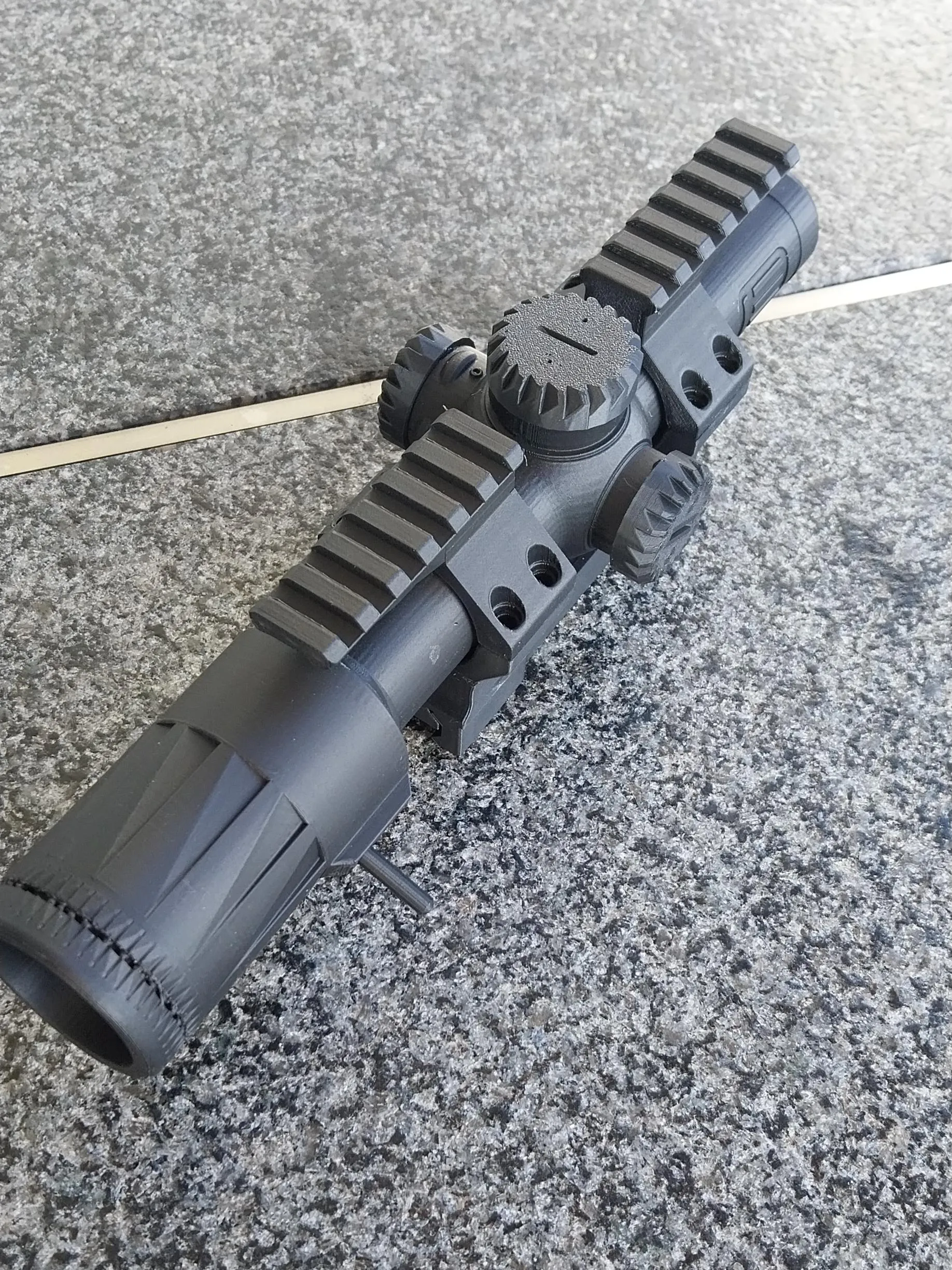

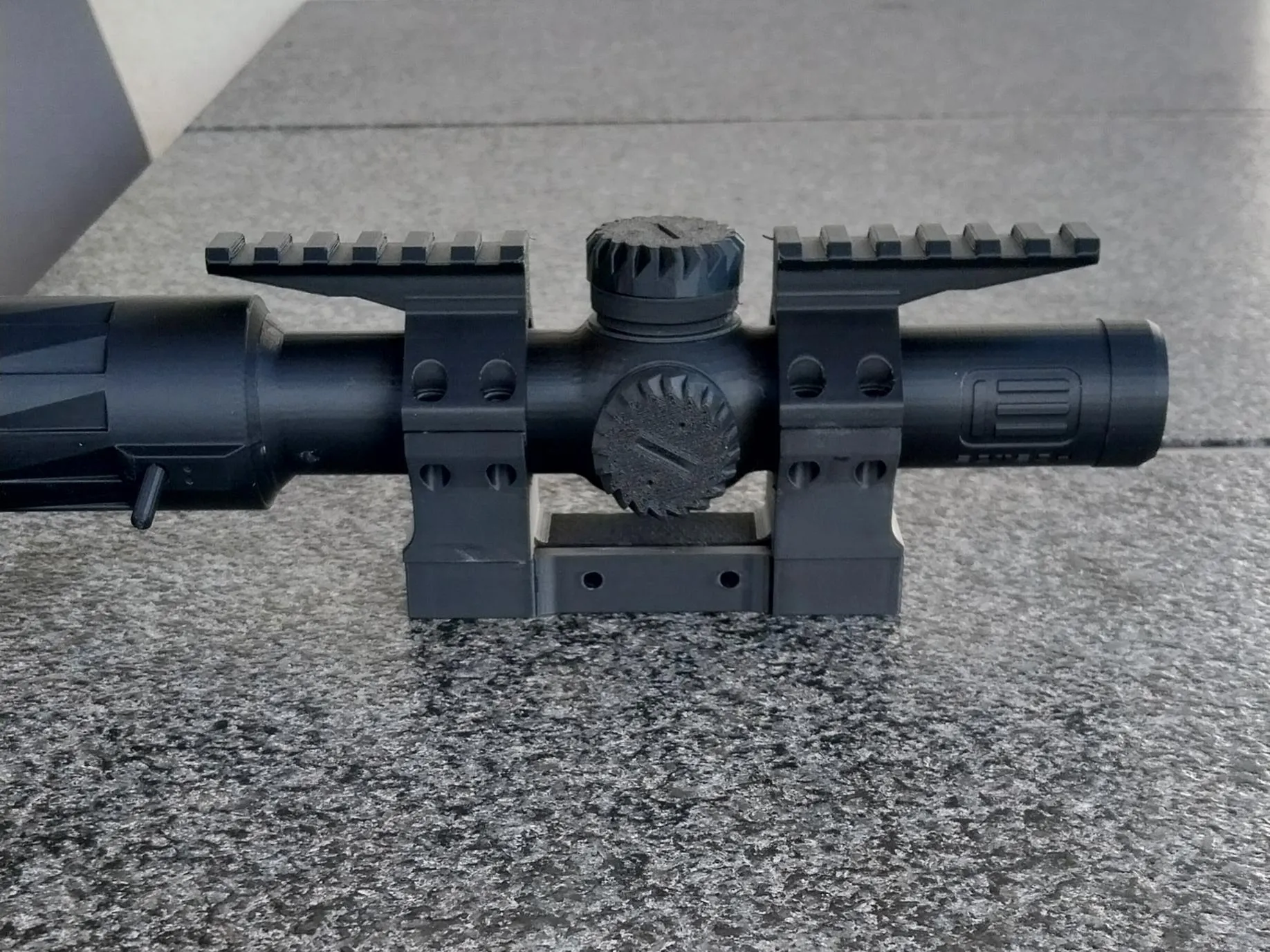

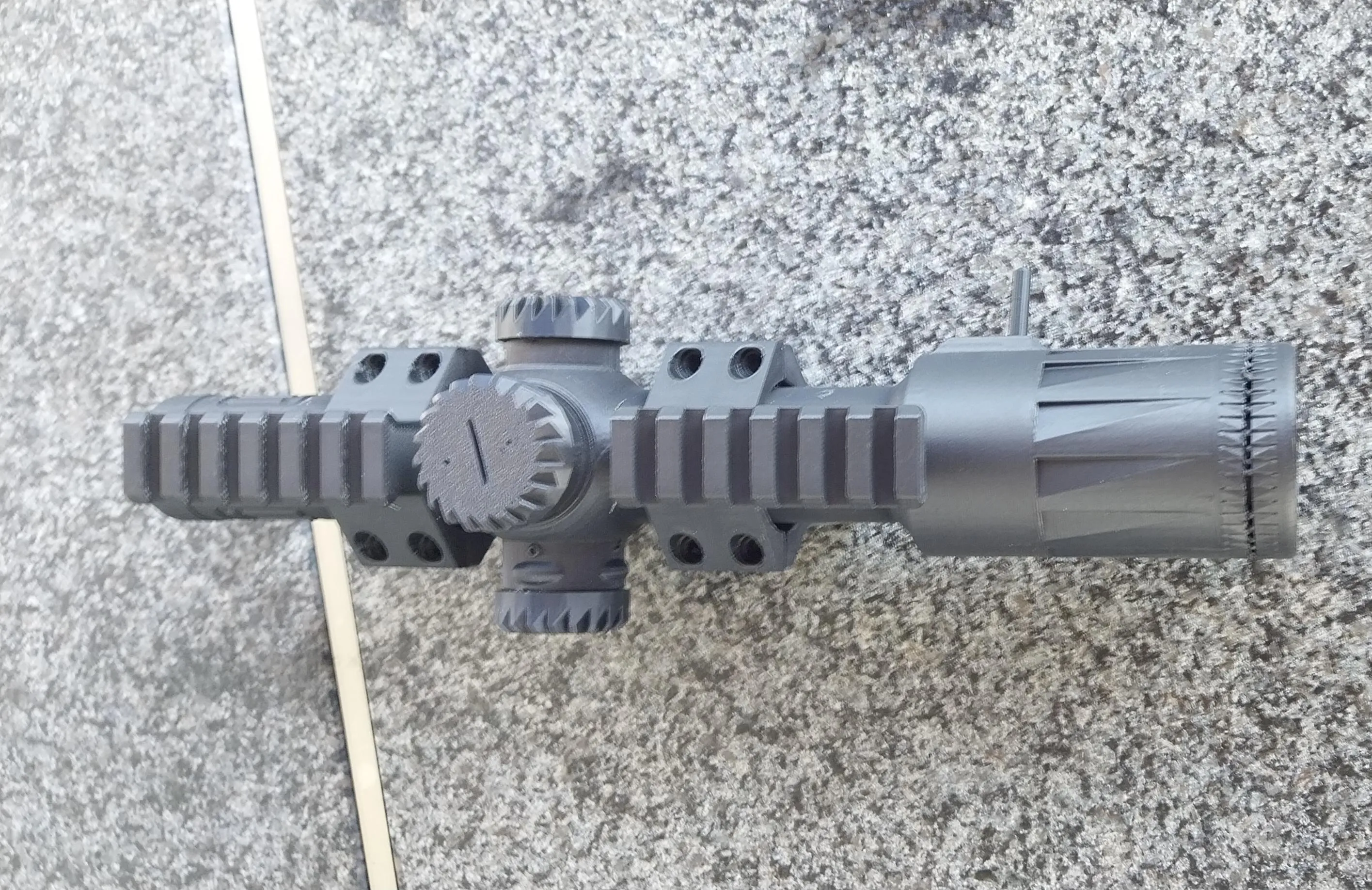

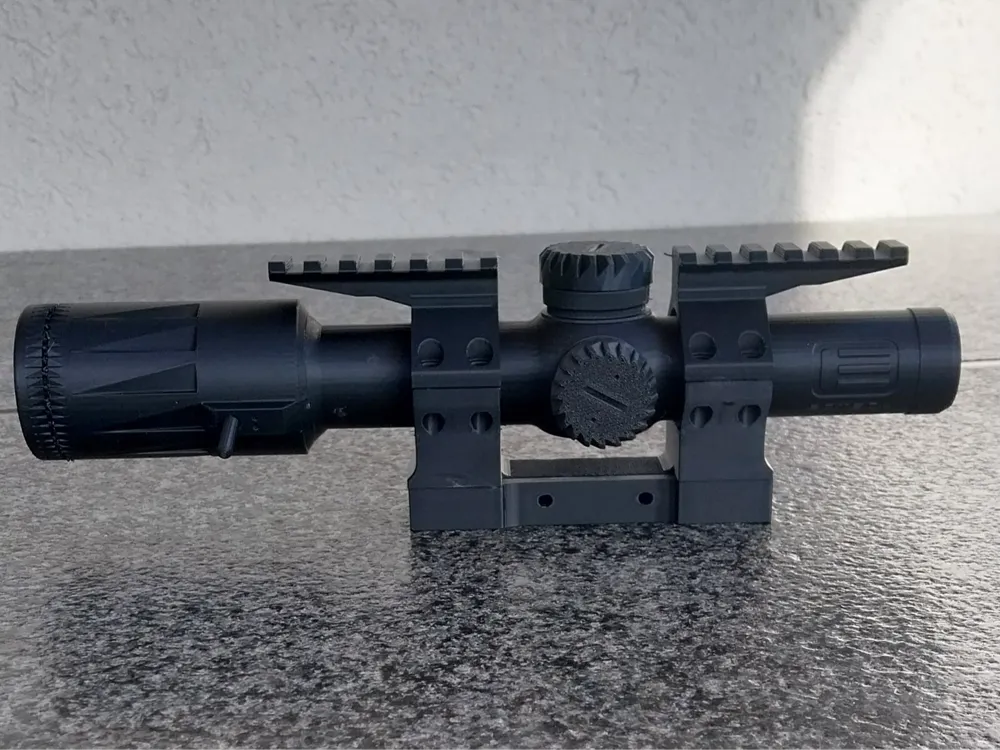

Thanks to @user_332709444 for the photos.If you could print a sample of this model and provide me with a photo of it, I would be grateful.

Whether for close-quarters fast action or longer mid-range scenarios, the EOtech 1-6x24 Vudu X Riflescope will get you on target. The magnification range suits everything from 3-gun competitions to medium-range hunting and shooting, with the BD1 illuminated reticle making it easy to center on the target. The optical system features bright and clear XC High-Density glass treated with antireflection multicoatings to deliver bright, clear, low-distortion high-contrast images. The lightweight and durable aluminum housing features a 30mm single-piece maintube, low-profile capped turrets, and a precision fast-focus eyepiece.

Boost Me (for free)

Please be sure to comply with your local laws and do not use the model for inappropriate purposes.

Under the new reward mechanism, please "Boost Me" more, give me five-star praise, and welcome everyone to share and show off their finished works, so that I can get more points. Your support is my biggest motivation to continue designing more models.

Reminder:

  • Different filaments may cause the parts to be too loose or too tight, and may also make some supports difficult to remove.
  • The position of the model printing takes into account strength and appearance (for example: vertical surfaces have better fineness and better representation of patterns and text; horizontal printing axes sacrifice accuracy but have better strength).
  • Please keep the printing plate clean. All models are confirmed to be printable. It's not my fault if it turns into spaghetti.
  • It is recommended that you equip yourself with a heat gun. Slightly heating the parts can solve many minor problems and can also compensate for minor part tolerances.

Boost Me (for free)

Comment & Rating (17)

(0/1000)

The tolerances on the screws were too tight(they would just break( so i used metal M3 screws and bolts instead, the tolerances around the scope and the scope mount were too loose so i solved that with several layers of packing tape, otherwise great work!
designer
3
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
the screws are too tights. tolerances are too tight. I used M4x16 DIN912 to mount the scope, and M4x30 to mount to picatinny. The scope is too loose in the mount, I used electrical tape to increase it’s circumference.
(Edited)
1
Reply
Wow this looks fire. Also, where did you get your supressor? I love 'em.
0
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
This beautifully designed, looks amazing. very easy to assemble. Screws are not great however thats a small issue.
0
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
1
Reply
I have a suggestion, you should add a supressor, trust me it will look fire.
0
Reply
I hope you can provide beautiful sample photos
0
Reply
works very well
Show original
1
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
quite nice
Show original
0
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
top
0
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
0
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
0
Reply
