Spice jar and stock cube storage system/rack

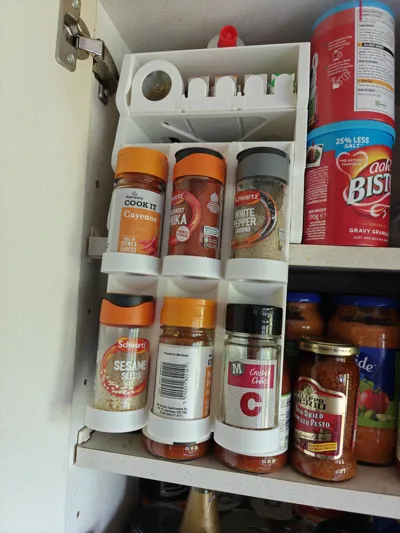

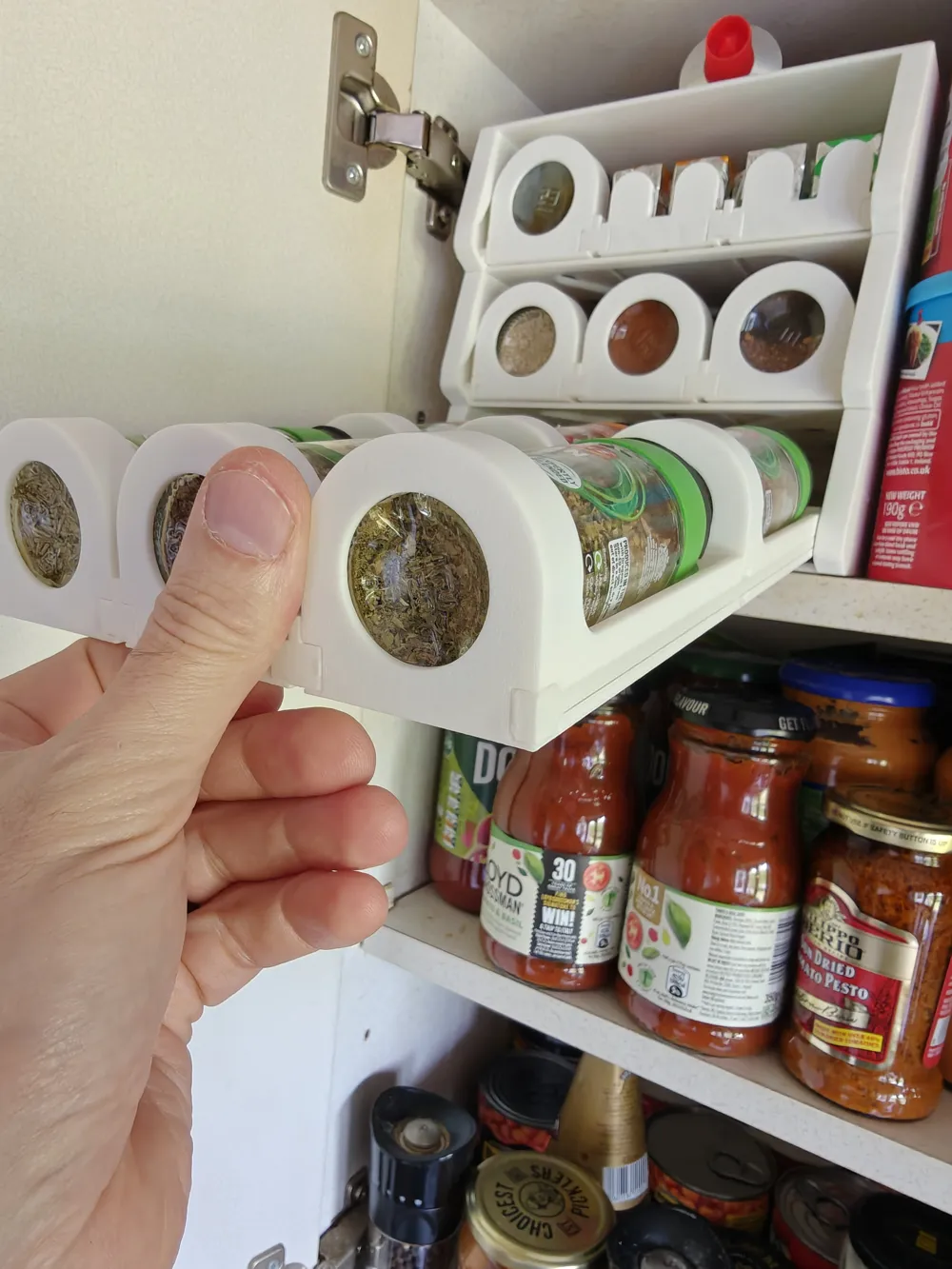

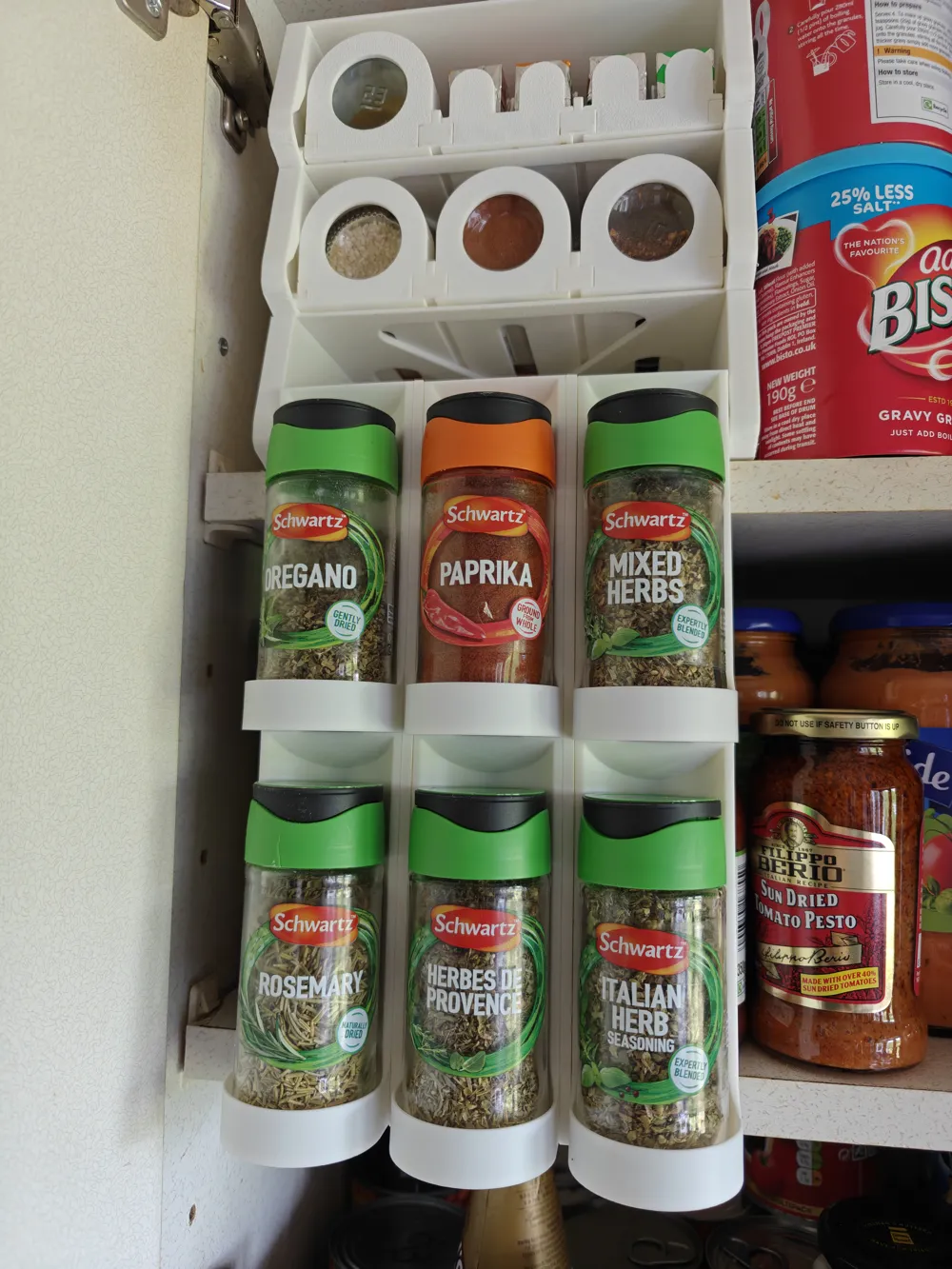

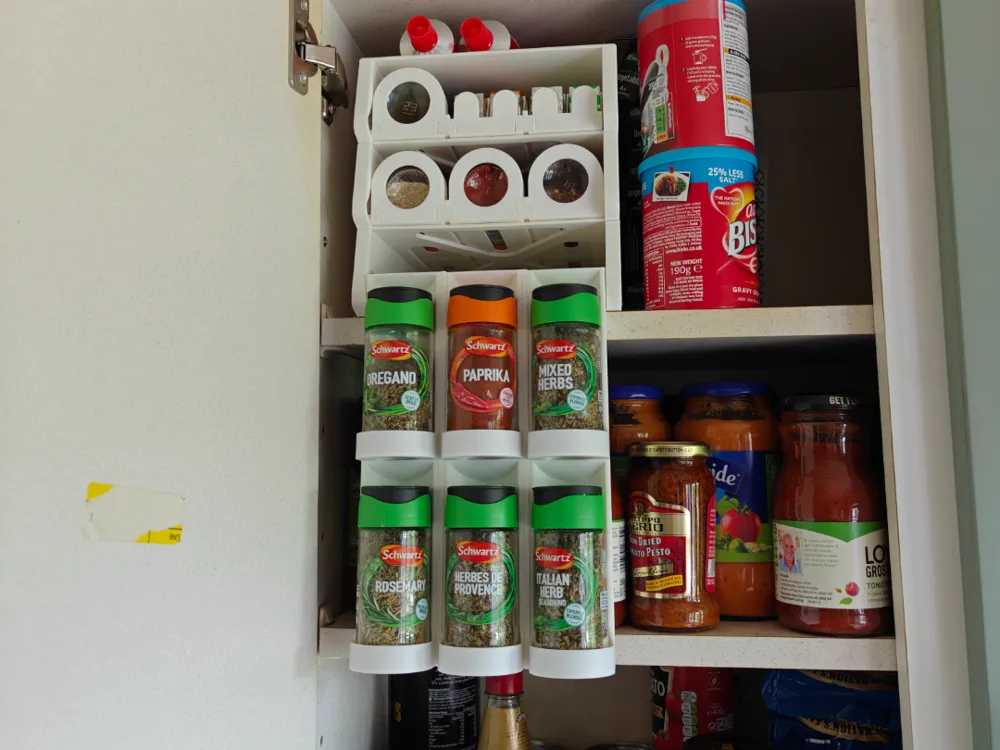

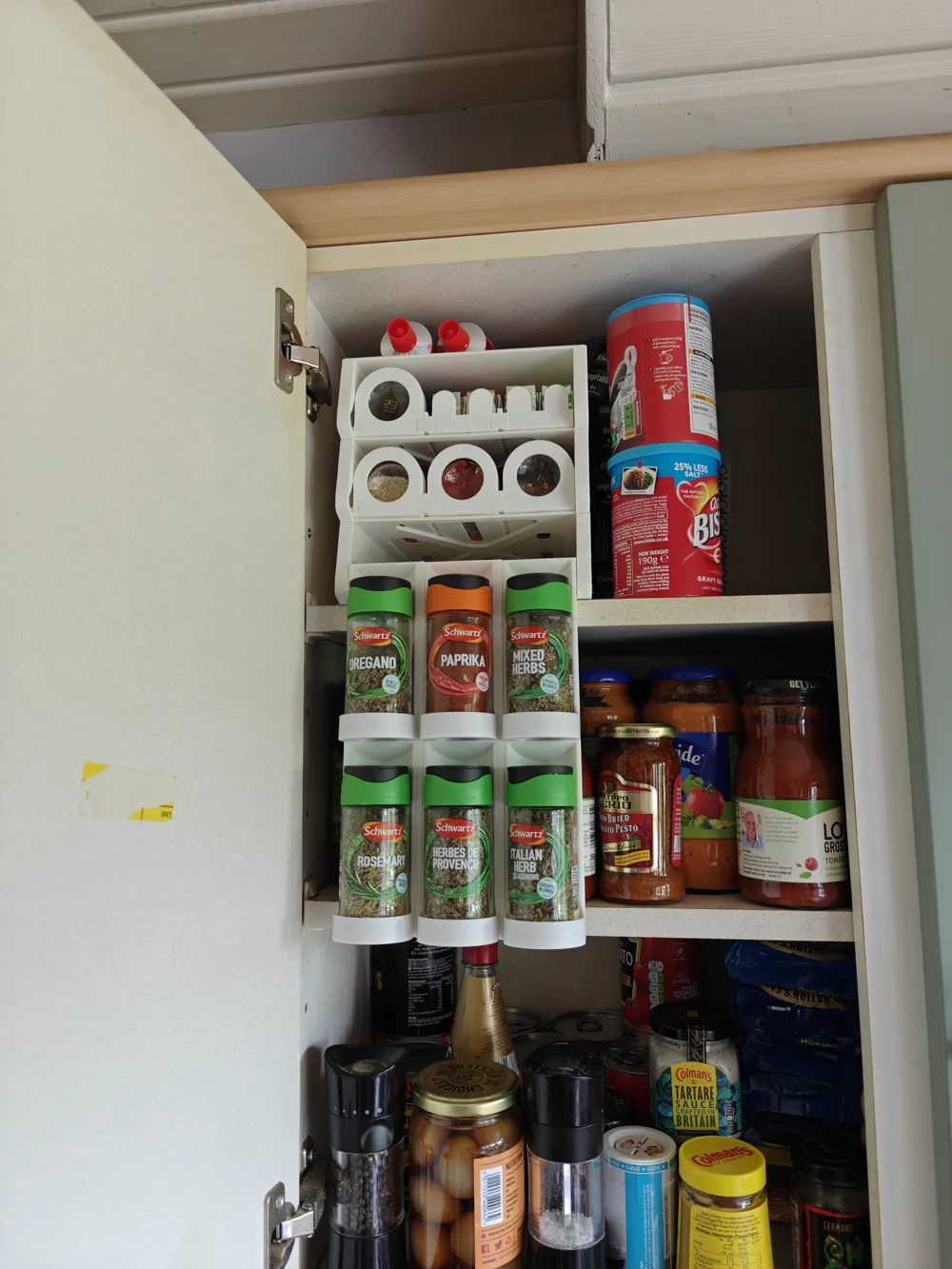

I wanted a storage system for my Spices, Herbs and Stock cubes. I sore mine on a high shelf so I desigend a pull out/down storage rack.

Its modular so you can mix and match between Spice/ Herb jars and stockcubes Each Rack holds a combination of 6 Spice/herb jar holders or Stock Cube holders. NOTE - THE STOCK CUBE STORAGE CAN ONLY BE USED ON THE BOTTOM ROW OF THE STORAGE RACK.

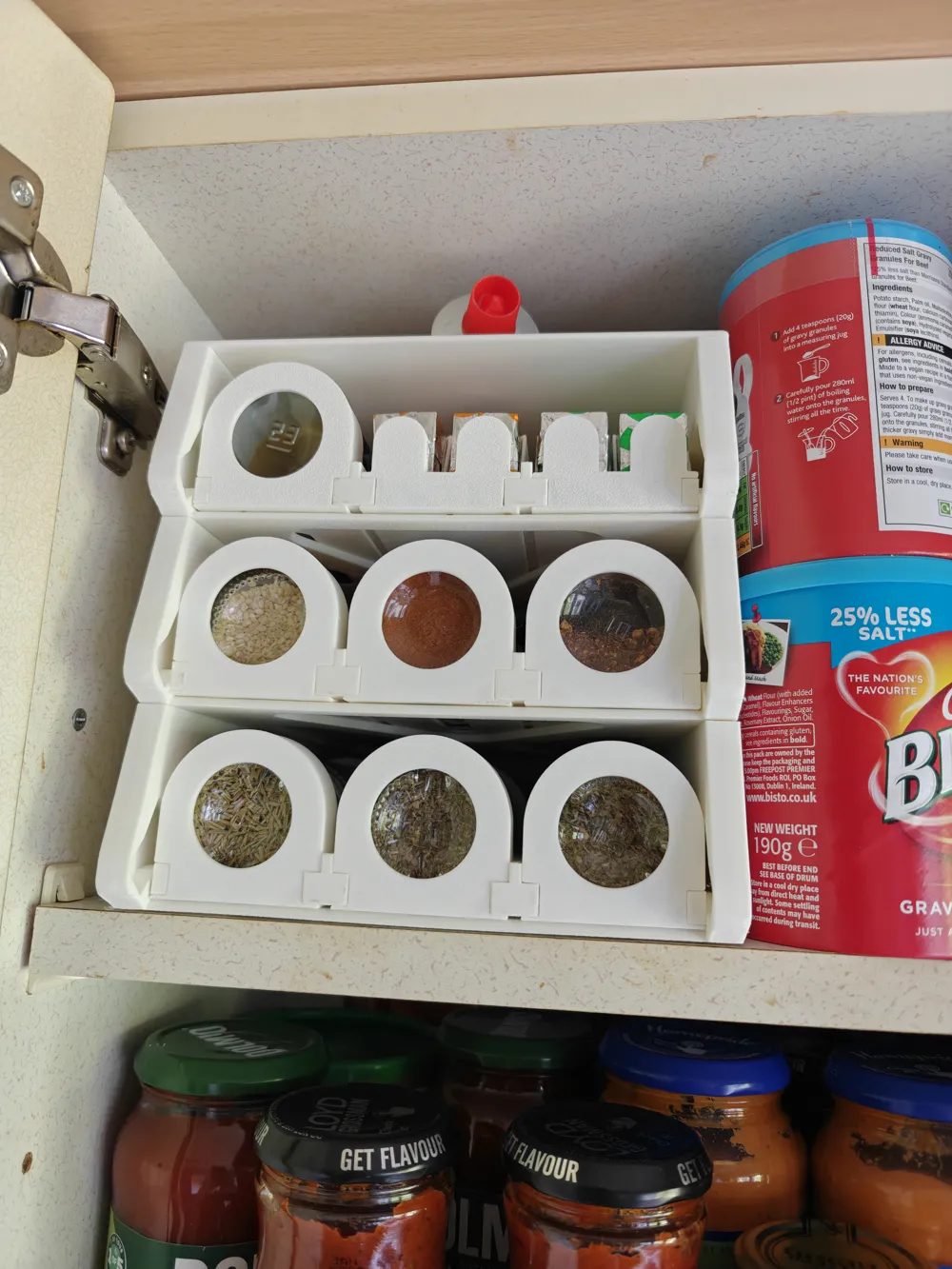

The racks are also stackable, though they do require a little dab of CA glue to hold them in place. The racks do need to be stuck to your shelf with some double sided tape. The is also a plate for a printable lid so you can store other items on the top if you wish.

The print profile has 7 plates.

Plate 1 is the the rack and the rails required for assembly.

Plate 2 is for 6 Spice/Herb Jar holders, this will fully fill one rack.

Plate 3 is for 4 Spice/Herb Jar holders.

Plate 4 is for 2 Spice/Herb Jar holders.

Plate 5 is for 1 Spice/Herb Jar holders.

Plate 6 is the Lid.

Plate 7 is for 1 Stock cube holder.

The rack measures 255mm deep x 61mm high x 174mm wide.

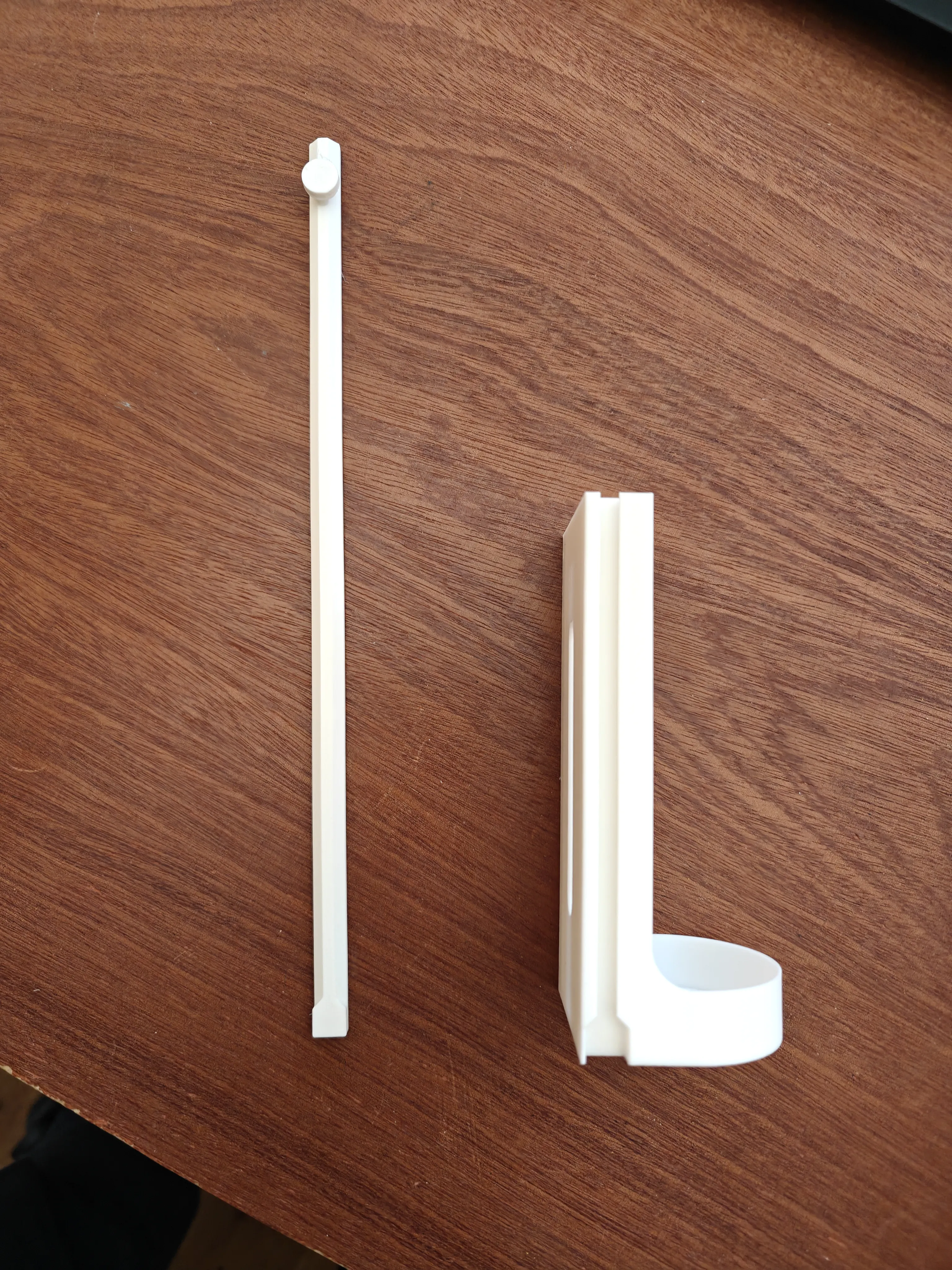

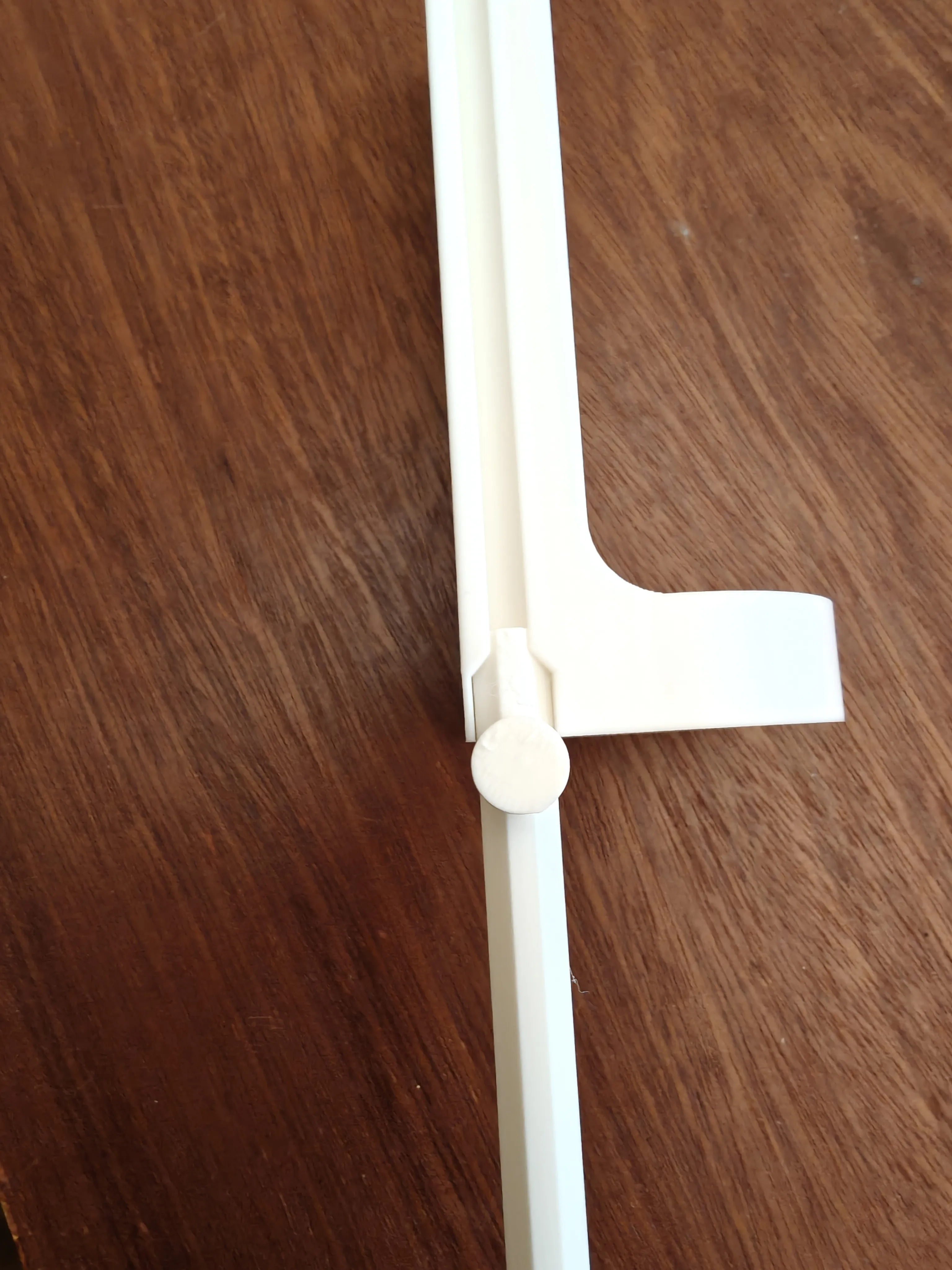

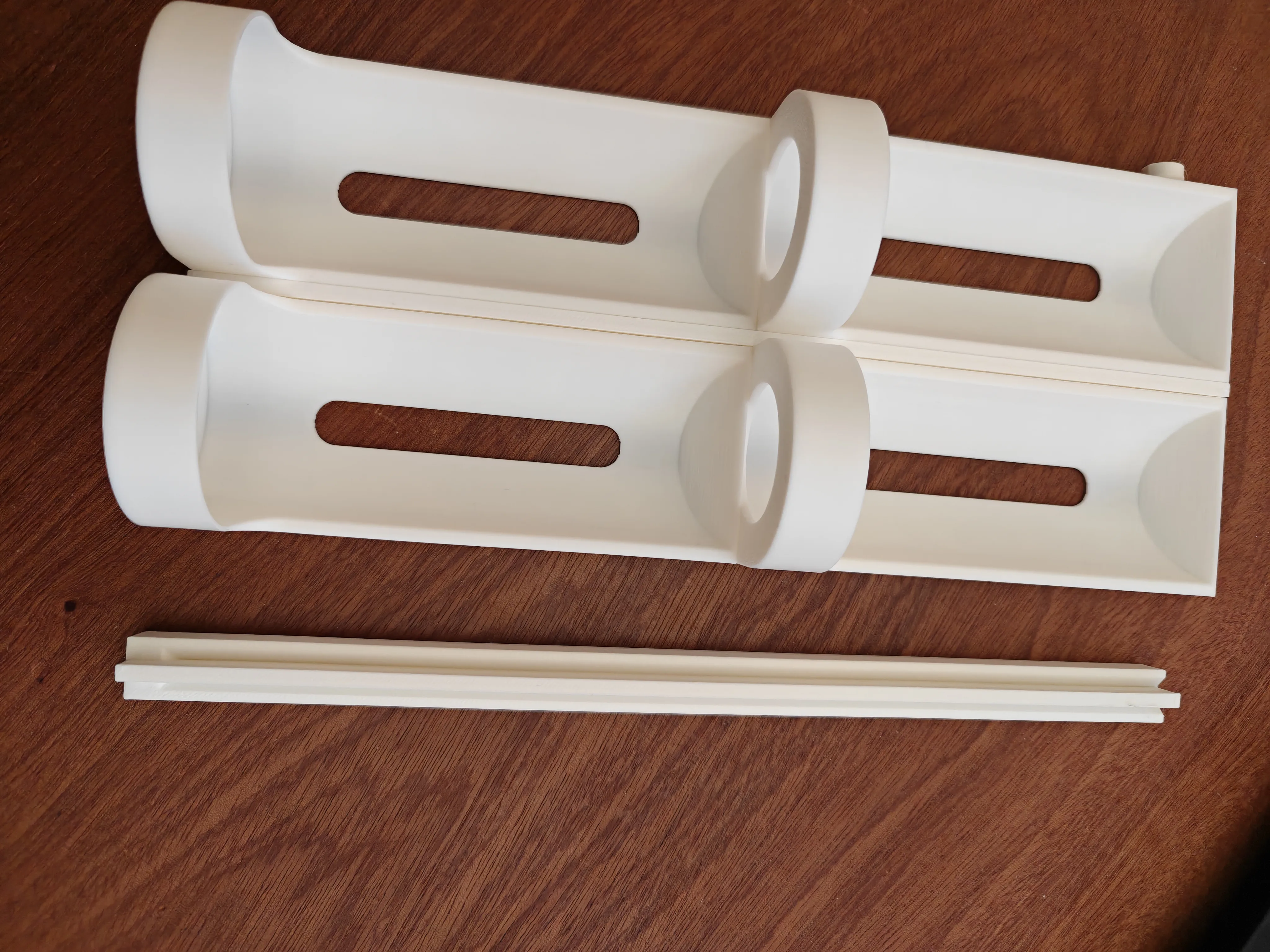

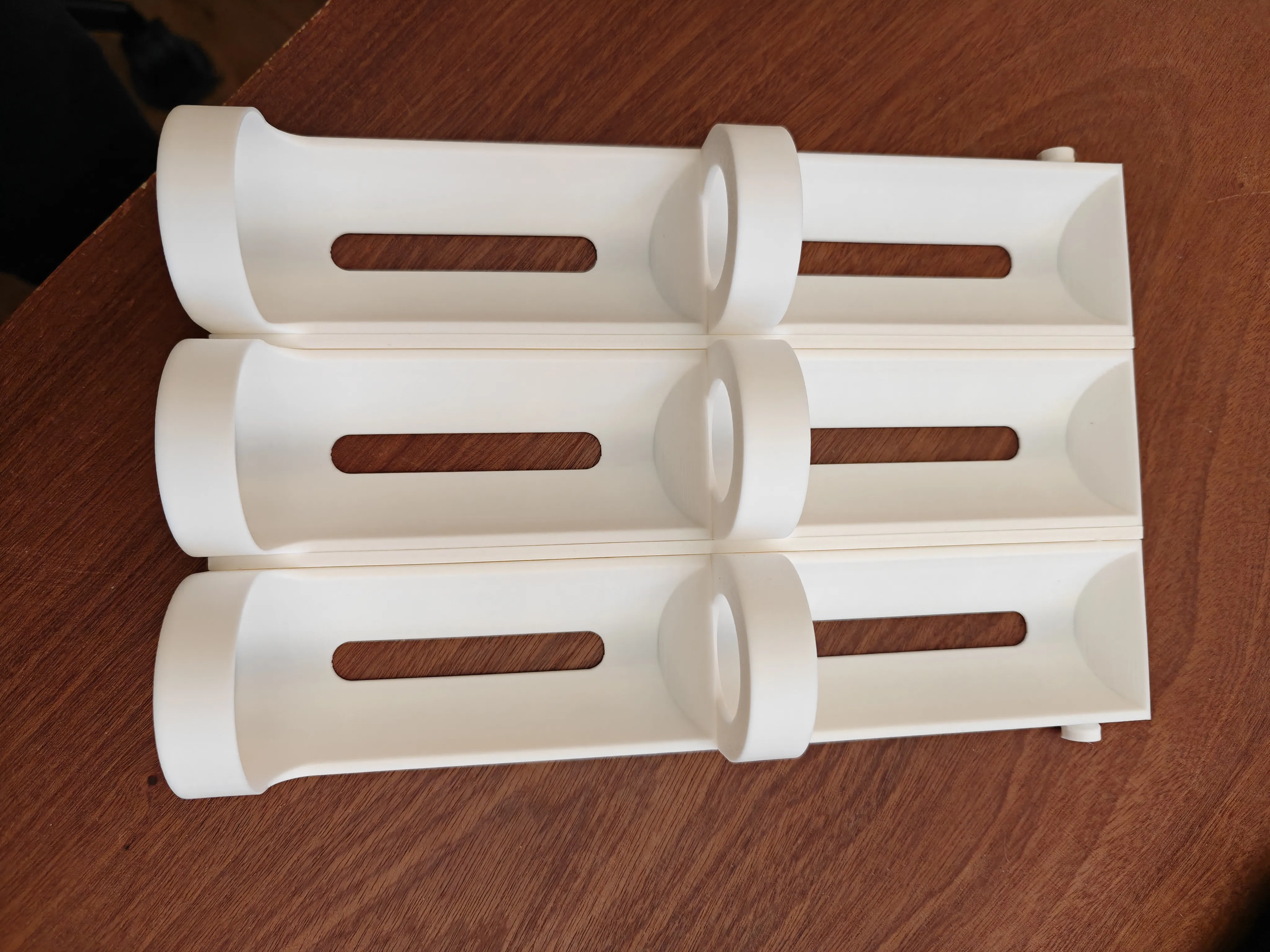

To assemble each rack, slide the side rails onto the jar holders making sure you have the notched part to the bottom.

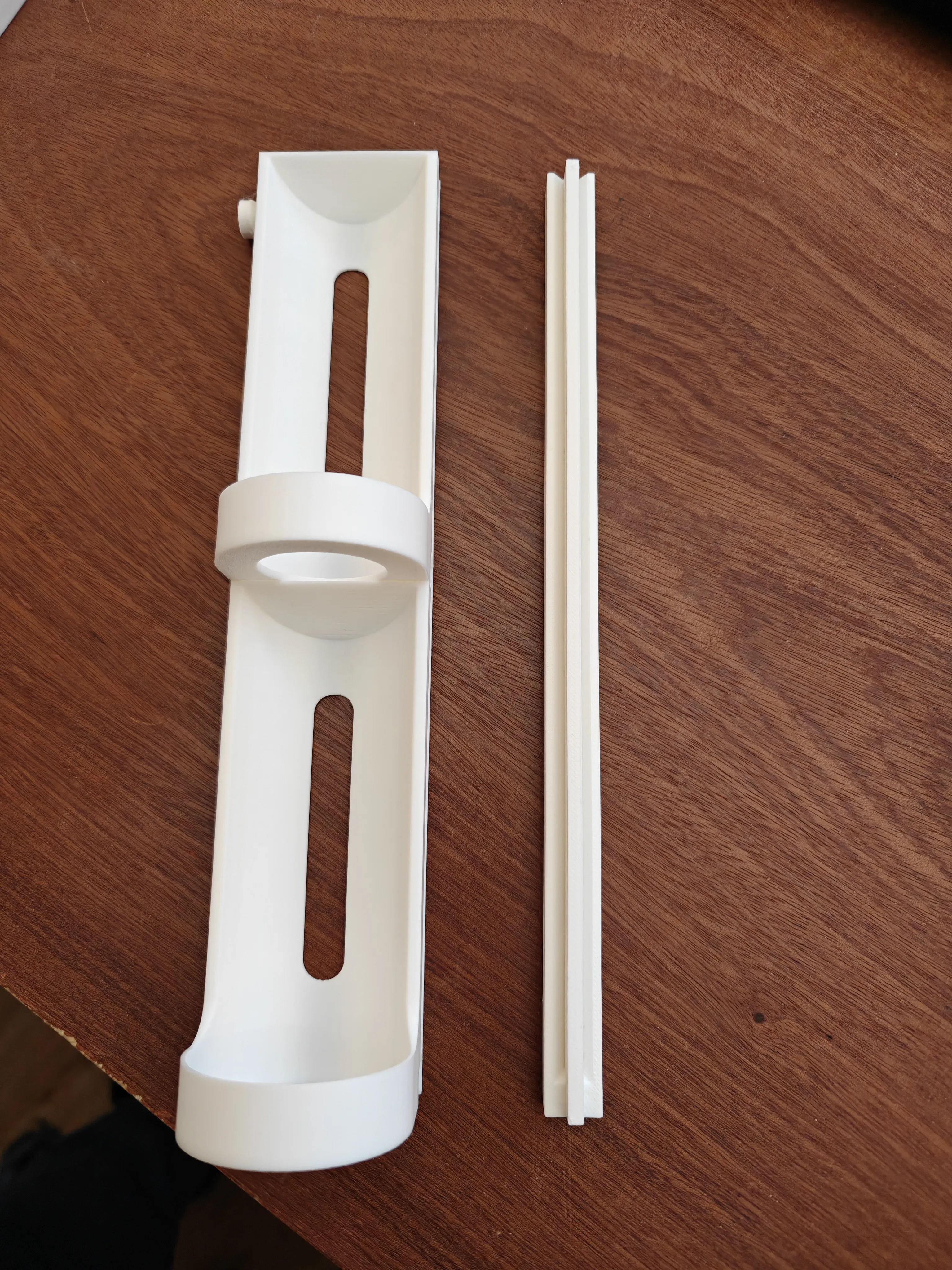

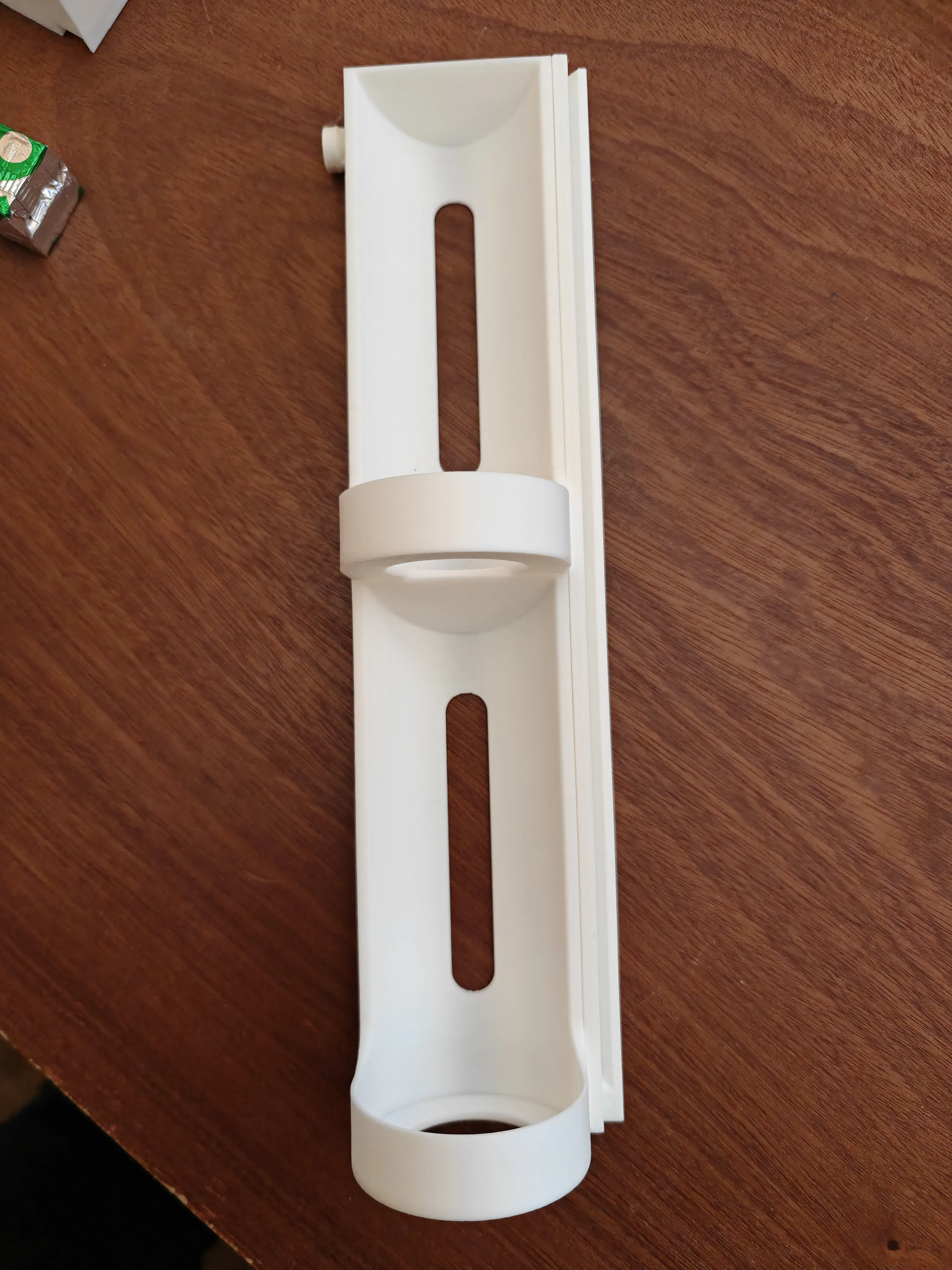

Then add the upper Jar holder to the rail and slide in the first middle rail.

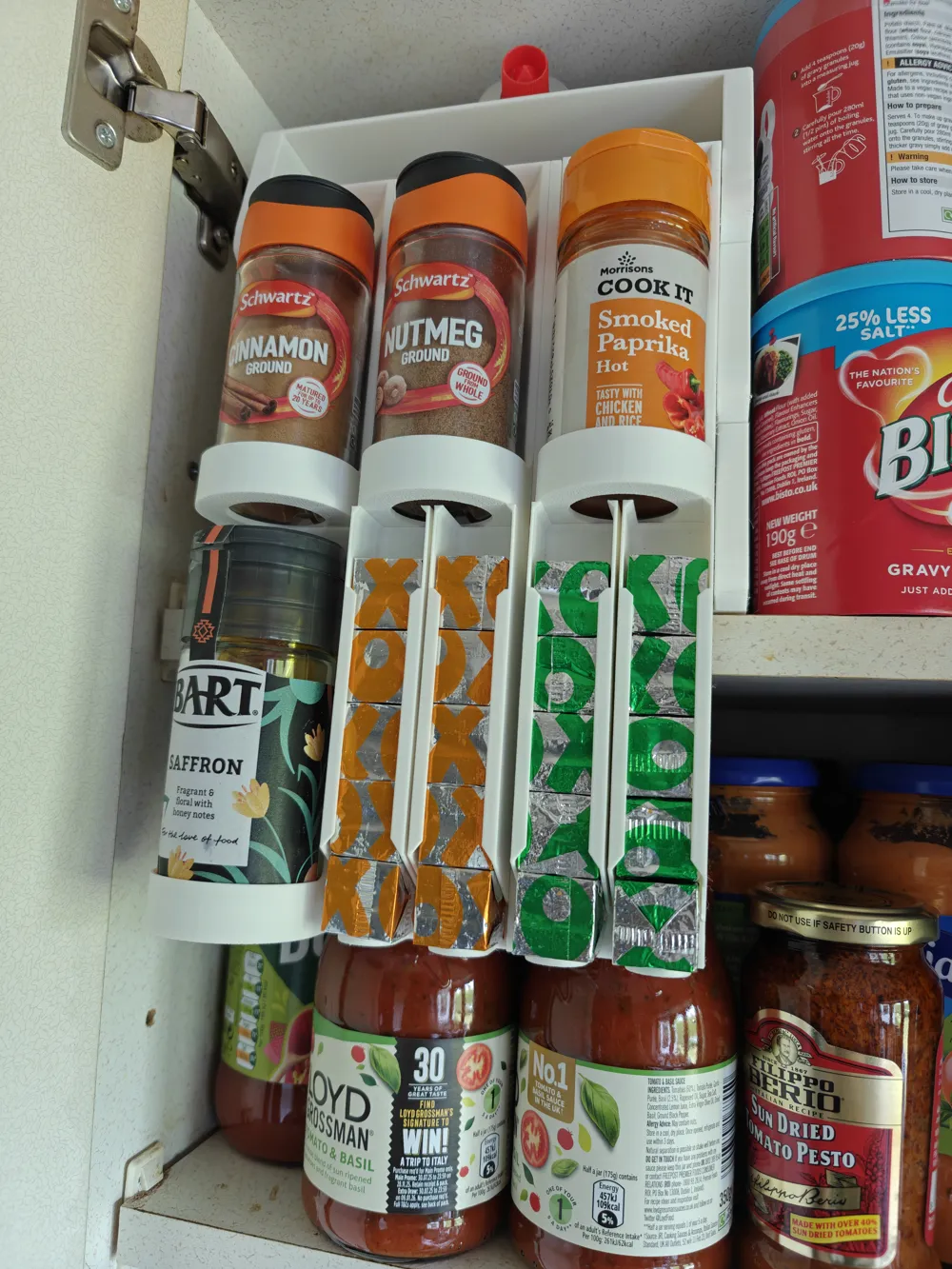

Then add the next row of jar holders or stock cube holder. NOTE - THE STOCK CUBE STORAGE CAN ONLY BE USED ON THE BOTTOM ROW OF THE STORAGE RACK.

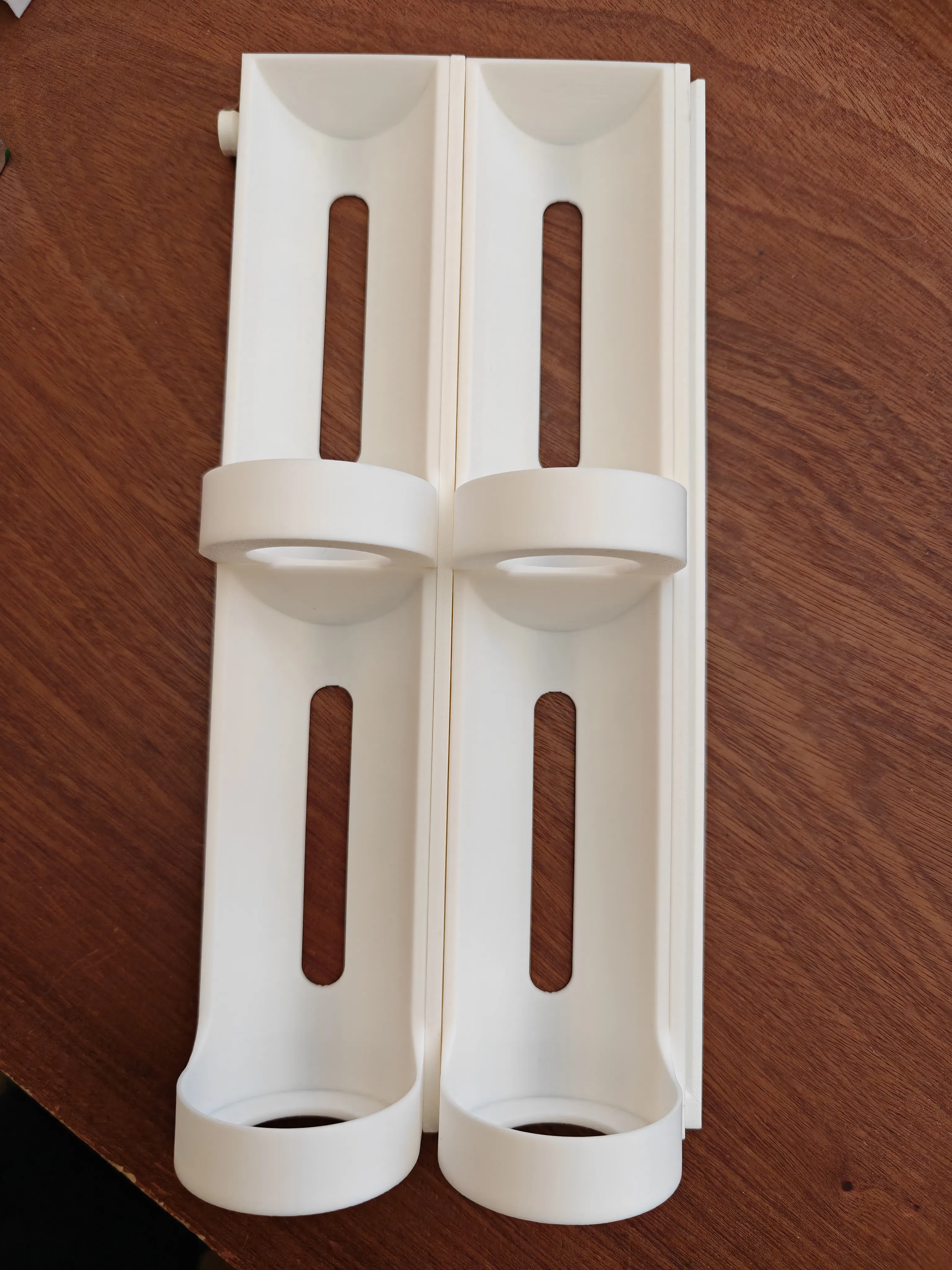

Slide on the last 2 jar holders and slide in the final side rail.

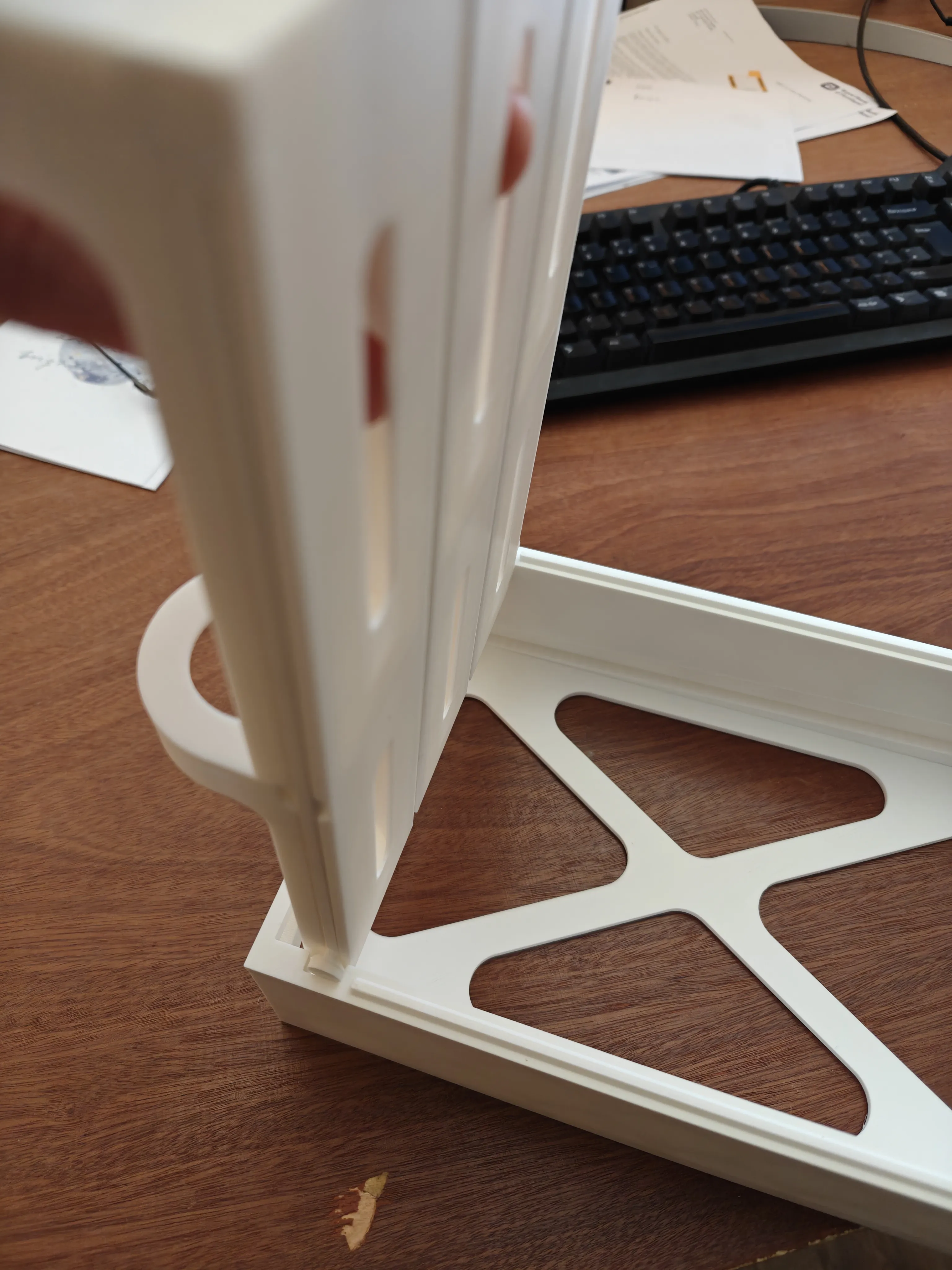

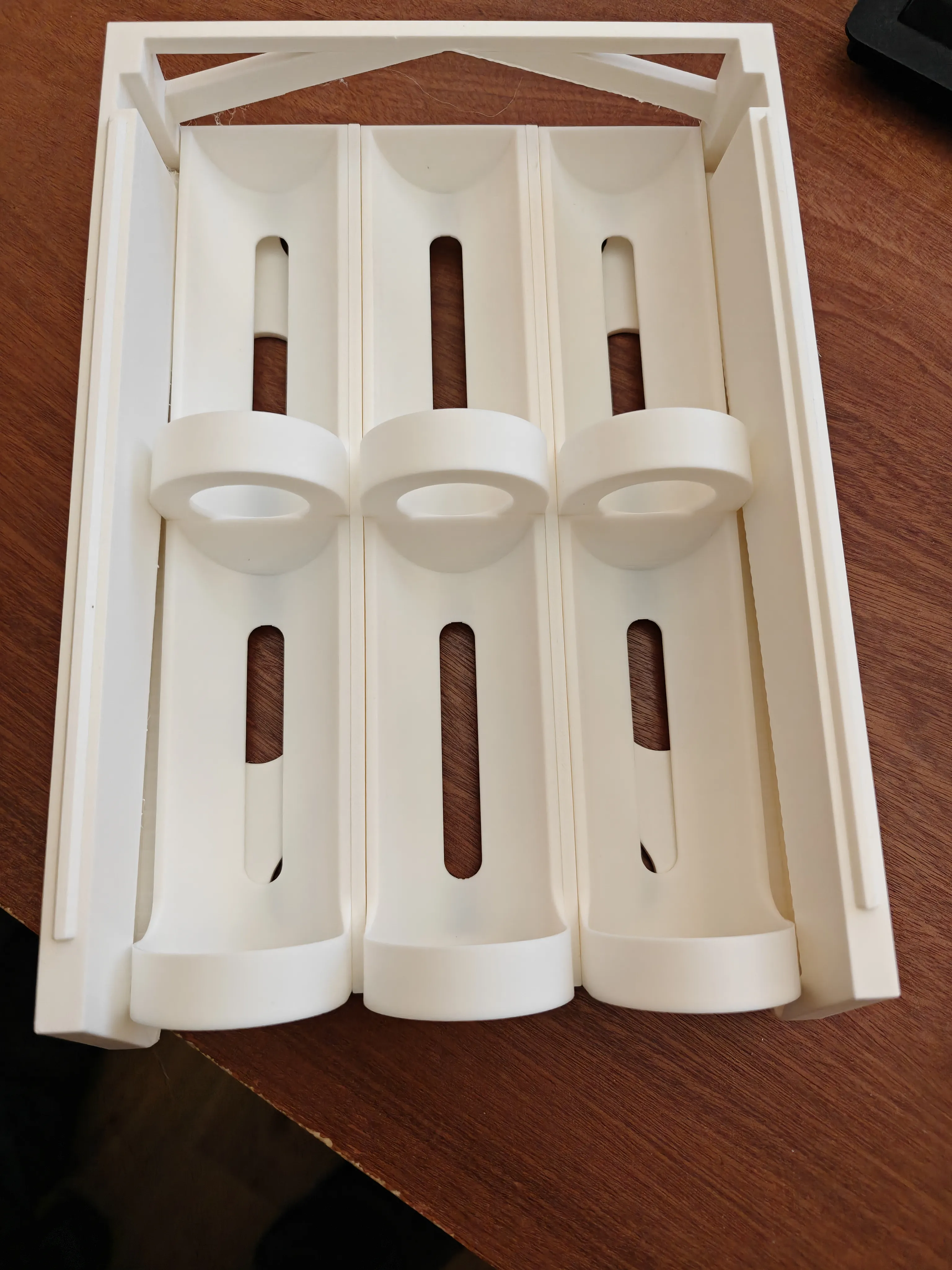

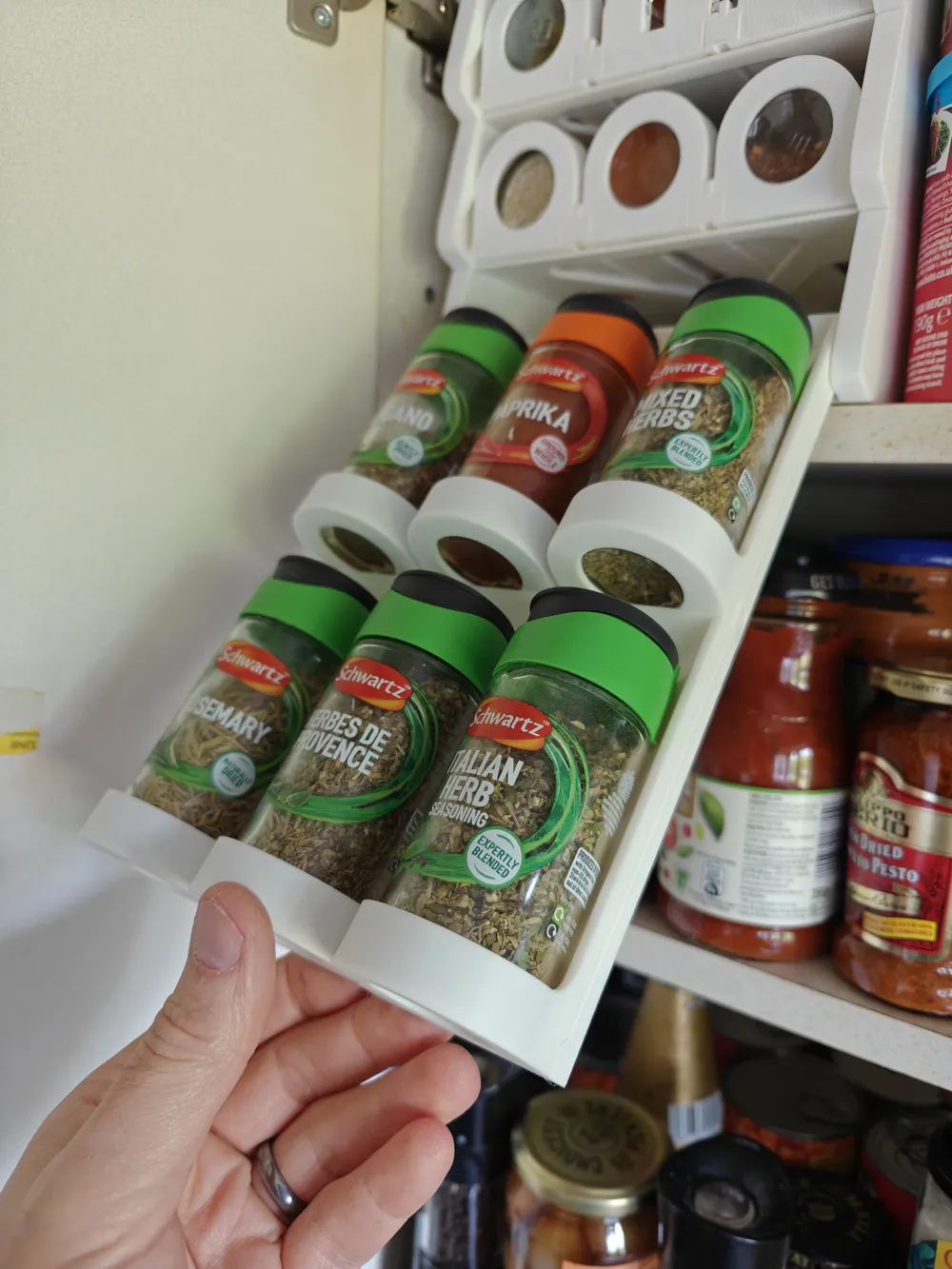

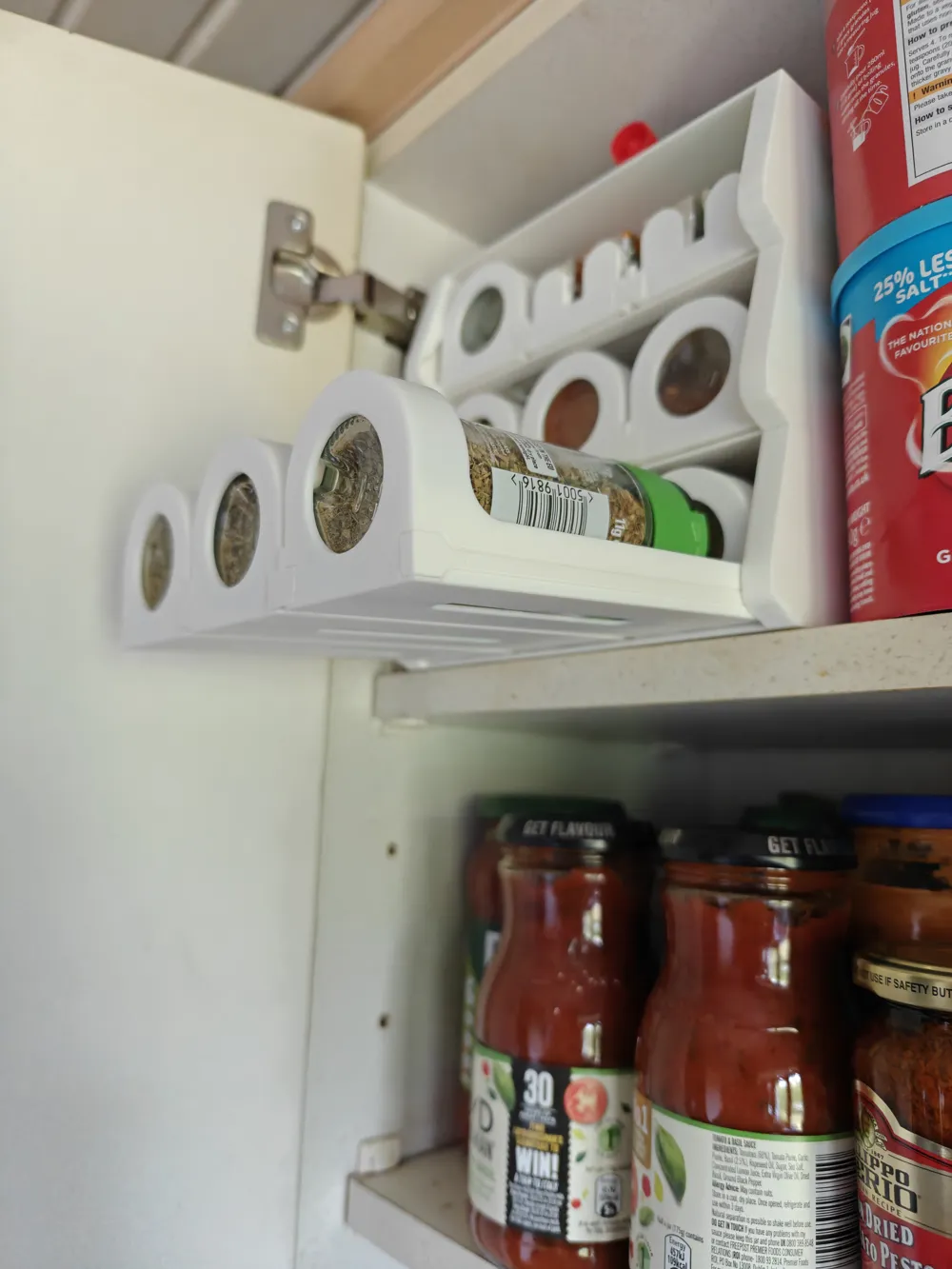

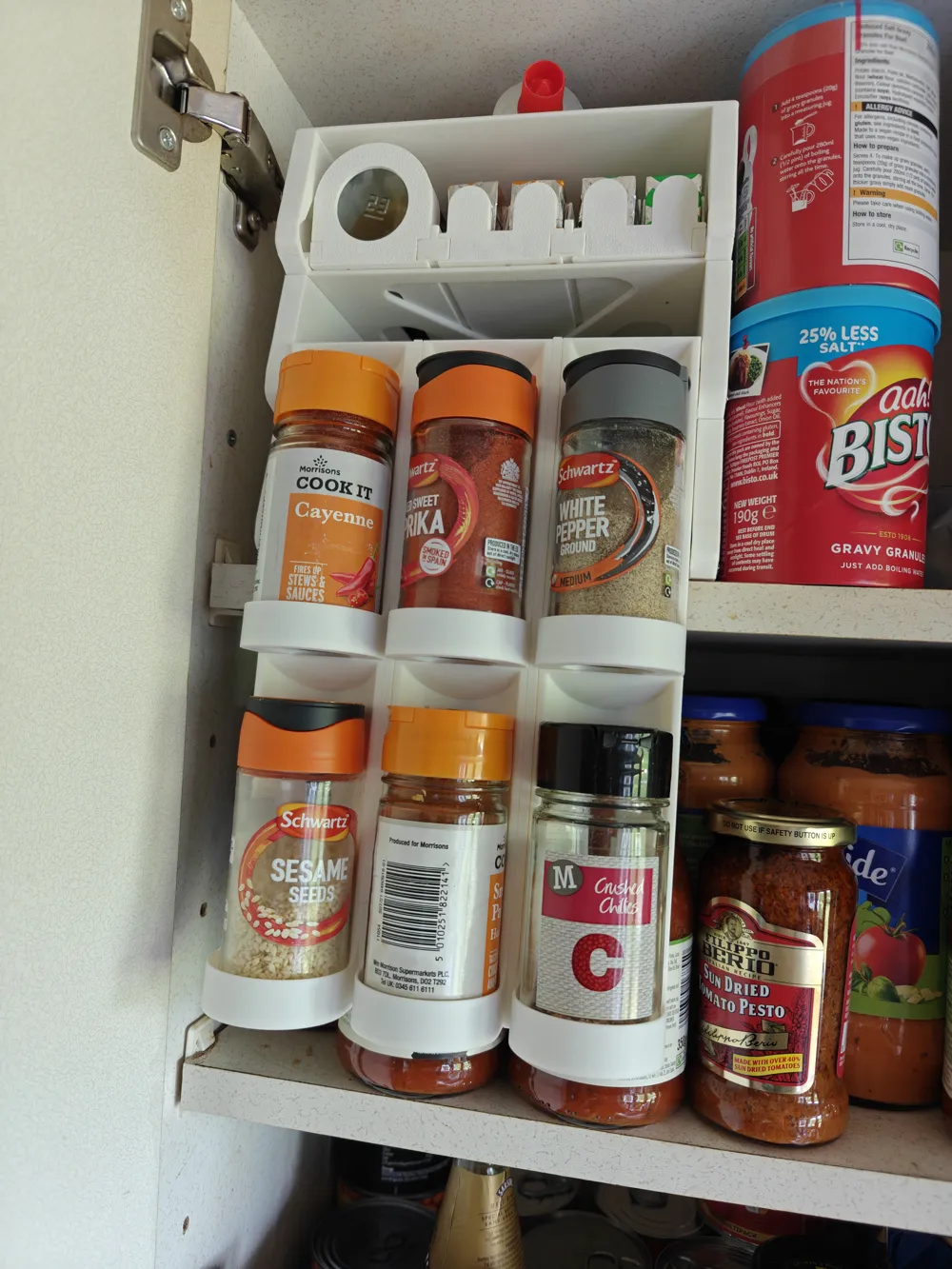

Then slide the rack into the frame, you need to hold the rack upright and lower the side rail lugs into the grooves, then tilt the rack until its flat.
