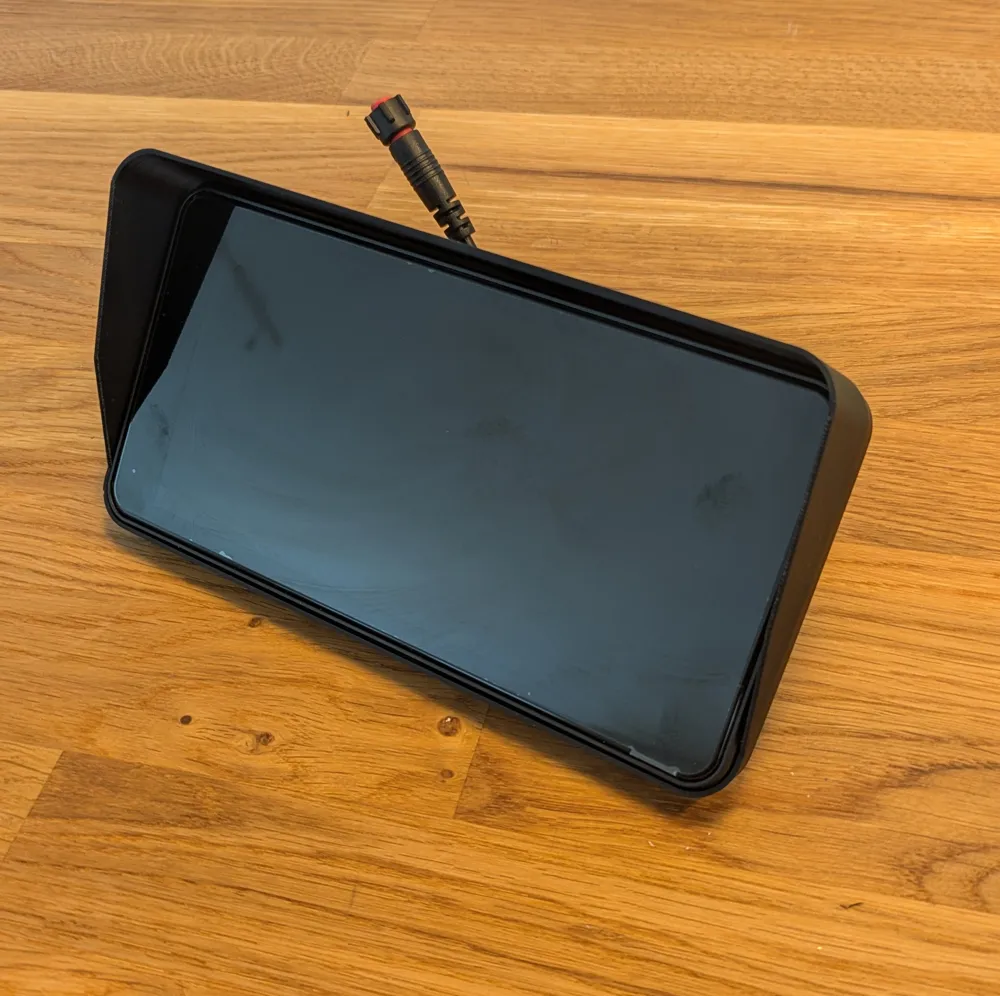

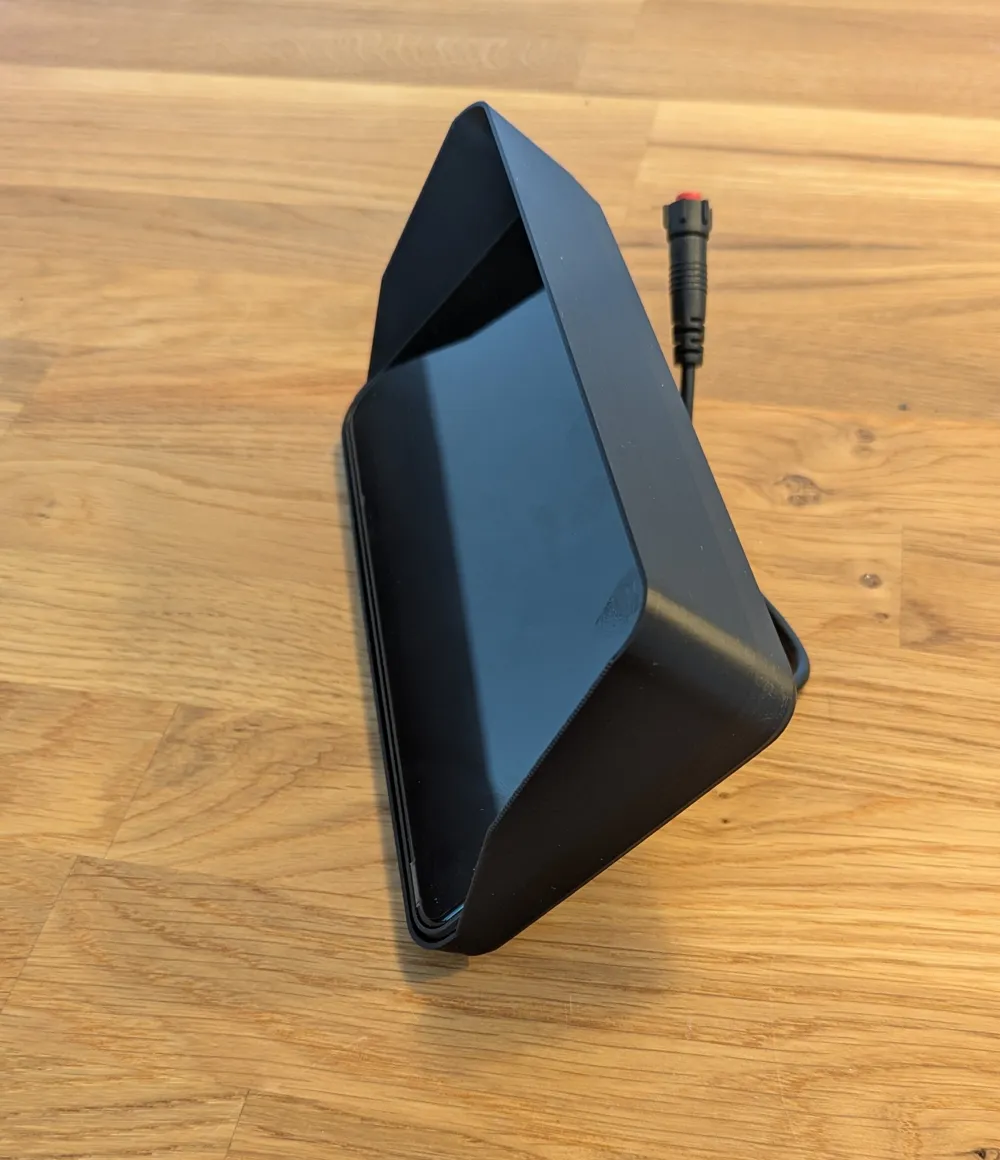

Sun Shield for EKIY MTC-14 Screen 6.3"

Sun Visor for EKIY 6.3" MTC-14 Wireless CarPlay / Android Auto Display

Device

I got this Display for my motorcycle from AliExpress "EKIY Wireless CarPlay Moto Android Auto 6.3 inch GPS Motorcycle Navigation Display Screen Portable Digital Motorcycle Dashboard"

https://de.aliexpress.com/item/1005007986846517.html

Print & Install

• I used PLA+ because I had nothing else at hand - TPU or PETG might work great

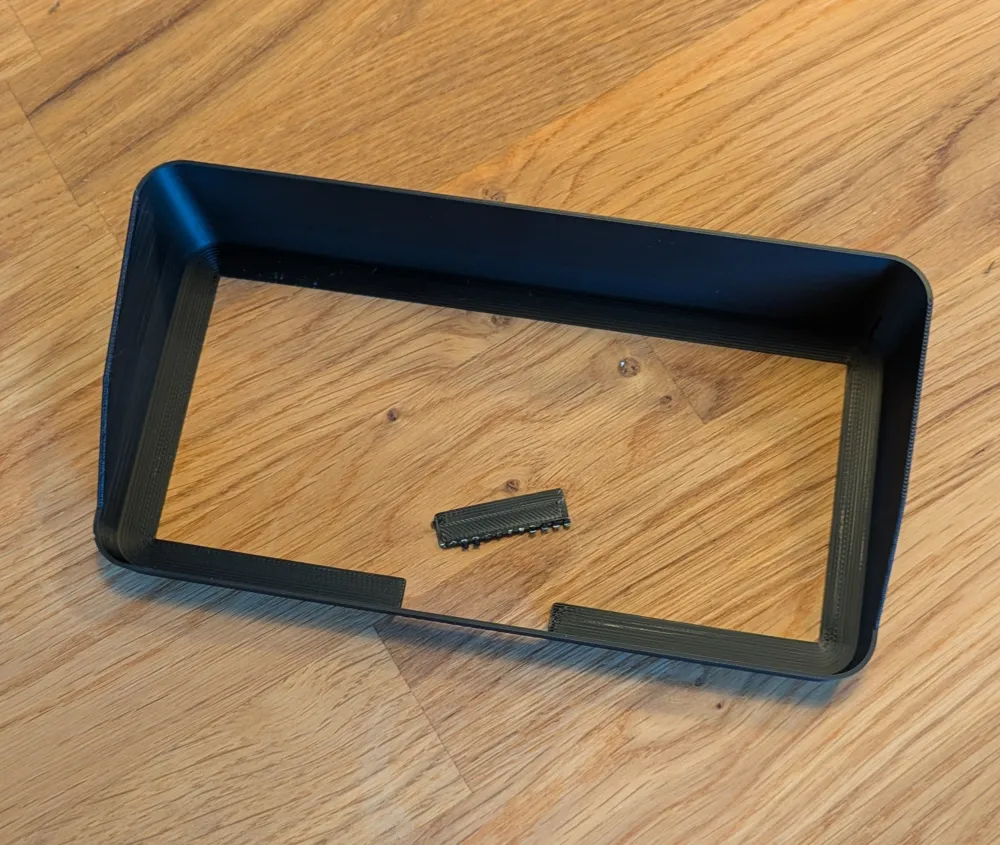

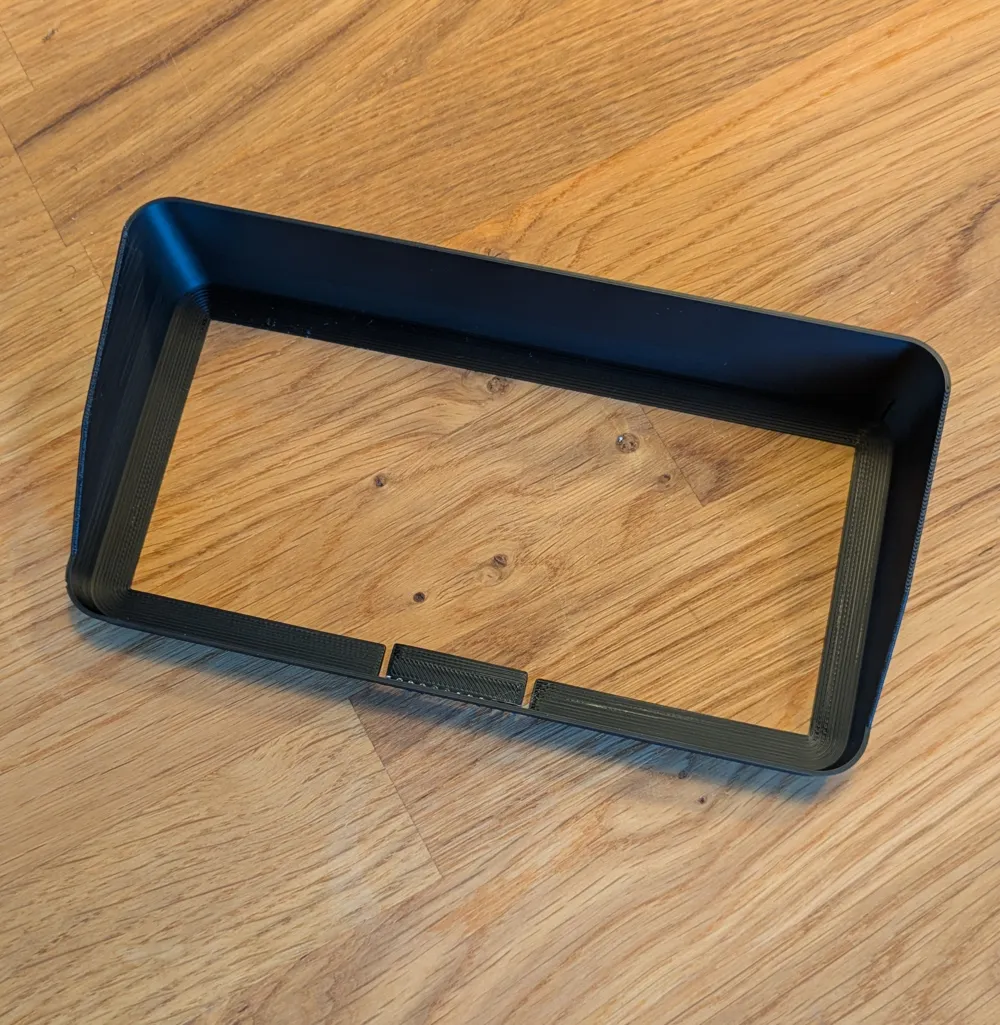

• no supports needed, the small support lip at the bottom can be just broken off after print

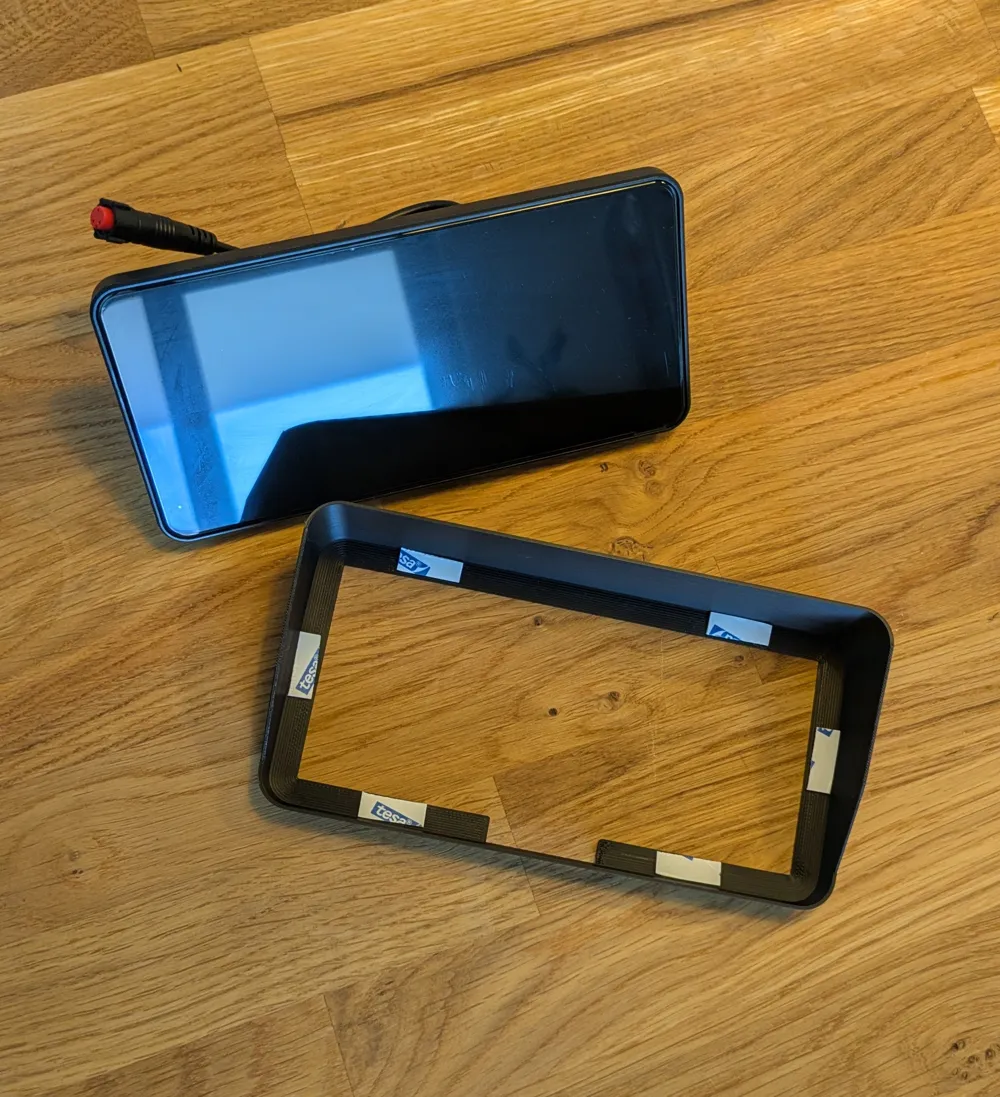

• add some double sided tape to keep it in place

PSA How to change to boot and start logo images for EKIY 6.3" MTC-14

Additional info for Users of this Display - got nothing to do with 3D printing 😄
(because I searched very long for it)

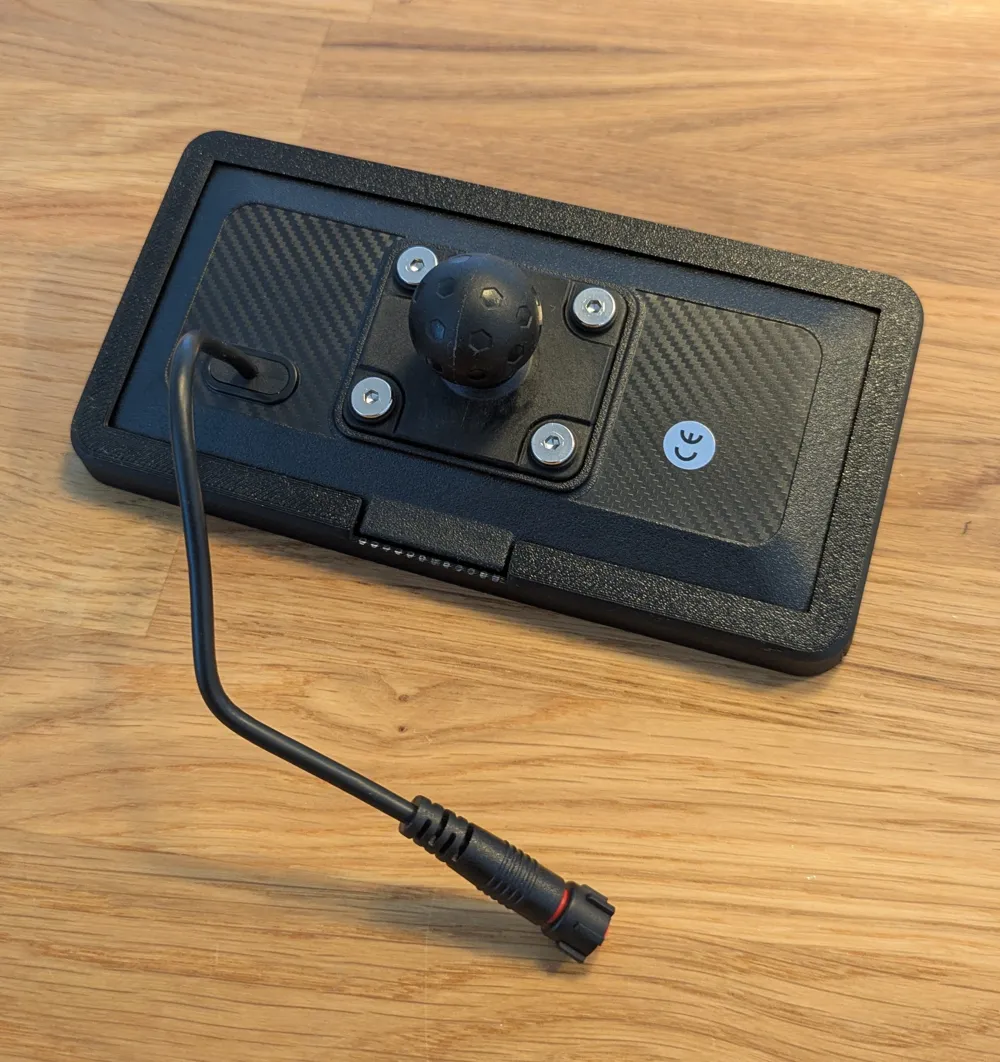

• you'll need an MicroSD Card to insert it at the bottom of the device (behind a small cover with two screws)
  • empty and formatted in FAT32
• Images have to be
  • correct aspect ratio (65 : 30), so here are some possible resolutions
    • 1560 x 720
    • 1300 × 600
    • 1170 × 540
    • 1040 × 480 (I preferred this one)
  • JPG / JPEG
  • smaller than 100kb
• create a directory “Logo” in the MicroSD and put your images there
• they should show up in the settings > general
