Customizable Air Duct Pipe Reducer Adapter, Large-to-Small Exhaust Pipe Reducer for Range Hoods
Print Profile(3)
Description
Warning Must read before printing!
Warning Must read before printing!
This model is acustomizable version, printing parameters need to be changed after customization, see details below!

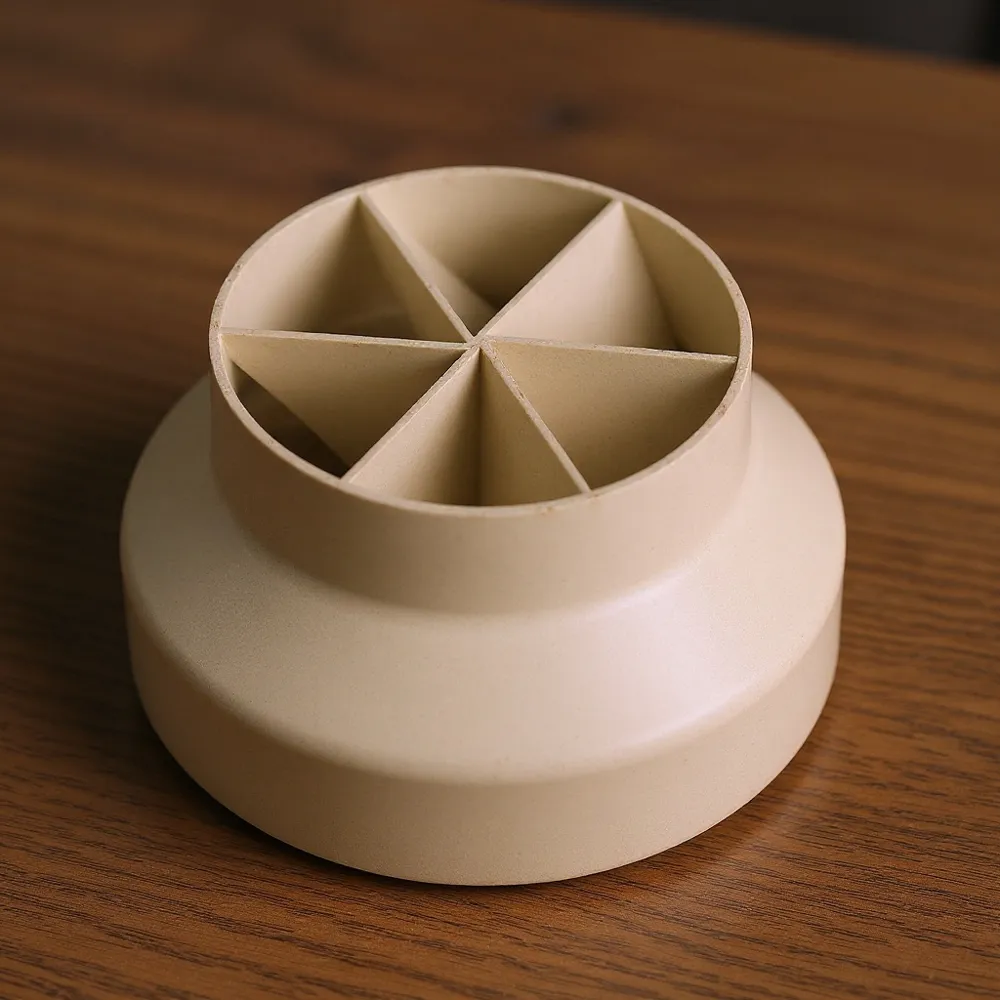

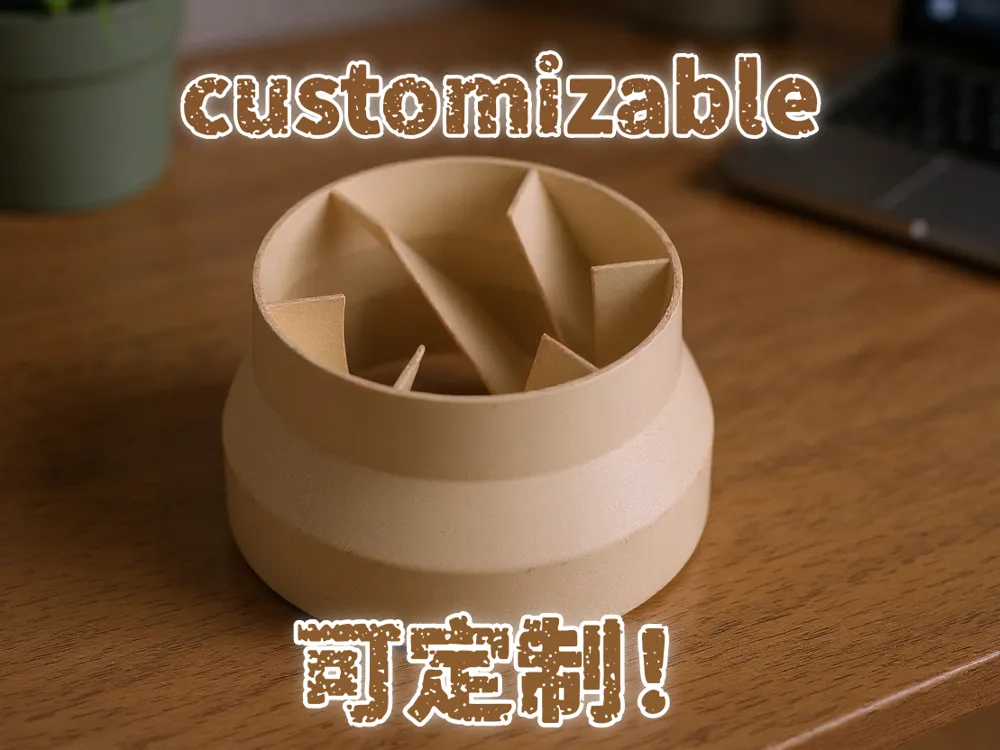

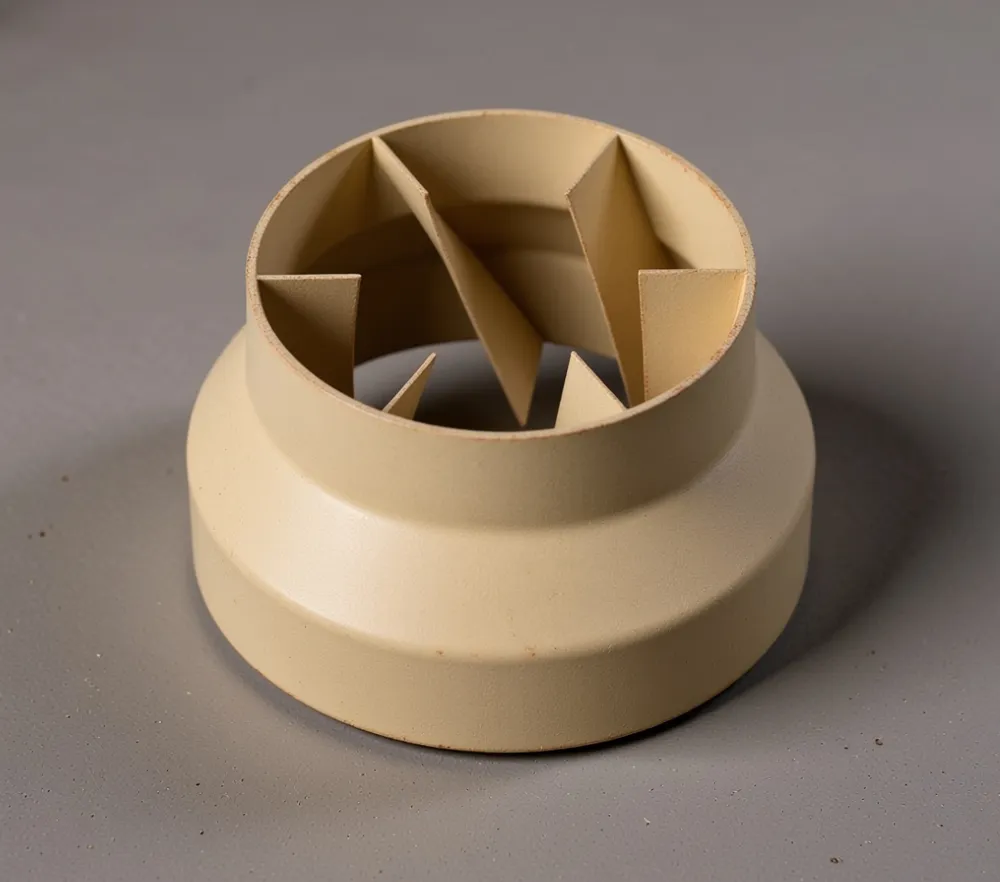

Design intent:Large diameter to small diameter will causeturbulence,so an outer guiding air duct was added. You can chooseclockwise or counter-clockwiseair duct according to the motor's wind direction

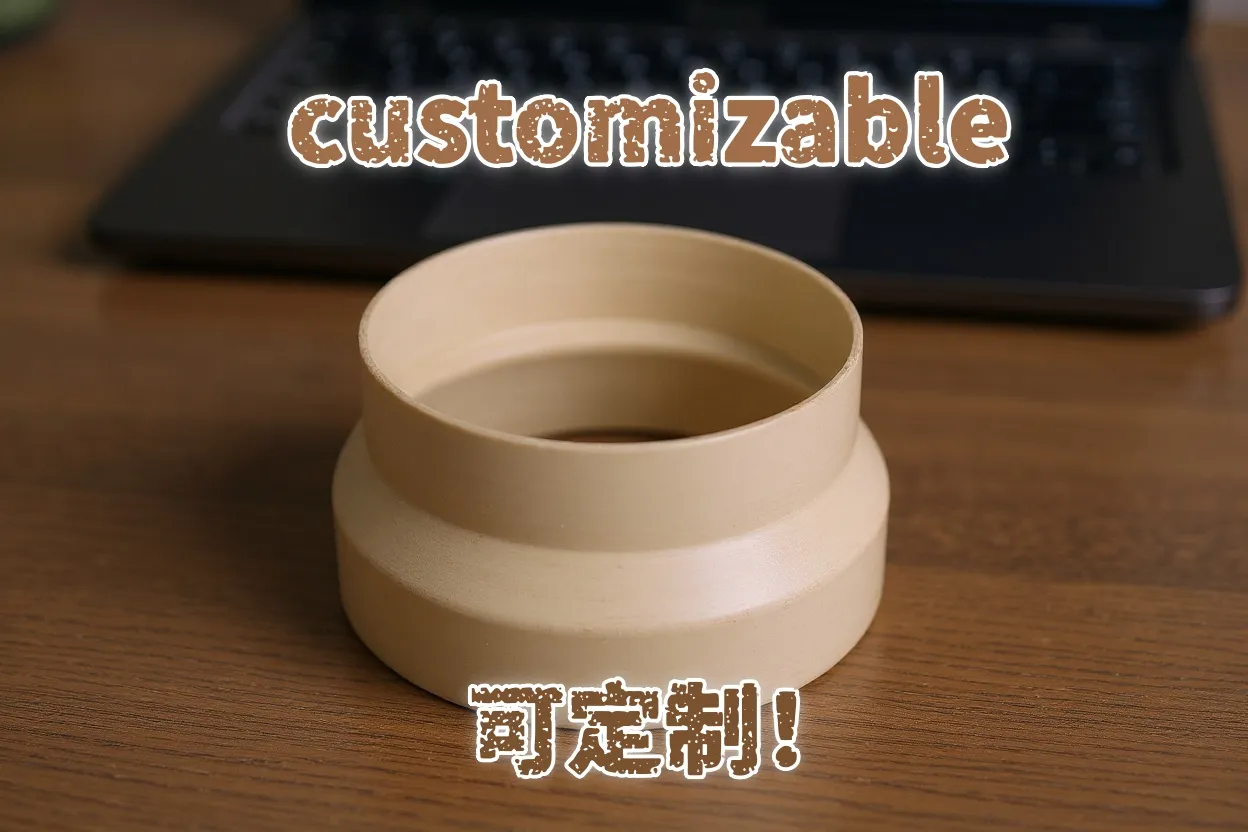

If youdo not need an air duct,please click theno air duct version
Boost Me (for free)
Thank you! thanks!!
Printing parameters after customization:
1. For large pipe diameters, printing resonance may occur, it is recommended to lower the resolution

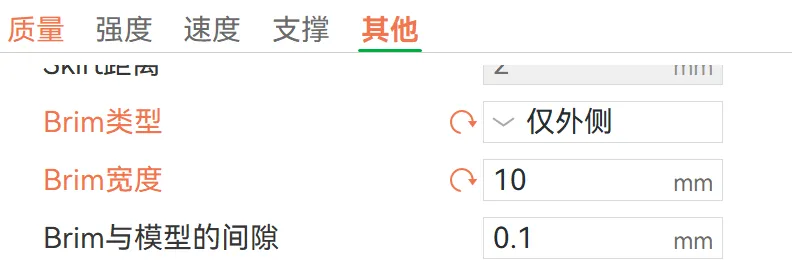

2. It is recommended to add brim. Actual tests show that without brim, for large pipe diameters, it may detach from the build plate

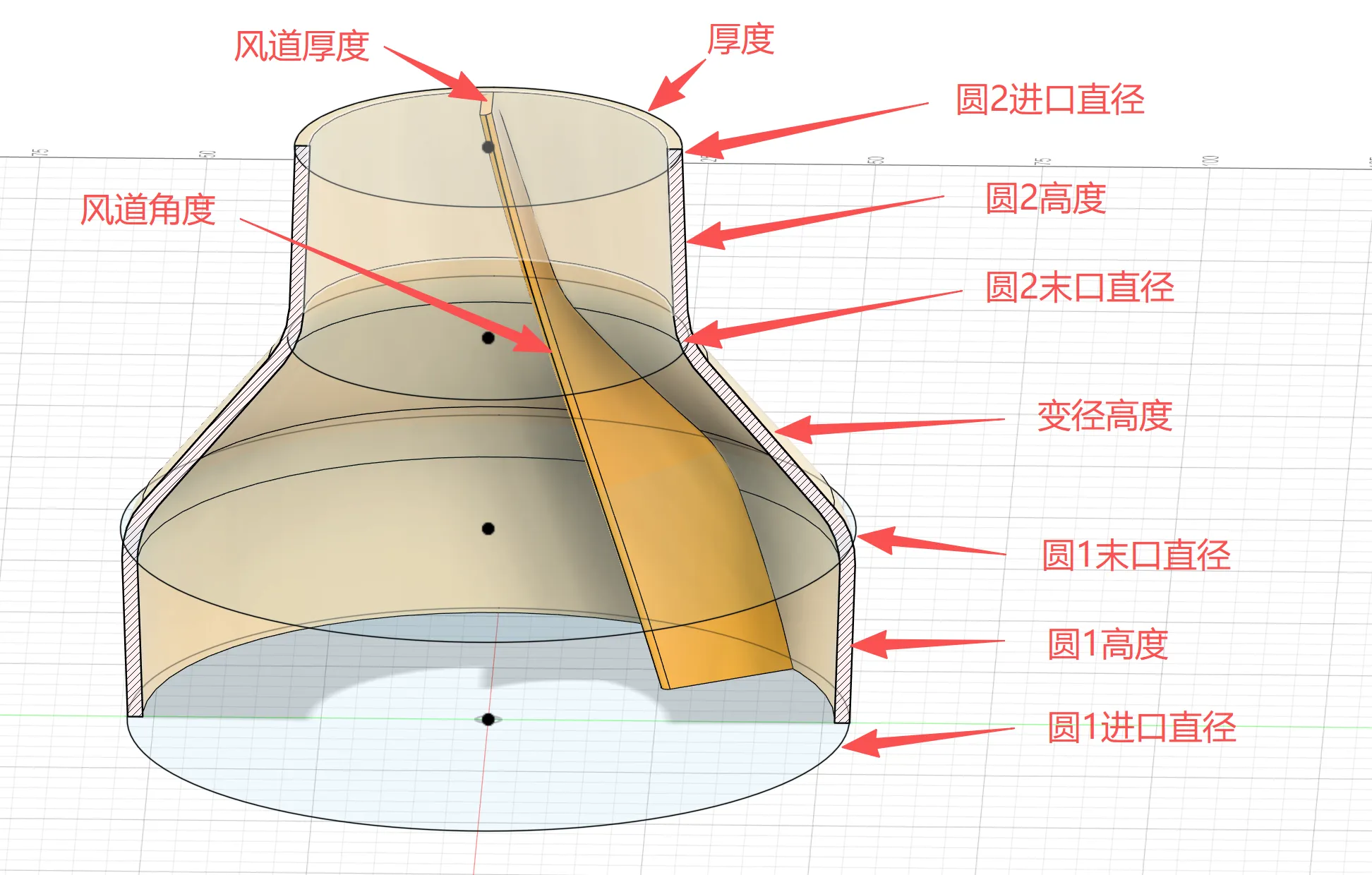

Customization item description:
Units (mm)
Air duct angle description: Positive value forclockwise air duct,negative value forcounter-clockwise air duct
Custom generation requires waiting approximately 30 seconds
