10 Inch Mini Rack Generator

MiniRack Generator

Do you have a 10 inch mini rack, but don't want to design the shelves yourself?
Easily generate your own 10 inch rack shelves, no CAD required.

Keystones

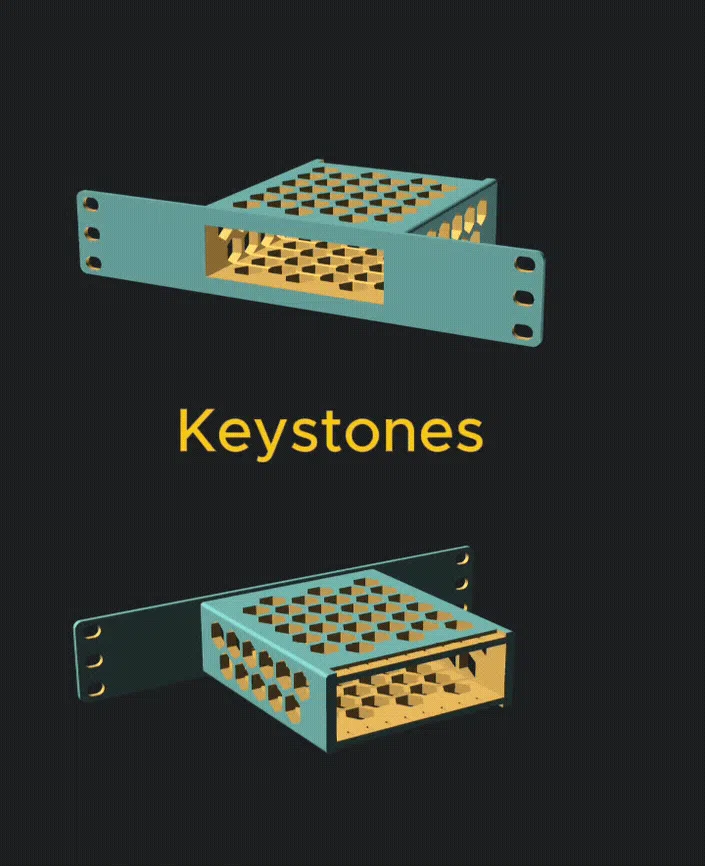

New in version 1.11.0, you can add keystone jacks.

Keystones are hard coded to be at the edge of the rack. The 10inch standard says 210mm is the largest dimension they can be placed.


The openscad library used to generate the keystone can be found on the github or makerworld

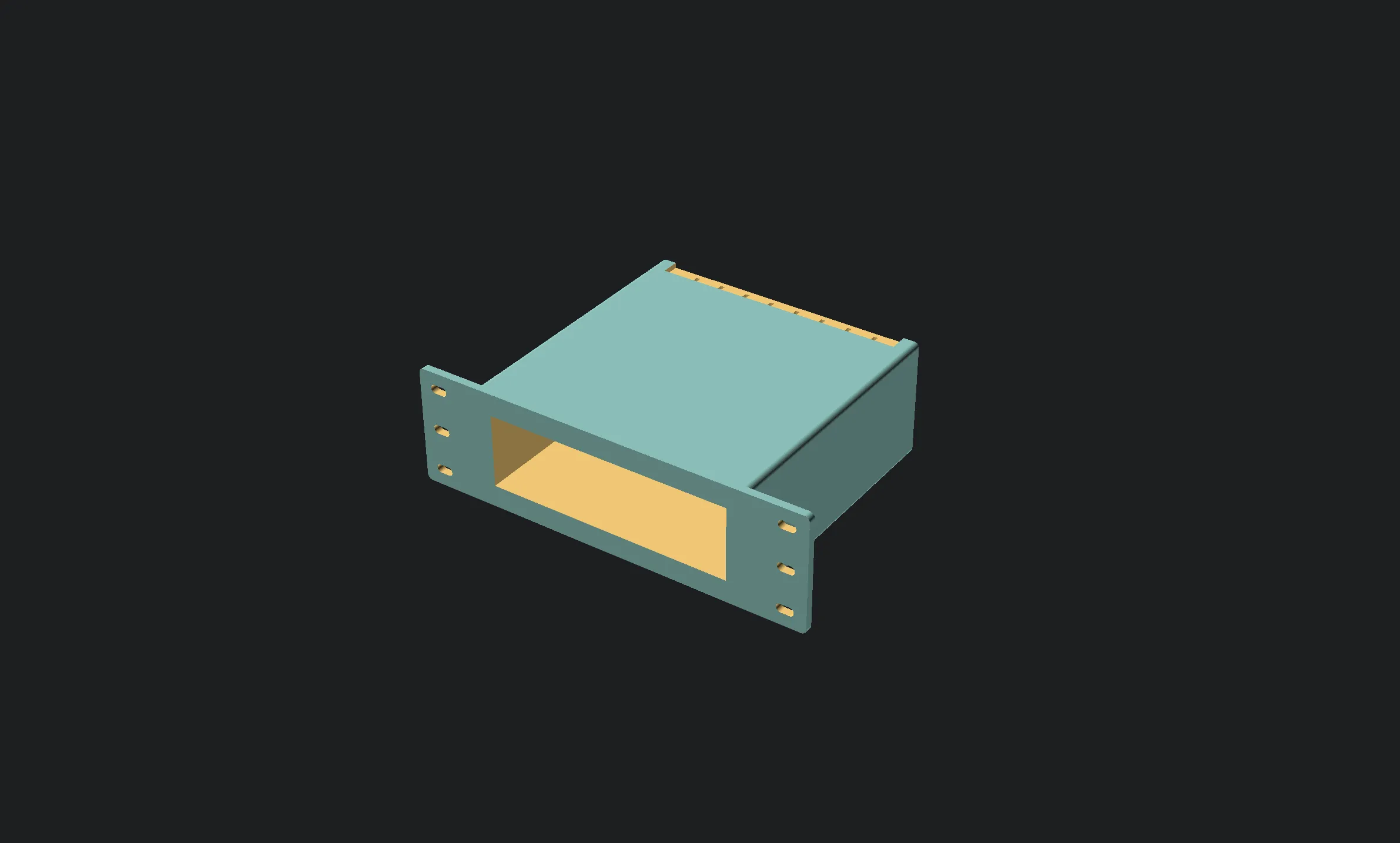

Customization

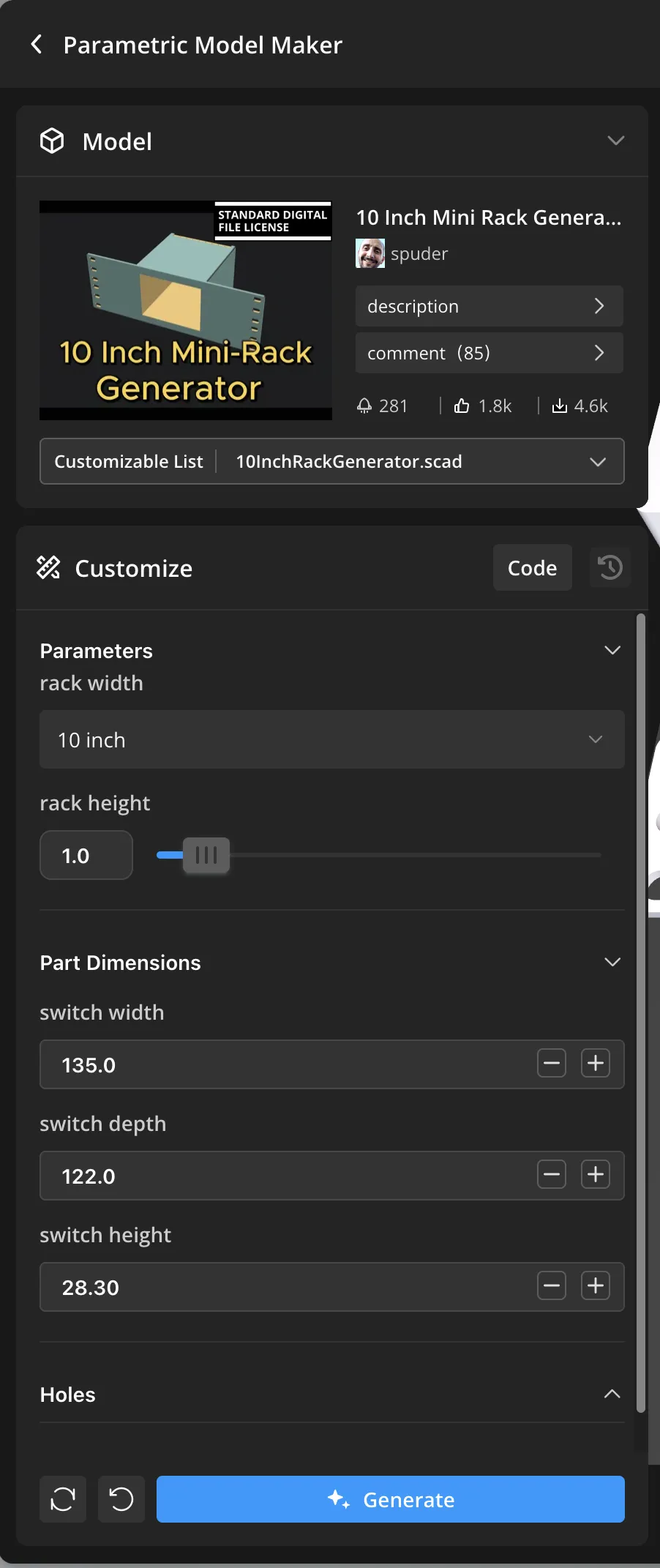

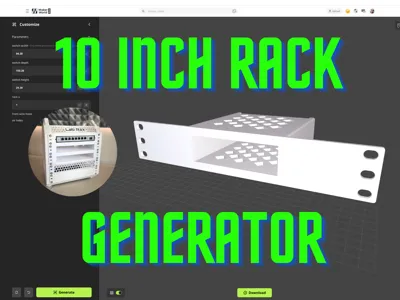

Click "Customize" and enter the dimensions of your device.

A 0.42 mm tolerance is built in, which works well for most models.

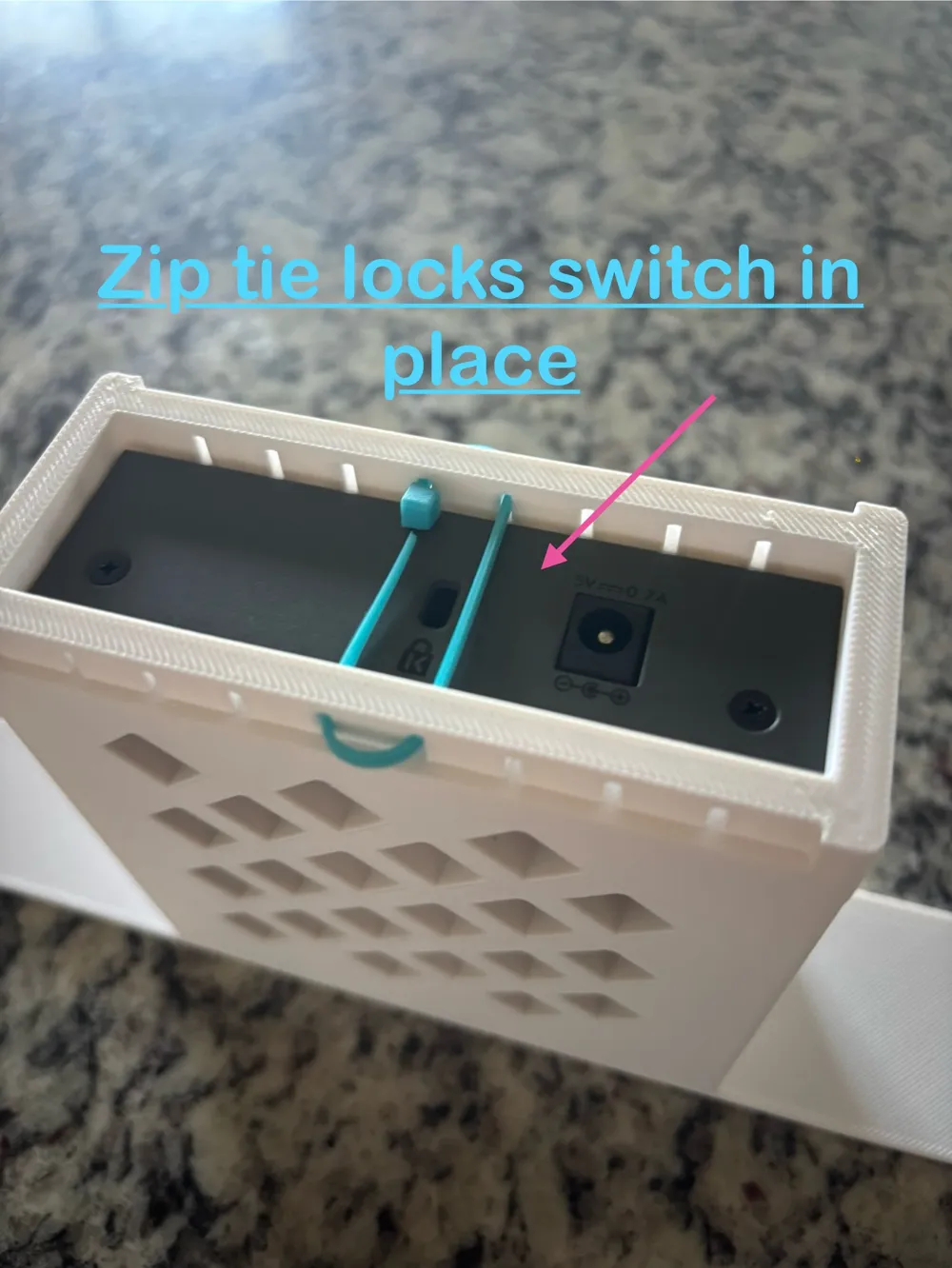

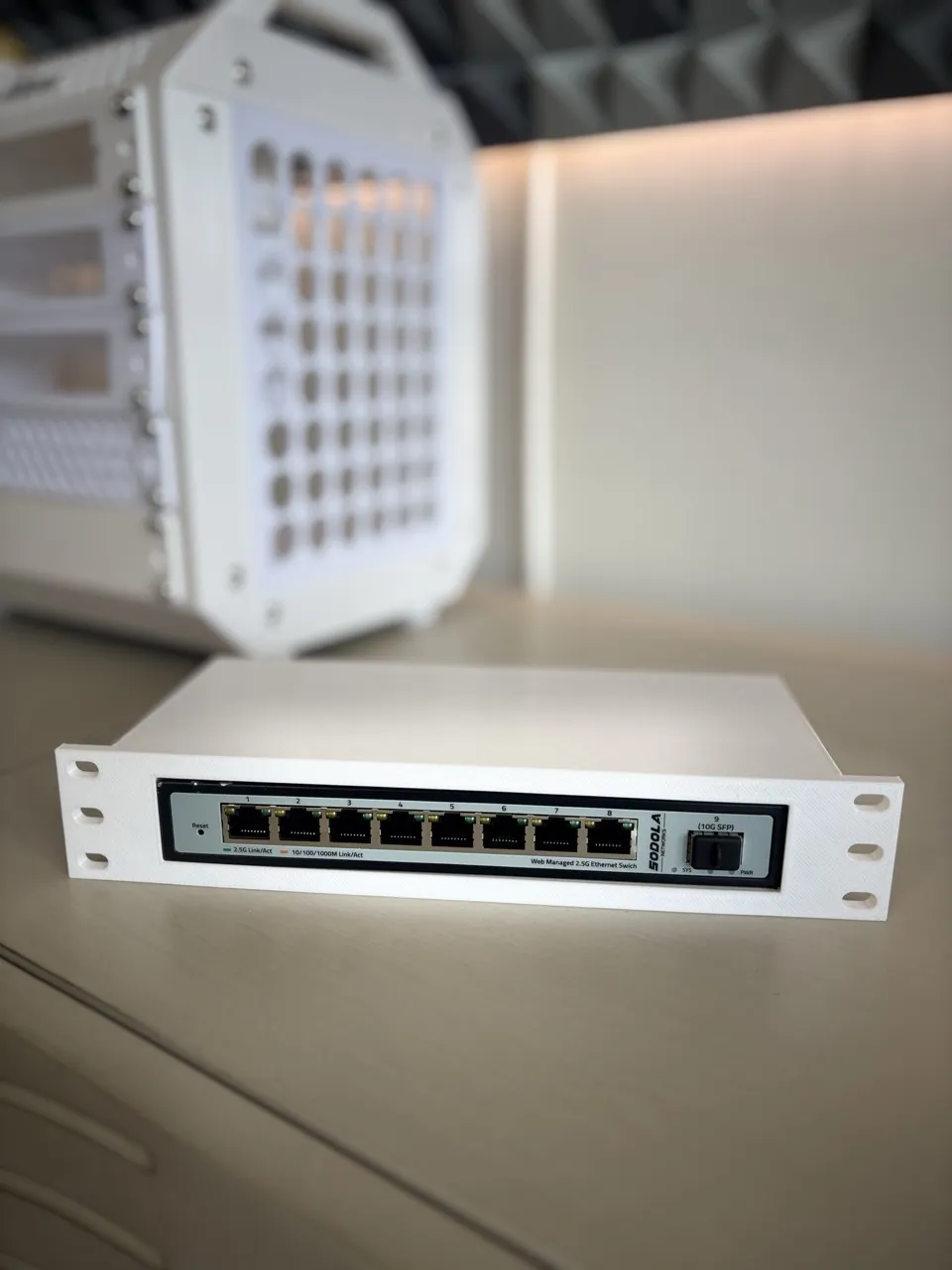

Parts stay in place with an optional 5mm ziptie



Support


Community


Have a unique device? Share the dimensions in a comment below. Together we can have models for all the popular mini rack devices.

Format: `length x width x height mm`

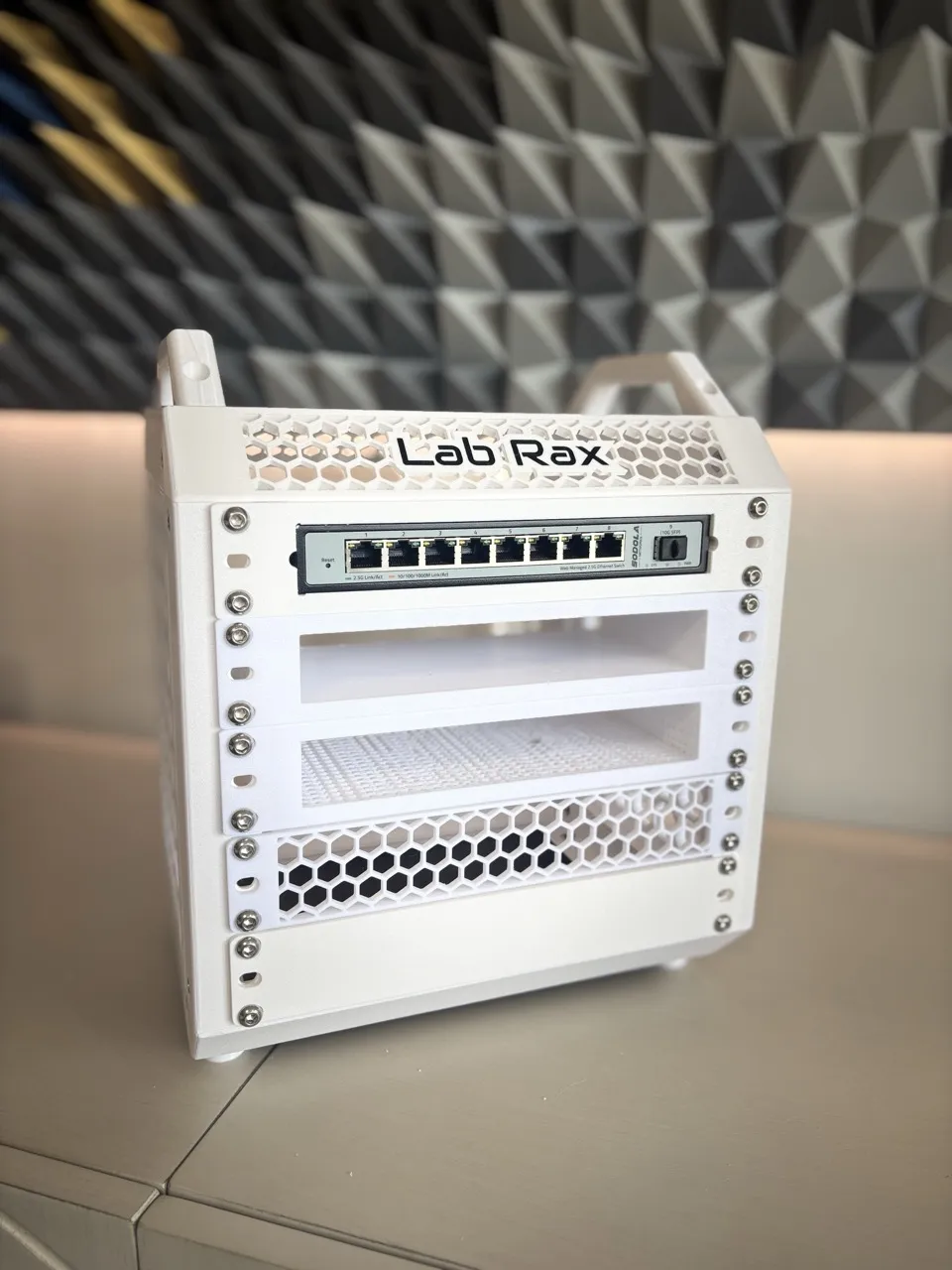

Did this generator work for you? Leave a picture. Seeing others prints motivates me to release more models.

Network Gear

• Firewalla Gold: `130 x 110 x 34 mm`
• Firewalla Purple (wifi): `90 x 60 x 30 mm`*
• Firewalla Purple (Ethernet): `130 x 110 x 34 mm`*
• Firewalla Purple SE: `90 x 60 x 30 mm`*
• UniFi Security Gateway: `135 x 135 x 28.3 mm`*
• UniFi Cloud Key G2+: `131.2 x 27.1 x 134.2 mm`*
• UniFi Flex Mini: `107 x 70 x 21 mm`*
• UniFi Flex Mini 2.5G: `117.1 x 90 x 21.2 mm`*
• UniFi Flex 2.5: `212.9 x 76 x 33.5 mm`*
• UniFi Lite 8 POE: `99.6 x 163.7 x 31.7 mm`*
• UniFi Lite 16 POE: `192 x 185 x 44 mm`*
• UniFi Express: `98 x 98 x 30 mm`*
• UniFi Cloud Gateway Ultra/Max: `141.8 x 127.6 x 30 mm`*


Compute

• IBM M70q Gen 5: `179 x 182.9 x 36.5 mm`*
• IBM M70q Gen 4: `179 x 183 x 34.5 mm`*
• IBM M90q Gen 5: `179 x 182.9 x 36.5 mm`*
• Dell OptiPlex 7020: `182 x 178 x 36 mm`*
• HP Elite Mini 800: `177.5 x 175.2 x 34.3 mm`*
• M4 Mac Mini: `127 x 127 x 50 mm`*
• BeeLink ME Mini: `99 x 99 x 99 mm`*
• Xyber Hydra: `140 x 98.5 x 34.5 mm`*


Storage


• Synology DS223j: `165 x 100 x 225.5 mm`*
• Synology DS223: `165 x 108 x 232.7 mm`*
• Synology DS124: `166 x 71 x 224 mm`*

(`*` indicates theoretical, untested dimensions)

6 Inch

New! Now supports 6 inch models for those extra tiny mini-racks.



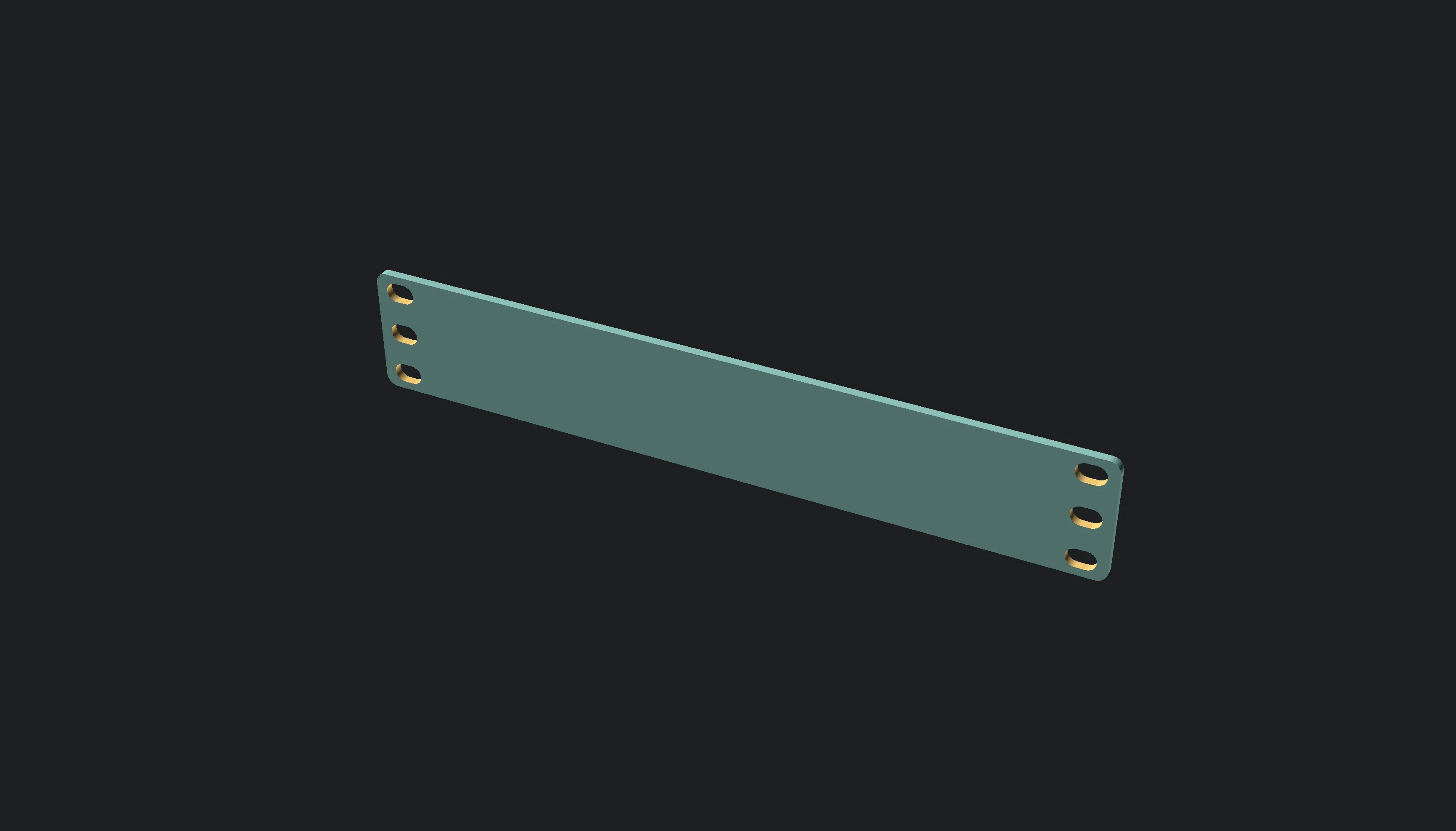

Plate Generator


New! There is a second generator that will make blank plates. Supports both 6 inch and 10 inch

By disabling top/bottom layers and playing with line width, you can create different airhole patterns.




Resources


Checkout these related projects:

• Jeff Gerrling mini-rack
• LabRax by mklements on MakerWorld
• 6 Inch printable rack
• 10 Inch parametric shelf generator
• Alternative 10 inch rack generator with cage
• OpenRack - A 19Inch modular system


Source Code is available on github
