Cabinet Handle & Drawer Pull Drilling Jig

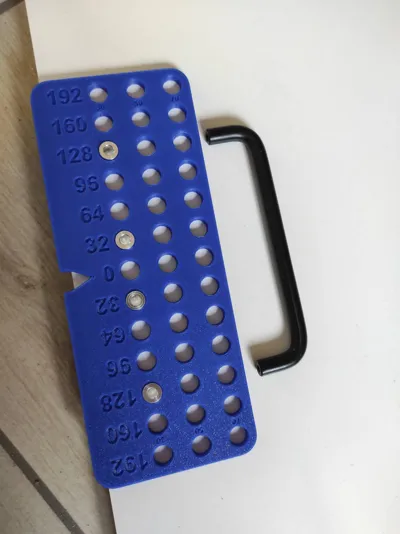

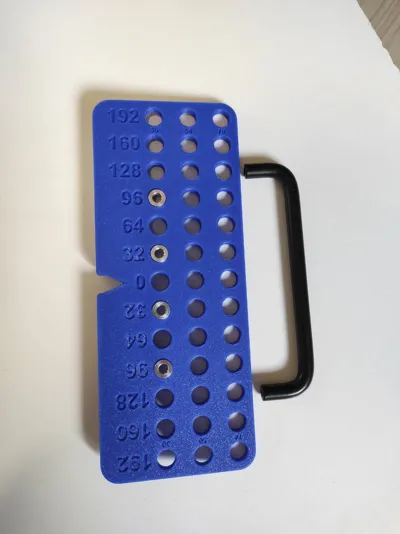

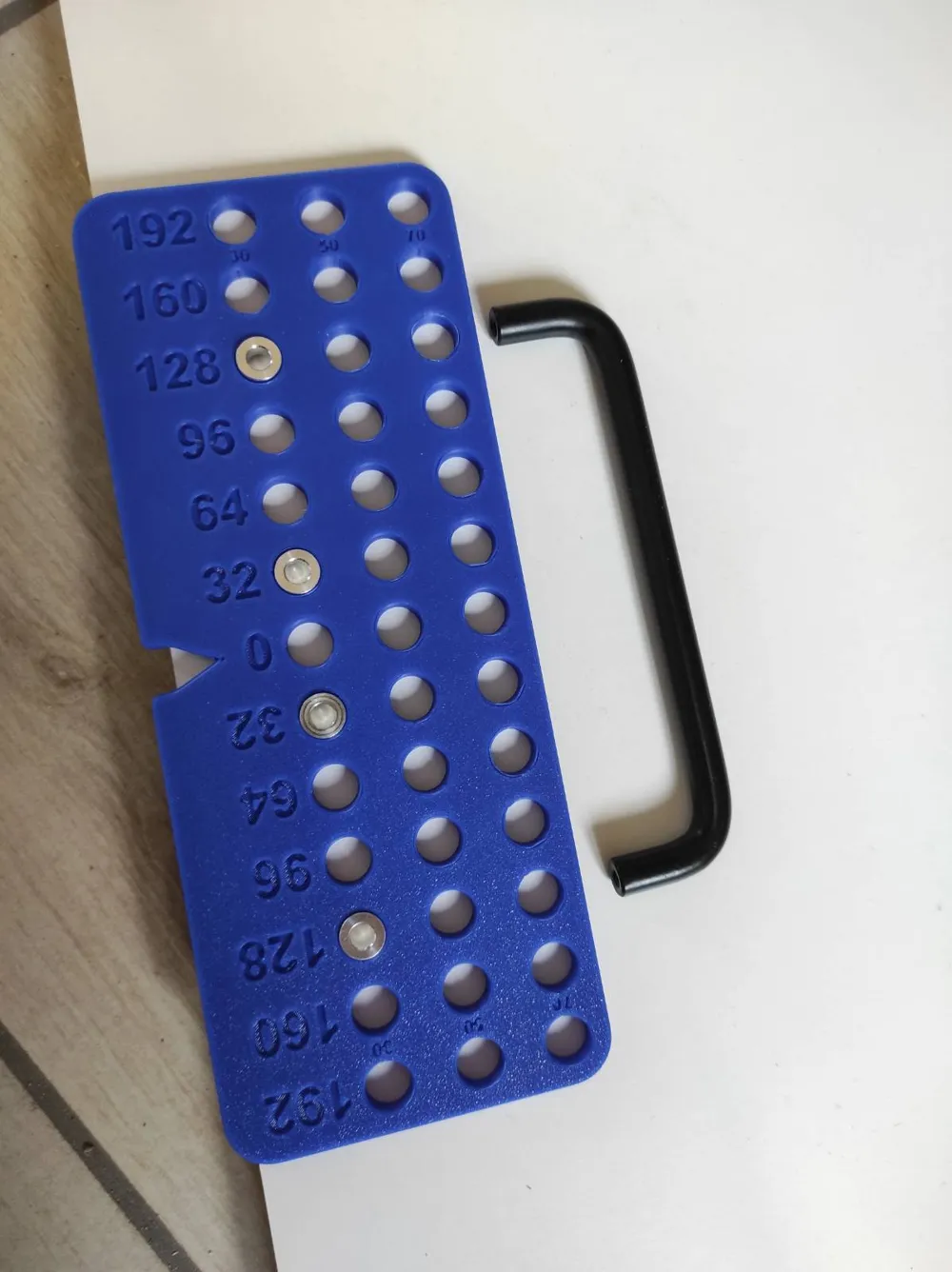

This tool is designed to make installing cabinet handles and drawer knobs quick, easy, and perfectly aligned. Just like my shelf pin jig, this template utilizes replaceable metal sleeves to ensure long-lasting durability and precision.

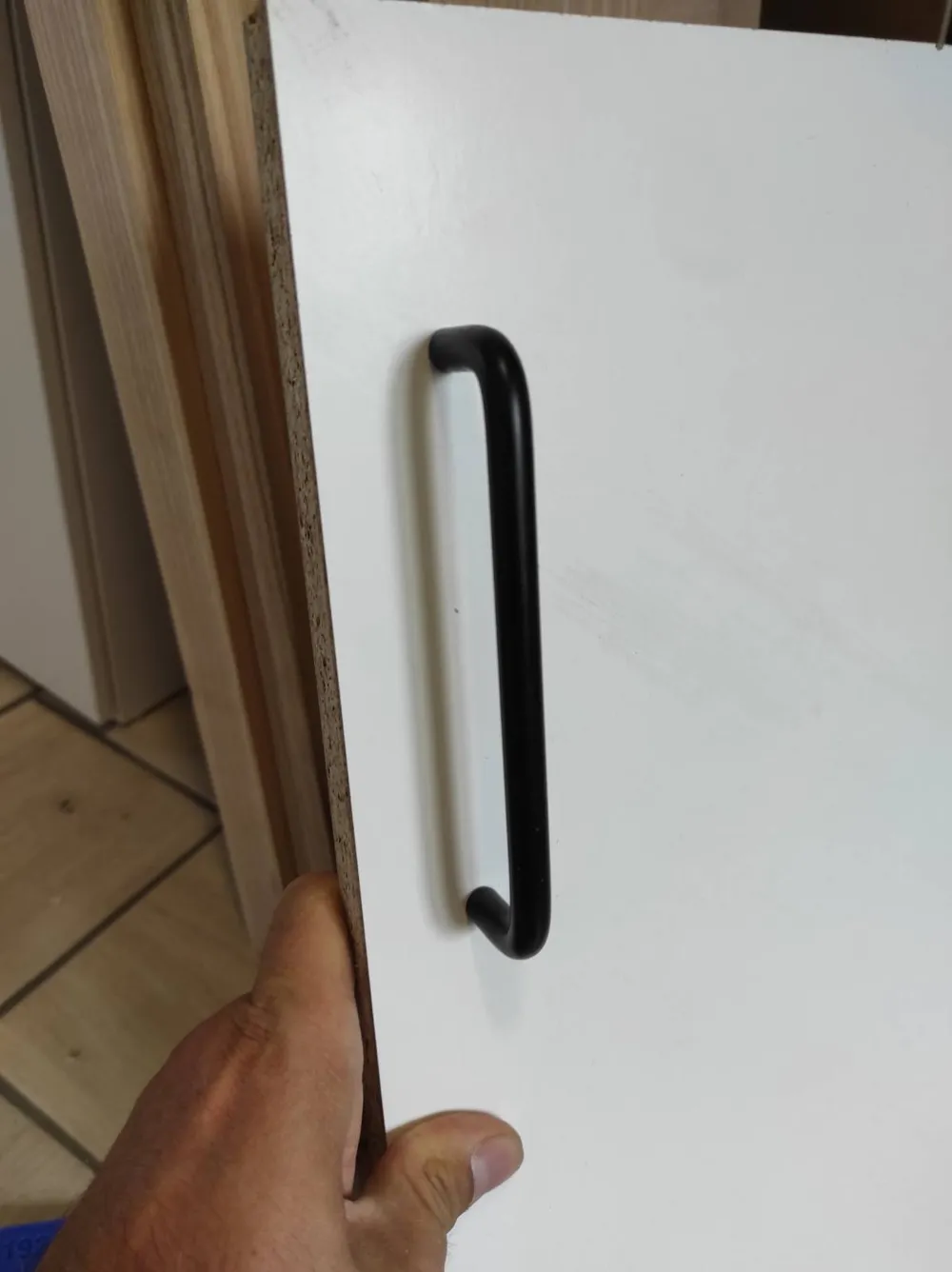

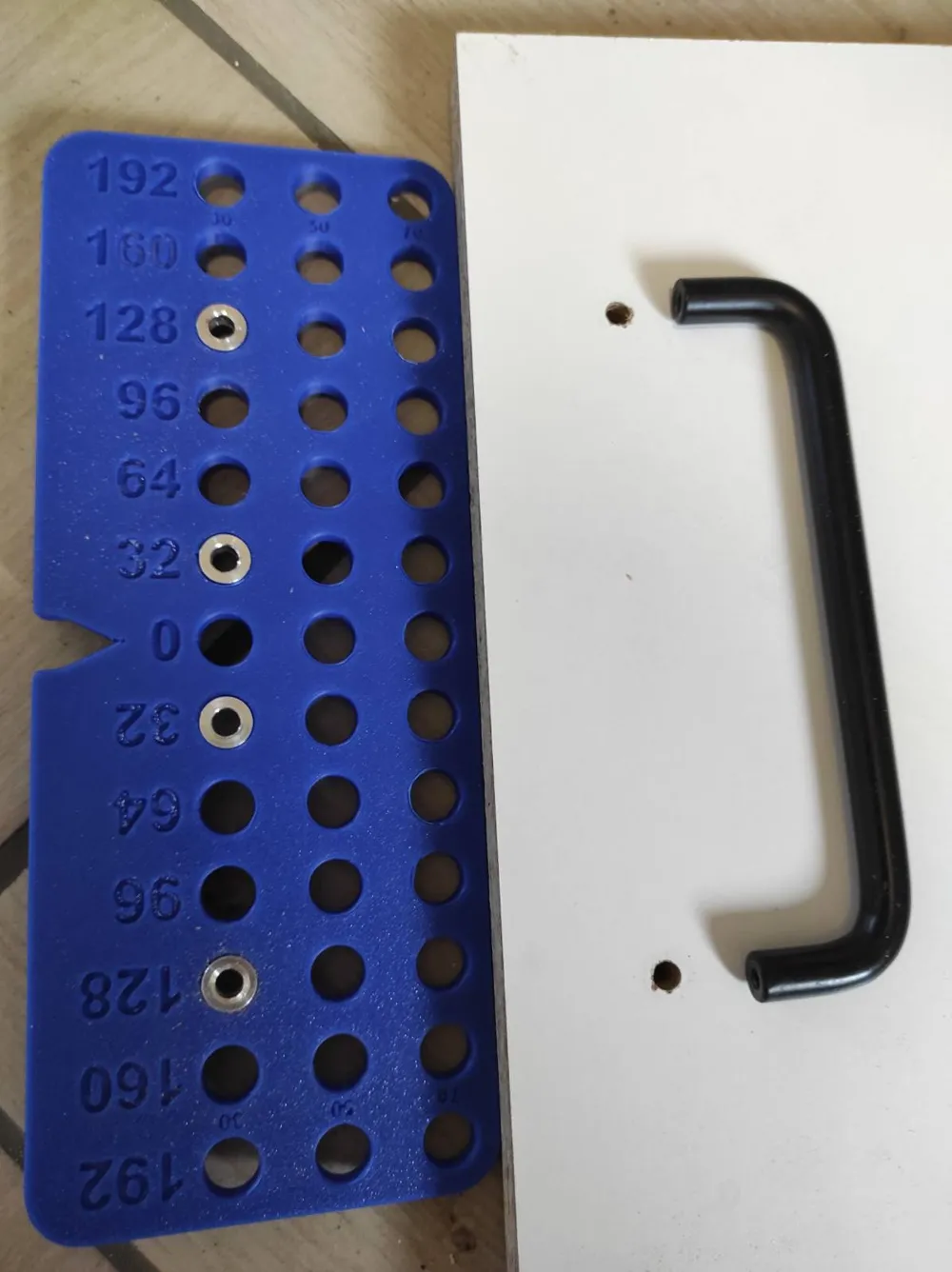

Say goodbye to measuring every single drawer front – just align the jig and drill directly through the guide!

Key Features:

• Perfect Alignment: Ensures consistent positioning for handles across all your cabinet doors and drawers.

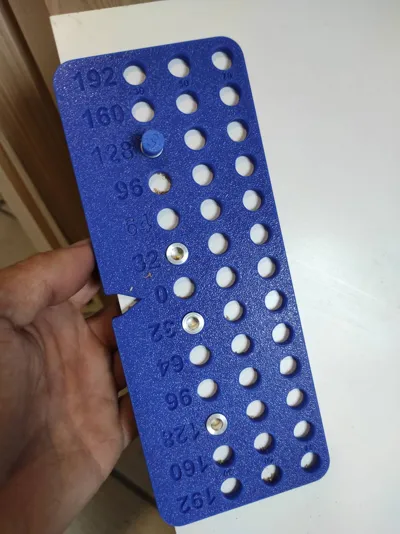

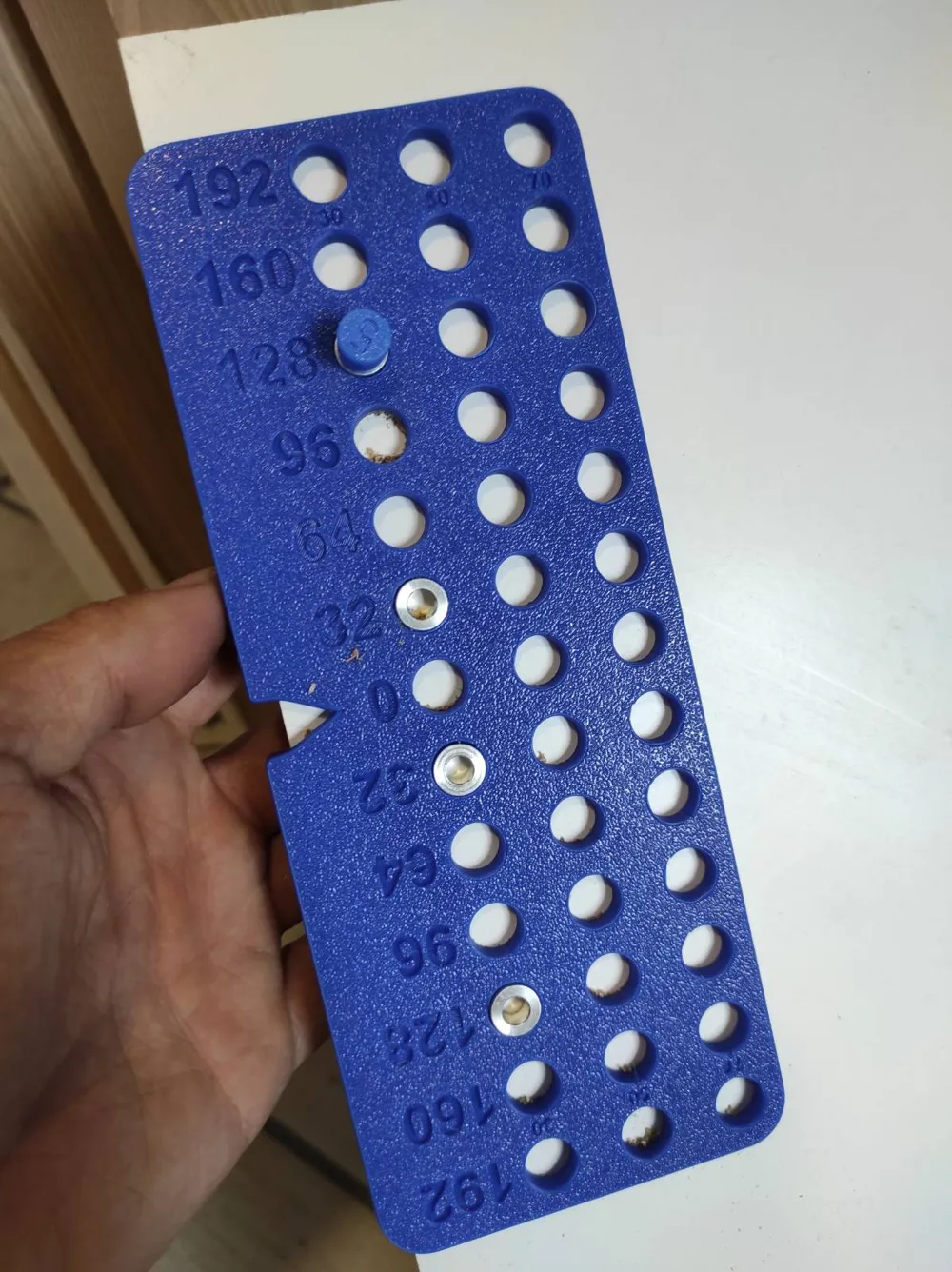

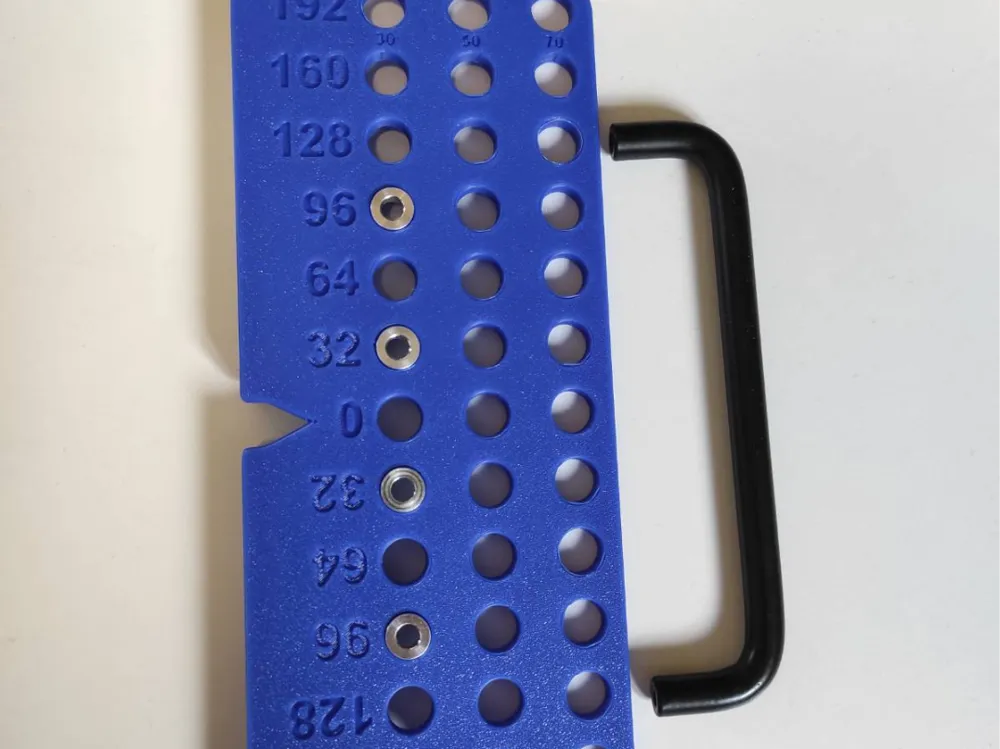

• Metal Bushing System: Designed for 5x10x5 mm metal sleeves. This prevents the drill bit from widening the holes in the plastic, keeping the tool accurate over time.
• Versatile: Works for both single-knob installation and two-hole pulls.
• No Marking Required: Drill confidently directly through the template.

🔩 Bill of Materials

To assemble this jig, you will need:

• Metal Sleeves/Bushings: 5mm (Inner Diameter) x 10mm (Outer Diameter) x 5mm (Height).

🖨️ Print Settings

For a tool that withstands mechanical stress, I recommend these settings:

• Material: PLA+ / PETG.
• Walls/Perimeters: 3-4 walls.
• Infill: ~10% (Grid or Gyroid).
• Supports: No supports needed.
