Syringe holder with integrated ampoule opener







🇩🇪 Syringe Holder with Card Slot and Ampoule Opener – for Fire Department and Rescue Service

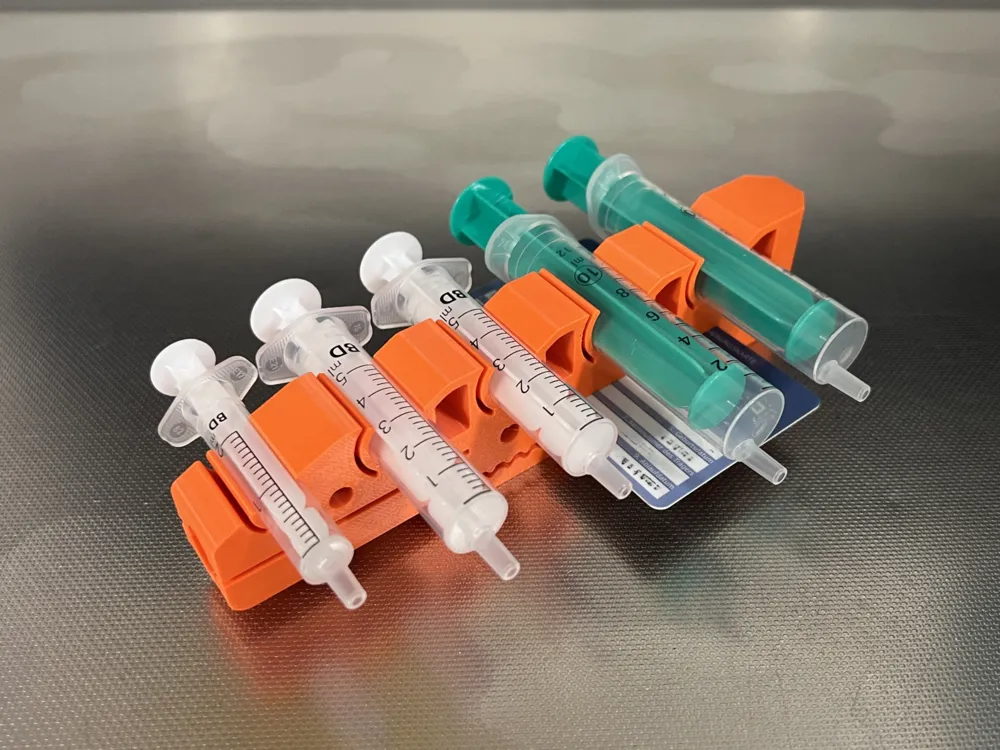

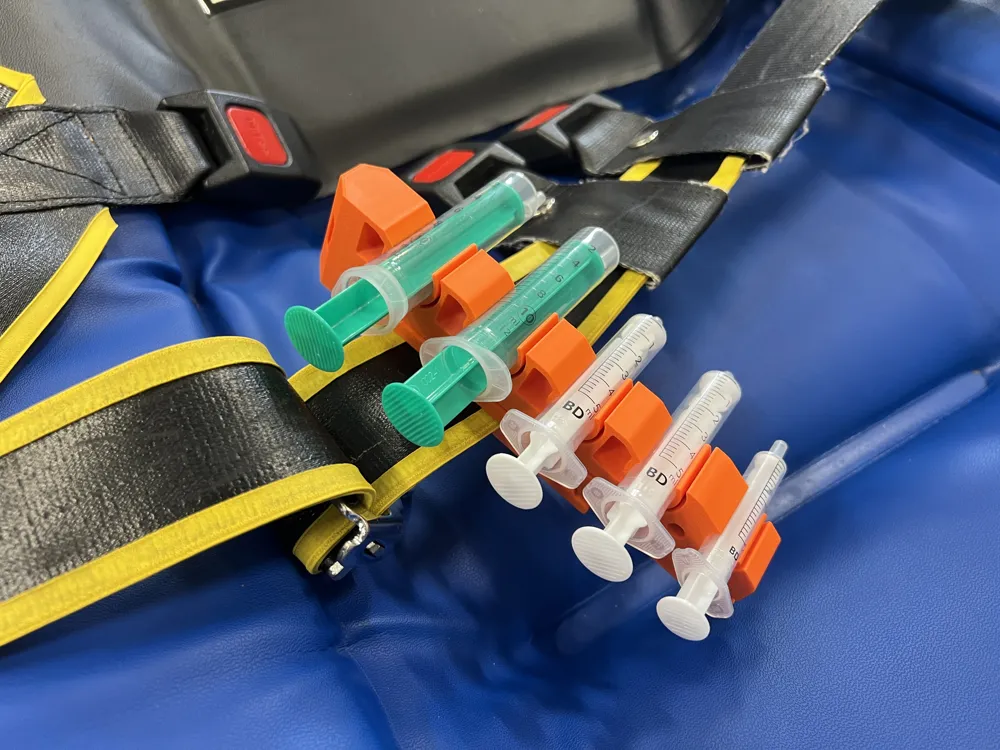

This compact syringe holder was specially developed for use in emergency medical services. It can be conveniently attached to pants or stretcher straps and keeps all prepared syringes organized and ready to hand. The holder accommodates 2×10 ml, 2×5 ml, and 1×2 ml syringes.

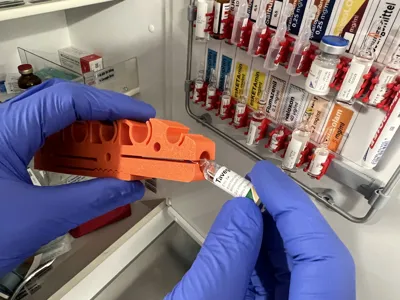

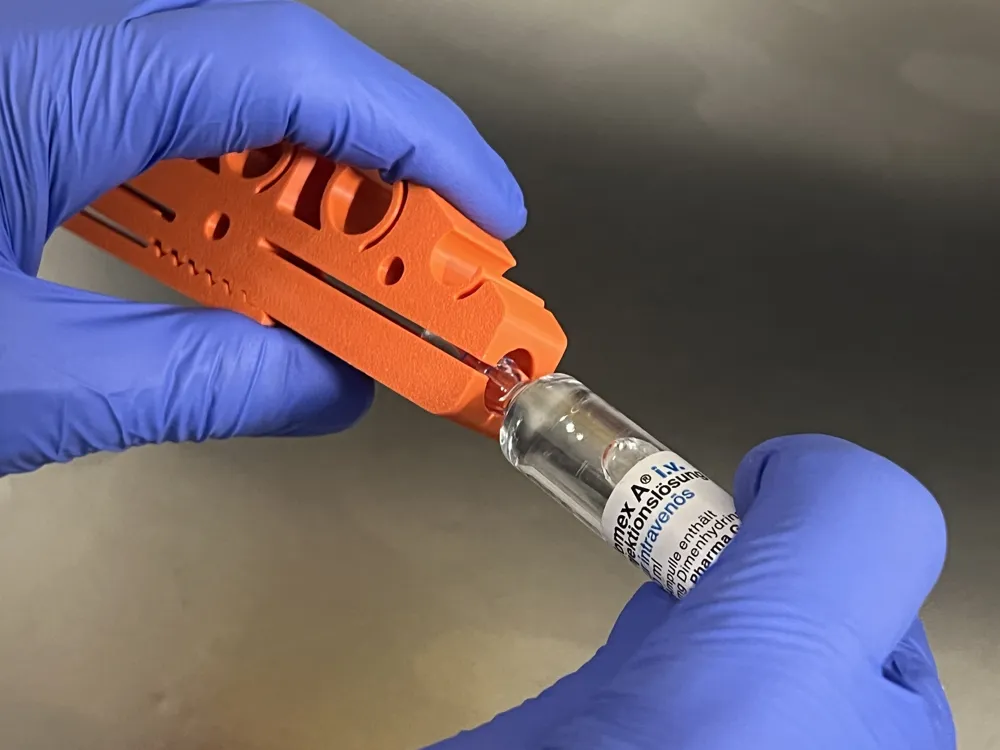

As a special feature, the clip has a secure compartment for storing the patient's health insurance card. A small tool is also integrated at the front end, with which glass ampoules can be safely broken open. The broken part remains in the opener and can then be easily disposed of – thus significantly reducing the risk of injury.



For future extensions, holes are already prepared in the holder to allow additional attachments to be added later.





🇺🇸 Syringe Holder with Card Slot and Ampoule Opener – for EMS and Rescue
This compact syringe holder is designed for use in emergency medical services. It can be clipped to a belt, pants, or stretcher straps and keeps all prepared syringes ready for quick access. The holder fits 2×10 ml, 2×5 ml, and 1×2 ml syringes.



As a special feature, the clip also provides a secure slot for the patient’s health insurance card. At the front, there is a small tool to safely open glass ampoules – the broken tip remains in the opener and can be disposed of easily, reducing the risk of finger injuries.



Additional mounting holes are already integrated into the design, allowing future extensions or add-on parts to be attached.







Lastly:



Commercial use of any of my designs is strictly prohibited**. All of my designs are exclusively available on my profile on Makerworld.
If you come across my designs on other platforms, please let me know so I can take appropriate action.
From the beginning, I’ve relied on the honesty of users in order to offer all my content for free.



Regards, Niklas
